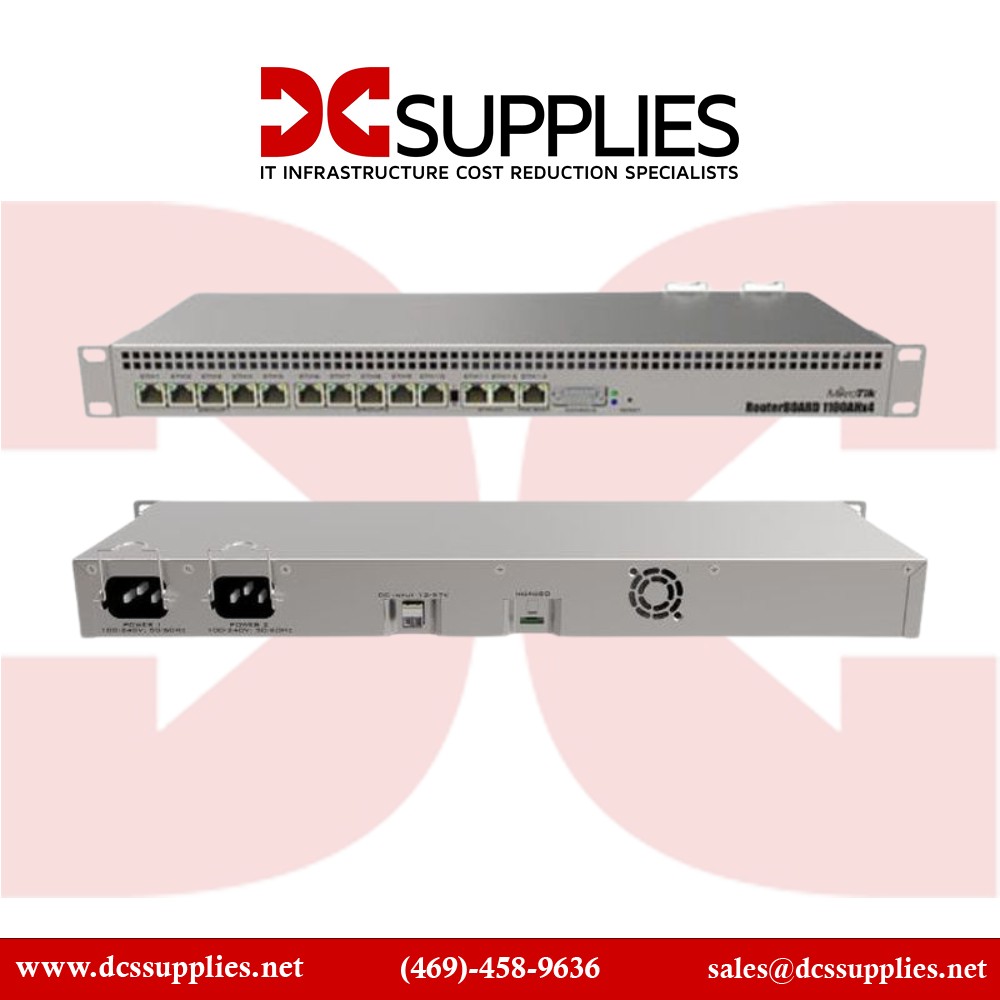

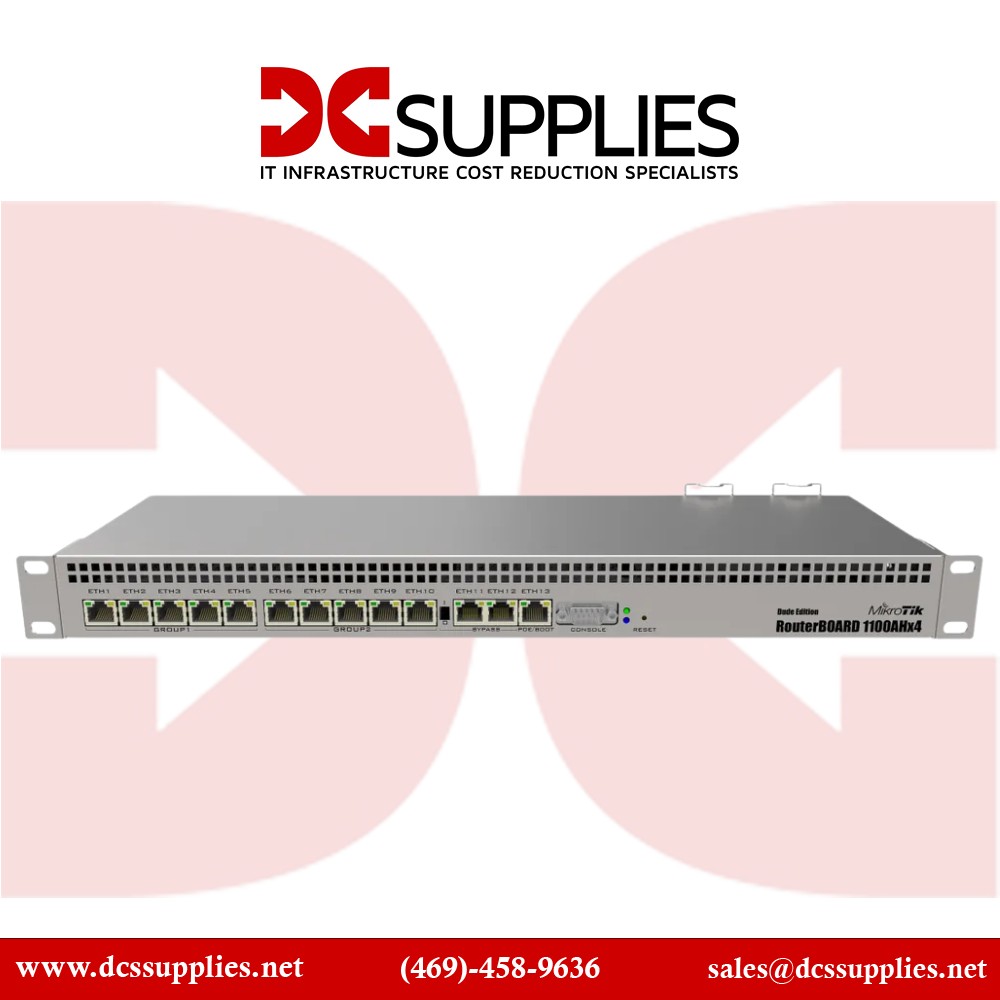

MikroTik RB1100x4 1U Rackmount Router 13x Gigabit Ethernet ports

New

MikroTik RB1100x4 1U Rackmount Router 13x Gigabit Ethernet...

×




  • New

Detailed Specifications

MikroTik RB1100x4

1U Rackmount Router with 13x Gigabit Ethernet Ports

The MikroTik RB1100x4 Rackmount Router is a high-performance networking solution designed for enterprise networks, data centers, and ISPs. With 13 Gigabit Ethernet ports, a quad-core CPU, and advanced RouterOS functionality, it delivers speed, reliability,and configurability for demanding environments.

Features

Engineered with a quad-core ARM Cortex-A15 processor clocked at 1.4 GHz, the RB1100x4 provides ample processing power for intensive routing and firewall tasks. With 13 Gigabit Ethernet ports, it supports high-density LAN and WAN connectivity, making it suitable for multi-segmented networks and complex infrastructures.

Advanced Options

This router comes pre-installed with RouterOS Level 6, MikroTik's robust and flexible operating system offering comprehensive tools for routing, firewalling, traffic control, VPNs, and more. The 1U rackmount design integrates easily into standard server racks, and passive cooling ensures silent, efficient operation.

Product Key Features

    •  Powered by Quad-Core ARM Cortex-A15 CPU at 1.4 GHz for high-performance routing

    •  Equipped with 13x Gigabit Ethernet ports for robust network connectivity

    •  Features 1 GB DDR3 RAM and 60 GB M.2 SSD for fast storage and logging

    • Passive cooling design ensures silent, fanless operation in server racks

    • RouterOS Level 6 license included for advanced routing, firewall, and VPN features

    • 1U rackmount form factor, ideal for enterprise and data center environments

Reliability & Performance

Built for uninterrupted performance, the RB1100x4 features passive cooling, eliminating moving parts and reducing failure points. Its 1 GB DDR3 RAM, 128 MB NAND, and a 60 GB M.2 SSD provide stable memory and storage capacity for routing tables, logs, and system updates. It also includes dual power supplies for redundancy, ensuring minimal downtime in mission-critical environments.

Key Features :

    • Quad-core ARM Cortex-A15 1.4 GHz processor

    • 13 × Gigabit Ethernet ports

    • 1 GB DDR3 RAM

    • 128 MB NAND + 60 GB M.2 SSD

    • Passive, fanless cooling system

    • RouterOS Level 6 pre-installed

    • Dual power supply support

    • 1U rackmount chassis

SpecificationDetails
Model Number RB1100x4
Product Type 1U Rackmount Router
CPU Annapurna Labs AL21400, Quad-Core 1.4 GHz
RAM 1 GB DDR3
Storage 128 MB NAND + 60 GB M.2 SSD
Ethernet Ports 13 × 10/100/1000 Mbps RJ-45
Operating System RouterOS, License Level 6
Cooling Passive (fanless)
Power Supply Dual redundant support
Form Factor 1U Rackmount
Dimensions 443 × 148 × 44 mm
Weight ~1.8 kg
