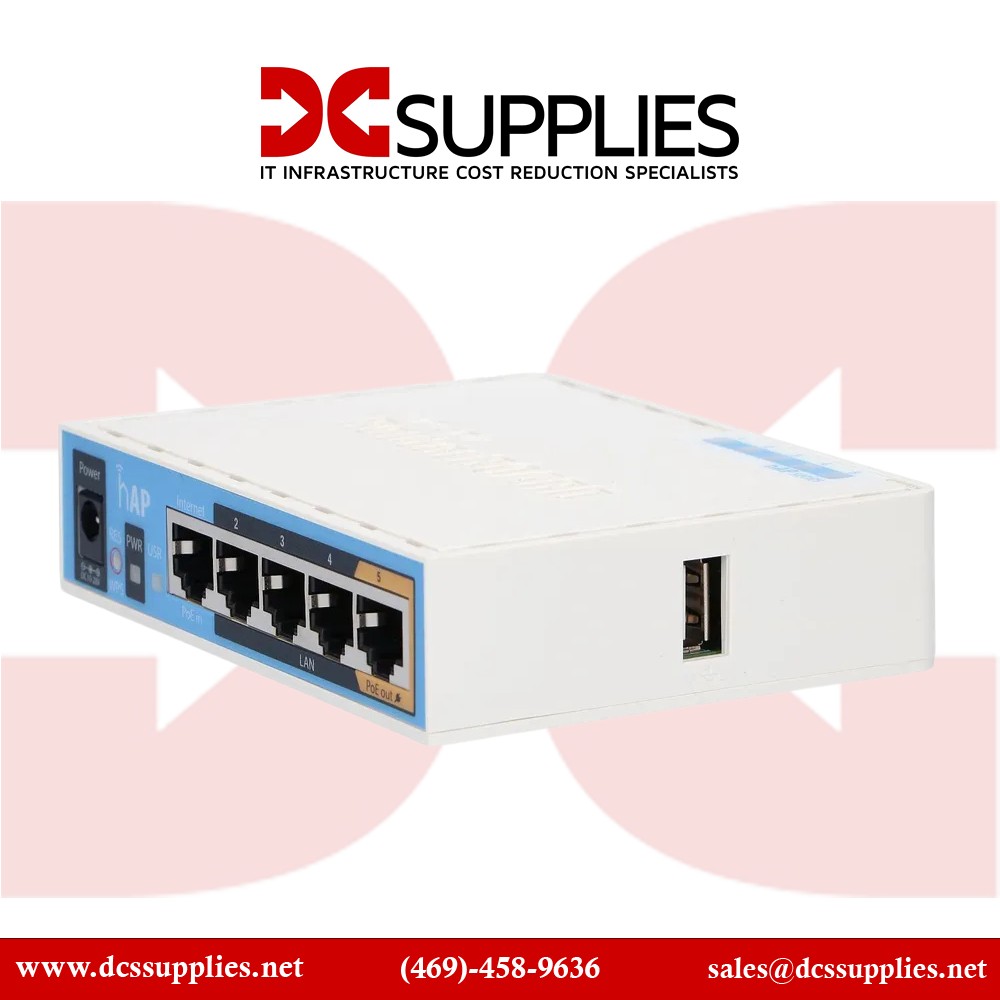

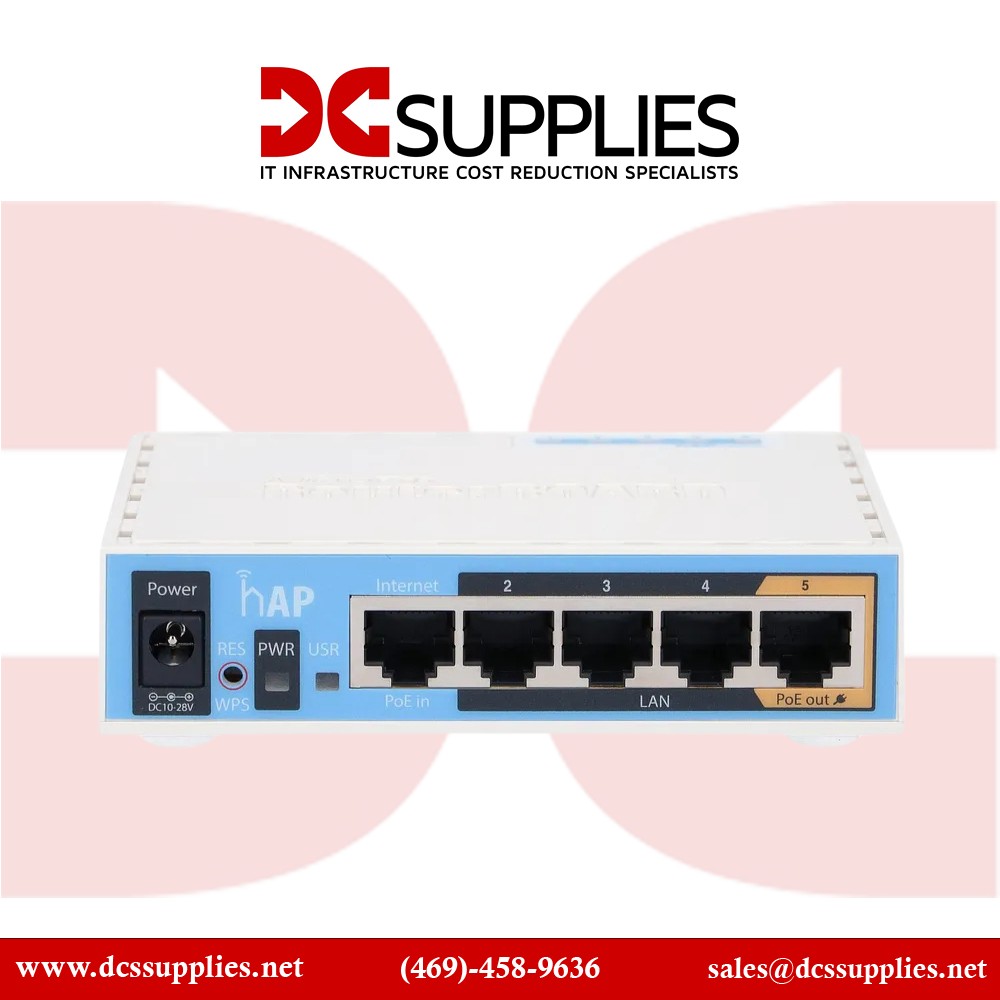

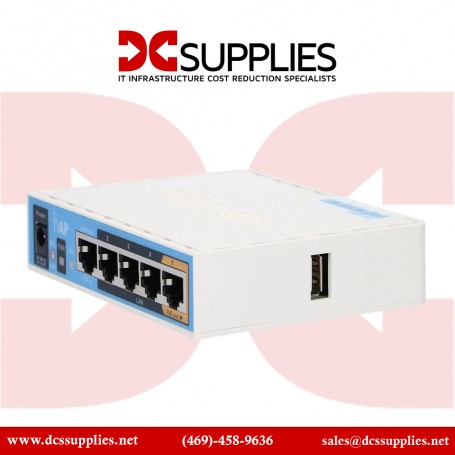

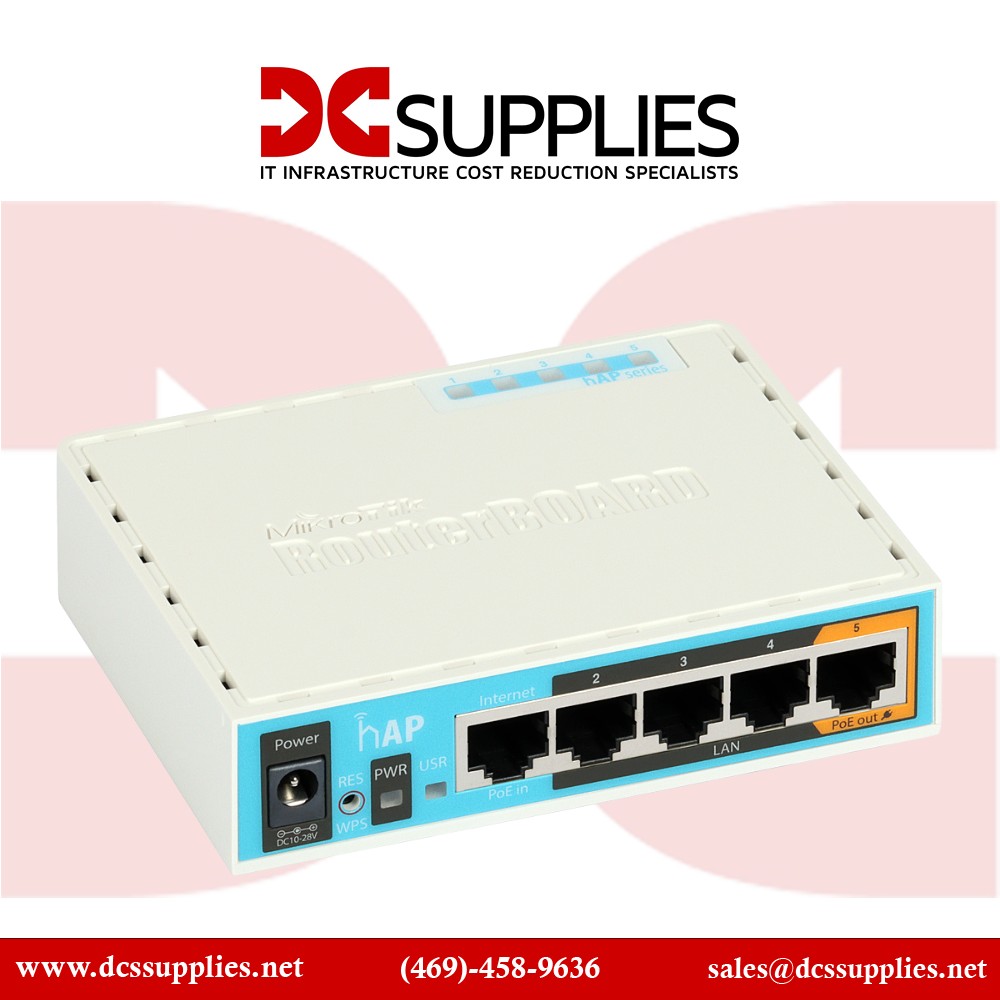

MikroTik RB952Ui-5ac2nD-US

RB952Ui-5ac2nD-US hAP ac lite - Dual-Band Indoor Wireless Router with PoE-Out (US Version)

The hAP ac lite (RB952Ui-5ac2nD-US) is a versatile, budget-friendly indoor wireless router delivering dual-band Wi-Fi, multi-LAN connectivity, and PoE functionality×all powered by MikroTik's robust RouterOS. Designed specifically for US regulatory compliance, it's perfect for homes, small offices, or backup setups.

Features

Equipped with a dual-chain 2.4 GHz radio (up to 300 Mbps) and single-chain 5 GHz radio (up to 433 Mbps), this compact router provides solid wireless coverage. It includes five Fast Ethernet ports for wired devices, with port 5 able to supply passive PoE power (up to 500 mA) to nearby equipment. A USB-A port supports 3G/4G modem backup or external storage.

Advanced Options

Under the hood, the 650 MHz QCA9531 CPU and 64 MB RAM run RouterOS Level 4, offering routing, firewall, hotspot, VPN, QoS, VLAN support×and accessible via WinBox or web GUI.

Product Key Features

• • Dual-band Wi-Fi (2.4 GHz dual-chain, 5 GHz single-chain 802.11ac)

  • 5× 10/100 Mbps Ethernet with passive PoE-out on port 5

  • 650 MHz QCA9531 CPU + 64 MB RAM powering RouterOS L4

  • USB-A port for 3G/4G modem or NAS

  • US-legal channels only (locked 2.4 GHz & 5 GHz bands)

  • Compact desktop/tower design, passive cooling

Reliability & Performance

This unit features a passive-cooled design in a low-profile enclosure, capable of operating in extreme conditions (-30 °C to +70 °C) with ~100,000 hr MTBF . Despite its size, it reliably delivers full throughput across all ports under typical workloads, while PoE-out enables simple, clean deployments.

Key Features :

• Dual-concurrent dual-band Wi-Fi (AC750)

• 5× 10/100 Mbps Ethernet ports (PoE-out on port 5)

• 650 MHz CPU and 64 MB RAM

• USB 2.0 port for modem or storage

• RouterOS Level 4 with routing, firewall, hotspot, VPN, QoS

• Passive cooling; dual power options (DC jack or PoE-in)

• Preconfigured with US-only channel lock

Specification	Details
Model Number	RB952Ui-5ac2nD-US (hAP ac lite)
Product Type	Indoor Dual-Band Wireless Router
CPU	QCA9531 @ 650 MHz
RAM	64 MB RAM
Storage	16 MB Flash
RouterOS License	Level 4
Ethernet Ports	5 × 10/100 Mbps (PoE-out on port 5)
Wireless 2.4 GHz	802.11b/g/n, dual-chain, up to 300 Mbps, antenna gain ~1.5 dBi
Wireless 5 GHz	802.11a/n/ac, single-chain, up to 433 Mbps, antenna gain ~2 dBi
USB Port	1 × USB 2.0 (up to 1 A)
PoE-In/Out	Passive PoE-in (10-28 V) / PoE-out on Ether5 (max 500 mA)
Power Input	DC jack or PoE-in (10-28 V)
Max Power Consumption	~8 W without attachments
Dimensions	113 × 89 × 28 mm
Operating Temp & MTBF	-30°C to +70°C; ~100,000 h MTBF
Cooling	Passive (fan-less)
Certifications	FCC, CE, IC, EAC, RoHS, IP20
