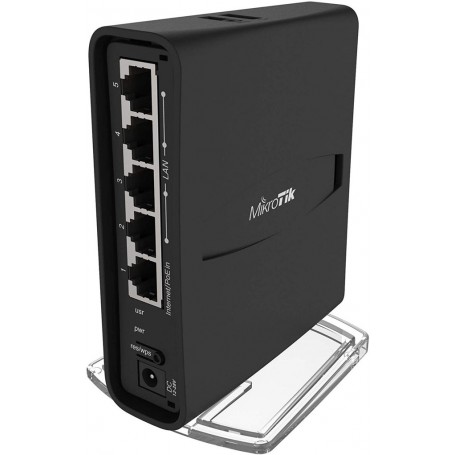

MikroTik RB952Ui-5ac2nD-TC-US 2.4/5GHz hAP ac lite Tower US Dual‑Band Indoor Wi-Fi Router

New

MikroTik RB952Ui-5ac2nD-TC-US 2.4/5GHz hAP ac lite Tower US
×




  • New

Detailed Specifications

MikroTik RB952Ui-5ac2nD-TC-US

RB952Ui‑5ac2nD‑TC‑US hAP ac lite Tower – Dual‑Band Indoor Wi-Fi Router (USA)

The RB952Ui‑5ac2nD‑TC‑US (hAP ac lite Tower) is a compact yet powerful indoor router/access point ideal for US users. It delivers dual‑band wireless, five Ethernet ports (with PoE‑out), USB support, and MikroTik's renowned RouterOS—all in a sleek tower design with versatile  mounting and silent operation

Features

Equipped with dual‑band Wi‑Fi, the device offers up to 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz (AC750 class). Powered by the 650 MHz QCA9531 CPU and 64 MB of RAM, it efficiently manages routing, firewalling, hotspot, VPN, and bandwidth management via RouterOS Level 4

Advanced Options

The universal tower case allows vertical or horizontal placement and includes a wall‑mount kit. Users can power it via the included 24 V adapter or passive PoE, and it can also power another device (e.g., AP or camera) via PoE‑out on port 5.

Product Key Features

    •  Dual‑band Wi‑Fi: 2.4 GHz (802.11b/g/n, dual‑chain) and 5 GHz (single‑chain 802.11a/n/ac)

    •  5× 10/100 Mbps Ethernet ports, with PoE‑out on port 5

    •  650 MHz CPU and 64 MB RAM—runs RouterOS Level 4

    •  USB port for 3G/4G modems or storage

    •  Tower/desktop/wall‑mount design with universal placement

    •  Passive cooling; powered via DC jack or PoE‑in, and outputs PoE‑out to other devices

Reliability & Performance

Built for continuous use, the hAP ac lite is fully passively cooled and operates in temperatures from –30 °C to +70 °C, with an MTBF of ~100,000 hours . Though ethernet ports are limited to 100 Mbps, real‑world performance is excellent, with full throughput across all ports in both bridge and router modes.

Key Features :

    • 2.4 GHz dual‑chain Wi‑Fi, up to 300 Mbps

    • 5 GHz single‑chain Wi‑Fi, up to 433 Mbps

    • 5× 10/100 Mbps Ethernet ports (PoE‑out on port 5)

    • 1× USB‑A port for modem/storage

    • 650 MHz QCA9531 CPU, 64 MB RAM, 16 MB flash

    • RouterOS Level 4 with advanced routing, firewall, QoS, hotspot, VPN

    • Passive cooling; PoE‑in/PoE‑out support

    • Universal tower/desktop/wall‑mount design

SpecificationDetails
Model Number RB952Ui‑5ac2nD‑TC‑US
Wireless Standards 2.4 GHz: 802.11b/g/n; 5 GHz: 802.11a/n/ac
Max Wi‑Fi Speed 2.4 GHz: 300 Mbps; 5 GHz: 433 Mbps
CPU QCA9531 @ 650 MHz
RAM 64 MB
Storage 16 MB Flash

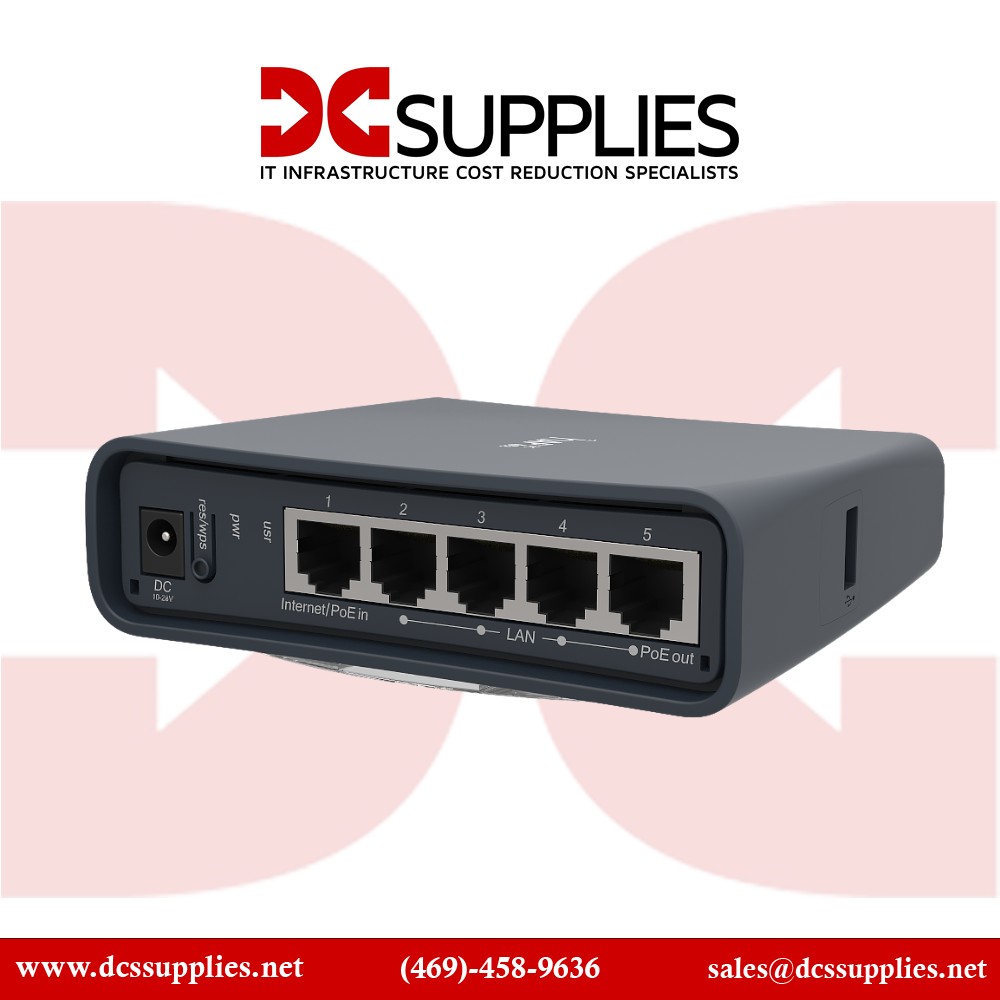

Ethernet Ports 5 × 10/100 Mbps RJ45 (port 5 PoE‑out capable)
USB Ports 1 × USB 2.0
PoE‑Input Passive PoE‑in or DC jack (10–28 V)
PoE‑Output Passive PoE‑out on Ethernet port 5 (500 mA max)
Power Consumption Max: ~7 W (typical)
Enclosure Tower/desktop/wall‑mount tower design; passive cooling
Dimensions 34 × 119 × 98 mm
Operating Temp –30 °C to +70 °C
MTBF ~100,000 hours @ 25 °C
RouterOS License Level 4
Certifications FCC, CE, IC, EAC, RoHS, IP20

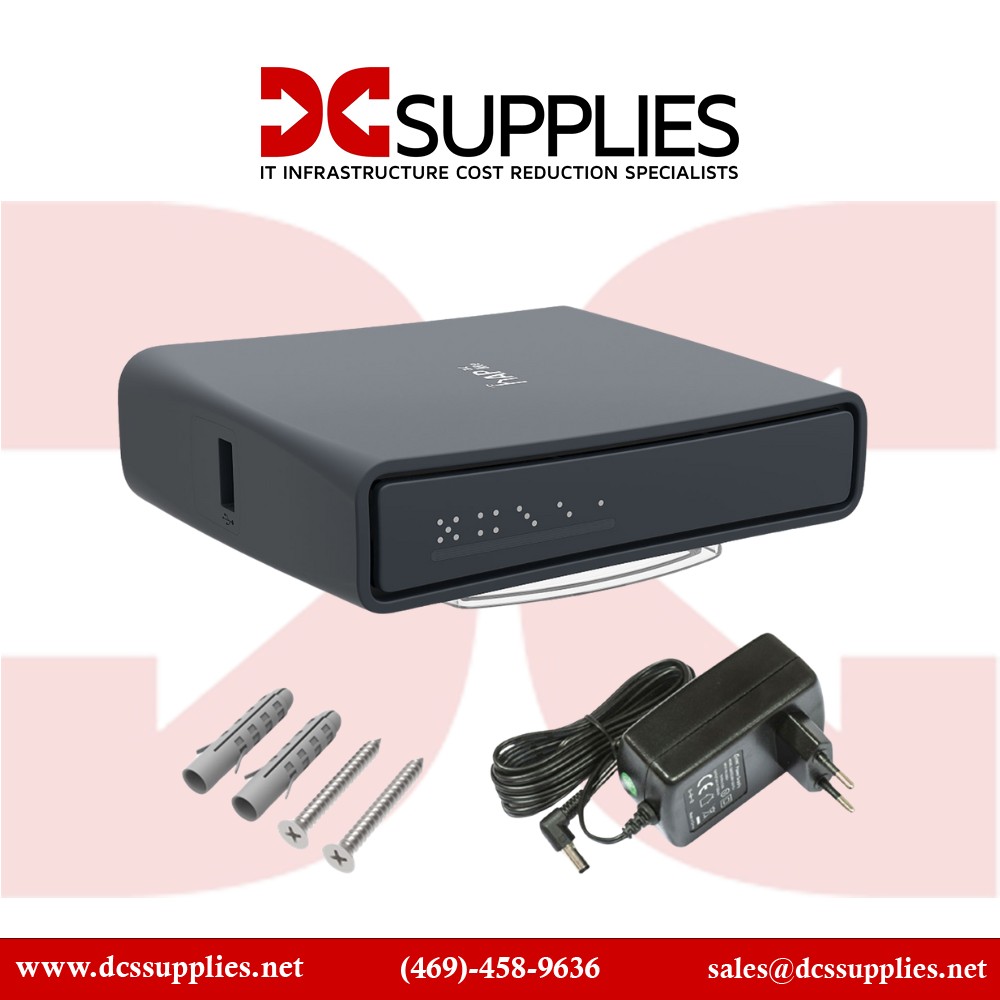

Included Accessories 24 V 1.2 A power adapter, K‑47 wall‑mount kit
