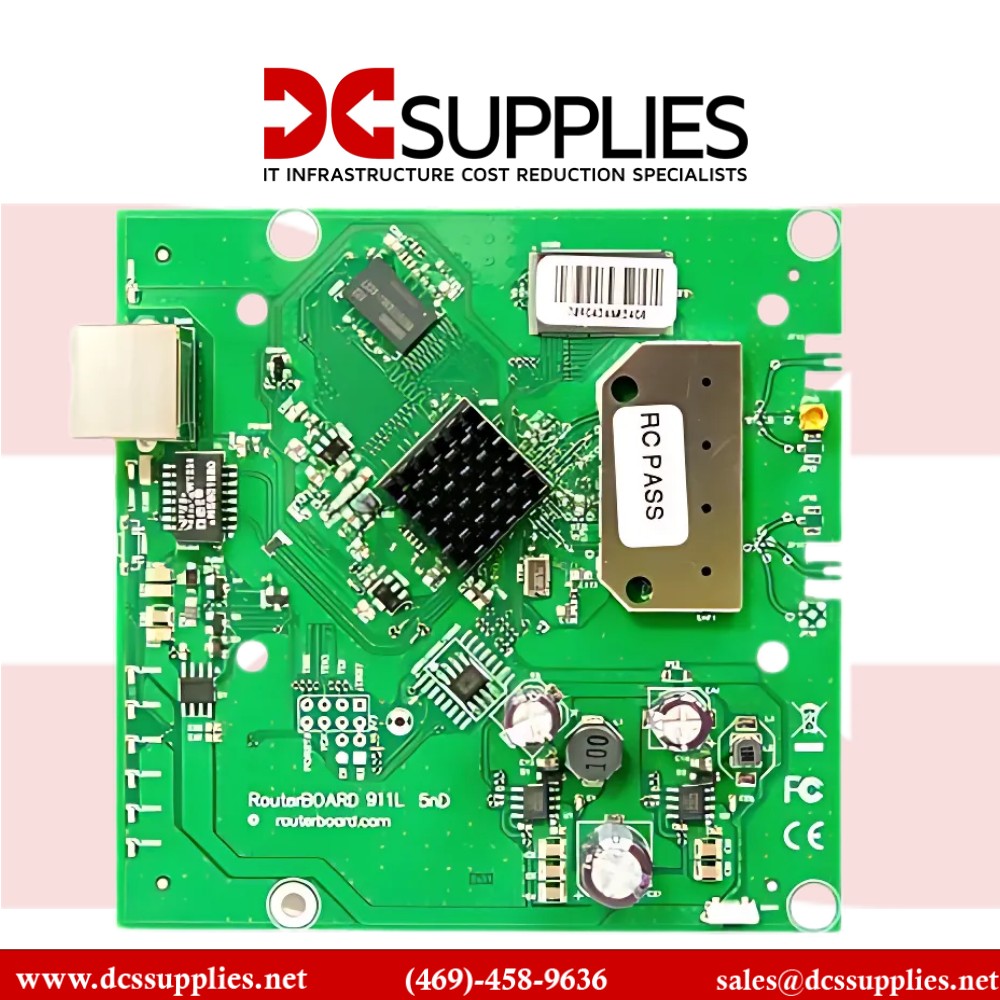

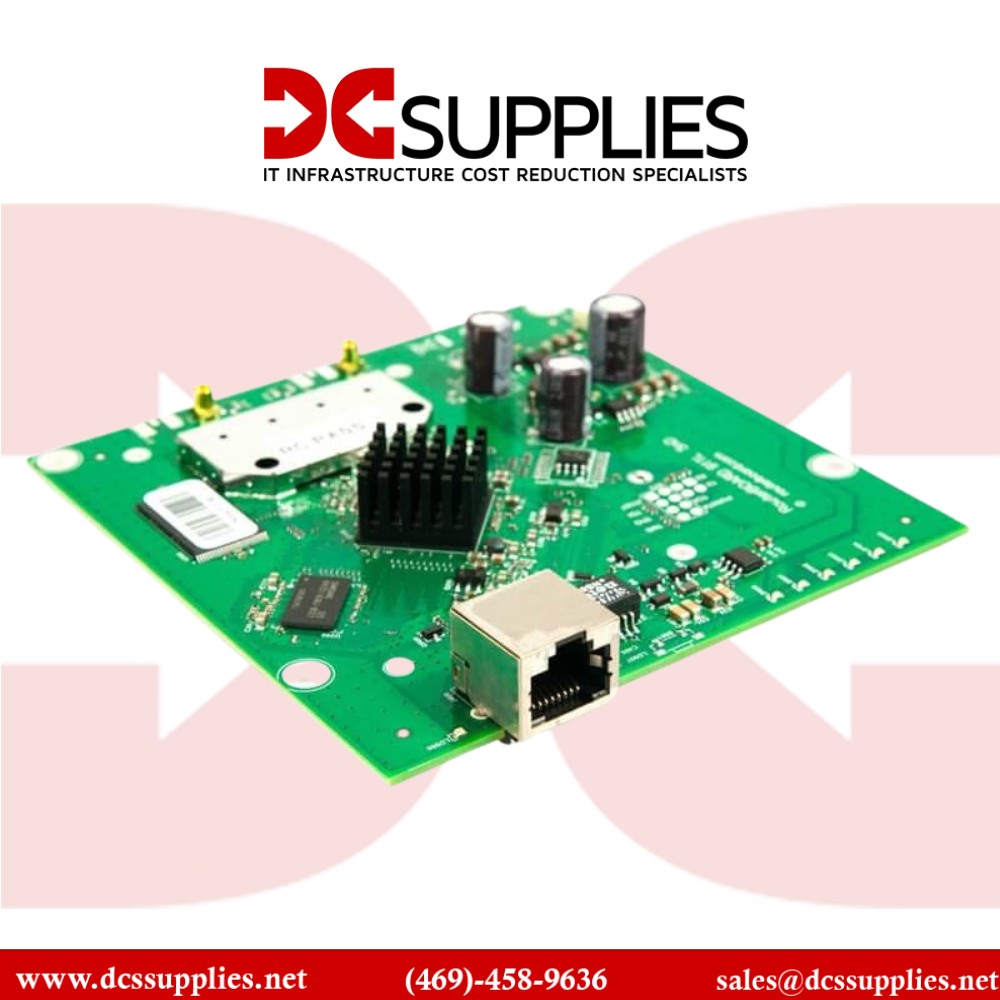

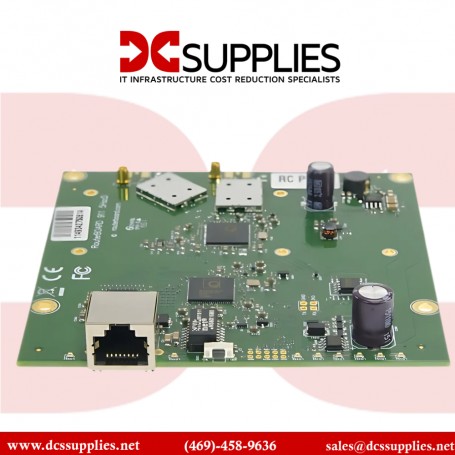

MikroTik RB911-5HacD-US

RB911-5HacD-US - 5GHz Wireless Router Board with 650 MHz CPU, 64 MB RAM, and 1× Ethernet

The MikroTik RB911-5HacD-US is a compact wireless router board designed for embedded and OEM applications where 5 GHz high-speed wireless is required in a small footprint. Featuring a powerful 650 MHz CPU, 802.11ac radio, and single Gigabit Ethernet port, it's perfect for custom outdoor CPEs or integration into wireless enclosures.

Features

With built-in 5 GHz dual-chain 802.11a/n/ac support, the RB911-5HacD-US delivers high throughput and stable wireless links ideal for short- to mid-range point-to-point (PtP) or point-to-multipoint (PtMP) deployments. It's a board-only solution, allowing manufacturers or installers to build custom enclosures or integrate it into directional antennas.

Advanced Options

Running MikroTik's RouterOS (Level 3), it supports routing, firewall, NAT, wireless bridging, and more. It's engineered for efficient operation and compact deployment, typically used in WISP or rural broadband scenarios.

Product Key Features

• • Integrated 5 GHz 802.11ac wireless radio with up to 866 Mbps throughput

  • 650 MHz CPU and 64 MB RAM for efficient embedded routing

  • 1× 10/100/1000 Mbps Ethernet port for fast uplink

  • Ideal for outdoor CPE or integrated antenna systems

  • Compact, board-only format for OEM and custom enclosures

  • Runs MikroTik RouterOS with full routing and wireless features

Reliability & Performance

Built for performance in constrained spaces, the RB911-5HacD-US provides hardware-accelerated networking with passive PoE input support. Its embedded design is ideal for installations where space, weight, and thermal efficiency matter. The board's simplicity makes it easy to deploy and manage with MikroTik's intuitive software tools.

Key Features :

• 650 MHz CPU for embedded routing tasks

• 64 MB onboard RAM

• 1× 10/100/1000 Mbps Gigabit Ethernet port

• Integrated 802.11ac 5 GHz dual-chain radio

• MikroTik RouterOS with Level 3 license

• Supports passive PoE input

• Ideal for CPE, PtP, PtMP, or OEM integration

• Board-only format (no enclosure)

Specification	Details
Model Number	RB911-5HacD-US
Product Type	Wireless Router Board (5 GHz, OEM)
Wireless Standard	802.11a/n/ac (5 GHz)
Max Wireless Throughput	Up to 866 Mbps
CPU	QCA9531 @ 650 MHz
RAM	64 MB DDR
Storage	16 MB Flash
Ethernet Ports	1 × Gigabit RJ45
PoE Input	Passive PoE (11-30 V)
Operating System	MikroTik RouterOS (Level 3 license)
Antenna Connectors	2 × MMCX
Dimensions	105 × 105 mm (PCB only)
Cooling	Passive (heatsink recommended)
Wireless Chains	2 (Dual-chain MIMO)
