MikroTik CSS610-1Gi-7R-2S+OUT netPower Lite 7R 8-Port Outdoor Switch View larger
Previous Next

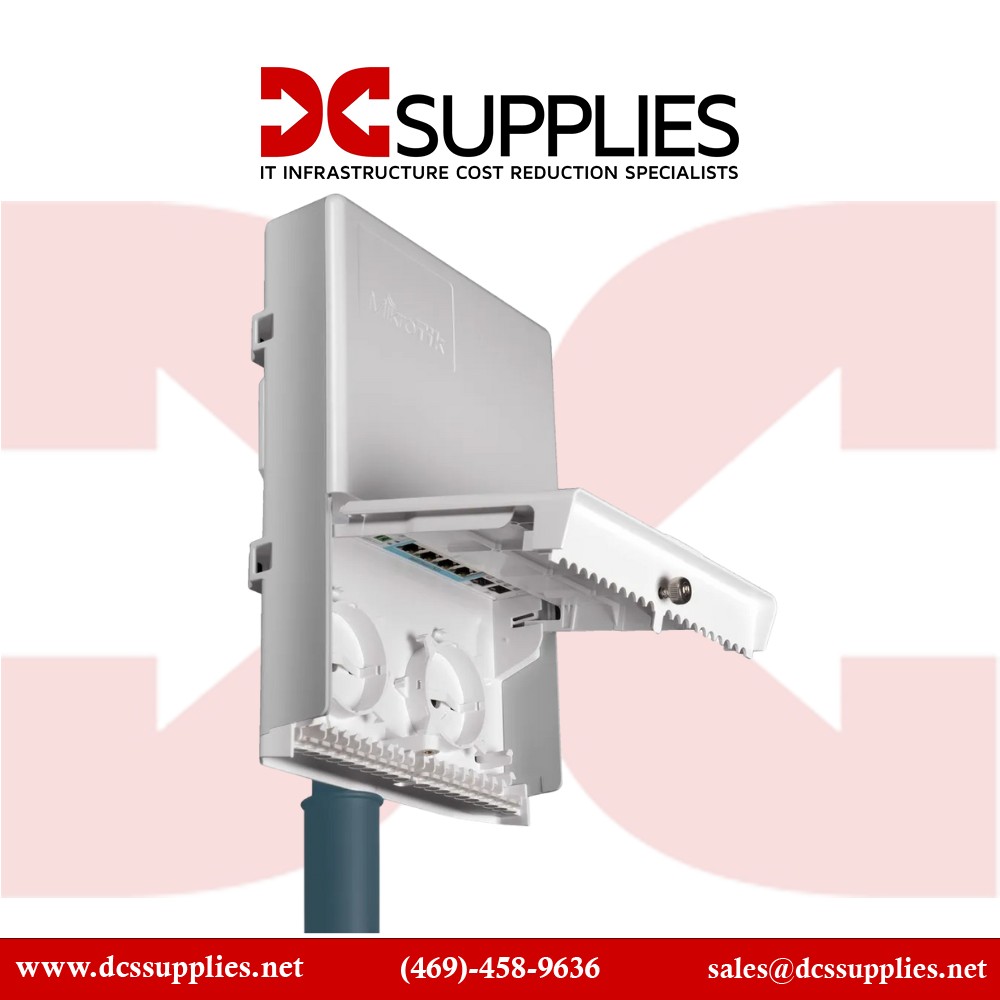

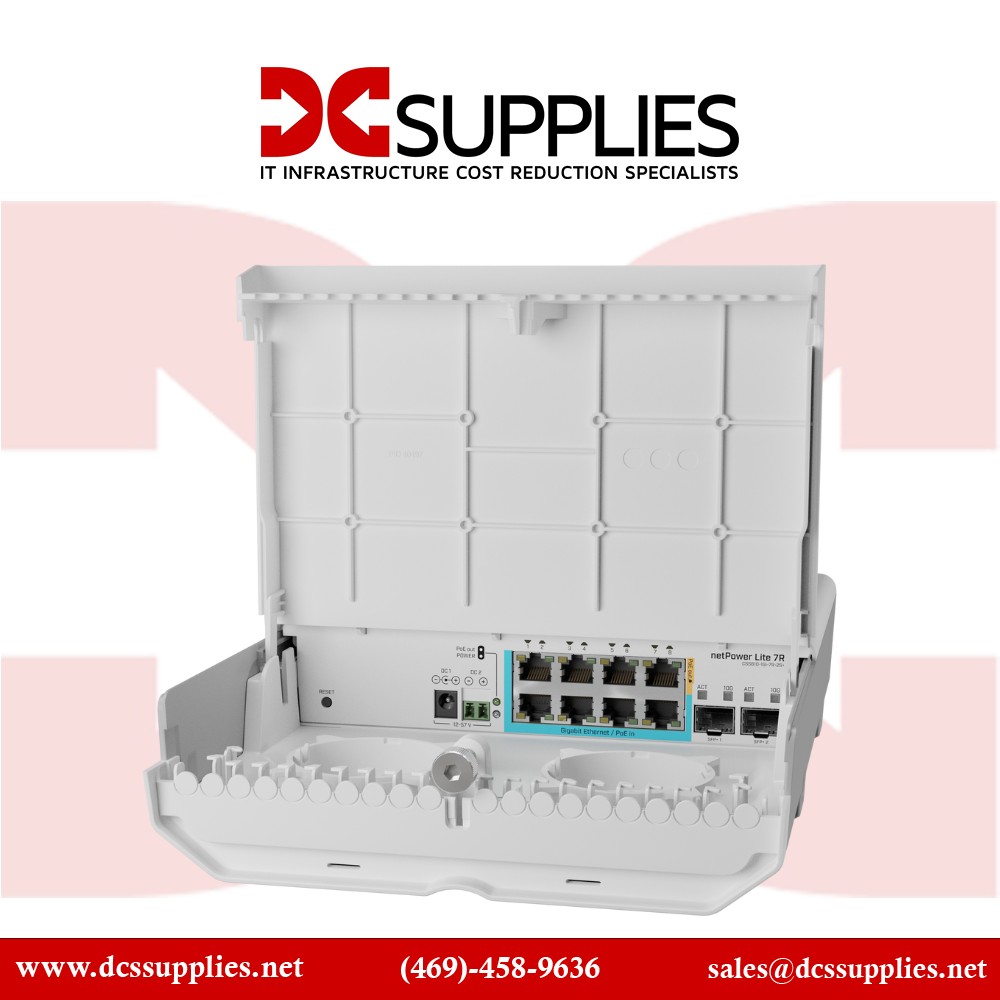

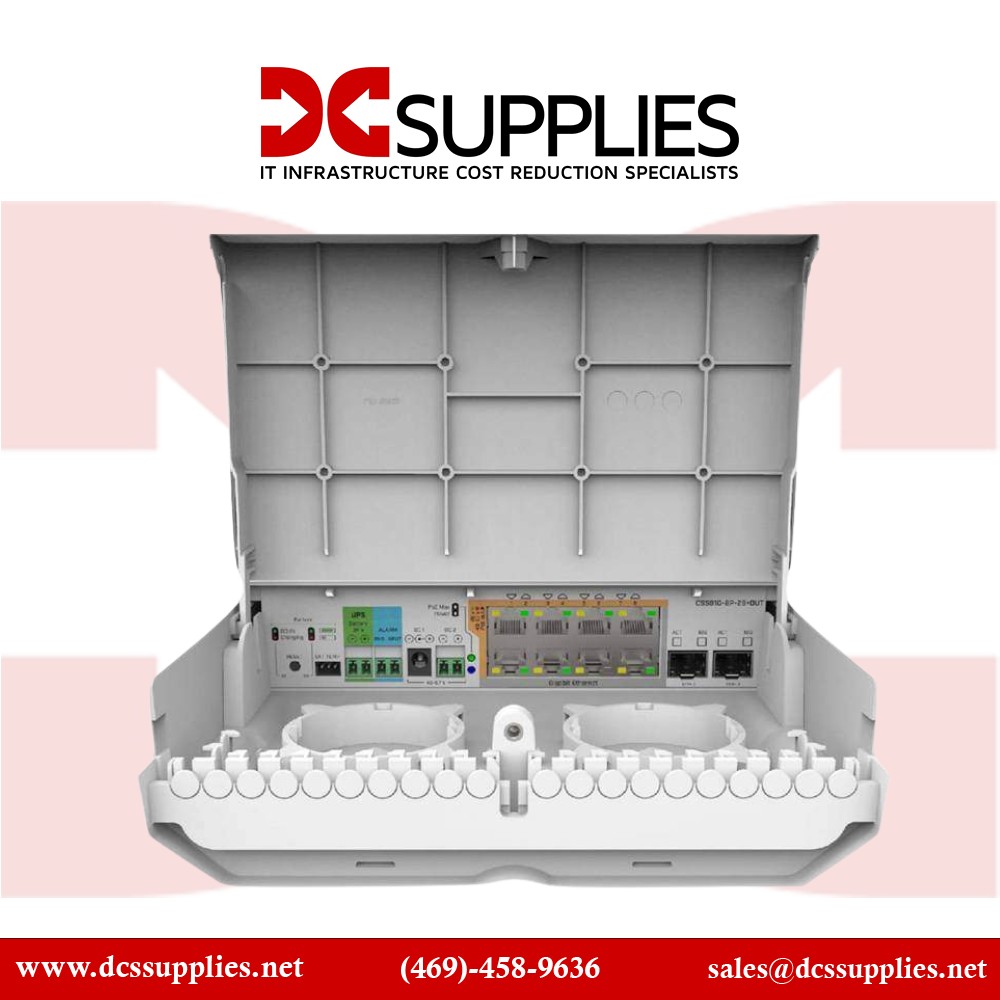

MikroTik CSS610-1Gi-7R-2S+OUT netPower Lite 7R 8-Port Outdoor Switch

New

MikroTik

×




  • New

Detailed Specifications

MikroTik CSS610-1Gi-7R-2S+OUT

CSS610-1Gi-7R-2S+OUT netPower Lite 7R – 8-Port Outdoor Gigabit Switch with PoE and 2× 10G SFP+

The MikroTik CSS610-1Gi-7R-2S+OUT netPower Lite 7R is a robust, outdoor-ready Gigabit switch tailored for WISPs, tower operators, and remote deployment scenarios. With 8 total Ethernet ports and dual 10G SFP+ uplinks, it brings managed Layer 2 switching and fiber connectivity to environments where indoor networking hardware simply can’t go.

Features

Designed for deployments without traditional power infrastructure, the netPower Lite 7R supports 7× reverse PoE input ports, allowing it to be powered via Ethernet cables coming from client or access point devices. This makes it ideal for rooftop installations, cell towers, or remote enclosures where centralized power isn’t feasible.

Advanced Options

Its weatherproof enclosure ensures protection from environmental elements, while the two 10G SFP+ ports enable long-range fiber backhaul or upstream aggregation. Managed by MikroTik's SwitchOS, the device offers VLAN support, port monitoring, traffic isolation, and more—all configurable via an intuitive web interface.

Product Key Features

    •  Rugged IP-rated outdoor enclosure for harsh environments

    •  7× Reverse PoE Gigabit ports + 1× standard Gigabit Ethernet

    •  2× 10G SFP+ ports for high-speed fiber uplinks

    •  Smart Layer 2 features with MikroTik SwitchOS

    •  Ideal for tower installations and remote networking sites

    •  Passive cooling and DIN-rail mountable

Reliability & Performance

Built for long-term reliability in challenging environments, the CSS610-1Gi-7R-2S+OUT features passive cooling (no fans), reverse PoE input redundancy, and a sturdy polycarbonate case. It operates efficiently in temperature extremes and is optimized for silent, energy-conscious operation without sacrificing performance or flexibility.

Key Features :

    • 1× Gigabit Ethernet (standard PoE-out)

    • 7× Gigabit Ethernet (Reverse PoE in)

    • 2× 10G SFP+ uplink ports

    • Layer 2 Smart Switching with SwitchOS

    • Outdoor enclosure (IP-rated, weatherproof)

    • Passive cooling (fanless)

    • DIN-rail and pole-mountable

    • VLAN, port isolation, monitoring features

SpecificationDetails
Model Number CSS610-1Gi-7R-2S+OUT
Product Name netPower Lite 7R
Product Type Outdoor Smart Managed Switch (Layer 2)
Ethernet Ports 8 × Gigabit Ethernet (7× Reverse PoE In, 1× PoE Out)
SFP+ Ports 2 × 10G SFP+
Operating System MikroTik SwitchOS (SwOS)
Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps
Power Input 7× Reverse PoE or 12–57 V DC via DC jack
Power Output PoE-Out on Port 1 (max 0.75 A)
Mounting DIN-rail, pole mount
Cooling Fanless (passive)
Enclosure Outdoor polycarbonate, IP-rated
Dimensions 304 × 212 × 71 mm
