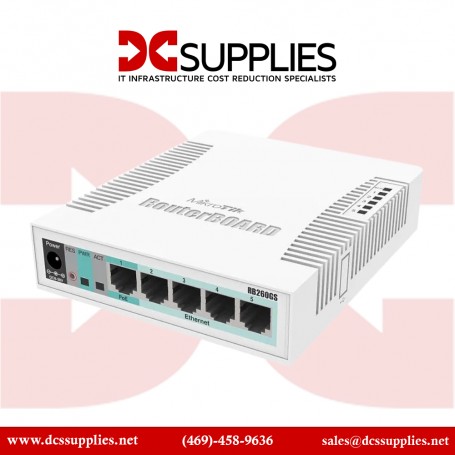

Mikrotik RB260GS (CSS106-5G-1S) small SOHO Switch 5x Gigabit Ethernet

New

Mikrotik RB260GS (CSS106-5G-1S) small SOHO Switch 5x...

×




  • New

Detailed Specifications

Mikrotik CSS106-5G-1S

RB260GS (CSS106-5G-1S) SOHO Smart Switch – 5× Gigabit Ethernet + 1× SFP Port

The MikroTik RB260GS (CSS106-5G-1S) is a compact and efficient Smart SOHO switch designed for small offices and home network environments. Featuring five Gigabit Ethernet ports and one SFP port, it offers versatile connectivity and intelligent switching capabilities using MikroTik’s SwitchOS.

Features

Ideal for small businesses or tech-savvy home users, the RB260GS provides essential Layer 2 switching features in a silent, fanless form factor. It supports VLANs, port isolation, traffic mirroring, and broadcast storm control—ensuring you have all the management tools needed for a stable and secure local network.

Advanced Options

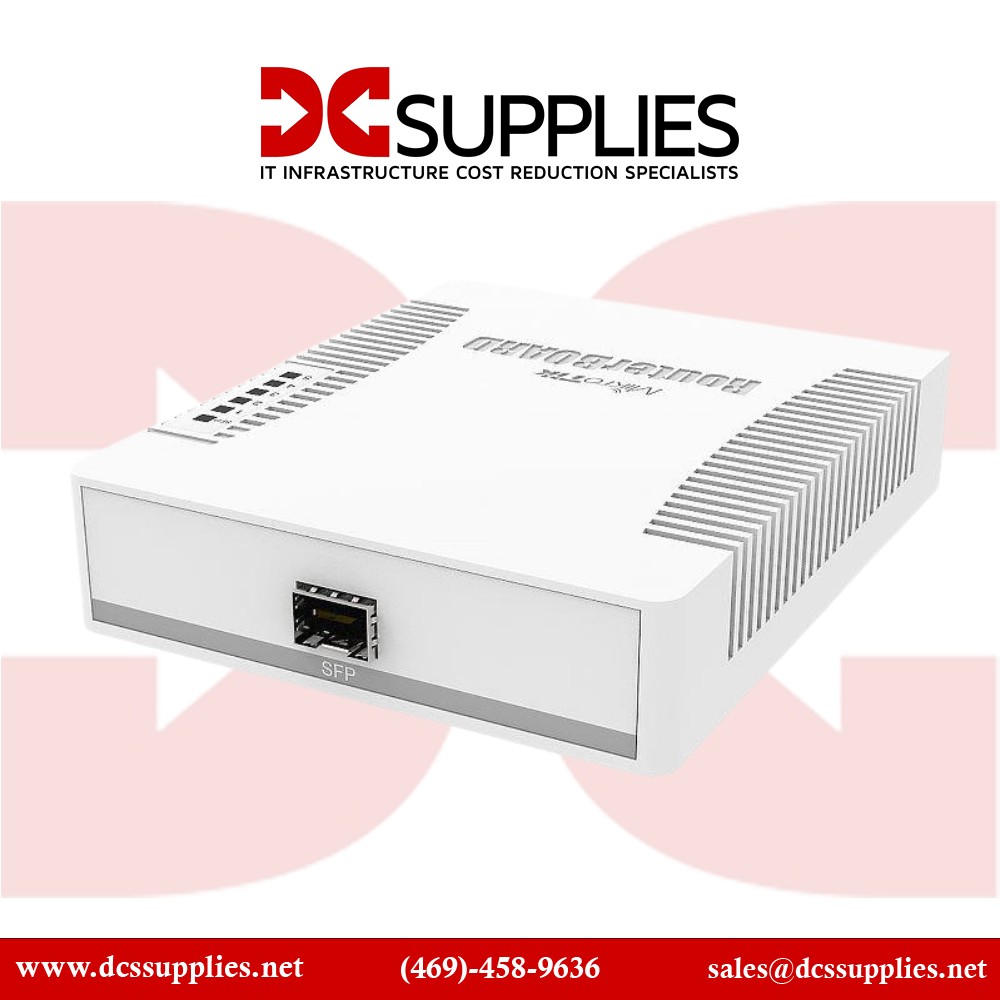

The SFP port enables fiber uplink for long-distance connections, while the Gigabit ports ensure fast, uninterrupted communication between connected devices. Its intuitive web-based interface (SwOS) makes setup and configuration simple, even for users with minimal networking experience.

Product Key Features

    •  5× Gigabit Ethernet ports for high-speed wired networking

    •  1× SFP port for fiber uplink connectivity

    •  Smart Layer 2 switching with MikroTik’s SwitchOS

    •  Compact, fanless design perfect for SOHO and desktop setups

    •  VLAN, port isolation, traffic mirroring, and bandwidth control

    •  Energy-efficient and silent operation

Reliability & Performance

Engineered for low power consumption and long-term stability, the RB260GS performs reliably in always-on environments. With a non-blocking throughput and switching capacity up to 12 Gbps, it handles high data volumes without performance loss. Its fanless metal casing ensures silent operation and effective passive cooling, making it ideal for noise-sensitive environments like home studios and small offices.

Key Features :

    • 5× 10/100/1000 Mbps RJ45 ports

    • 1× 1 Gbps SFP port for fiber connectivity

    • Smart Layer 2 switch with SwitchOS

    • Web-based management interface

    • VLAN support, bandwidth limiting, and port mirroring

    • Fanless metal casing for silent operation

    • Energy-efficient with low power draw

SpecificationDetails
Model Number RB260GS (CSS106-5G-1S)
Product Type Smart Managed SOHO Switch (Layer 2)
Operating System MikroTik SwitchOS (SwOS)
Ethernet Ports 5 × Gigabit Ethernet RJ45
SFP Ports 1 × 1 Gbps SFP
Switching Capacity 12 Gbps
Forwarding Rate 9 Mpps
RAM 128 KB
Dimensions 113 × 89 × 28 mm
Power Input 6–30 V DC (Passive PoE or DC jack)
Power Consumption Up to 5 W
Mounting Desktop
Cooling Passive (fanless)
