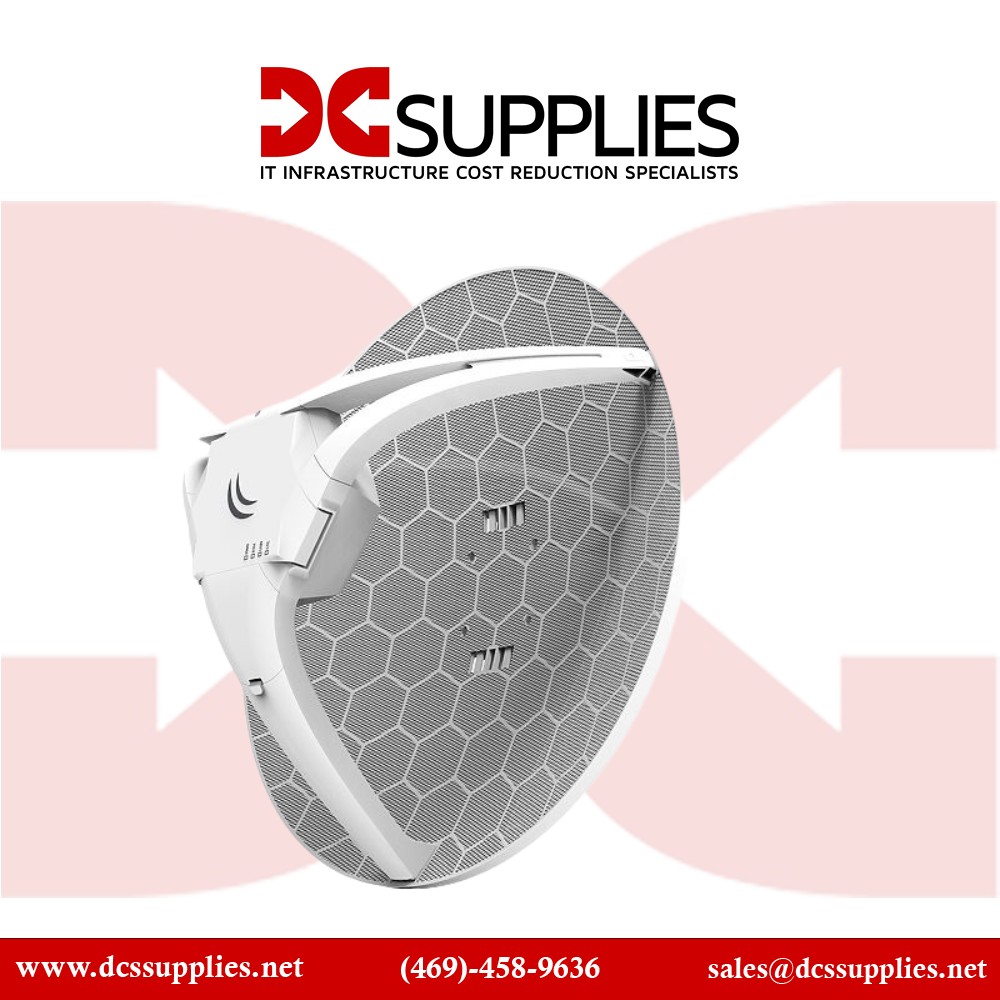

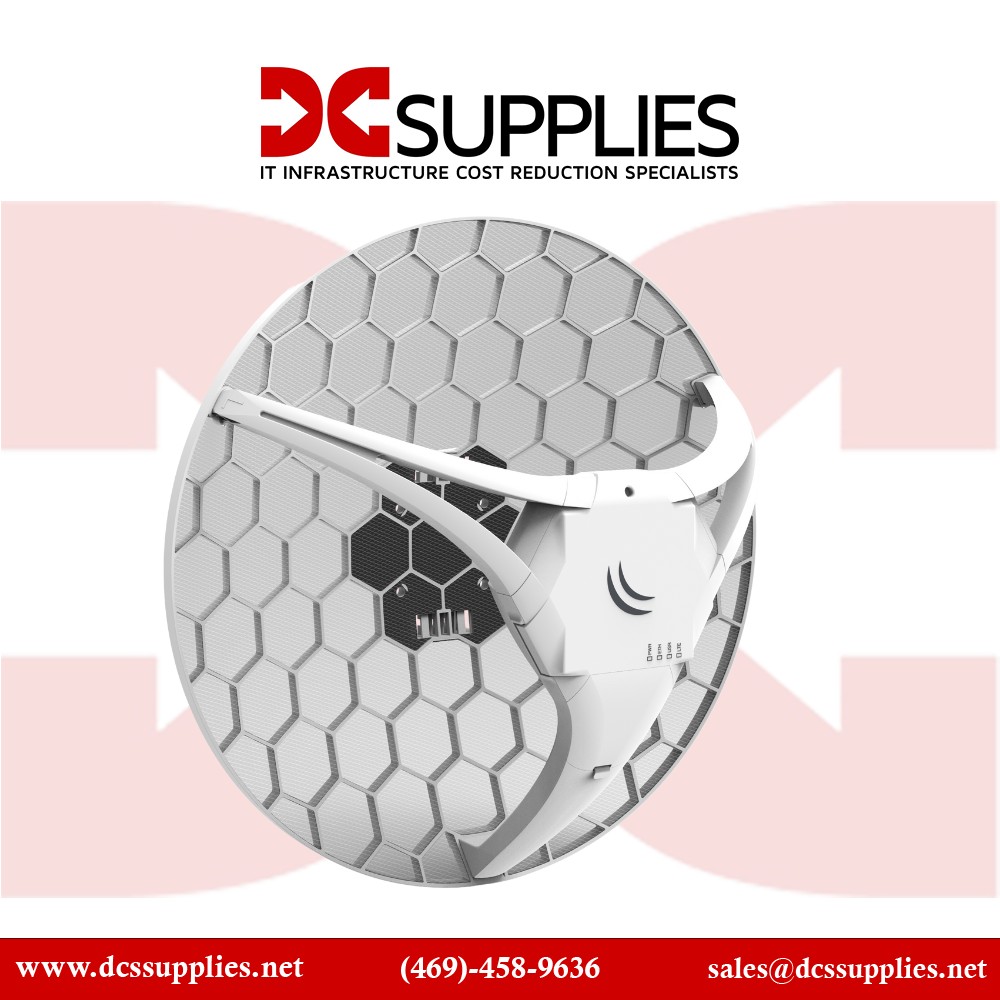

MikroTik RBLHGR&R11e-LTE6 kit 17dBi antenna, 650MHz CPU

New

MikroTik RBLHGR&R11e-LTE6 kit 17dBi antenna, 650MHz CPU

×




  • New

Detailed Specifications

MikroTik RBLHGR&R11e-LTE6

Outdoor LTE6 Kit with 17 dBi Antenna and 650 MHz CPU

The MikroTik RBLHGR&R11e-LTE6 kit is a powerful outdoor LTE solution combining a high-gain 17 dBi antenna with a built-in LTE Category 6 modem. Designed for remote or low-signal areas, it provides reliable mobile internet access where wired connections are unavailable or unreliable.

Features

This complete LTE kit is built around MikroTik’s rugged LHG outdoor platform and includes an R11e-LTE6 CAT6 modem, supporting LTE carrier aggregation for faster, more reliable data connections. The directional 17 dBi antenna ensures improved signal reception even in rural or low-coverage zones, ideal for fixed wireless access or field connectivity.

Advanced Options

With a 650 MHz CPU, 64 MB of RAM, and RouterOS Level 3, this device can operate as a standalone LTE router or integrate into larger MikroTik networks. The unit supports passive PoE over a single Ethernet port, making installation simple and adaptable to remote or elevated mounting locations.

Product Key Features

    •  Integrated Category 6 LTE modem with global LTE band support

    •  High-gain 17 dBi LTE antenna for reliable, long-range signal reception

    •  Powered by a 650 MHz CPU and 64 MB RAM for stable performance

    • Passive PoE input via 10/100 Ethernet for simplified outdoor deployment

    •  Rugged, weatherproof enclosure designed for pole mounting

    •  Ideal for rural areas, remote offices, or mobile data installations

Reliability & Performance

The RBLHGR&R11e-LTE6 is designed for rugged outdoor use with a UV- and weather-resistant enclosure and precision dish antenna to withstand wind and harsh climates. LTE6 enables carrier aggregation, allowing the device to use multiple bands simultaneously for improved throughput and latency—especially useful in congested or rural networks.

Key Features :

  • Built-in LTE CAT6 modem (R11e-LTE6)

  • 17 dBi high-gain directional antenna

  • 1 × 10/100 Ethernet port with passive PoE input

  • 650 MHz CPU with 64 MB RAM

  • RouterOS Level 3 license preinstalled

  • Supports LTE bands: 1/2/3/5/7/8/12/20/38/39/40/41

  • Outdoor-ready LHG-style enclosure

  • Pole-mounting kit included

SpecificationDetails
Model Number RBLHGR&R11e-LTE6
Product Type Outdoor LTE CPE with Integrated Antenna
LTE Modem MikroTik R11e-LTE6 (CAT6)
LTE Bands Supported 1/2/3/5/7/8/12/20/38/39/40/41
Antenna Gain 17 dBi directional
Wireless Standards LTE FDD/TDD (CAT6)
CPU QCA9531, 650 MHz
RAM 64 MB DDR2
Storage 16 MB Flash
Ethernet Port 1 × 10/100 Mbps RJ-45
PoE Input Passive PoE (11–30 V)
Operating System RouterOS, License Level 3

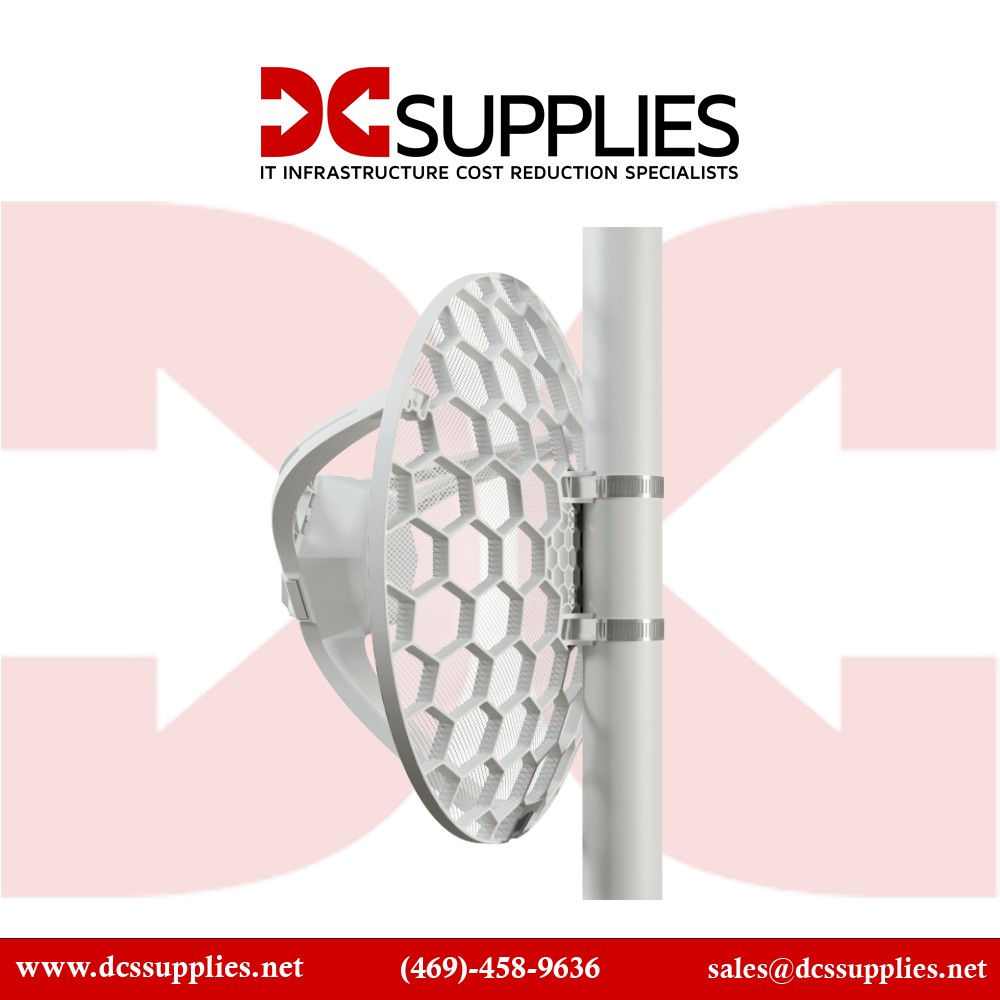

Mounting Pole mount (kit included)
Enclosure Outdoor LHG dish design, weather-resistant
Dimensions Ø 391 × 222 mm
Weight ~800 g
