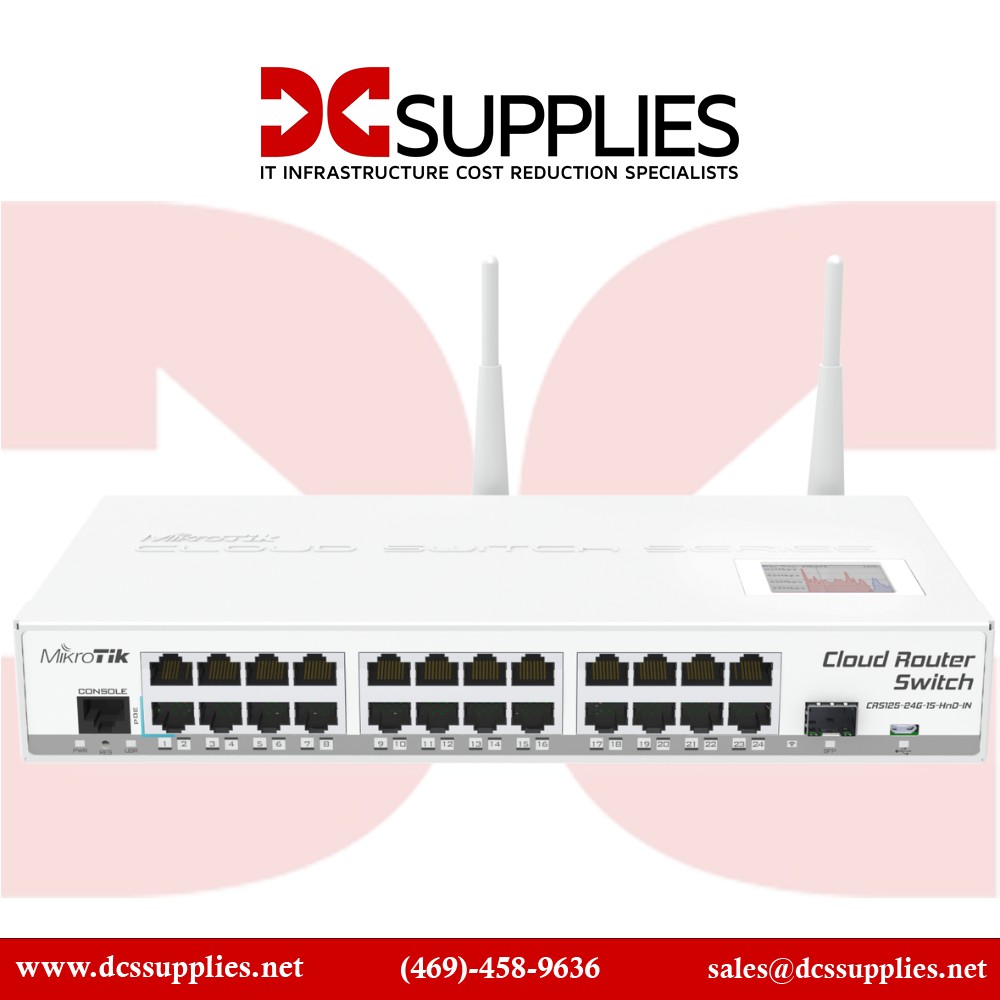

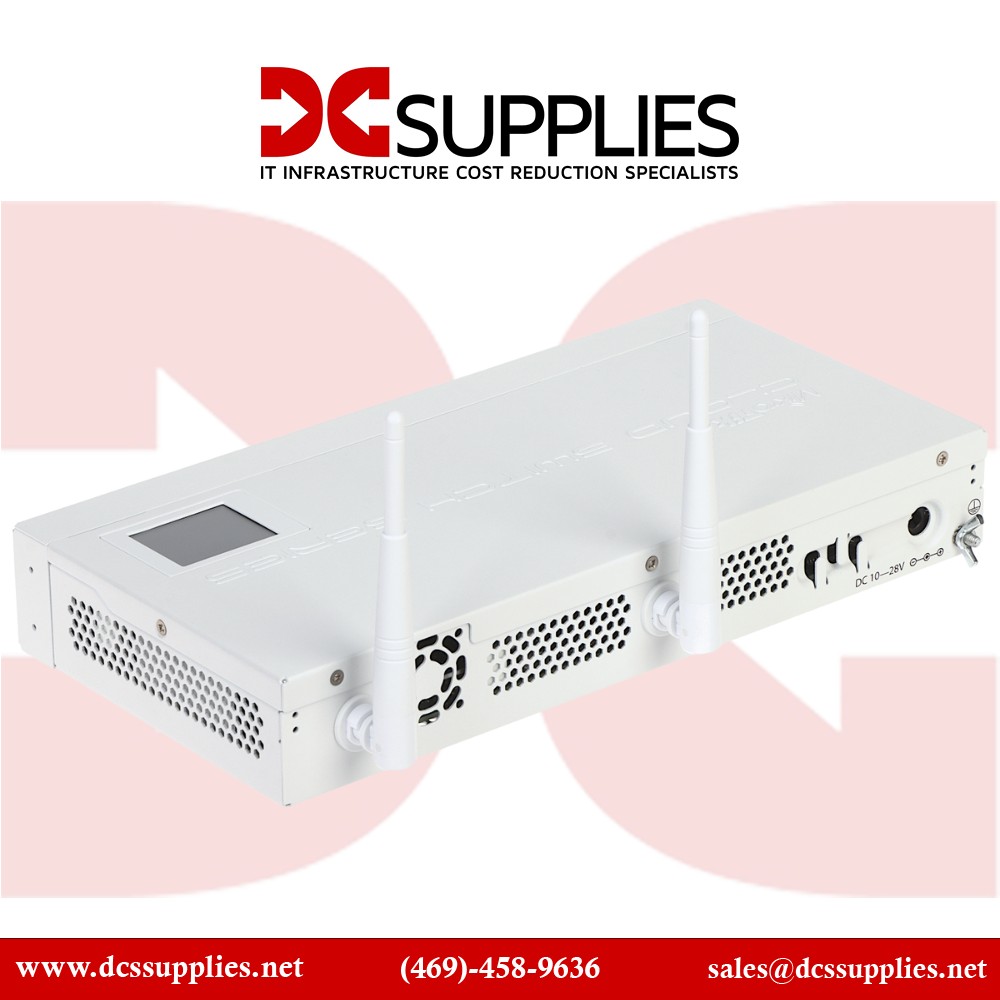

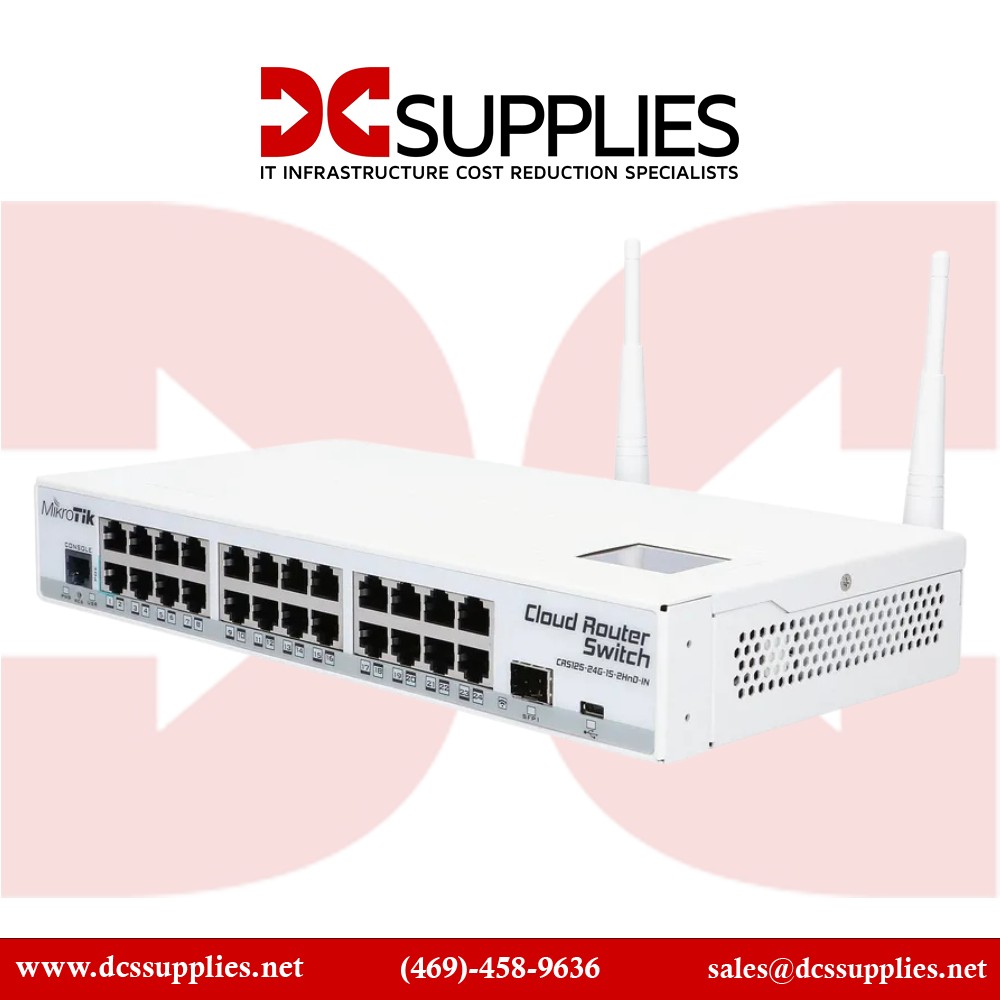

Mikrotik CRS125-24G-1S-2HnD-IN, Cloud Router Gigabit Switch

New

Mikrotik CRS125-24G-1S-2HnD-IN, Cloud Router Gigabit Switch
×




  • New

Detailed Specifications

Mikrotik CRS125-24G-1S-2HnD-IN

Cloud Router Switch – 24x Gigabit Ports, 1x SFP, Built-in Wireless AP, RouterOS L5

The MikroTik CRS125-24G-1S-2HnD-IN Cloud Router Switch is a multi-functional networking device that merges a managed switch, high-capacity router, and wireless access point into a single solution. With 24 Gigabit Ethernet ports, 1 SFP port, and a built-in 2.4 GHz WiFi AP, it's ideal for offices, schools, and branch networks seeking flexible connectivity and centralized control.

Features

The CRS125 series is built for administrators who need wired speed, advanced routing, and WiFi coverage in one appliance. Powered by a 600 MHz Atheros CPU and 128 MB RAM, the CRS125-24G-1S-2HnD-IN delivers reliable performance across wired and wireless interfaces. The RouterOS Level 5 license enables advanced features such as dynamic routing, firewall rules, QoS, hotspot, VPN, and bandwidth control.

Advanced Options

Its LCD touchscreen simplifies local configuration and diagnostics, while passive cooling ensures quiet operation. With PoE input support and a compact design, this router switch fits easily into any small-to-medium enterprise infrastructure.

Product Key Features

    • 24x Gigabit Ethernet ports for high-speed wired connectivity

    • 1x SFP port for fiber uplinks in enterprise or branch setups

    •  Integrated 2.4 GHz 802.11b/g/n wireless AP with 1000 mW output power

    •  Combines full Layer 3 routing, Layer 2 switching, and wireless control in one unit

    •  Pre-installed with RouterOS Level 5 for firewall, VPN, VLAN, and traffic management

    •  Compact desktop form factor with touchscreen LCD display

Reliability & Performance

Designed for 24/7 operation in workgroup environments, this model supports a full range of switching and routing protocols, and provides consistent WiFi throughput with 1000 mW transmit power. The combination of hardware switching, wireless AP, and fiber uplink options makes it a versatile edge device or all-in-one network hub. Its fanless design ensures silent operation for desktop or wall-mounted use.

Key Features :

    • 24x 10/100/1000 Mbps Gigabit Ethernet ports

    • 1x SFP slot for fiber connectivity

    • Integrated 2.4 GHz 802.11b/g/n wireless AP (1000 mW)

    • RouterOS Level 5 license with Layer 3 features

    • Touchscreen LCD display for management

    • 600 MHz Atheros AR9344 CPU

    • 128 MB RAM and 128 MB storage

    • Supports VLAN, QoS, firewall, VPN, hotspot

    • Passive cooling for silent operation

    • Compact desktop/wall-mount form factor

SpecificationDetails
Model Number CRS125-24G-1S-2HnD-IN
Product Type Cloud Router Switch (Router + Switch + AP)
CPU Atheros AR9344 @ 600 MHz
RAM 128 MB
Storage 128 MB NAND
Operating System MikroTik RouterOS Level 5
Ethernet Ports 24 × Gigabit RJ45
SFP Ports 1 × 1G SFP
Wireless 2.4 GHz 802.11b/g/n (1000 mW, dual-chain)
LCD Display Yes – Color touchscreen
Power Supply Included (supports passive PoE in)
Power Consumption ~20 W
Cooling Passive (fanless)
Dimensions 11.8" x 5.7" x 1.8" (300 x 145 x 45 mm)
Weight ~2.1 lbs (0.95 kg)
Operating Temperature -20°C to +60°C (-4°F to +140°F)
