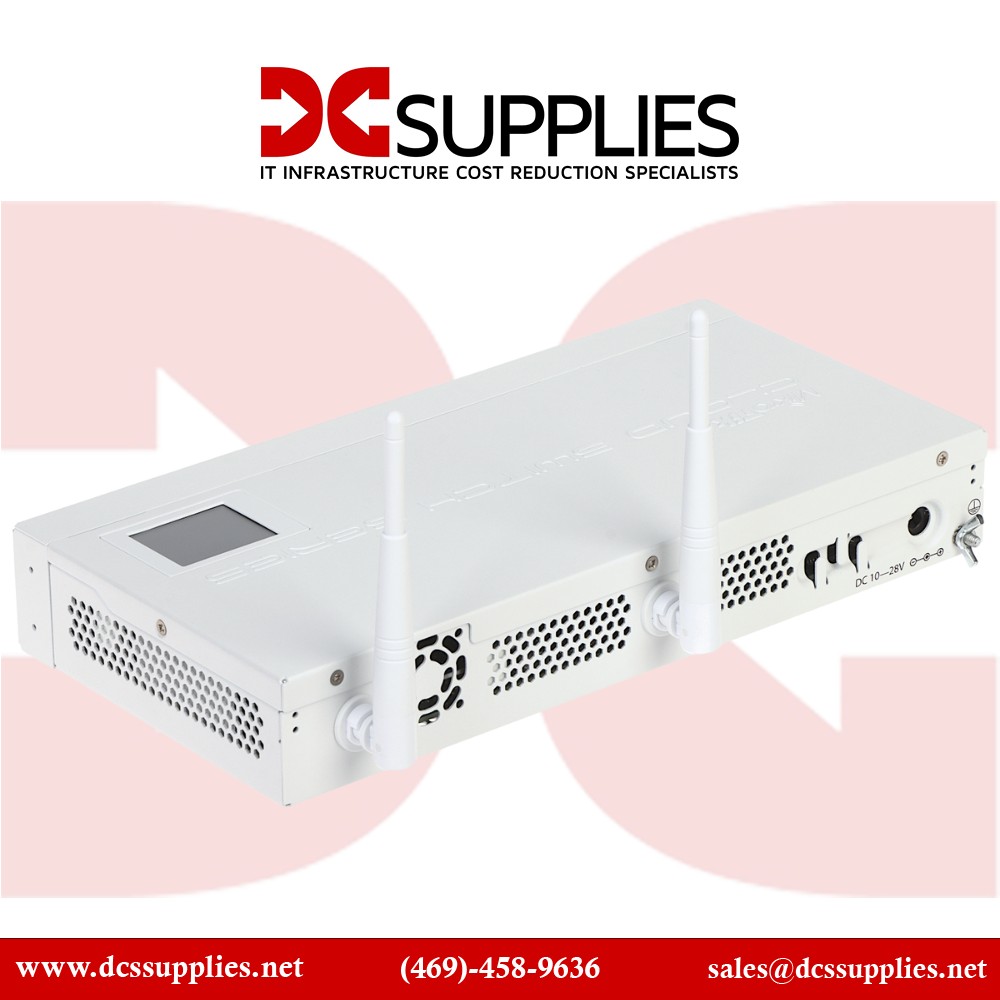

MIKROTIK CRS109-8G-1S-2HND-IN Cloud Router Switch 8 x Gigabit

New

MIKROTIK CRS109-8G-1S-2HND-IN Cloud...

×




  • New

Detailed Specifications

MIKROTIK CRS109-8G-1S-2HnD-IN

Cloud Router Switch – 8x Gigabit Ethernet, 1x SFP, Built-in Wireless AP, RouterOS L5

The MikroTik CRS109-8G-1S-2HND-IN is a hybrid networking device combining the functionality of a managed switch, a full-featured router, and a wireless access point. Featuring 8 Gigabit Ethernet ports, 1 SFP slot, and a built-in 2.4 GHz high-power wireless AP, this device is ideal for SOHO, SMB, or branch office environments that require all-in-one connectivity with flexible deployment.

Features

Powered by a dual-core 600 MHz processor and 128 MB RAM, the CRS109 offers seamless performance for routing and switching tasks, including VLANs, QoS, firewalls, DHCP, and VPNs. The device runs RouterOS Level 5, enabling advanced Layer 3 management, plus access point and hotspot functionality.

Advanced Options

The integrated 802.11b/g/n wireless radio delivers robust coverage with 1000 mW output, perfect for serving small offices or shared workspaces. A front-facing LCD touchscreen provides real-time status, IP setup, and interface monitoring, while the SFP port adds uplink flexibility.

Product Key Features

  • 8x Gigabit Ethernet ports + 1x SFP port for versatile wired and fiber connectivity

  •  Integrated 802.11n wireless access point (2.4 GHz, 1000 mW) for extended wireless coverage

  •  Dual-purpose Cloud Router Switch with Layer 3 features and switching functions

  •  Runs RouterOS Level 5 for powerful routing, firewall, VPN, and wireless control

  •  Compact desktop form factor with touchscreen LCD display

  • Includes power adapter and wall-mount option for flexible installation

Reliability & Performance

Built into a fanless, compact desktop enclosure, the CRS109 is silent in operation and low on power consumption. It includes a built-in PSU and supports passive PoE input, offering redundancy and flexible power options. This model is perfect for environments seeking a cost-effective, all-in-one router, switch, and wireless solution with enterprise-grade controls.

Key Features :

    • 8x Gigabit Ethernet ports

    • 1x SFP 1G fiber port

    • Integrated 2.4 GHz 802.11b/g/n wireless AP (1000 mW)

    • Dual-core 600 MHz CPU with 128 MB RAM

    • RouterOS Level 5 pre-installed

    • Touchscreen LCD display for real-time control

    • Desktop form factor with wall-mount support

    • Passive PoE input supported

    • Silent, fanless operation

    • Ideal for SOHO or small branch networking

SpecificationDetails
Model Number CRS109-8G-1S-2HND-IN
Product Type Cloud Router Switch (Router + Switch + AP)
CPU Qualcomm Atheros AR9344 @ 600 MHz (dual-core)
RAM 128 MB
Storage 16 MB Flash
Operating System RouterOS Level 5
Ethernet Ports 8 × 10/100/1000 Mbps RJ45
SFP Ports 1 × 1G SFP slot
Wireless 2.4 GHz 802.11b/g/n (1000 mW output)
LCD Display Yes – Color touchscreen
Power Supply Included (DC jack and passive PoE input)
Power Consumption ~13 W
Dimensions 8.5" × 5.6" × 1.2" (215 × 141 × 30 mm)
Weight ~1.1 lbs (0.5 kg)
Operating Temperature -20°C to +70°C (-4°F to +158°F)
