Ubiquiti Networks ER-X EdgeRouter X 5 Port View larger

Ubiquiti Networks ER-X EdgeRouter X 5 Port

ER-X

New

Compact PoE Router with Advanced Routing Capabilities
×




Detailed Specifications

Ubiquiti Networks ER-X EdgeRouter X

5-Port Gigabit Router – High-Performance Routing in a Compact Design

The Ubiquiti Networks ER-X EdgeRouter X is a highly efficient, cost-effective 5-port Gigabit router built for home offices, small businesses, and advanced users. Part of the EdgeMAX® family, this device delivers powerful Layer 3 routing with flexible PoE functionality, offering great value without compromising performance.

Features :

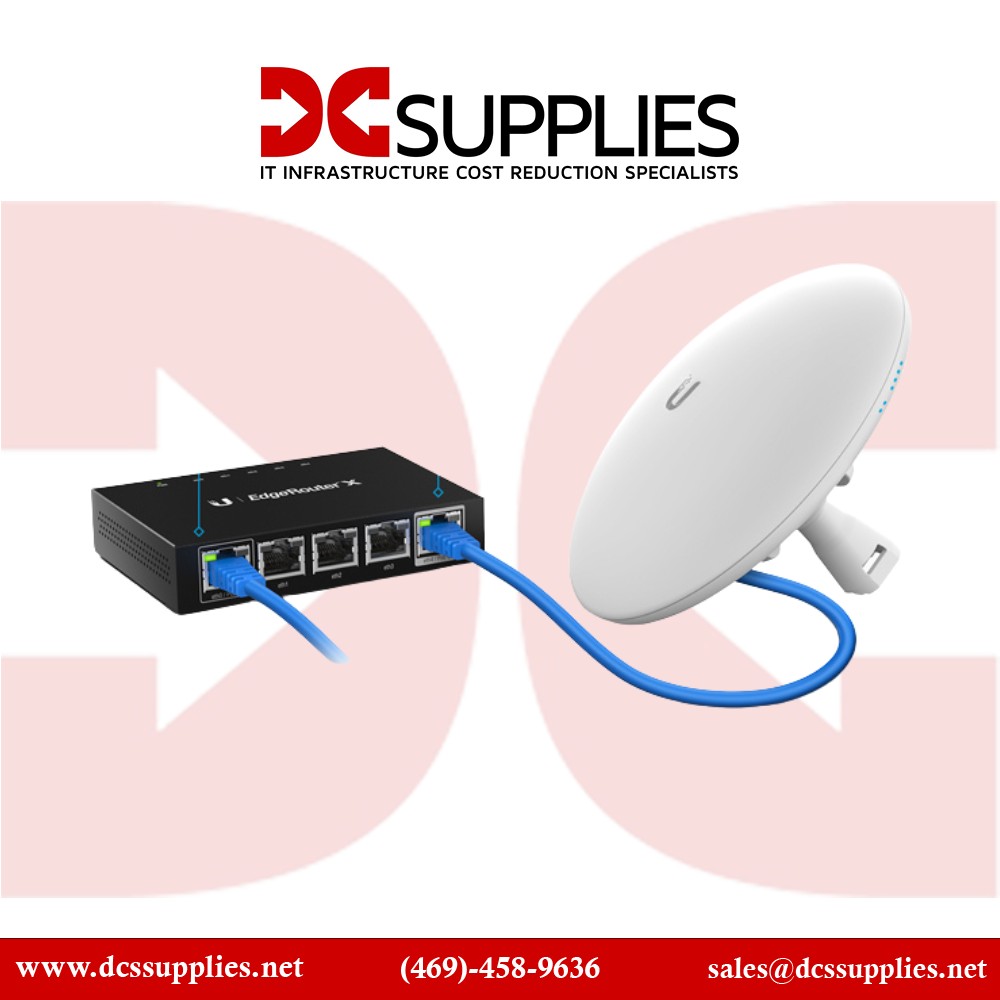

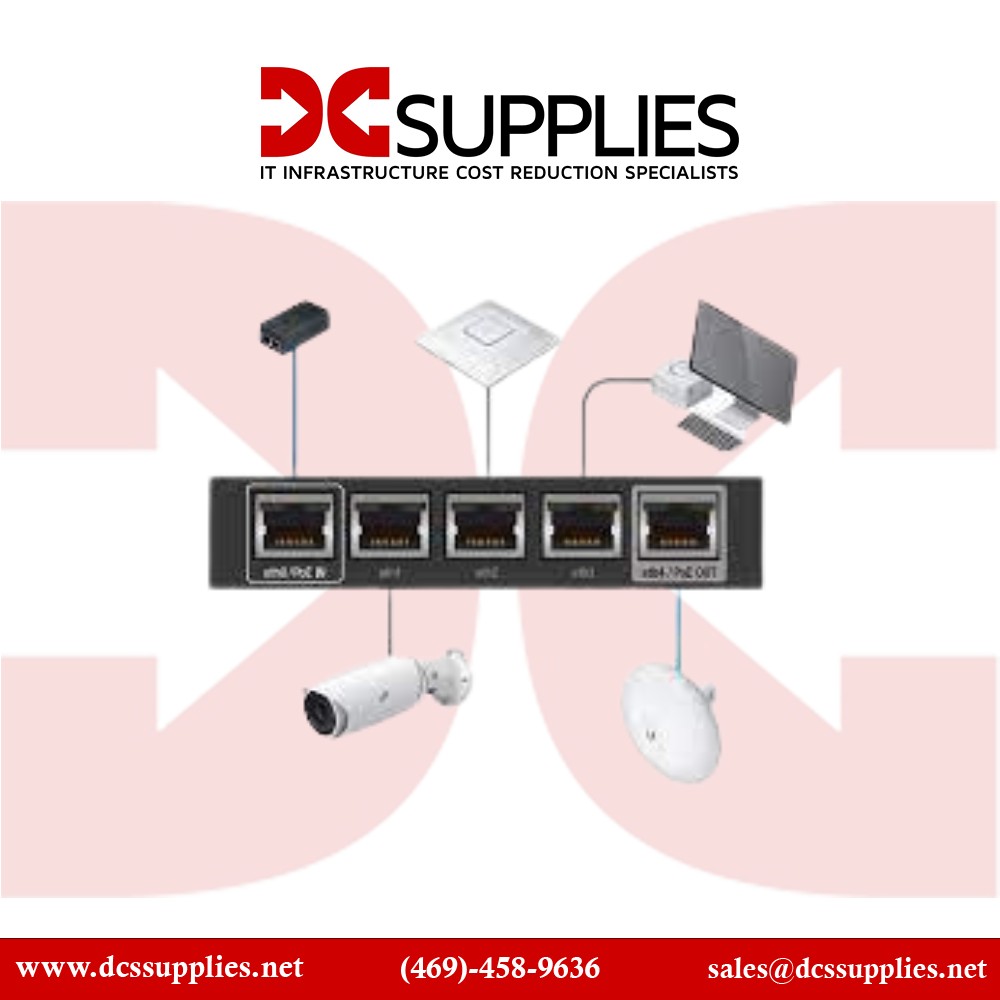

One of the ER-X's standout features is its passive PoE passthrough capability. When powered via a 24V passive PoE injector or adapter, it can pass power through to another connected PoE device, such as a Ubiquiti airMAX® access point. This feature minimizes cable clutter and simplifies deployments, especially in space-constrained environments.

Advanced Options :

The EdgeRouter X runs on Ubiquiti's EdgeOS®, an intuitive yet powerful operating system that allows for advanced configurations, including firewall rules, DHCP services, NAT, VPN, and more. Users can manage traffic flow, set up VLANs, or monitor real-time performance through a user-friendly graphical interface or robust command-line access.

Product Key Features

  • 5 Gigabit RJ-45 ports with PoE passthrough
  • Supports 24V passive PoE input and output
  • Compact, fanless, desktop form factor
  • Advanced Layer 3 routing performance
  • Ideal for home, SOHO, and small business networks
  • Managed via intuitive EdgeOS interface

Reliability & Performance :

Despite its small size, the ER-X is built with durable components and designed for long-term stability. Its fanless design ensures silent operation, making it ideal for quiet environments such as homes or small offices. With five Gigabit Ethernet ports and reliable power delivery, it serves as an efficient and scalable solution for users looking to expand their network with minimal overhead.

Key Features :

  • 5 x 10/100/1000 Mbps RJ-45 Ethernet Ports
  • Supports 24V Passive PoE Input & Output
  • Passive PoE Passthrough to Power Devices
  • Compact Desktop Form Factor (Fanless)
  • Managed via EdgeOS Web UI or CLI
  • Advanced Routing Features: NAT, Firewall, DHCP

Specifications :

SpecificationDetails
Model Number ER-X
Product Line EdgeRouter X
Type Wired Gigabit Router
Total Ports 5 x 10/100/1000Base-T Ethernet
PoE Support Yes (24V Passive PoE In & Out)
PoE Passthrough Yes (When Powered via 24V PoE)
Routing Capability Layer 3
Management Interface EdgeOS GUI & CLI
Power Source 24V Passive PoE or Power Adapter
Form Factor Desktop (Fanless)
Dimensions (HxWxD) 0.8" x 4.3" x 3"
Weight Approx. 110 g (3.88 oz)
VoIP Support No
Redundant Power Not Supported
