SUPERMICRO COMPUTER SYS-6028TP-HC1R-SIOM Rackmount Servers View larger

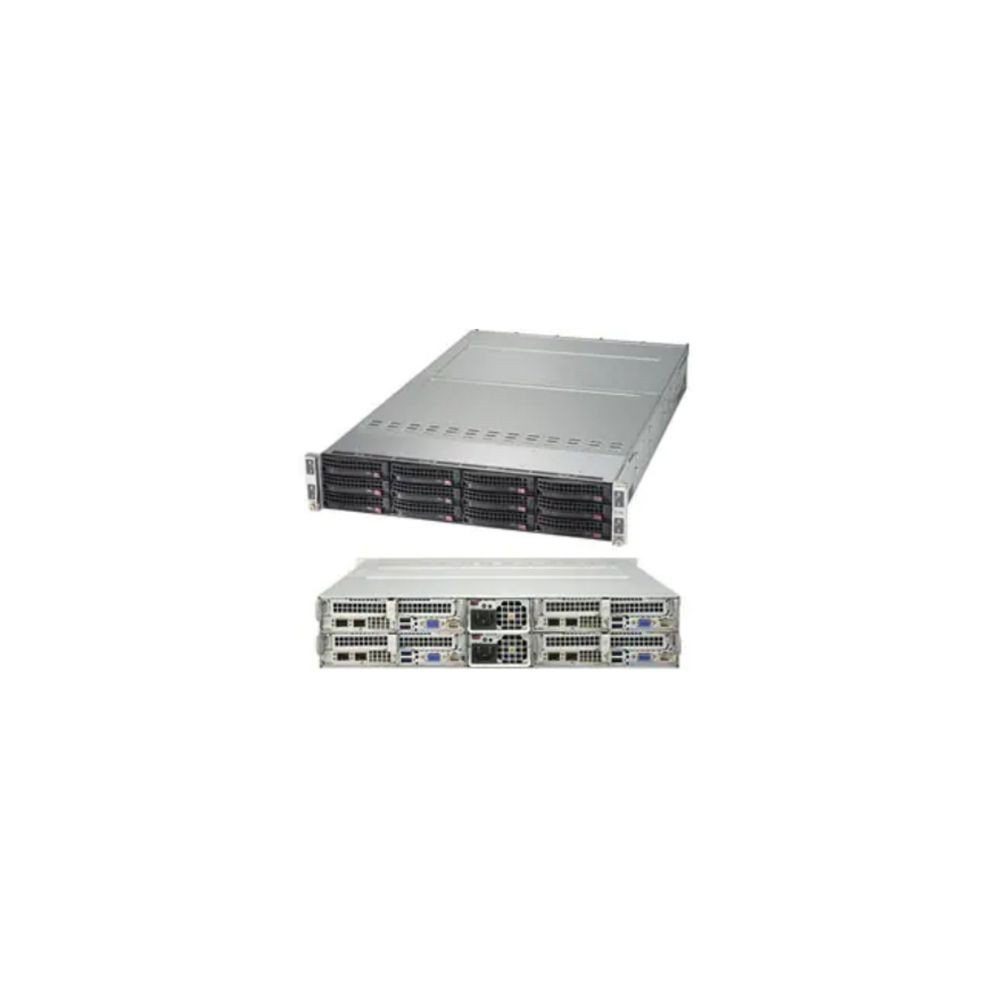

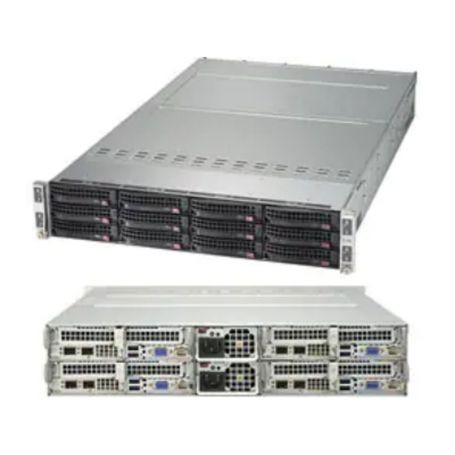

SUPERMICRO COMPUTER SYS-6028TP-HC1R-SIOM Rackmount Servers

SYS-6028TP-HC1R-SIOM

New

Super Server-Intel, X10DRT-PS,CSE-827HQ+-R2K04BP2,BPN-ADP-S3108L-H6,SIOMbase, Black
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty2
Mainboard / Chipset TypeIntel C612
RAM / TechnologyDDR4
RAM / Total Slots Qty16
RAM / Max Supported Size2 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSAS/SATA
Hard Drive / Bays Qty3
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Power / Device TypePower Supply - Redundant
Power / Provided (W)2000 Watt
Power / Voltage Required200 240Vdc
Interfaces & ConnectionsSAS: 3 SAS3 (12Gbps) ports, LAN: 1 RJ45 Dedicated IPMI LAN port, USB: 2 USB 3.0 ports total (rear), VGA: 1 VGA port, Serial Port / Header : 1 Fast UART 16550 port / 1 Header (internal), Others: 1 SATADOM support on the motherboard.
Expansion Bays Total (Free)3 Hot-swap 3.5" SAS/SATA HDD trays
Expansion Slots Total (Free)1 PCI-E 3.0 (x16) Low-profile slot, 1 PCI-E 3.0 (x8) Low-profile slot, 1 SIOM card support.
ModelCSE-827HQ+-R2K04B
Width17.25 Inch
Depth30.5 Inch
Height3.47 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
