SUPERMICRO COMPUTER SYS-5029P-WTR Rackmount Servers View larger

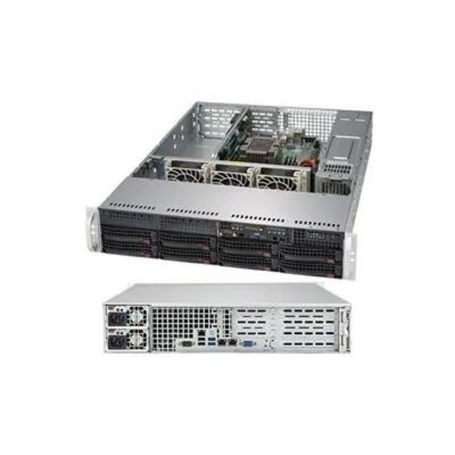

SUPERMICRO COMPUTER SYS-5029P-WTR Rackmount Servers

SYS-5029P-WTR

New

SuperServer 5029P-WTR -Server-2U-Xeon-Gigabit Ethernet-Power Supply-Redundant-8 Hot-swap 3.5 SATA3 drive bays
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty1
Mainboard / Chipset TypeIntel C622
RAM / TechnologyDDR4
RAM / Total Slots Qty6
RAM / Max Supported Size1.5 TB
Hard Drive / Size3.5"
Hard Drive / Interface TypeSATA-3
Hard Drive / Bays Qty8
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Interfaces & Connections10 SATA3 (6Gbps) ports, 2 RJ45 10GBase-T LAN ports, 1 RJ45 dedicated IPMI LAN port, 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A), 7 USB 2.0 ports (2 rear + 5 headers), 1 VGA port2 COM ports (1 rear, 1 front), 2 SuperDOM (Disk on Module) ports with built-in power.
Expansion Bays Total (Free)8 Hot-swap 3.5" SATA3 drive bays
Expansion Slots Total (Free)4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
ModelSuperServer 5029P-WTR
Width17.2 Inch
Depth25.5 Inch
Height3.5 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
