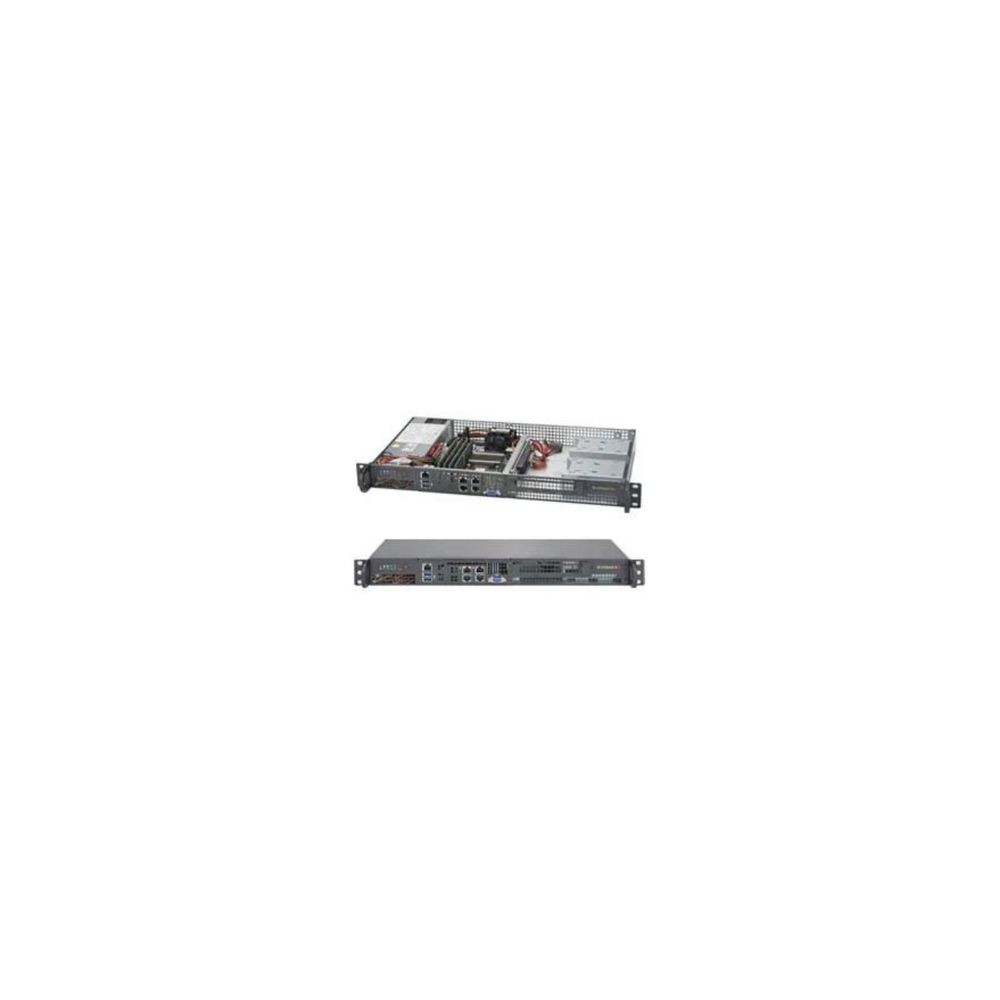

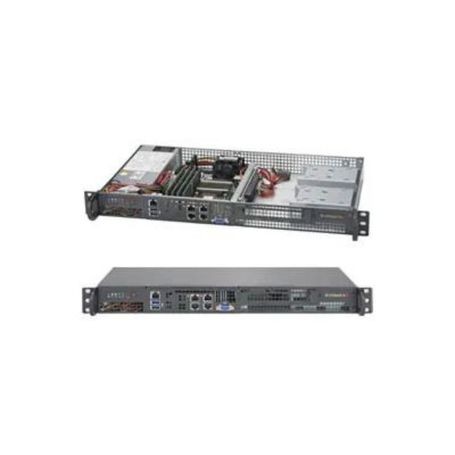

SUPERMICRO COMPUTER SYS-5018D-FN4T Rackmount Servers View larger

SUPERMICRO COMPUTER SYS-5018D-FN4T Rackmount Servers

SYS-5018D-FN4T

New

SuperServer 5018D-FN4T - 1U - Intel - Xeon - D-1541 - 2.1GHz - 8-Core - DDR4 - Aspeed AST2400 - Power Supply - 200Watt - Gigabit Ethernet - RJ45 Gigabit Ethernet LAN, RJ45 10GBase-T, RJ45...
×




Detailed Specifications

Primary Information
System TypeServer
ModelSuperServer 5018D-FN4T
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Clock Speed2.1 GHz
Max Turbo Frequency2.7 GHz
Processor / NumberD-1541
Multi-Core Technology8-Core
Cache Memory Installed Size12 MB
Mainboard / Chipset TypeSystem on Chip
RAM / TechnologyDDR4
RAM / Total Slots Qty4
Networking TypeEthernet
Data Link ProtocolGigabit Ethernet
Graphics ControllerAspeed AST2400
Power / Device TypePower Supply
Power / Provided (W)200 Watt
Power / Voltage Required100 - 240V, 50-60Hz
80 PLUS Certification80 PLUS Gold
Interfaces & ConnectionsRJ45 Gigabit Ethernet LAN, RJ45 10GBase-T, RJ45 Dedicated IPMI LAN, USB 3.0, COM, VGA
Expansion Slots Total (Free)1x PCI-E 3.0 x16 slot slot 1x M.2 PCI-E 3.0 x4, M Key 2242/2280
Width17.2 Inch
Depth9.8 Inch
Height1.7 Inch
Weight8 lbs.
Enclosure ColorBlack
Min Operating Temperature10 Celsius
Max Operating Temperature35 Celsius
Humidity Range Operating8% to 90% (non-condensing)

Special Feature
RoHSY
COOTAIWAN
TAA complianceYes

Processor
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Clock Speed2.1 GHz
Max Turbo Frequency2.7 GHz
Processor / NumberD-1541
Multi-Core Technology8-Core
Cache Memory Installed Size12 MB

RAM
RAM / TechnologyDDR4
RAM / Total Slots Qty4

Networking
Networking TypeEthernet
Data Link ProtocolGigabit Ethernet

Video
Graphics ControllerAspeed AST2400

Power
Power / Device TypePower Supply
Power / Provided (W)200 Watt
Power / Voltage Required100 - 240V, 50-60Hz
80 PLUS Certification80 PLUS Gold

Expansion
Interfaces & ConnectionsRJ45 Gigabit Ethernet LAN, RJ45 10GBase-T, RJ45 Dedicated IPMI LAN, USB 3.0, COM, VGA
Expansion Slots Total (Free)1x PCI-E 3.0 x16 slot slot 1x M.2 PCI-E 3.0 x4, M Key 2242/2280

Dimensions&Miscellaneous
Width17.2 Inch
Depth9.8 Inch
Height1.7 Inch

UNSPSC Code
UNSPSC Code43211502
