Image or description may not match product.

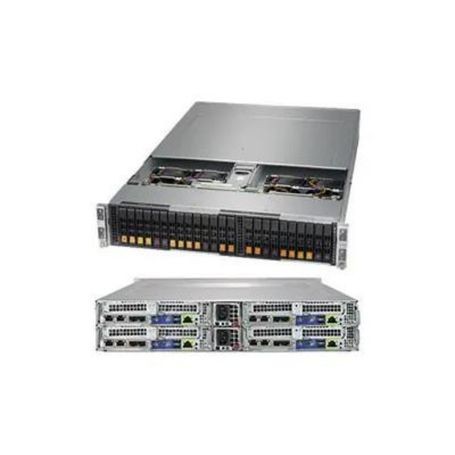

SUPERMICRO COMPUTER SYS-2029BT-HNTR Rackmount Servers View larger

SUPERMICRO COMPUTER SYS-2029BT-HNTR Rackmount Servers

SYS-2029BT-HNTR

New

SuperServer 2029BT-HNTR - 2U - Intel - Xeon - DDR4 - ASPEED AST2500 BMC - Intel C621 chipset - Power Supply Redundant - 2200Watt - 80 Plus Titanium - Gigabit Ethernet - RJ45 Dedicated...
×




Detailed Specifications

Primary Information
System TypeServer
ModelSuperServer 2029BT-HNTR
Cabinet Form Factor2U
Processor / TypeXeon
Processor / ManufacturerIntel
Mainboard / Chipset TypeIntel C621
RAM / TechnologyDDR4
RAM / Total Slots Qty24
RAM / Max Supported Size6 TB
Networking TypeEthernet
Hot-Swap Bays Qty6
Data Link ProtocolGigabit Ethernet
Graphics ControllerASPEED AST2500 BMC
Power / Device TypePower Supply - Redundant
Power / Redundant CapableYes
Power / Provided (W)2200 Watt
80 PLUS Certification80 PLUS Titanium
Interfaces & ConnectionsRJ45 Dedicated IPMI LAN, USB 3.0, VGA, SuperDOM
Expansion Slots Total (Free)2 PCI-E 3.0 (x16) Low-profile slots
Width17.6 Inch
Depth28.75 Inch
Height3.47 Inch
Weight54.5 lbs.
Enclosure ColorBlack
Min Operating Temperature10 Celsius
Max Operating Temperature35 Celsius
Humidity Range Operating8% to 90% (non-condensing)

RAM
RAM / Max Supported Size6 TB
RAM / TechnologyDDR4
RAM / Total Slots Qty24

Special Feature
RoHSY
COOInquire
TAA complianceInquire

Processor
Processor / TypeXeon
Processor / ManufacturerIntel

Storage
Hot-Swap Bays Qty6

Networking
Networking TypeEthernet
Data Link ProtocolGigabit Ethernet

Video
Graphics ControllerASPEED AST2500 BMC

Power
Power / Device TypePower Supply - Redundant
Power / Redundant CapableYes
Power / Provided (W)2200 Watt
80 PLUS Certification80 PLUS Titanium

Expansion
Interfaces & ConnectionsRJ45 Dedicated IPMI LAN, USB 3.0, VGA, SuperDOM
Expansion Slots Total (Free)2 PCI-E 3.0 (x16) Low-profile slots

Dimensions&Miscellaneous
Width17.6 Inch
Depth28.75 Inch
Height3.47 Inch

UNSPSC Code
UNSPSC Code43211502
