Image or description may not match product.
SUPERMICRO COMPUTER SYS-1019D-FRN8TP Rackmount Servers View larger

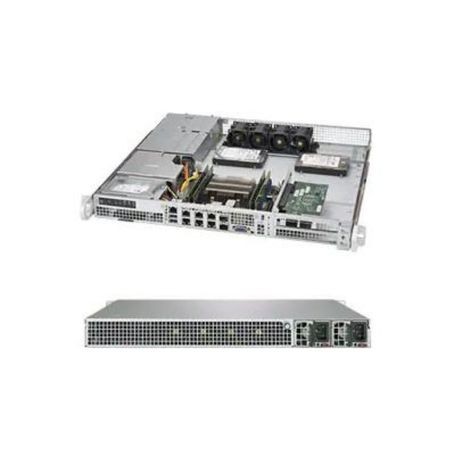

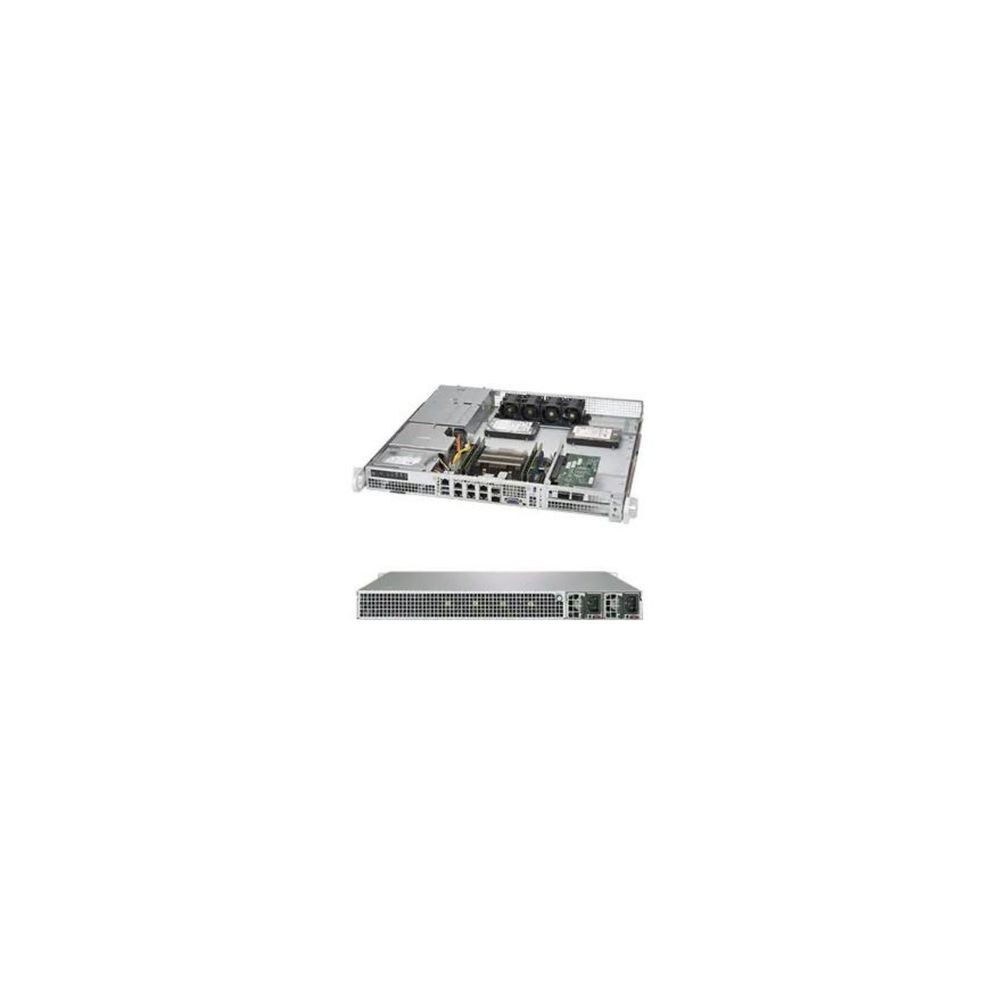

SUPERMICRO COMPUTER SYS-1019D-FRN8TP Rackmount Servers

SYS-1019D-FRN8TP

New

SuperServer 1019D-FRN8TP -Server-1U-Xeon-Gigabit Ethernet-Power Supply-Redundant-Up to 4x 2.5 drive bays
×




Detailed Specifications

Primary Information
System TypeServer
Cabinet Form Factor1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Max Supported Qty1
Mainboard / Chipset TypeIntel SoC Platform
RAM / TechnologyDDR4
RAM / Total Slots Qty4
Hard Drive / Size2.5"
Hard Drive / Interface TypeSerial ATA
Hard Drive / Bays Qty4
Storage Controller TypePCI Express
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Power / Device TypePower Supply - Redundant
Power / Provided (W)400 Watt
Power / Voltage Required100 - 240Vac / 6.0 - 3.0A / 50-60Hz
Interfaces & Connections12 SATA3 (6Gbps) ports, RAID 0, 1, 5, 10, 4 RJ45 1GbE LAN ports (front), 2 RJ45 10GBase-T LAN ports (front), 2 10G SFP+ LAN ports (front), 1 RJ45 Dedicated IPMI LAN port (front), 2 USB 3.0 ports (front), 1 VGA port (front).
Expansion Bays Total (Free)Up to 4x 2.5" drive bays
Expansion Slots Total (Free)1 PCI-E 3.0 x16 slot, 1 Mini PCI-E x1 slot.
ModelSuperServer 1019D-FRN8TP
Width17.2 Inch
Depth16.9 Inch
Height1.7 Inch
Enclosure ColorBlack
RoHSY

Special Feature
COOInquire
TAA complianceInquire

UNSPSC Code
UNSPSC Code43211502
