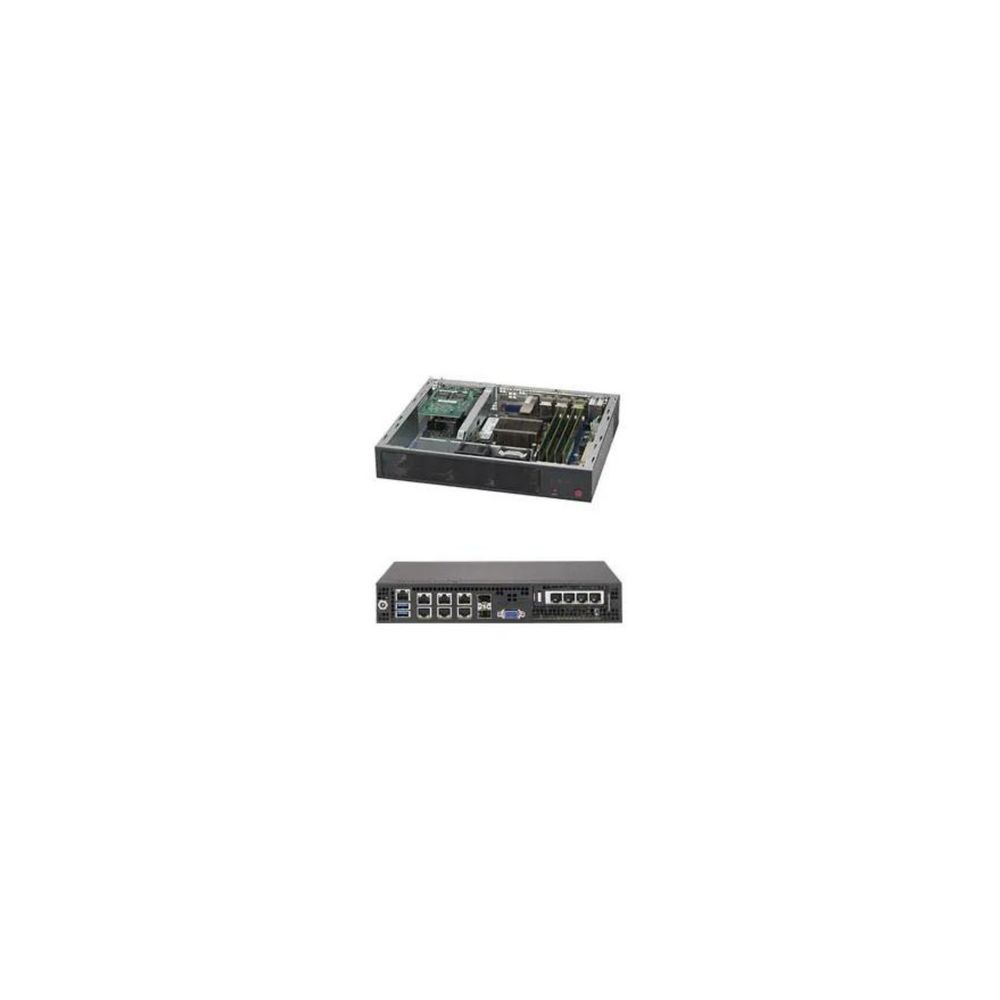

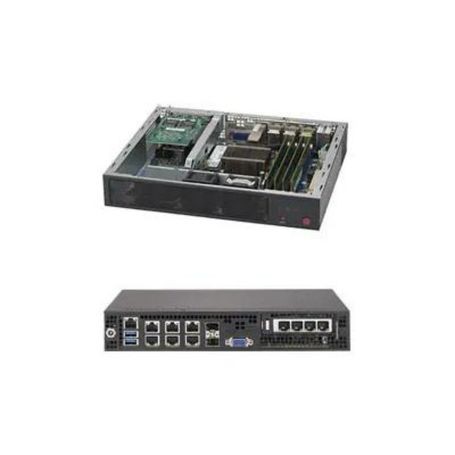

SUPERMICRO COMPUTER SYS-E300-8D Rackmount Servers View larger

SUPERMICRO COMPUTER SYS-E300-8D Rackmount Servers

SYS-E300-8D

New

Supermicro SuperServer MINI E300-8D 1U SOC X10SDV-TP8F Xeon D-1518 2.2Ghz FCBGA 16674Cores 8Threads. Supports up to 32GB 2133/1866/1600Mhz DDR4 ECC RDIMM and ECC/Non-ECC UDIMM. TPM 2.0
×




Detailed Specifications

Primary Information
System TypeServer
ModelSuperServer E300-8D
Cabinet Form FactorMini-1U
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Clock Speed2.2 GHz
Max Turbo Frequency2.2 GHz
Processor / NumberD-1518
Multi-Core TechnologyQuad-Core
Cache Memory Installed Size6 MB
Mainboard / Chipset TypeSystem on Chip
RAM / TechnologyDDR4
RAM / Total Slots Qty4
Networking TypeEthernet
RAID LevelRAID 0, 1, 5, 10
Data Link ProtocolGigabit Ethernet
Graphics ControllerAspeed AST2400
Power / Device TypePower Adapter
Power / Voltage Required+12V DC
Interfaces & Connections10G SFP+ LAN, 1GbE LAN, Dedicated IPMI LAN, USB 3.0, VGA
Expansion Slots Total (Free)1 PCI-E 3.0 x8 slots
Width10.43 Inch
Depth8.9 Inch
Height1.7 Inch
Weight3.45 lbs.
Enclosure ColorBlack
Min Operating Temperature0 Celsius
Max Operating Temperature40 Celsius
Humidity Range Operating8% to 90% (non-condensing)

Special Feature
RoHSY
COOTAIWAN
TAA complianceYes

Processor
Processor / TypeXeon
Processor / ManufacturerIntel
Processor / Clock Speed2.2 GHz
Max Turbo Frequency2.2 GHz
Processor / NumberD-1518
Multi-Core TechnologyQuad-Core
Cache Memory Installed Size6 MB

RAM
RAM / TechnologyDDR4
RAM / Total Slots Qty4

Storage Controller
RAID LevelRAID 0, 1, 5, 10

Networking
Networking TypeEthernet
Data Link ProtocolGigabit Ethernet

Video
Graphics ControllerAspeed AST2400

Power
Power / Device TypePower Adapter
Power / Voltage Required+12V DC

Expansion
Interfaces & Connections10G SFP+ LAN, 1GbE LAN, Dedicated IPMI LAN, USB 3.0, VGA
Expansion Slots Total (Free)1 PCI-E 3.0 x8 slots

Dimensions&Miscellaneous
Width10.43 Inch
Depth8.9 Inch
Height1.7 Inch

UNSPSC Code
UNSPSC Code43211502
