Detailed Specifications

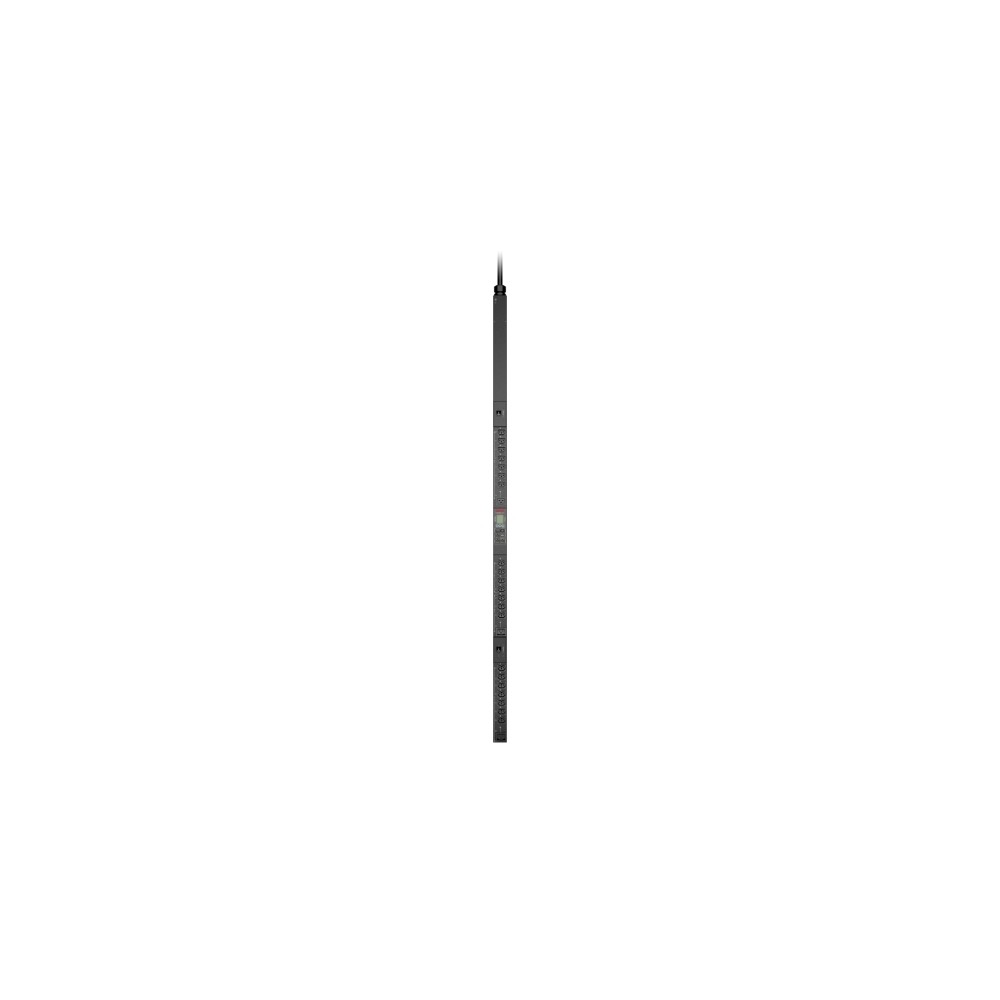

APC APDU9941 - Switched 0U PDU 30A 24 Outlets
Overview
The APC APDU9941 is a switched rack power distribution unit designed for IT racks where controlled power distribution and remote management are required. It is typically used by data center operators, network engineers, and IT teams managing critical infrastructure that needs outlet-level control and monitoring.
It delivers up to 30A load capacity with 24 mixed IEC outlets, supporting both standard and high-temperature power cords. The integrated Network Management Card enables remote access, outlet-level switching, and real-time power monitoring including voltage, current, and energy usage.

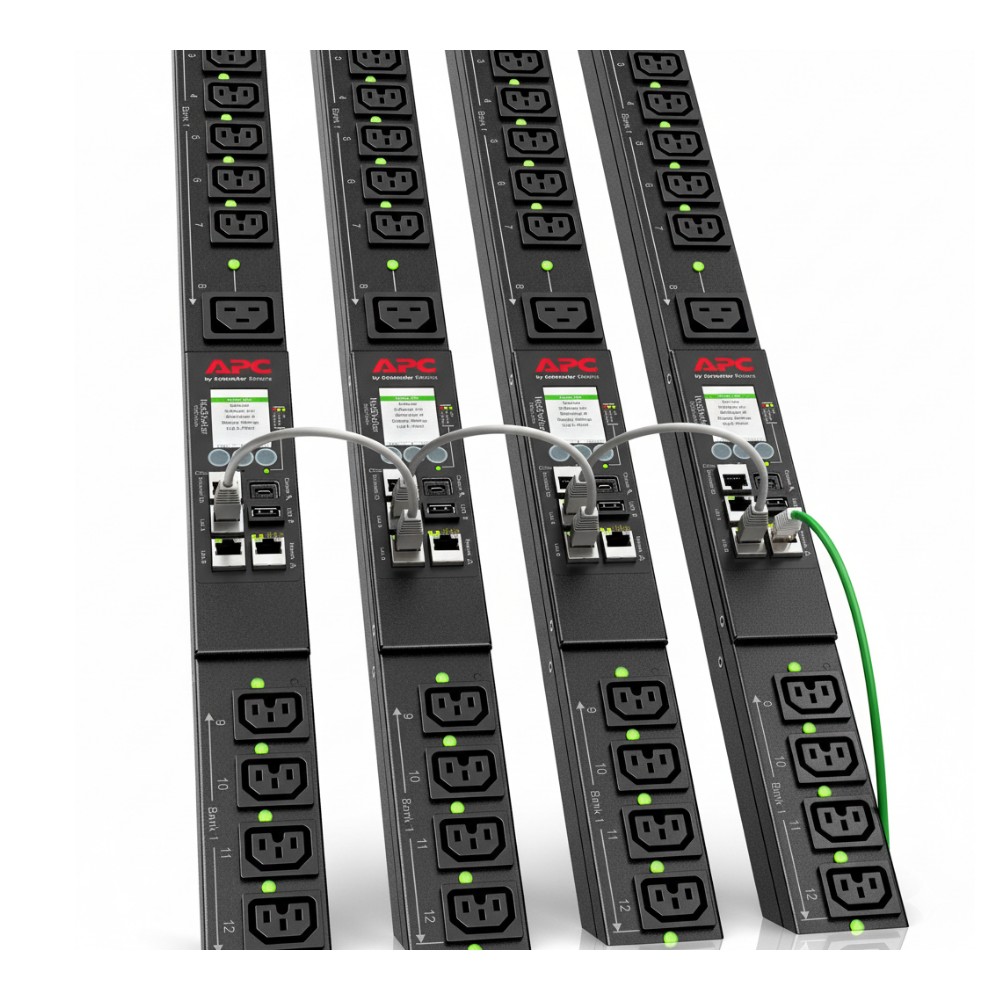

This unit mounts vertically in a 0U configuration, making it suitable for high-density racks in data centers or enterprise environments where rack space is limited. It integrates with EcoStruxure IT and supports daisy-chaining up to 32 PDUs under a single IP for simplified network deployment.
It is compatible with IEC C14/C20 and newer C16/C21 power cords. It is not intended for environments requiring three-phase power distribution or higher than 30A input capacity.
Key Features
- 24 IEC outlets with hybrid C13/C19 support
- 30A load capacity for high-density racks
- Remote outlet switching via network access
- Daisy-chain up to 32 PDUs on one IP
- LCD interface for real-time power metrics
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | APDU9941 |
| Product Type | Switched Rack PDU |
| Input Plug | NEMA L6-30P |
| Output Outlets | 24 (21x C13/C15, 3x C19/C21) |
| Input Voltage | 90-264 V |
| Output Voltage | 200-208 V |
| Maximum Current | 30 A |
| Load Capacity | 4992 VA |
| Mounting Type | Vertical 0U |
| Network Interface | 1x RJ-45 Ethernet |
| Operating Temperature | -5°C to 60°C |
| Humidity Range | 5-95% RH |
| Compliance | RoHS, UL, FCC, ICES-003 |
