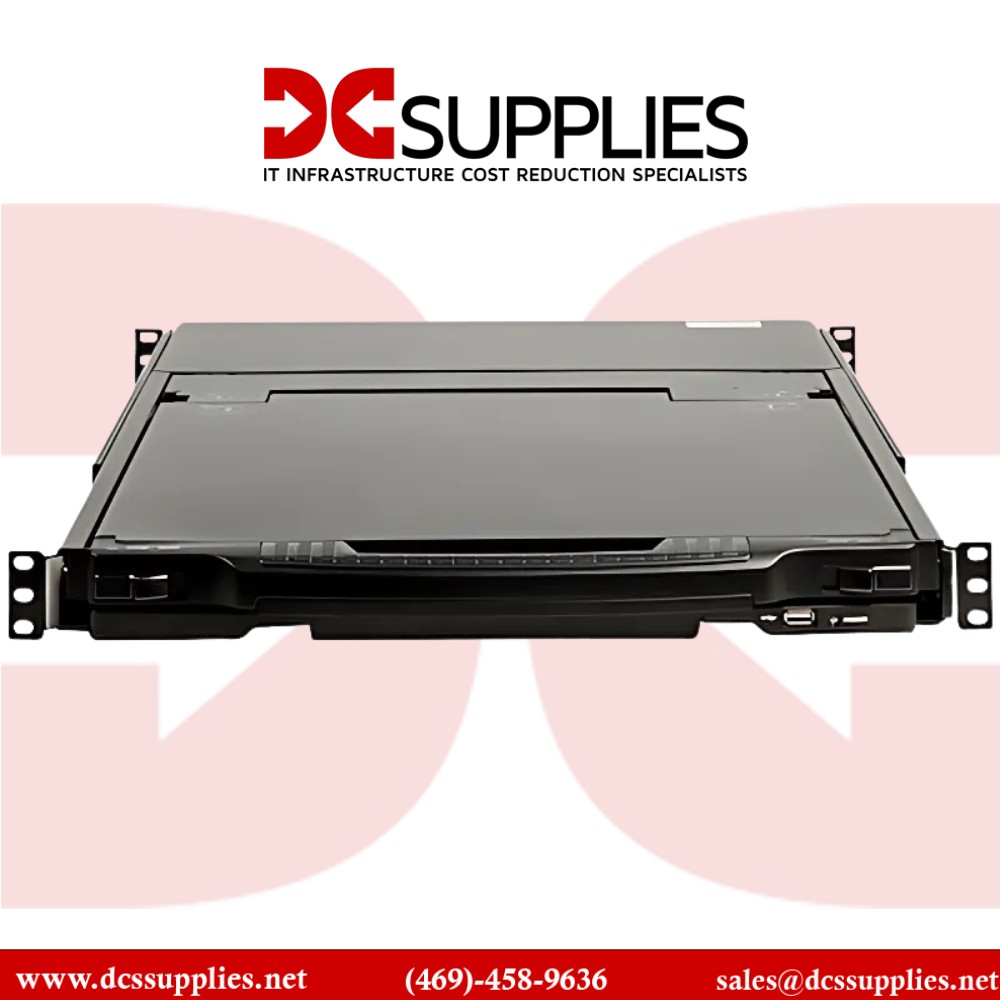

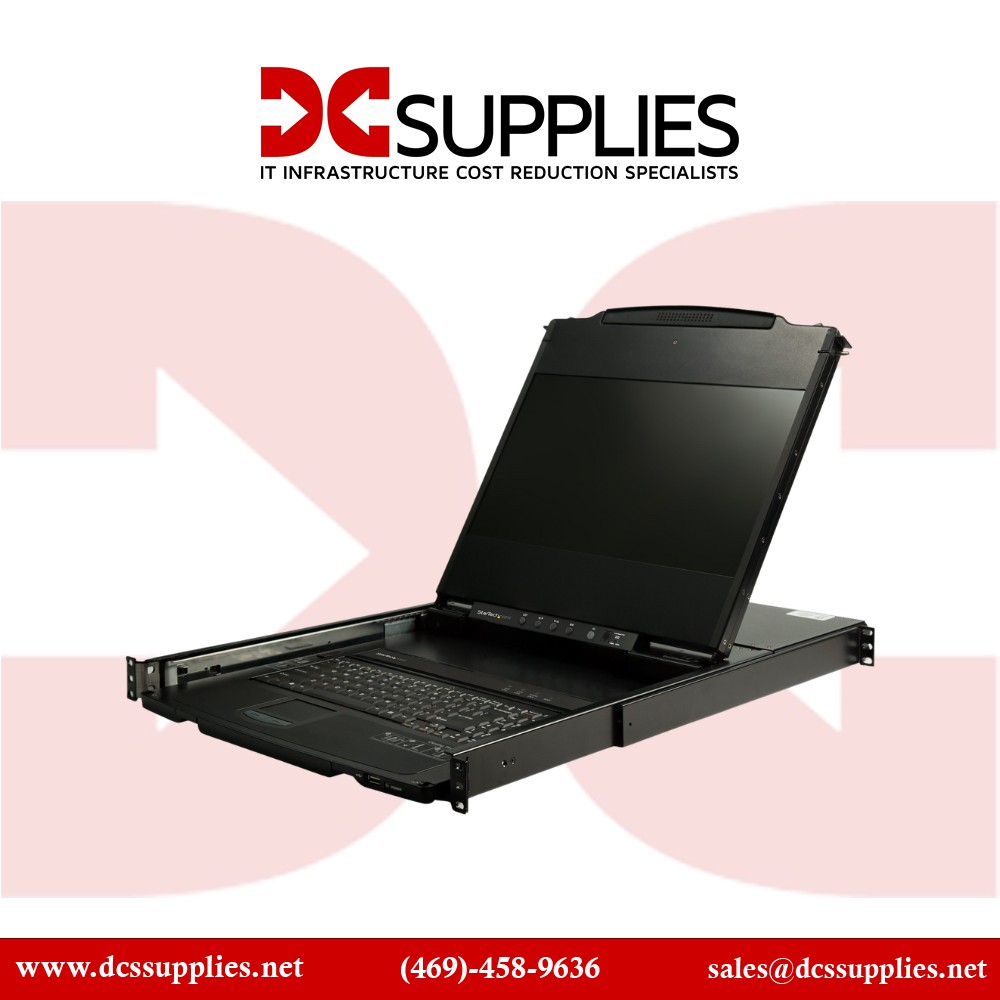

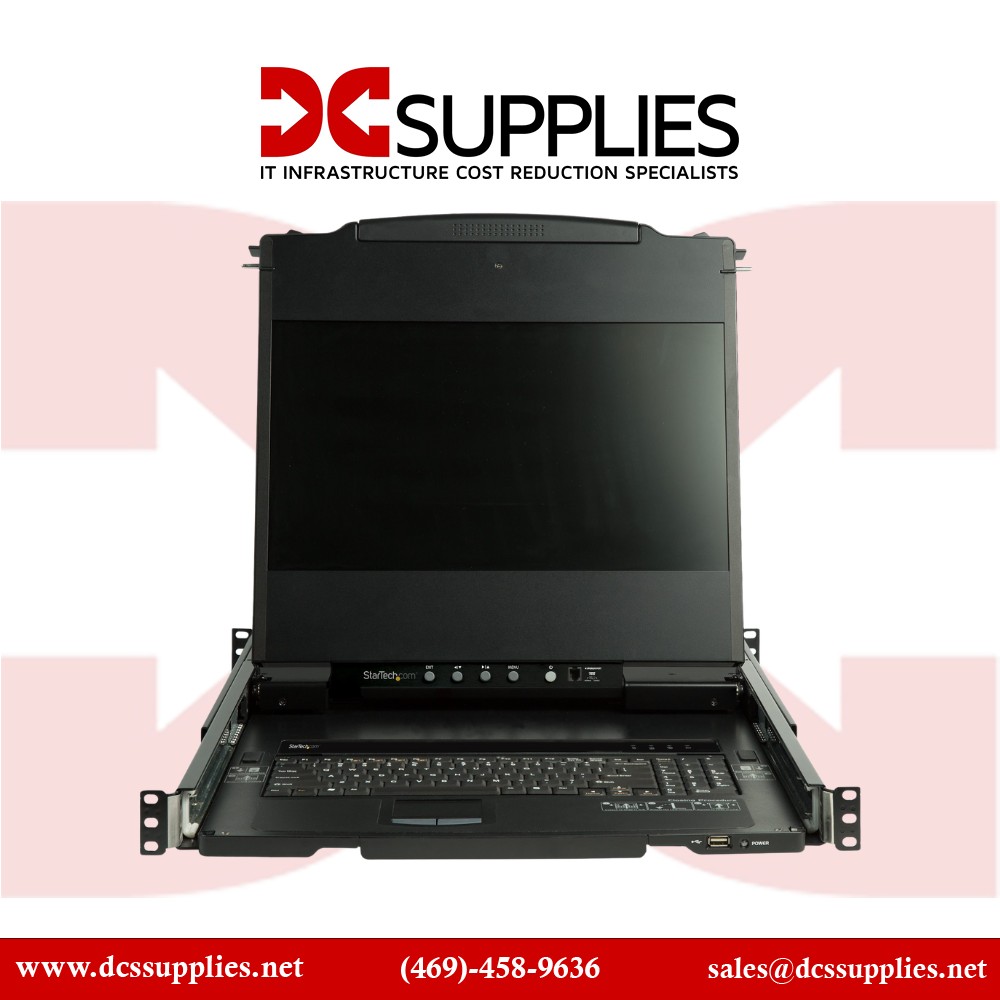

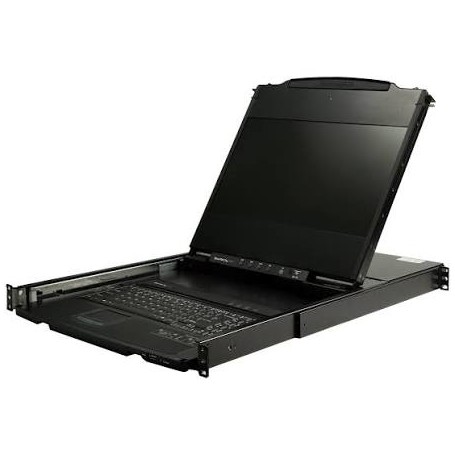

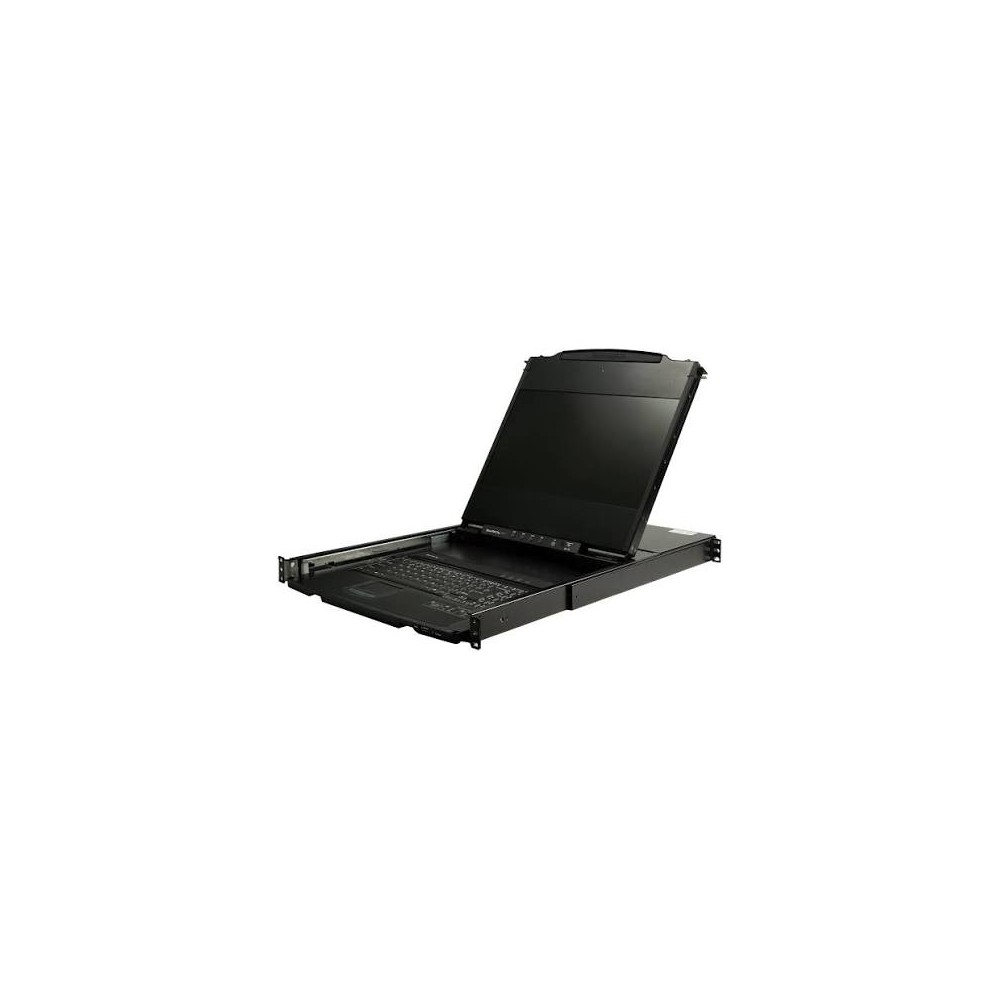

StarTech RKCOND17HD

17″ HD Rackmount KVM Console - Dual Rail

The StarTech RKCOND17HD 17″ HD Rackmount KVM Console is a 1U dual-rail drawer that consolidates video, keyboard, touchpad, USB, and audio into one rack-friendly unit. Perfect for data centers, server farms, and network admins, it enables efficient hardware management with minimal footprint.

Features

Designed for dense server environments, this KVM console supports both digital and analog video, accommodating DVI and VGA ports at resolutions up to 1920×1080 @ 60 Hz The dual-rail design allows the display and keyboard drawer to slide independently×ideal for monitoring through closed rack doors without losing workspace clearance.

Advanced Options

Everything you need for installation is included: KVM and audio cables, mounting brackets, cage nuts, screws, firmware update cable, and global power cords With no drivers required, setup is plug-and-play×just rack it and connect your systems.

Product Key Features

• Dual-Rail Design - Independently slide monitor and keyboard/touchpad for space optimization

• 17.3″ Full HD Display - LED-backlit LCD with 1920 × 1080 resolution

• DVI/VGA Input Support - Versatile digital and analog video compatibility

• Integrated Keyboard & Touch-Pad - Built for rackmount convenience

• Front USB Port + Audio - Easily attach peripherals and monitor audio

• Rack-Ready Setup - Includes KVM/audio cables, brackets, cage nuts, screws, firmware cable, and global power cords

Reliability & Performance

Built with a robust steel housing and rated for a mean time between failures (MTBF) of ~44,230 hours, the RKCOND17HD delivers reliable service in demanding environments . With a low power consumption of ~19.4 W and an operating range of 0-40 °C, this console is energy-efficient and suited for typical server room conditions.

Key Features :

• 17.3″ LED-backlit Active Matrix TFT LCD at 1920×1080 @ 60 Hz

• Dual-rail console: separate monitor and keyboard/touchpad slides

• DVI and VGA console video inputs

• USB 2.0 keyboard/mouse interface and front USB-A port

• Integrated stereo audio in/out

• Mounts in 1U rack space; includes mounting gear and cables

• Global power cords (NA, JP, UK, EU, ANZ) included

• LED indicators for power, Num/Caps/Scroll Lock

• Supports wide operating conditions (0-40 °C, 0-80 % RH non-condensing)

Specification	Details
Model Number	RKCOND17HD
Product Type	17″ HD Rackmount KVM Console (dual-rail)
Display Size	17.3″ (16:9) LED-backlit TFT LCD
Max Resolution	1920 × 1080 @ 60 Hz
Video Inputs	1 × DVI-D + 1 × VGA (both console and host interfaces)
USB Ports	2 × USB-A (front console); 1 × USB-B (host)
Audio Ports	3.5 mm stereo in/out
Keyboard/Touchpad	Integrated QWERTY keyboard with touchpad
Switching	Manual slide drawers
Power Consumption	~19.4 W
Power Supply	Internal PSU; 100-240 VAC global cords
Dimensions (LWD)	~28.6″ × 18.9″ × 1.7″ (72.7 × 48 × 4.4 cm)
Weight	~26.5 lb (12 kg)
Operating Temp	0-40 °C
Storage Temp	−20-60 °C
Humidity	0-80 % RH non-condensing
Construction	Steel enclosure
MTBF	~44,230 hours
