Detailed Specifications

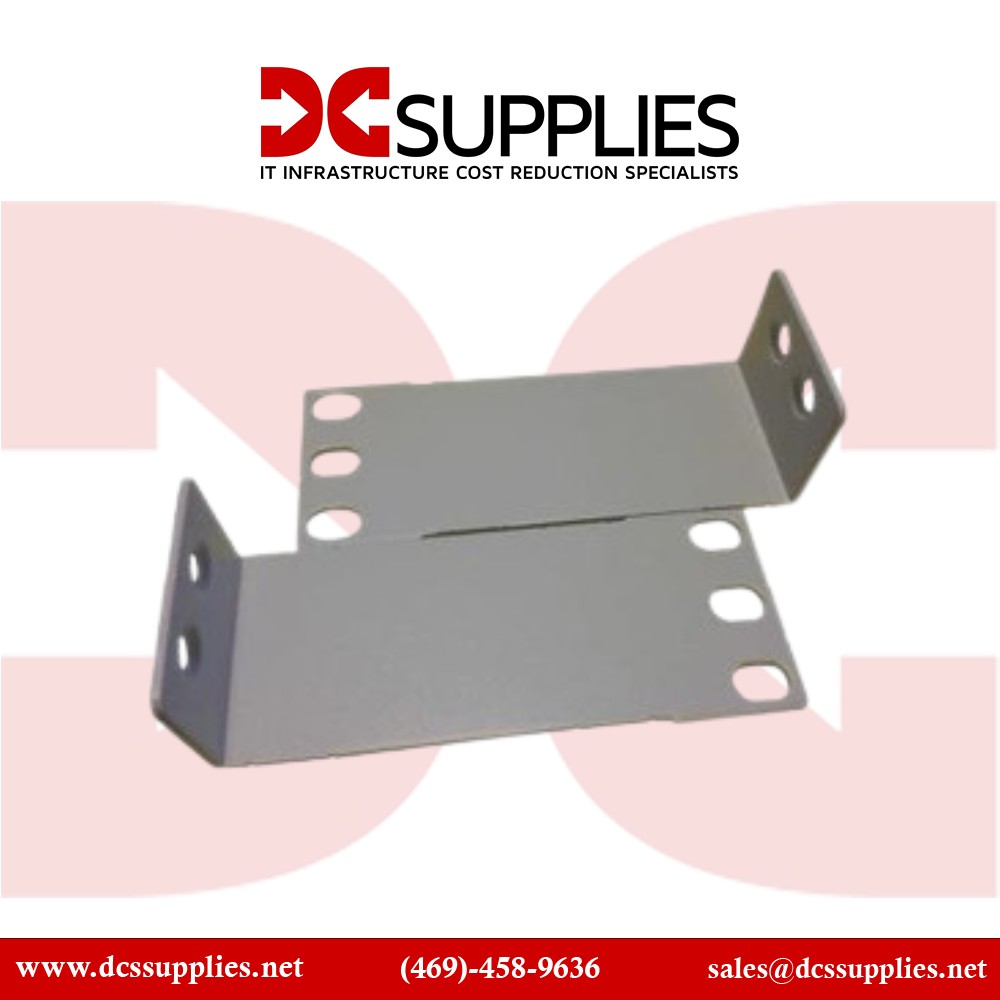

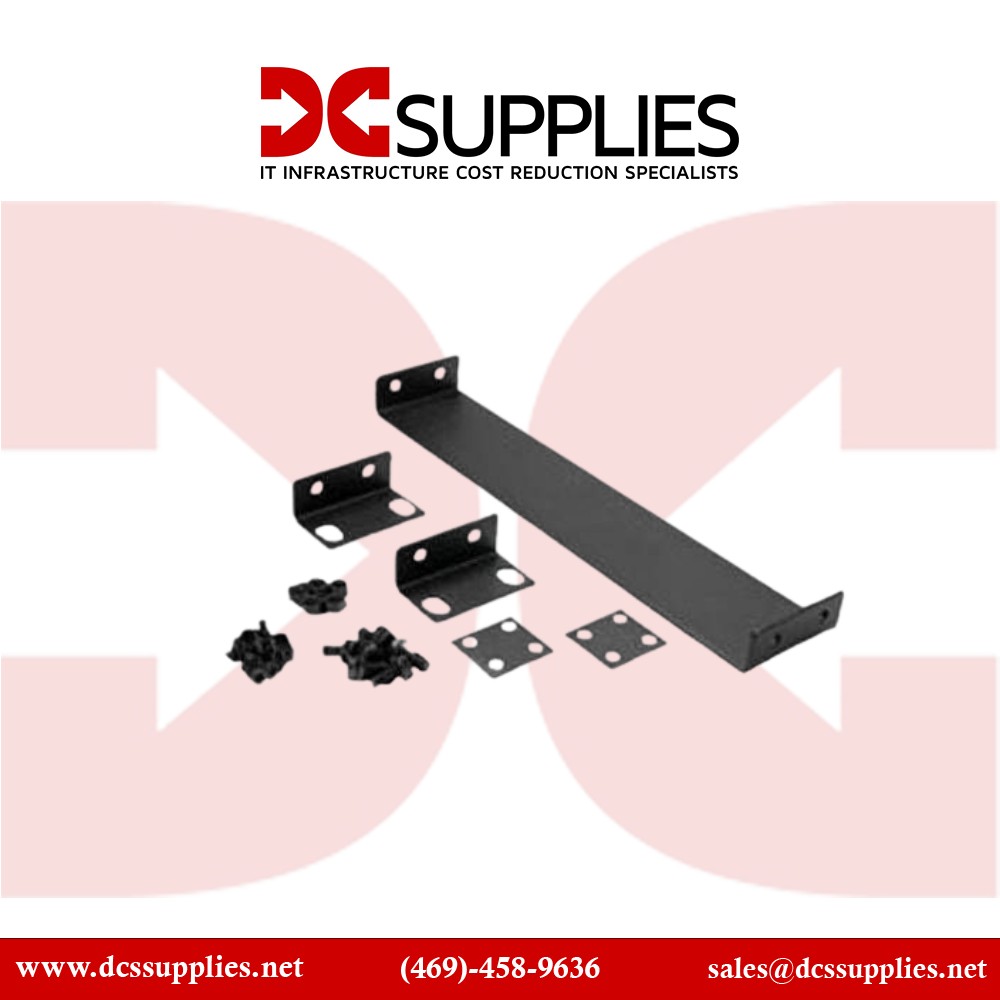

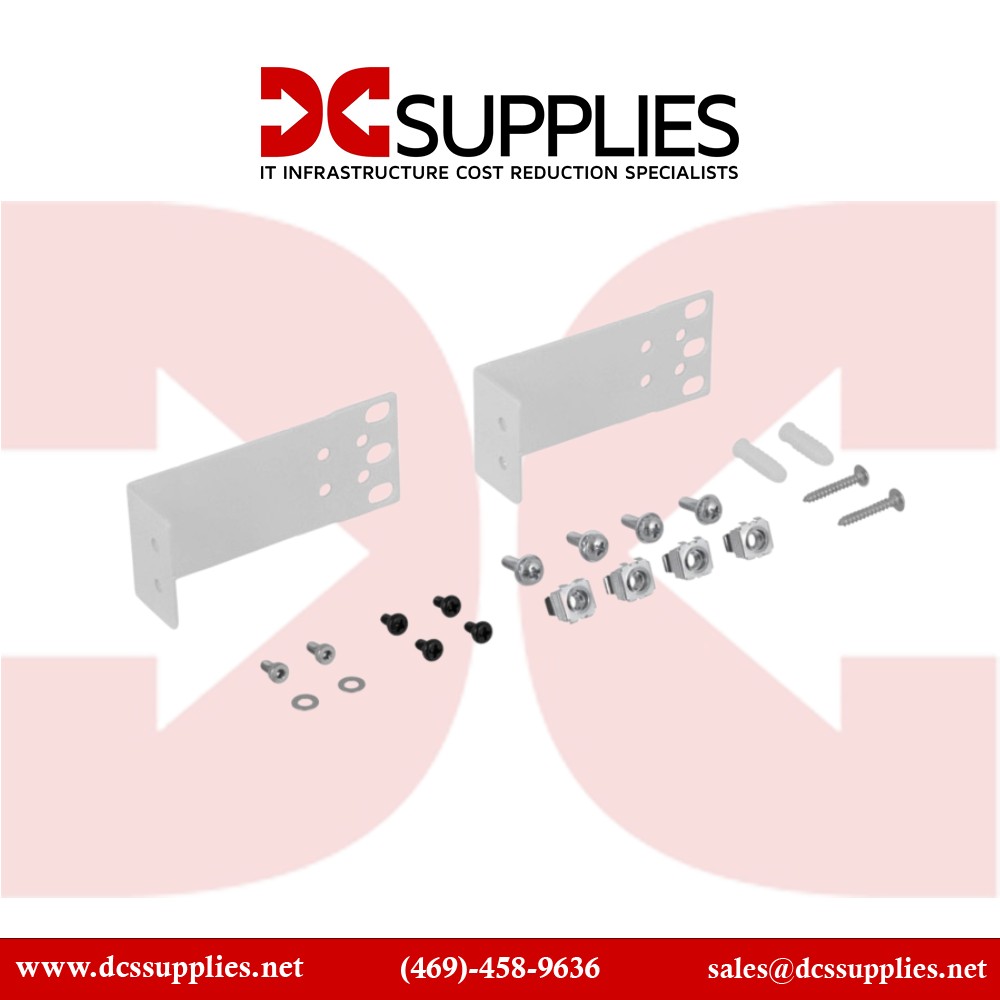

RUCKUS ICX-RMK-4POST-TL – 4-Post Rack Mount Kit / Tool-less
Overview :
The ICX-RMK-4POST-TL from RUCKUS is a tool-less, four-post rack-mount kit engineered for rapid installation of ICX series switches in standard EIA 19-inch racks. It supports rack depths of approximately 18 in to 31 in (46 cm to 79 cm) and is designed to secure network switches in four-post configurations without requiring additional rails or complex hardware. The kit includes front and rear brackets along with 10-32 x 5/8-inch pan-head screws and retainer nuts, enabling flush-mount or recessed mount depending on rack layout. Its tool-less front bracket latching and adaptable rear brackets provide flexible deployment in data centres or network closets. This mounting kit is ideal for engineers working with ICX family switches in medium to large enterprise, campus or data centre environments who require a reliable and repeatable rack-mount solution.
Key Features :
Tool-less bracket mounting for fast installation
Supports EIA rack depths between 18 in and 31 in
Includes front and rear mounting brackets and hardware
Designed for four-post rack configurations
Compatible with RUCKUS ICX 7550 and 7850 switch series
Specifications
| Specification | Details |
|---|
| Brand | RUCKUS |
| Part Number | ICX-RMK-4POST-TL |
| Product Type | 4-Post Rack Mount Kit |
| Compatible Rack Depth | 18 in – 31 in (46 cm – 79 cm) |
| Mounting Orientation | Flush-front or recessed in four-post rack |
| Package Contents | 2 front brackets, 2 rear brackets, screws and nuts |
| Screw Type | 10-32 × 5/8-inch pan-head Phillips screws (12) |
| Retainer Nuts | 10-32 (12) |
| Approximate Weight | 3.0 lbs (~1.36 kg) |
| Recommended Usage | Rack installation of ICX switches |
| Tool Requirement | #2 Phillips screwdriver, ¼-inch slotted-blade |
| Rack Standard | EIA 19-inch four-post |
| Mount Kit Compatibility | ICX 7550, ICX 7850 series switches |
| Installation Time | Approximately 15–30 minutes per unit |
| Compliance | Kit is non-TAA for some listings |
