Detailed Specifications

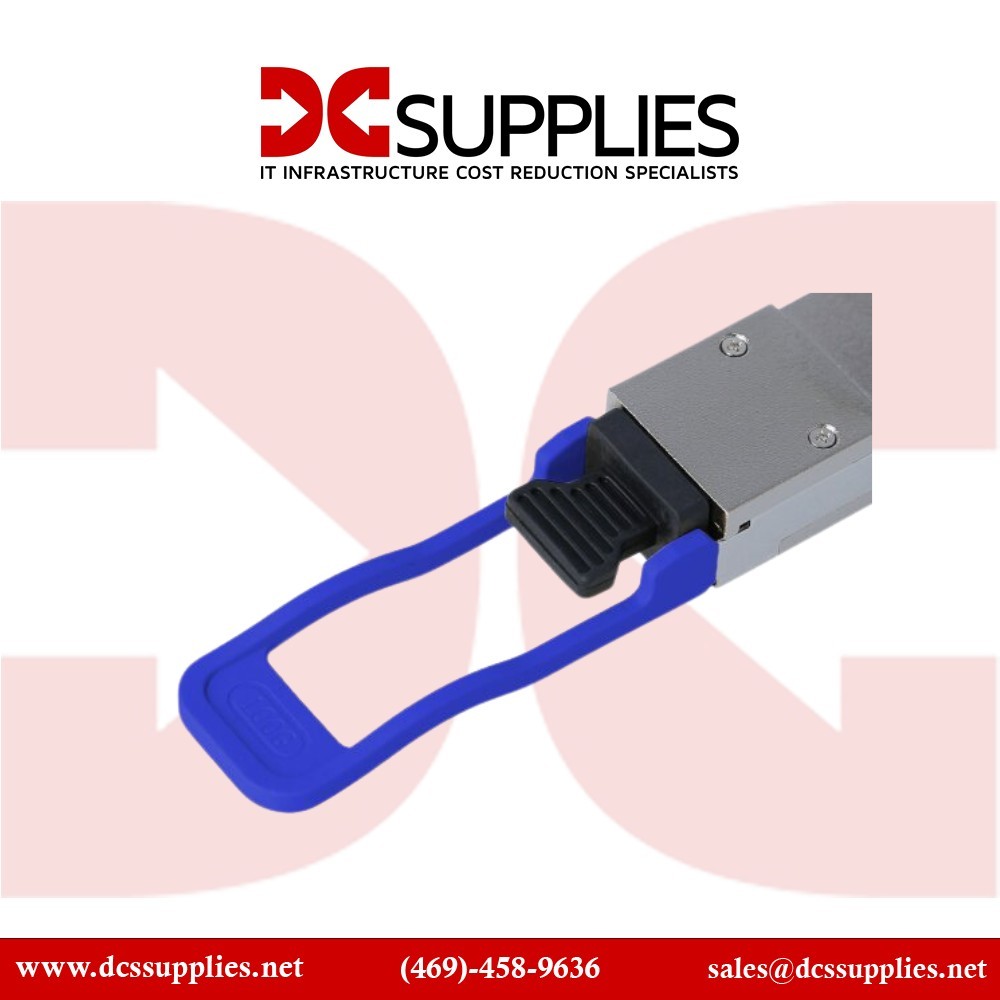

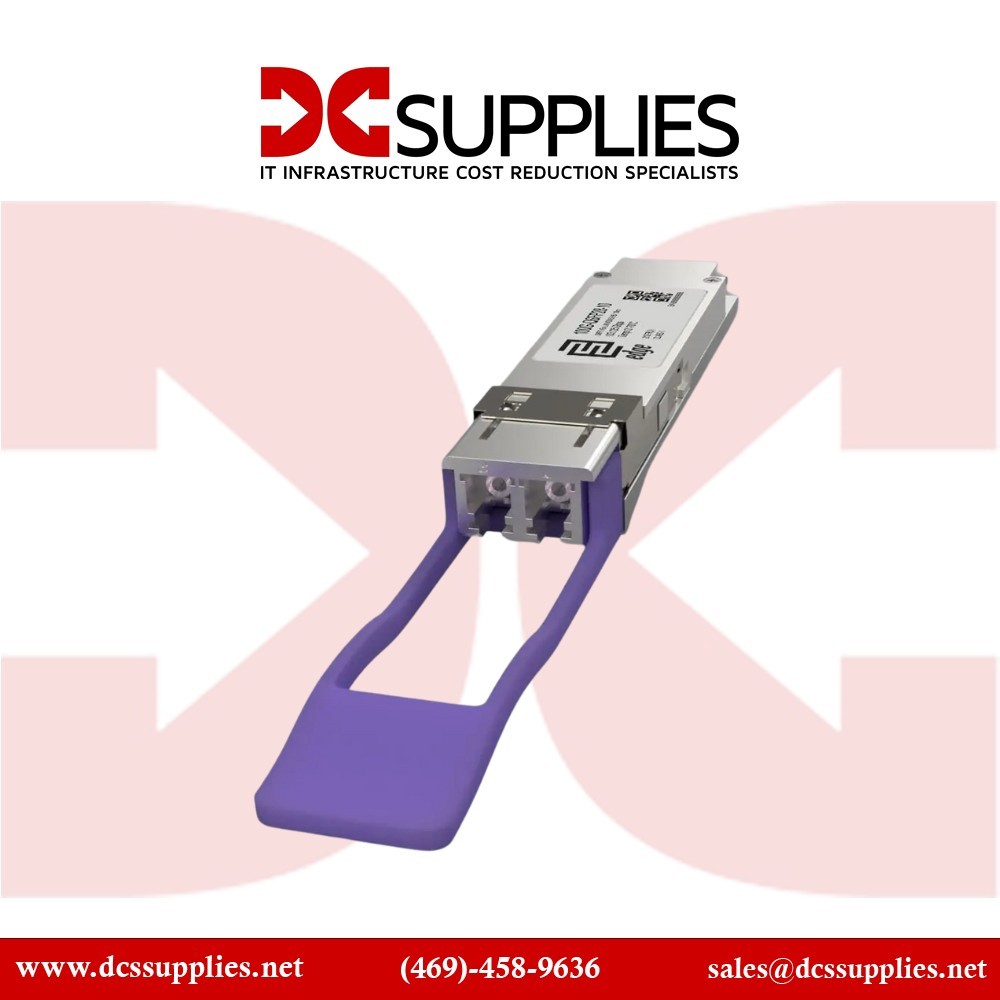

Ruckus E40G-QSFP-LM4 – 40GBASE-LX4 QSFP+ Transceiver
Overview :
The Ruckus E40G-QSFP-LM4 is a 40 Gigabit Ethernet transceiver module designed for high-performance networking environments. It supports 40GBASE-LX4 standards, enabling data transmission over single-mode fiber (SMF) up to 2 kilometers. Utilizing a wavelength range of 1270nm to 1330nm, this module ensures efficient and reliable data transfer. The LC duplex connector facilitates easy integration into existing fiber infrastructures. With a commercial operating temperature range of 0°C to 70°C, it is suitable for various deployment scenarios, including data centers and enterprise networks.
Key Features :
Supports 40GBASE-LX4 standards for high-speed data transfer
Operates over single-mode fiber up to 2 kilometers
Utilizes a wavelength range of 1270nm to 1330nm
Equipped with an LC duplex connector for seamless integration
Commercial operating temperature range of 0°C to 70°C
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | E40G-QSFP-LM4 |
| Product Type | 40GBASE-LX4 QSFP+ Transceiver |
| Data Rate | 40 Gbps |
| Wavelength | 1270nm to 1330nm |
| Media Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Duplex |
| Maximum Reach | 2 kilometers |
| Operating Temperature | 0°C to 70°C |
| Hot Pluggable | Yes |
| Digital Optical Monitoring (DOM) | Yes |
| Compliance | RoHS Compliant |
| Form Factor | QSFP+ |
| Country of Origin | USA/UK |
| ECCN | 5A991 |
