Detailed Specifications

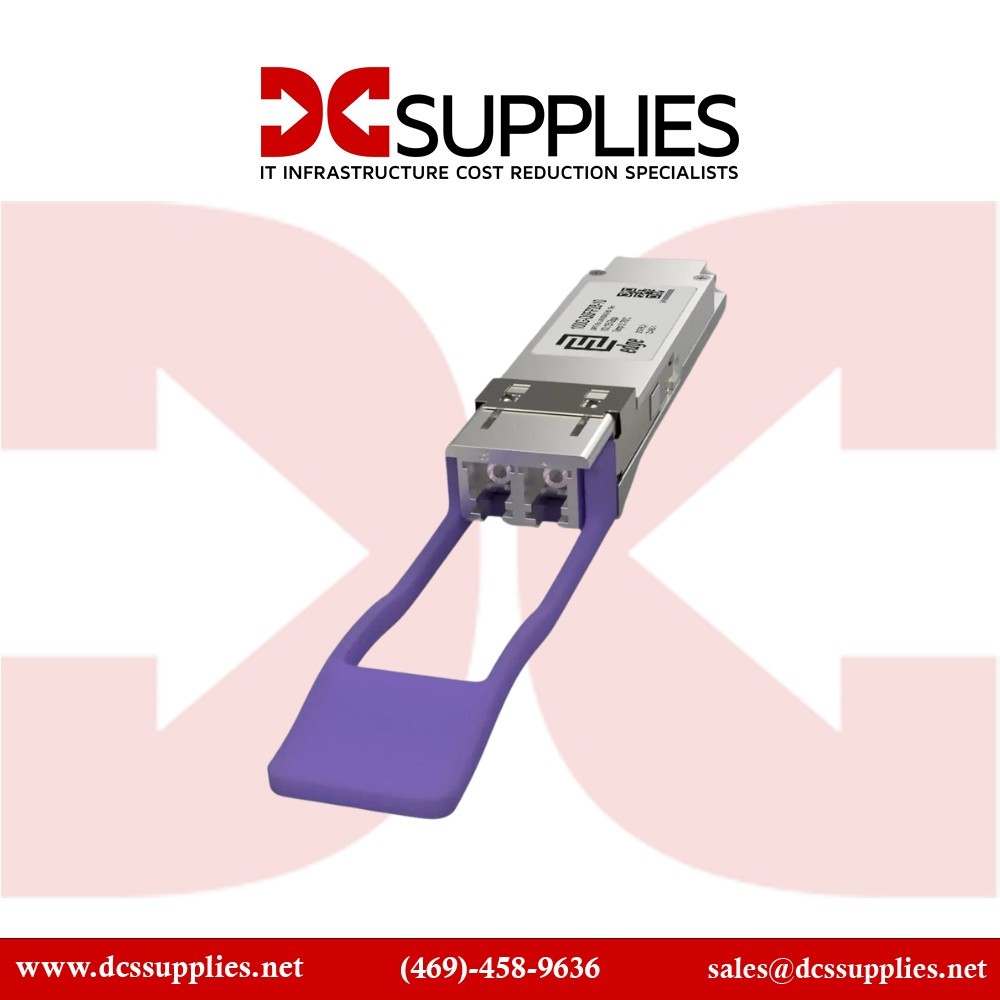

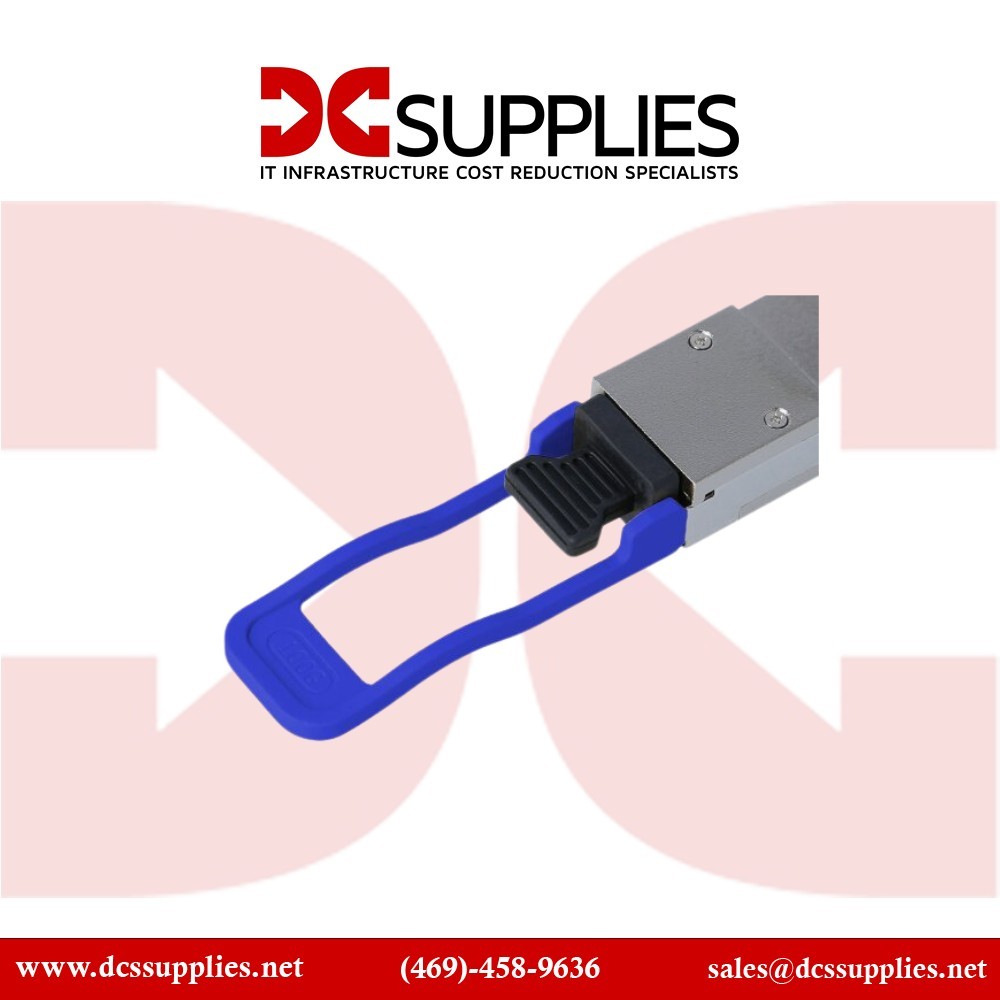

Ruckus E40G-QSFP-SR4-INT – 40GBASE-SR4 QSFP+ Transceiver
Overview :
The Ruckus E40G-QSFP-SR4-INT is a 40 Gigabit Ethernet transceiver designed for high-speed data transmission over multimode fiber (MMF) networks. Operating at a wavelength of 850nm, this QSFP+ module is optimized for OM3 MMF cables, supporting distances up to 100 meters. It is compatible with Ruckus ICX series switches, including the ICX 7450, 7550, 7650, 7750, 7850, and 8200 models. The transceiver features Digital Optical Monitoring (DOM) for real-time monitoring of optical parameters, ensuring optimal performance and reliability. Its compact form factor allows for easy integration into existing network infrastructures, making it suitable for data centers, enterprise networks, and high-density environments requiring high-bandwidth connectivity. The E40G-QSFP-SR4-INT provides a cost-effective solution for upgrading network speeds to 40GbE while maintaining compatibility with existing fiber infrastructure.
Key Features :
High-Speed Connectivity: Supports 40GbE over OM3 MMF up to 100m.
Digital Optical Monitoring (DOM): Enables real-time optical performance monitoring.
Broad Compatibility: Compatible with Ruckus ICX 7450, 7550, 7650, 7750, 7850, and 8200 series switches.
Compact Form Factor: Standard QSFP+ design for easy integration.
Cost-Effective Upgrade: Provides a budget-friendly solution for 40GbE deployment.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | E40G-QSFP-SR4-INT |
| Product Type | QSFP+ Transceiver |
| Data Rate | 40 Gbps |
| Wavelength | 850 nm |
| Fiber Type | OM3 Multimode Fiber |
| Maximum Distance | 100 meters |
| Connector Type | MPO/MTP |
| Digital Optical Monitoring | Yes |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 85% non-condensing |
| Power Consumption | 1.5 W (typical) |
| Compliance | RoHS, MSA compliant |
| Dimensions (L x W x H) | 3.5 x 0.5 x 0.2 inches |
| Weight | 0.1 lbs |
