Detailed Specifications

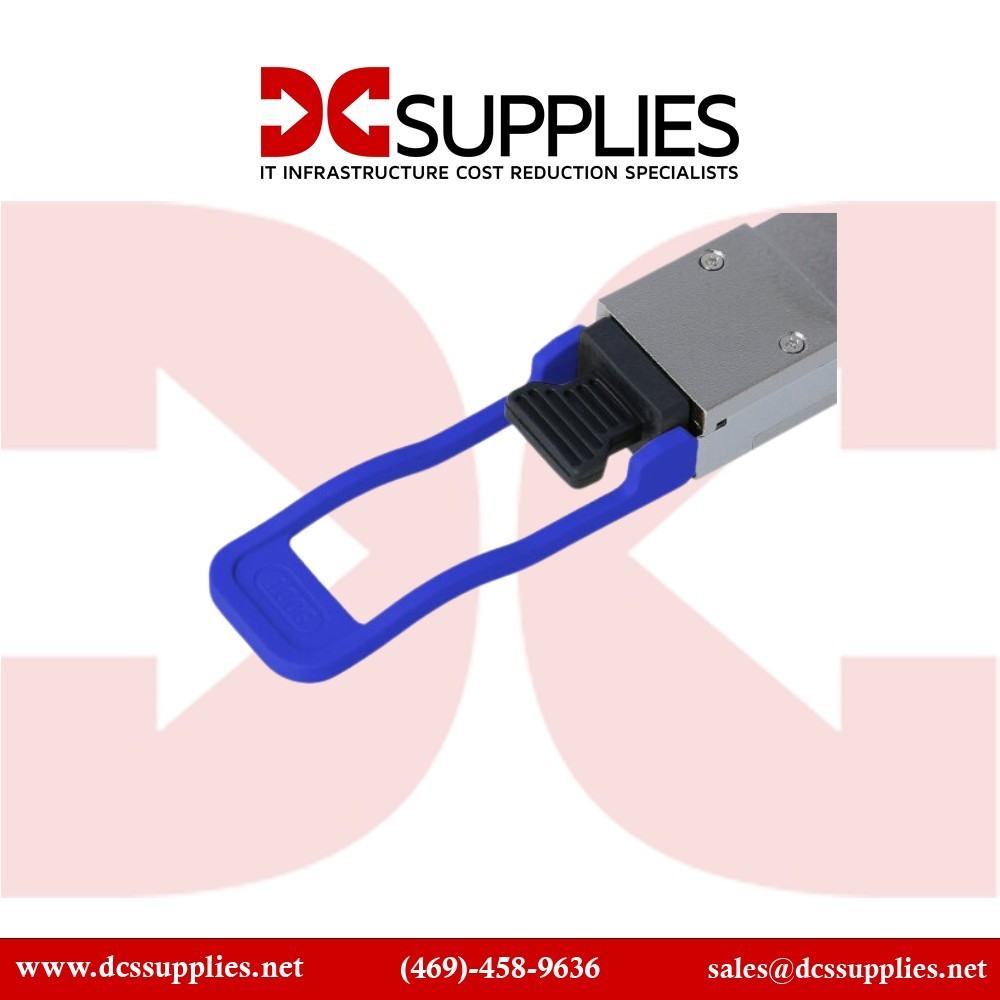

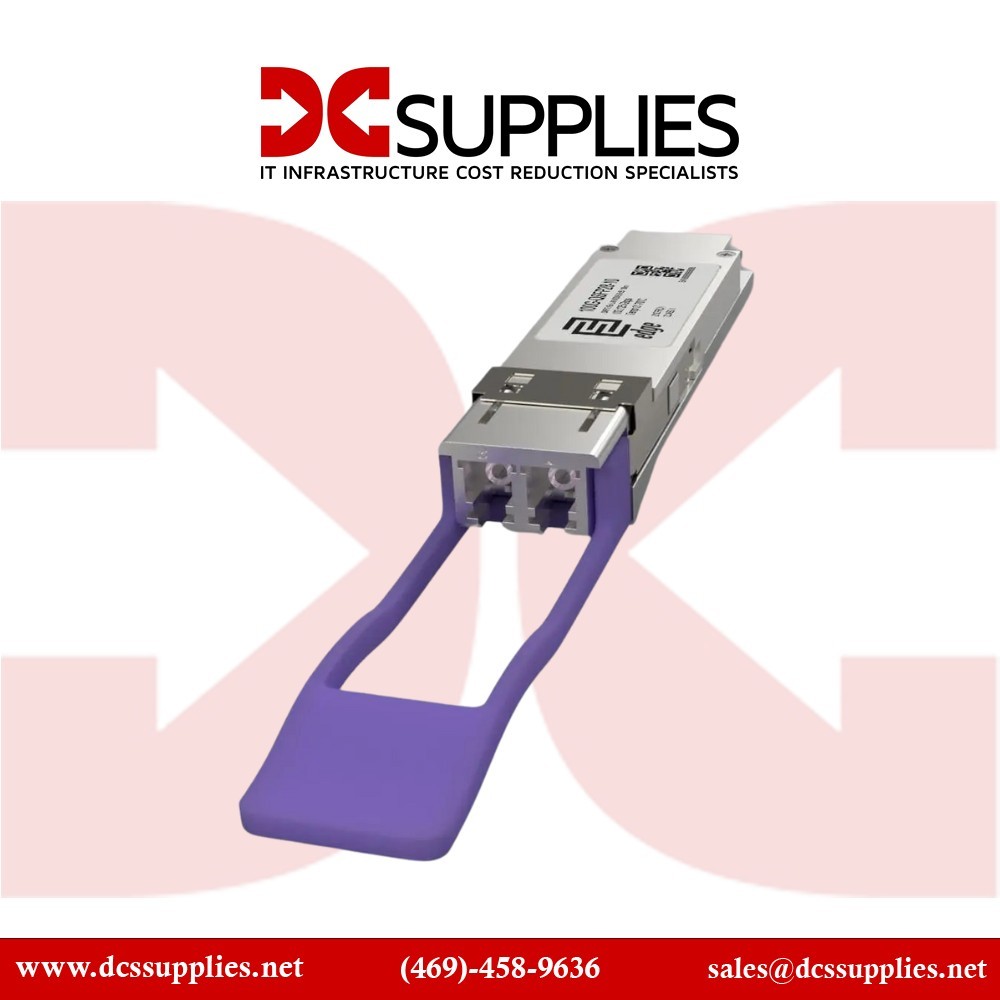

Ruckus E40G-QSFP-SR-BIDI – 40GBASE-SR BiDi QSFP+ Transceiver
Overview :
The Ruckus E40G-QSFP-SR-BIDI is a 40 Gigabit Ethernet transceiver module designed for high-speed data transmission over multimode fiber (MMF). Operating at wavelengths between 850 nm and 900 nm, it utilizes a bidirectional (BiDi) design, enabling 40 Gbps data rates over a single LC duplex fiber link. This configuration is particularly beneficial in environments where fiber resources are limited or where existing infrastructure needs to be optimized. The module is compliant with IEEE 802.3ba standards, ensuring interoperability with a wide range of networking equipment. It is suitable for use in data centers, enterprise networks, and high-performance computing environments that require efficient and high-density connectivity solutions. The E40G-QSFP-SR-BIDI is compatible with Ruckus ICX series switches, including the ICX 7450, 7650, 7750, and 7850 models.
Key Features :
Bidirectional Transmission: Utilizes a single fiber for both transmit and receive paths.
High-Speed Data Rate: Supports 40 Gbps Ethernet connectivity.
Wavelength Range: Operates between 850 nm and 900 nm.
Multimode Fiber Compatibility: Designed for OM3/OM4 MMF.
Extended Reach: Achieves up to 100 meters transmission distance.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Wireless |
| Part Number | E40G-QSFP-SR-BIDI |
| Product Type | 40GBASE-SR BiDi QSFP+ Transceiver |
| Data Rate | 40 Gbps |
| Wavelength | 850–900 nm |
| Fiber Type | OM3/OM4 Multimode Fiber |
| Maximum Distance | 100 meters |
| Connector Type | LC Duplex |
| Digital Optical Monitoring | No |
| Operating Temperature | 0°C to 70°C |
| Form Factor | QSFP+ |
| Compliance | IEEE 802.3ba |
| Safety Standards | FDA 21CFR 1040.10 Class 1, CSA 60950-1-03/UL 60950-1 |
| International Safety Standards | EN 60825-1, EN 60950-1 |
| End of Sale Date | January 24, 2025 |
