Detailed Specifications

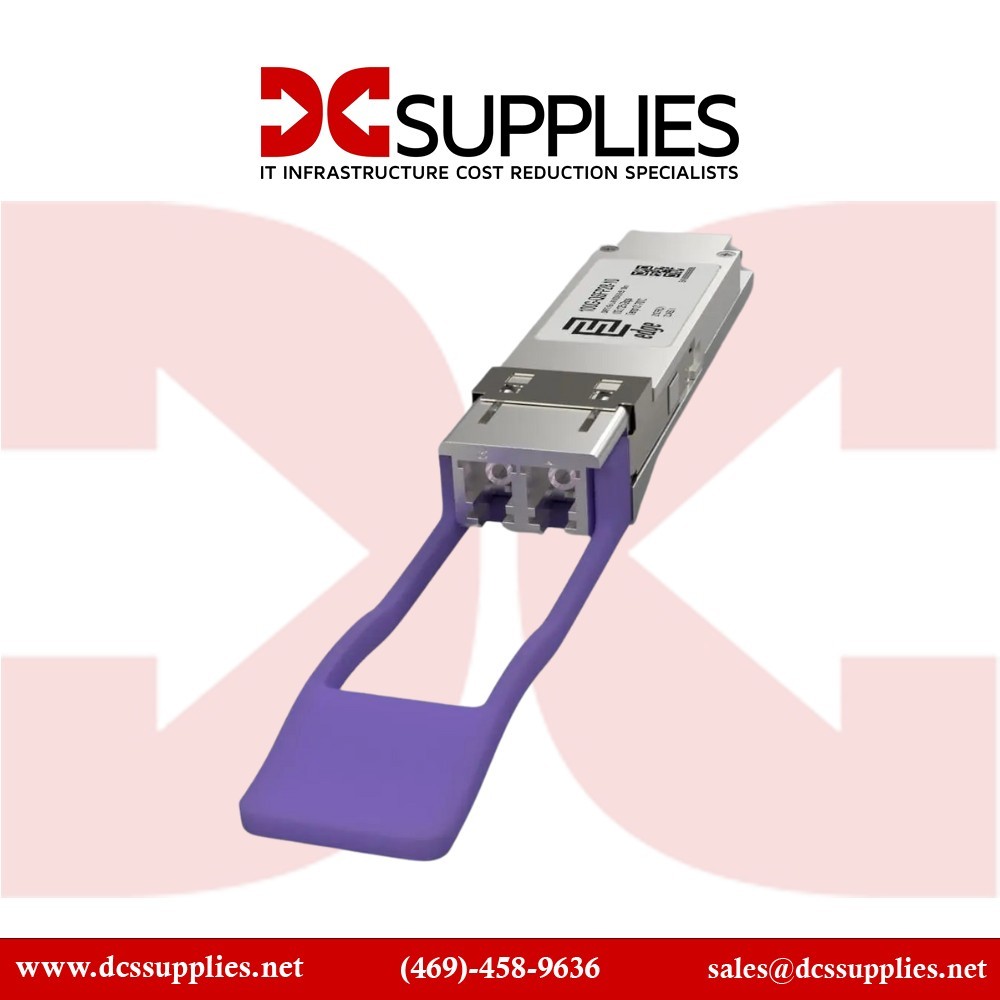

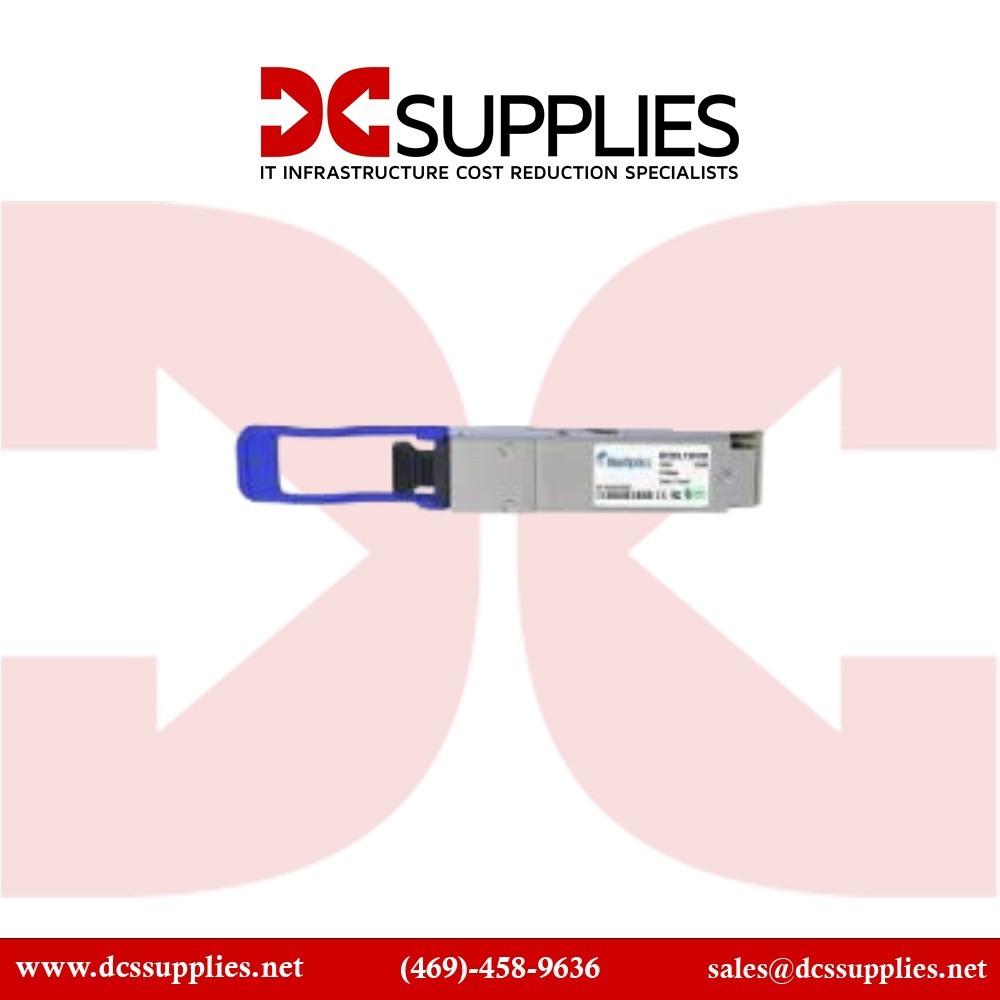

Ruckus E100G-QSFP28-LR4-LP-10KM – 100GBASE-LR4 Low Power QSFP28 Transceiver
Overview :
The Ruckus E100G-QSFP28-LR4-LP-10KM is a high-performance 100GBASE-LR4 Low Power QSFP28 transceiver module designed for long-distance data transmission over single-mode fiber (SMF). Operating at a wavelength of 1310nm, it supports a maximum reach of up to 10 kilometers (6.2 miles) using an LC duplex connector. This transceiver is engineered to deliver 100 Gigabit Ethernet speeds, making it suitable for data centers, enterprise networks, and high-bandwidth applications requiring efficient and reliable connectivity. The low power consumption design ensures optimal energy efficiency, reducing operational costs and heat generation. It is compliant with industry standards, including IEEE 802.3ba, ensuring broad compatibility with compatible networking equipment. The module also supports Digital Optical Monitoring (DOM), allowing for real-time monitoring of critical parameters such as temperature, voltage, and optical power levels. This feature enhances network reliability and facilitates proactive maintenance. With its robust performance and energy-efficient design, the Ruckus E100G-QSFP28-LR4-LP-10KM is an ideal choice for organizations seeking to upgrade their network infrastructure to support high-speed data transmission over extended distances.
Key Features :
High-Speed Data Transmission: Supports 100GBASE-LR4 speeds over SMF.
Extended Reach: Up to 10 km distance with LC duplex connector.
Low Power Consumption: Designed for energy efficiency.
Digital Optical Monitoring (DOM): Enables real-time performance monitoring.
Industry Standard Compliance: Meets IEEE 802.3ba standards.
Specifications
| Specification | Details |
|---|
| Brand | Ruckus Wireless |
| Part Number | E100G-QSFP28-LR4-LP-10KM |
| Product Type | QSFP28 Transceiver Module |
| Data Rate | 100GBASE-LR4 |
| Wavelength | 1310nm |
| Maximum Distance | 10 km (6.2 miles) |
| Connector Type | LC Duplex |
| Fiber Type | Single-Mode Fiber (SMF) |
| Power Consumption | <4W |
| Operating Temperature | 0°C to 70°C |
| Digital Optical Monitoring | Yes |
| Form Factor | QSFP28 |
| Compliance | IEEE 802.3ba |
| Warranty | Manufacturer's standard warranty |
| Dimensions (L x W x H) | 3.5 x 1.2 x 0.5 inches |
| Weight | 0.2 lbs |
