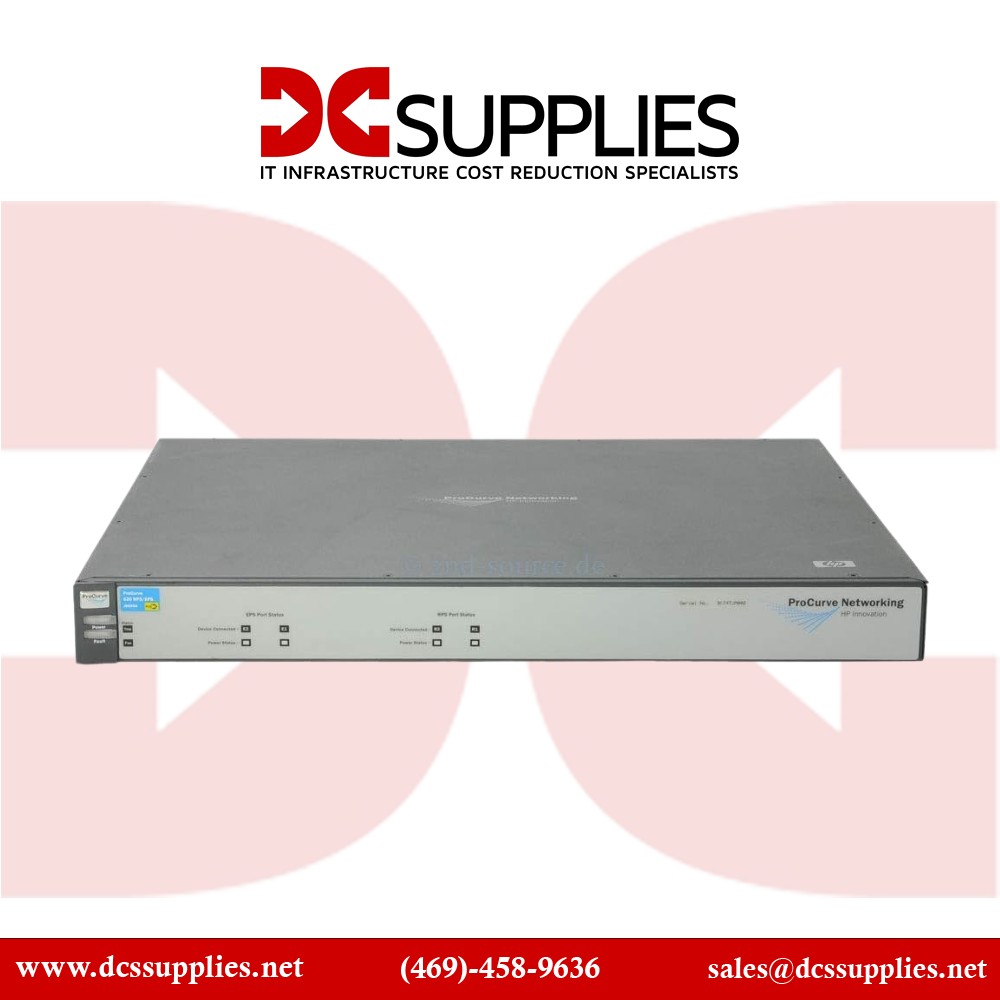

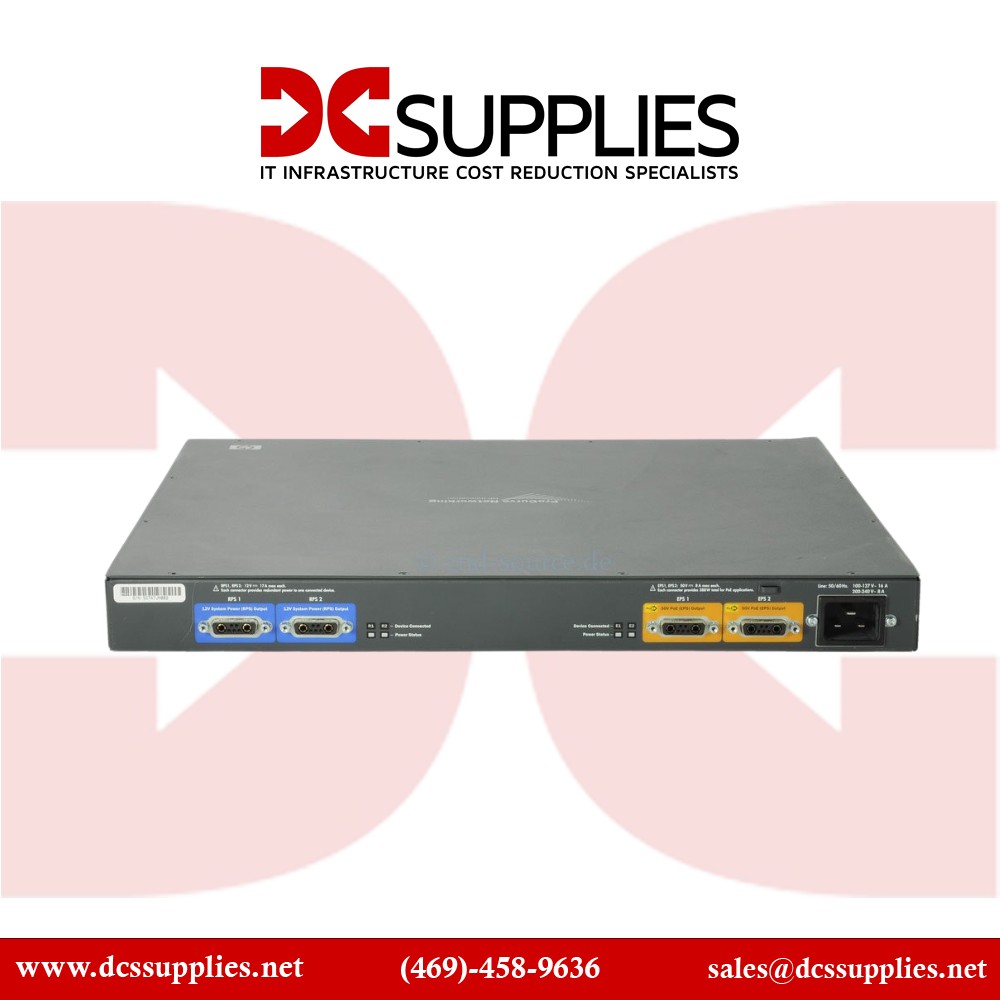

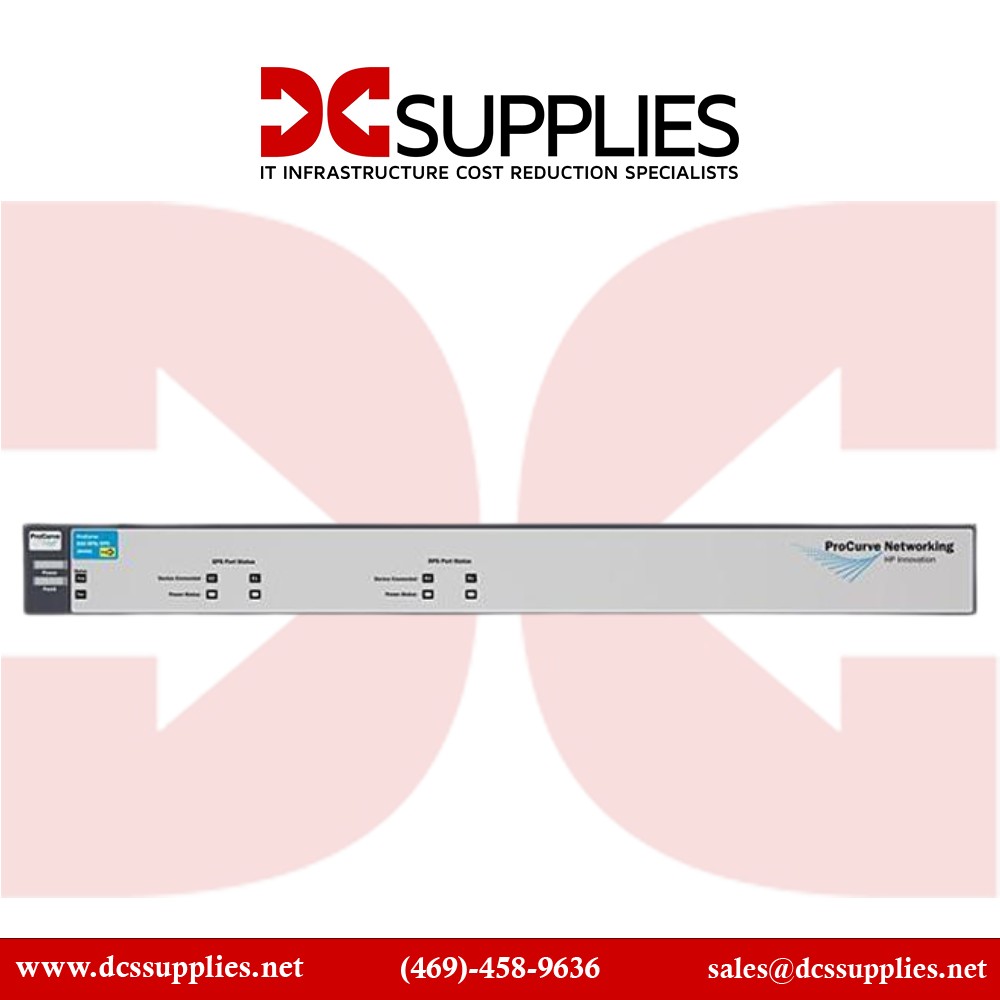

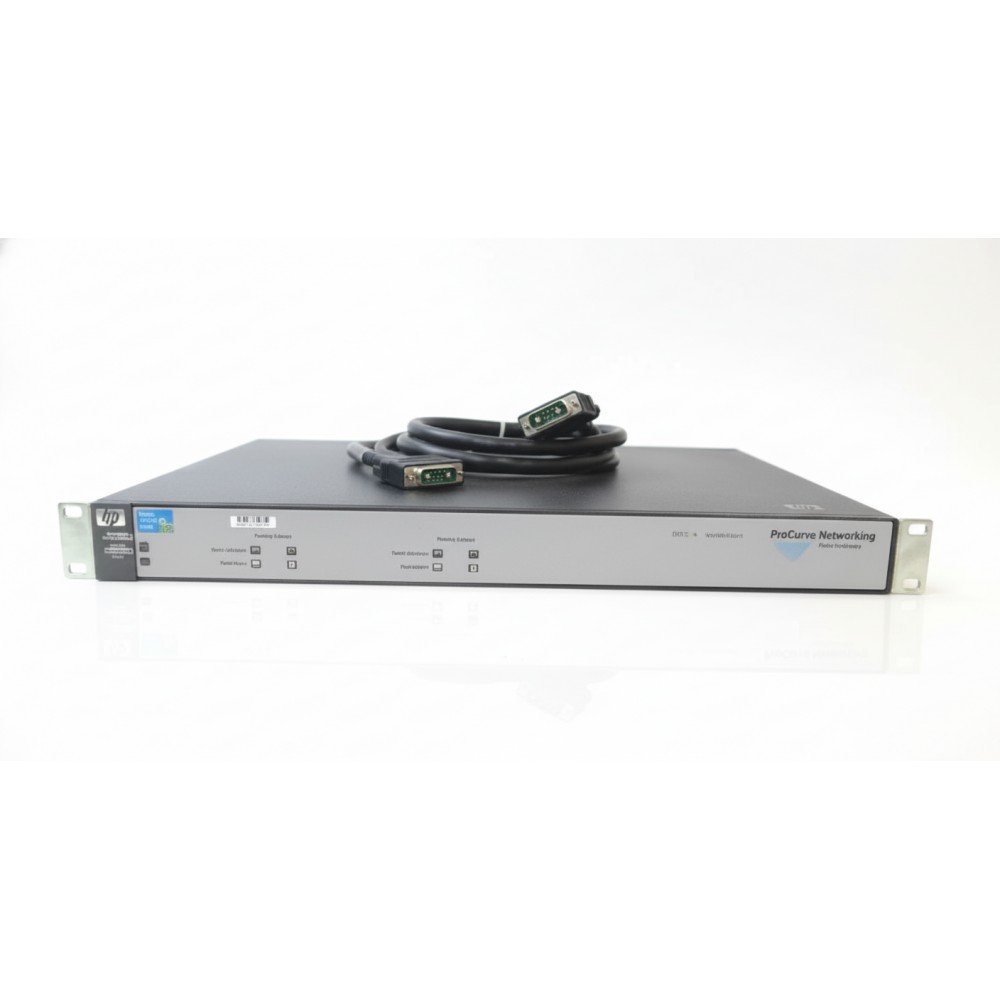

HPE J8696A ABA 620 - power supply - redundant - 1440 Watt View larger
Previous Next

HPE J8696A ProCurve 620 Redundant Power Supply

New

In Stock

HPE ProCurve 620 redundant power supply, enhances reliability
×




$228.00

  • New

Detailed Specifications

HPE J8696A

PRO Curve 620 Redundant Power Supply

The HPE J8696A ProCurve 620 is a mission-critical accessory for ProCurve environments requiring high availability or extended PoE capacity. When paired with select Pro Curve 2900/3500yl/6200yl switches, it delivers redundant backup and power extension capabilities—ideal for stable VoIP or surveillance deployments.

Features

This external unit acts both as an additional power source and PoE booster. It offers 195 W of system RPS power per port (two ports) and up to 398 W of PoE power per port for PoE-enabled switches.

Advanced Options

In the event of an internal PSU failure, power seamlessly switches over—often without interruption.In a sturdy 1U design, the J8696A fits into standard rack setups.

Product Key Features

  • Redundant power supply (RPS) to ensure uninterrupted uptime

  •  External PoE boost: provides up to 398 W PoE power to two switches

  •  Seamless failover—auto-switches if internal PSU fails

  •  Supports up to two switches simultaneously (RPS & EPS modes)

  •  Global AC input: 100–240 VAC, 50/60 Hz compatibility

  •  Rack-mountable 1U chassis with included mounting hardware

Reliability & Performance

t receives universal AC input (100–127/200–240 V, 16 A/8 A), and includes cables to power two switches simultaneously With zero fans, it’s whisper-quiet and reliably delivers up to 1,440 W total power capacity with both ports utilized .

Key Features (Bullet List)

    • Delivers redundant system power (RPS) and PoE boost

    • Two 195 W RPS ports + two 398 W PoE ports

    • Seamless switchover upon internal PSU failure

    • Universal 100–240 V AC input

    • 1U rack-mountable, cables included

    • Supports Pro Curve 2900, 3500yl, and 6200yl series

SpecDetail
Model Number J8696A
Type External Redundant / PoE Power Supply
Form Factor 1U Rack-mountable External PSU
Input Voltage 100–127 / 200–240 VAC, 50/60 Hz
Input Current 16 A @ 100–127 V, 8 A @ 200–240 V
Total Max Power 1,440 W
RPS Power per Port 195 W × 2 ports
PoE Power per Port 398 W × 2 ports
Supports Up To 2 switches simultaneously
Compatibility ProCurve 2900, 3500yl, 6200yl series
Dimensions (D×W×H) 15.4″ × 17.4″ × 1.73″ (39.1 × 44.2 × 4.4 cm)
Weight ~15.2 lb (6.9 kg)
MTBF / Warranty Lifetime warranty, next-business-day replacement
AC Cables Included Yes, 4 x RPS/EPS power cables
