Detailed Specifications
Intro Overview:

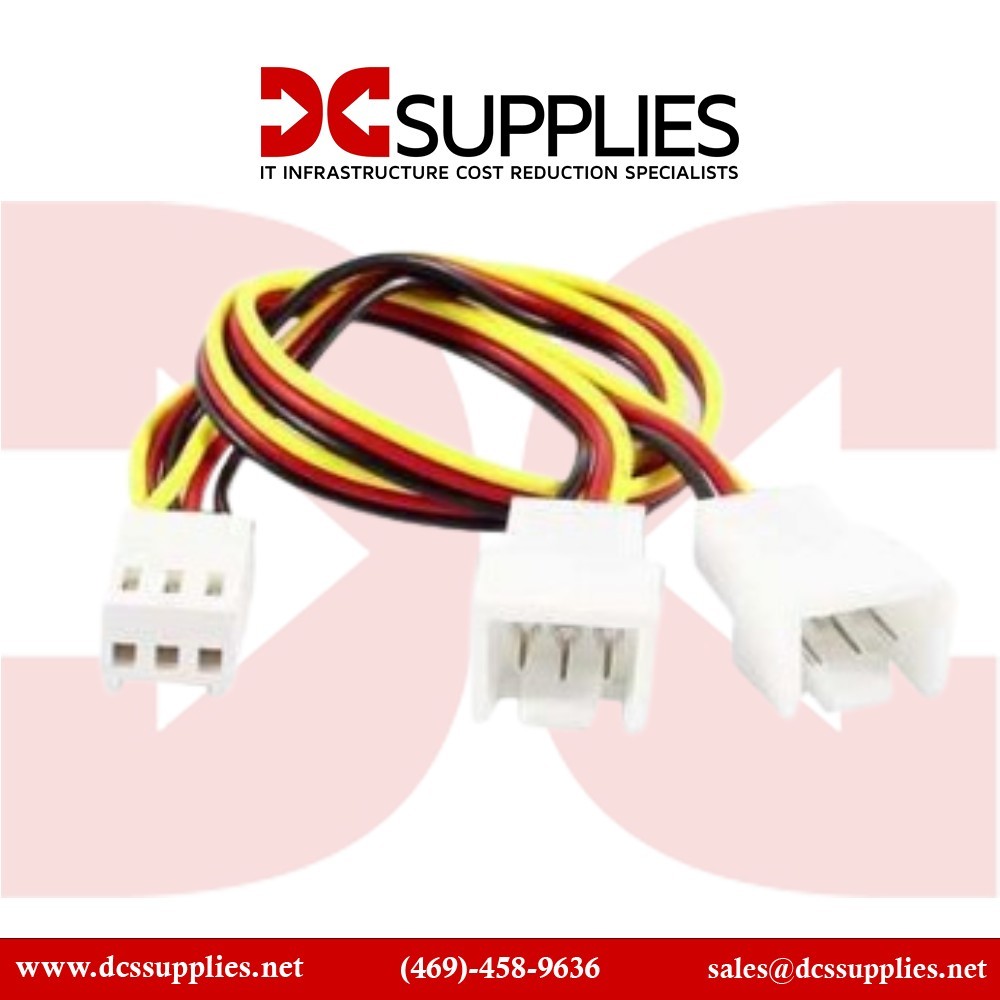

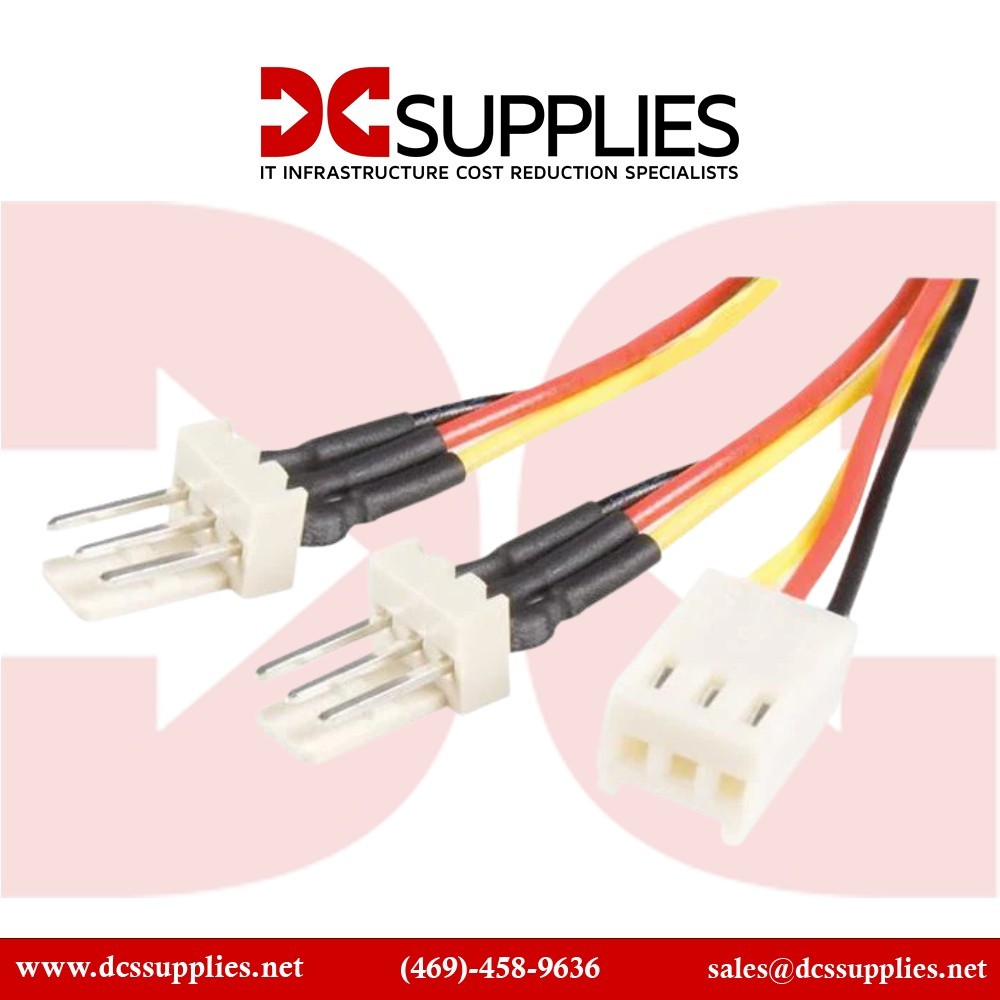

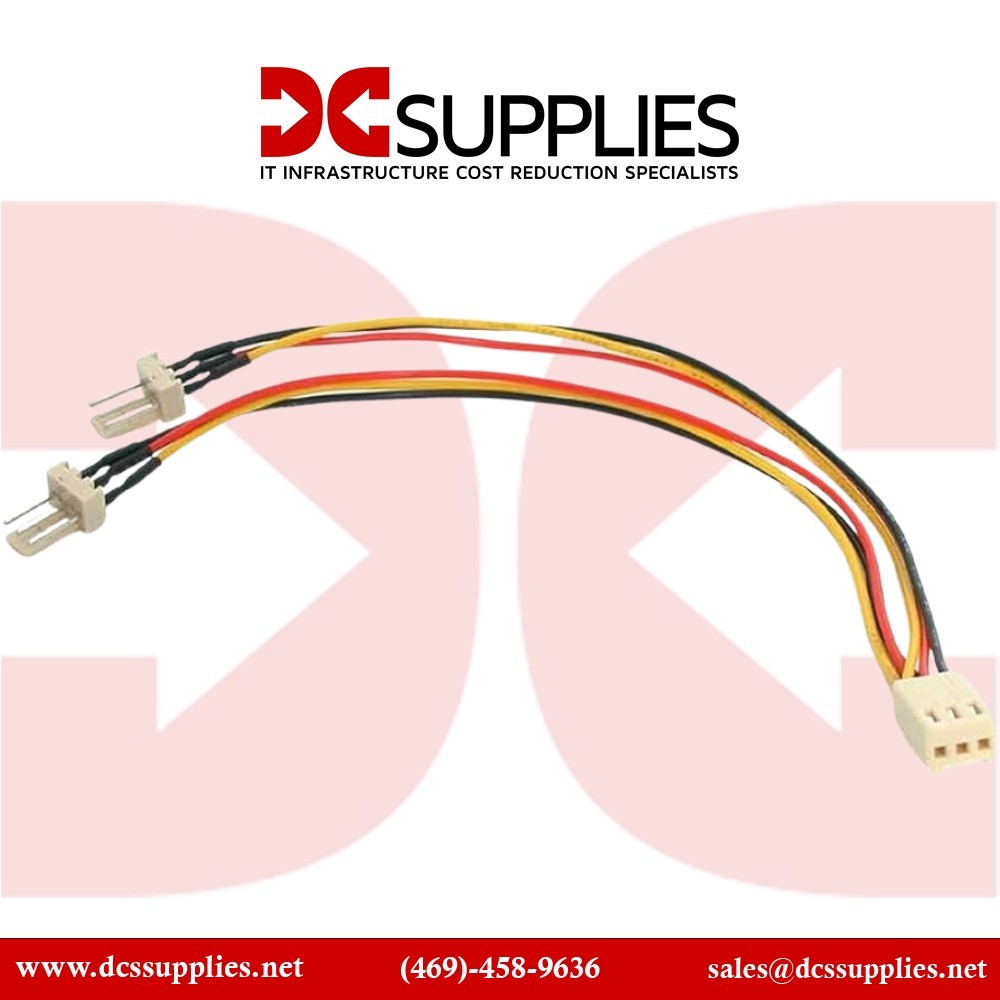

The StarTech **TX3SPLITTER** is a compact **6-inch** power cable designed to efficiently split a single 3-pin **TX3** (fan) connector into two, allowing two computer case fans to be powered from one motherboard or power supply header. This splitter is essential for maximizing cooling potential in systems that have a limited number of available fan connectors.
Expanded Overview:
This **6-inch** cable splitter from StarTech is short enough to minimize cable clutter around the fan headers. It features one **3-pin Female** connector for the host connection (motherboard or fan controller) and two **3-pin Male** connectors for the fans. While splitting the power, the splitter typically sends the RPM signal (tachometer wire) from only one of the connected fans back to the motherboard, ensuring proper **speed monitoring**. This allows for the simultaneous powering and management of two cooling fans.
Features :
The StarTech TX3SPLITTER is a highly functional and simple power cable solution.
Product Key Features
- 6-inch (15 cm) splitter length
- Splits 1x 3-pin (TX3) connection into 2x 3-pin connections
- Ideal for maximizing fan connectivity on motherboards
- One fan connection reports RPM speed for monitoring
- Durable construction for reliable, continuous operation
Reliability & Performance :
The StarTech TX3SPLITTER is built for **reliable power** distribution to two devices, ensuring stable operation for both fans. The robust connectors provide a **secure connection**, preventing accidental disconnections that could compromise system cooling. This simple but essential adapter aids in achieving optimal **thermal performance** and is a dependable component in any system requiring auxiliary power cable solutions for cooling. It maintains a consistent **voltage** across both connected fans.
Key Features :
- Short **6 inch** length reduces cable mess
- Cost-effective way to add an extra fan
- Compatible with **3-pin** fan headers
- Ensures efficient power sharing
Specifications :
| Specification | Details |
|---|
| Model Number | TX3SPLITTER |
| Brand | StarTech |
| Product Type | power cable |
| Connector A (Host) | TX3 (3-pin) Female |
| Connector B (Devices) | 2x TX3 (3-pin) Male |
| Cable Length | 6 inches (0.5 ft / 15 cm) |
| Supported Current | Dependent on host header capacity |
| Supported Voltage | 12V DC |
| Tachometer Signal | Reported from one fan only |
| Wire Gauge | 26 AWG (typically) |
| Color | Black (typically) |
| Jacket Material | PVC |
| Industry Standards | RoHS Compliant |
| Warranty | Lifetime (StarTech Standard) |
| Usage | Internal PC Fan Power |
