Detailed Specifications
Teltonika PR2FK20M 4 Pin Power Cable with Screw Terminal
Overview :

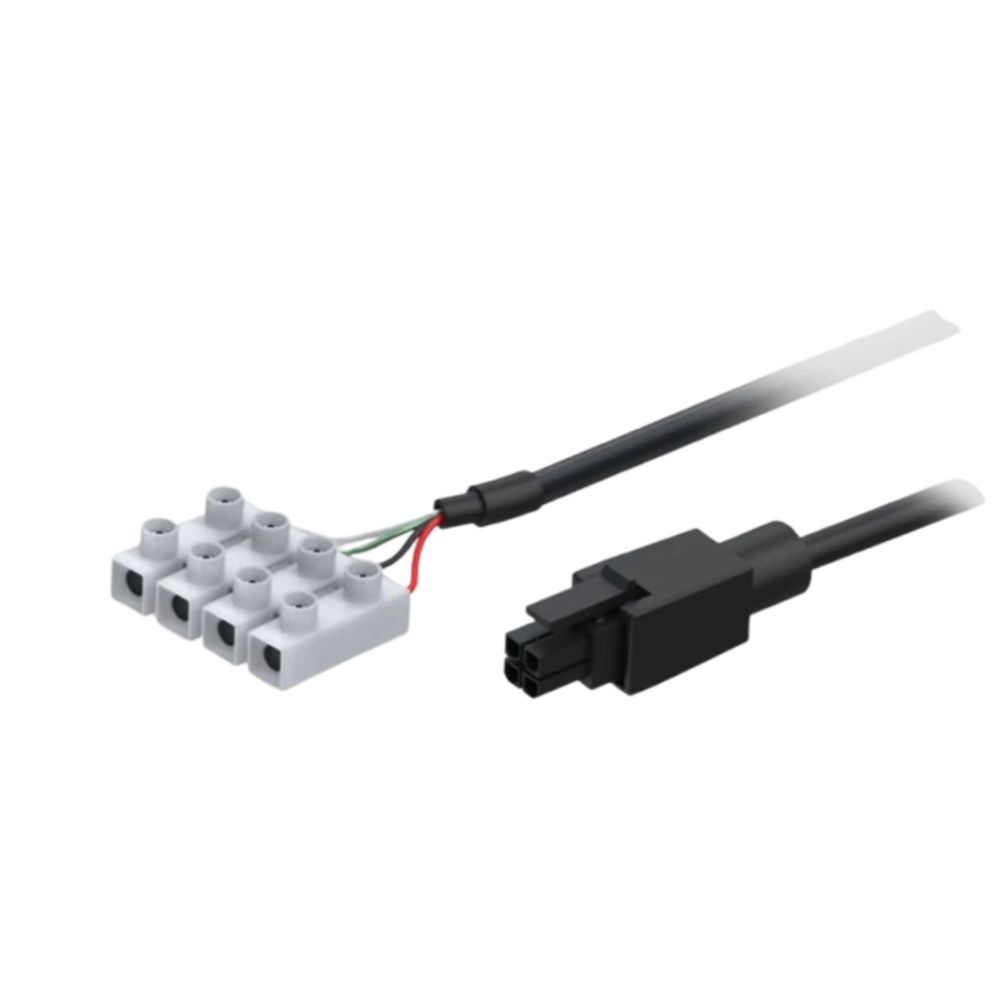

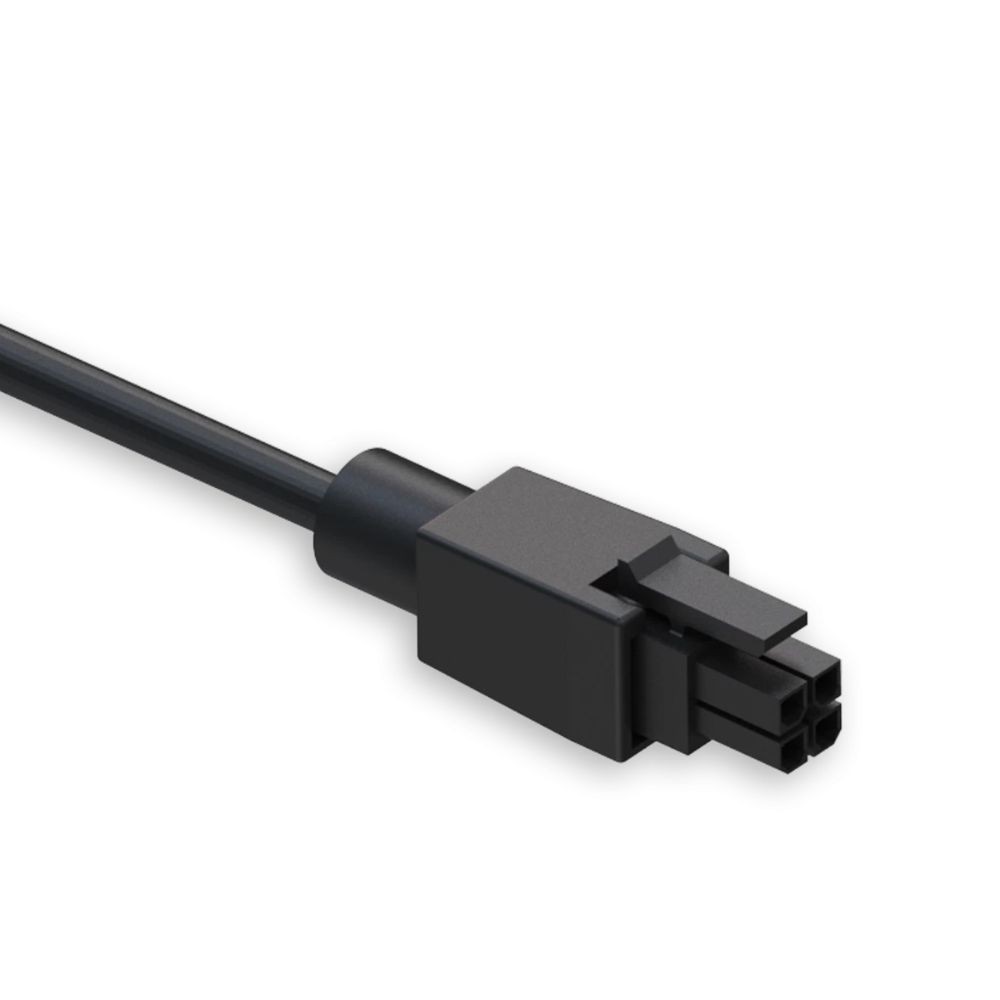

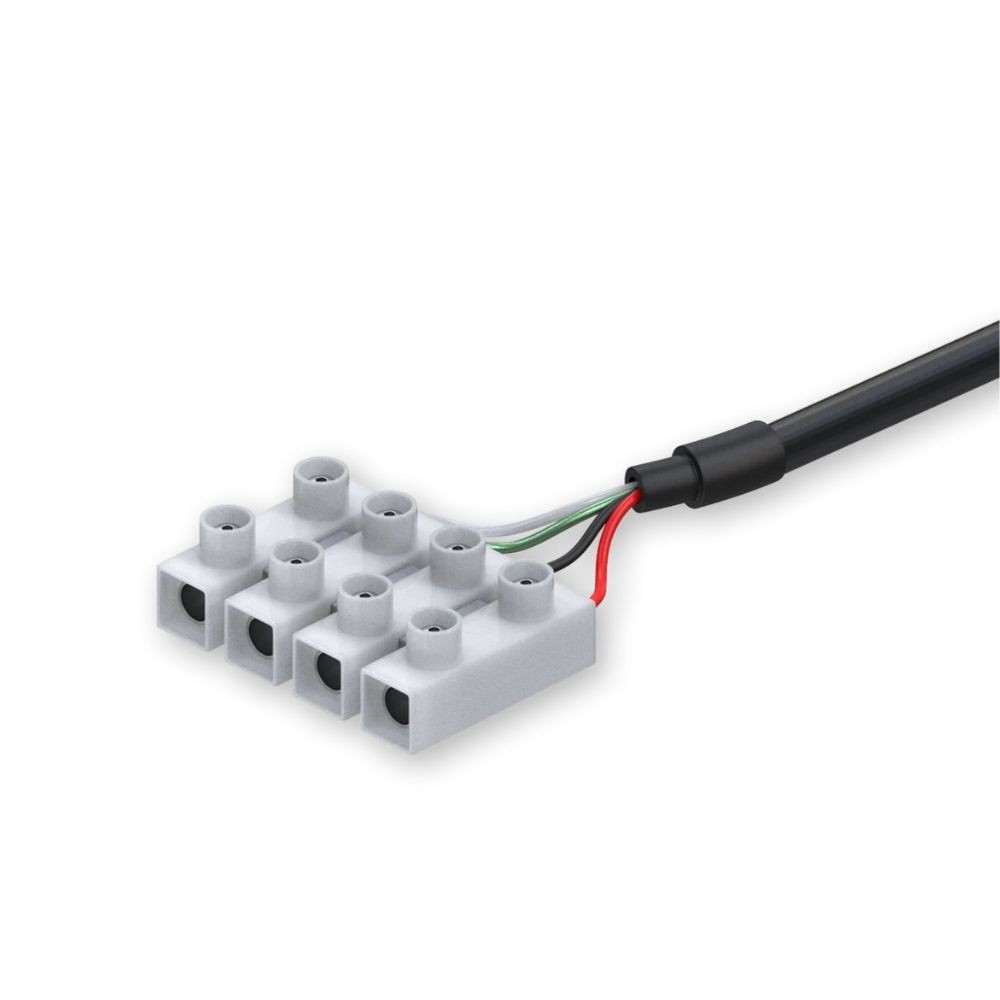

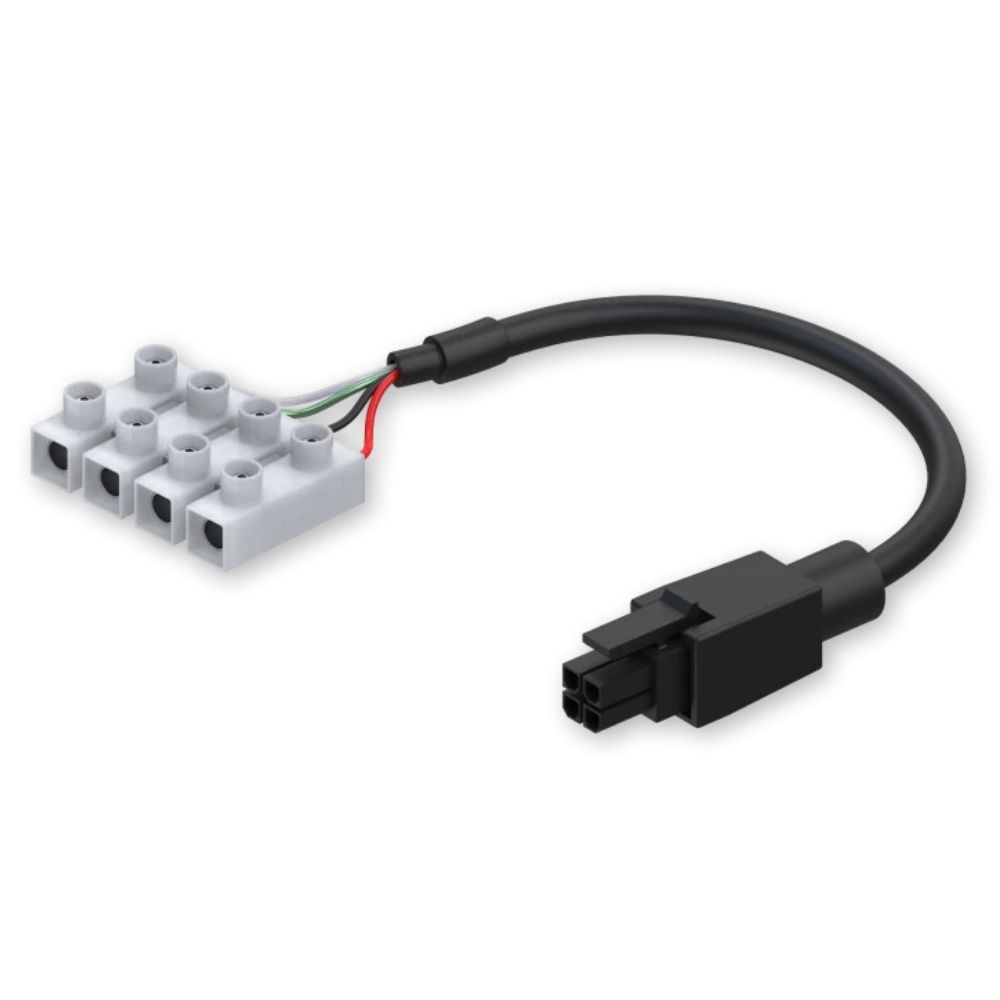

The Teltonika PR2FK20M is a power connection cable designed to facilitate secure DC interconnection between industrial network equipment and external power sources. One end terminates in a compact 4-pin connector with 3 mm pitch, while the opposite end has a 4-way screw terminal block for flexible wiring applications. The 2 m length gives installers reach for routing power within cabinets, racks, and field enclosures. This cable is used with routers, gateways, UPS modules, and similar devices to ensure stable power delivery from custom harnesses or terminal blocks.
Key Features :
4-way screw terminal to 4-pin connector
2 m cable for flexible routing
26 AWG conductors for reliable power delivery
Colour-coded leads for easy identification
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | PR2FK20M |
| Product Type | Power Cable Assembly |
| Cable Length | 2000 mm |
| Connector 1 | 4-way screw terminal |
| Connector 2 | 4-pin, 3 mm pitch |
| Conductor Size | 4 × 0.129 mm² (26 AWG) |
| Wire Colour Coding | Red: Power +, Black: Ground − |
| Additional Leads | Green/White: Input/Output/NC |
| Cable Type | Round, unshielded |
| Compliance | RoHS compliant |
| Typical Use | Power wiring for industrial network devices |
