Detailed Specifications

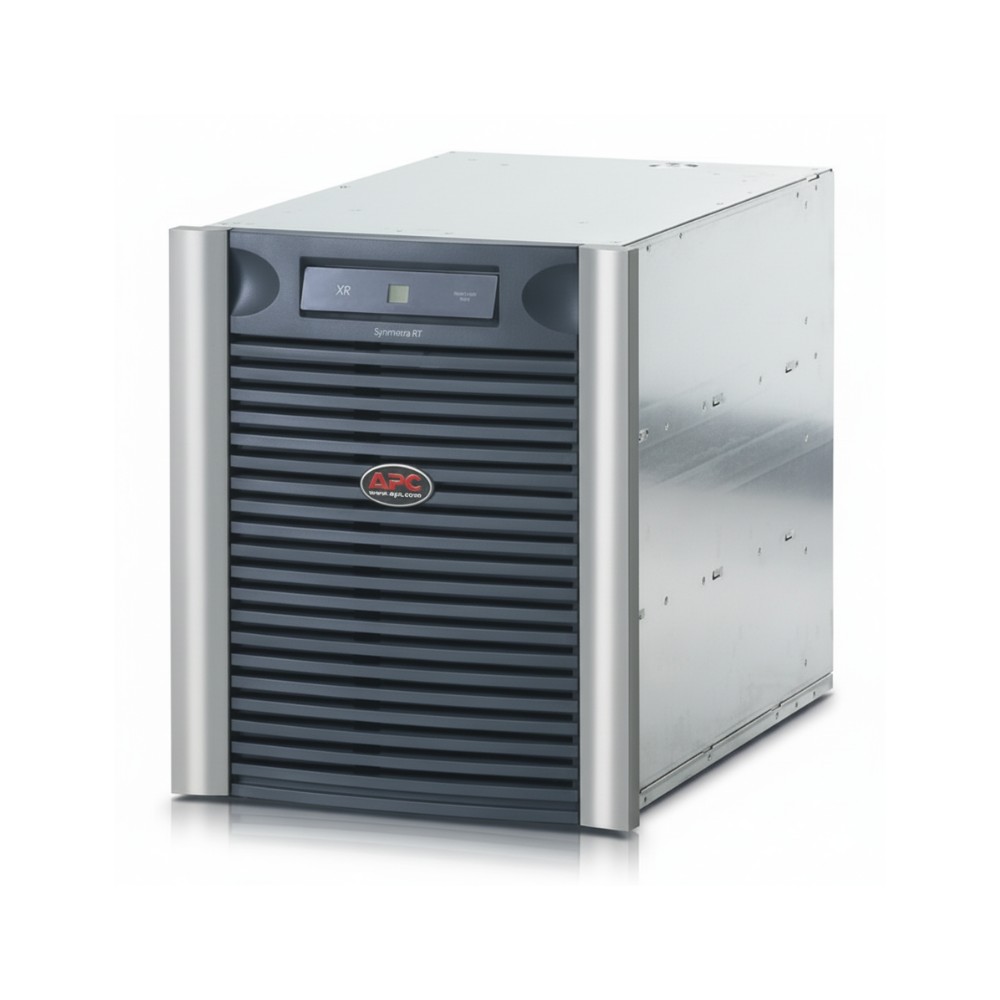

APC SYARMXR9B9 - Symmetra LX Extended-Run Rack Frame (9 × SYBT5)
Overview
The APC SYARMXR9B9 is an extended-run (XR) battery rack designed for the Symmetra LX UPS system. It comes prepopulated with 9 SYBT5 battery modules to boost runtime during outages. This 13U rack frame slots into or attaches to compatible Symmetra LX systems, enabling extended run without changing the core UPS. It supports daisy chaining of additional XR frames to further increase backup time.
Key Features
Preconfigured with 9 SYBT5 battery modules for instant runtime extension
13U rack form factor designed to integrate directly with Symmetra LX systems
Lead-acid battery type (valve regulated) for proven reliability in UPS systems
Supports daisy chaining of additional XR frames for scalable extended runtime
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC / Schneider Electric |
| Part Number | SYARMXR9B9 |
| Product Type | Symmetra LX Extended-Run Battery Rack |
| Key Spec 1 | Battery Modules: 9 × SYBT5 (prepopulated) |
| Key Spec 2 | Rack Units: 13U |
| Key Spec 3 | Voltage: 208 V nominal |
| Management | Integrated with the Symmetra LX UPS battery management (monitoring via UPS) |
| Power Requirements | Powered via internal battery modules; no external power input required |
