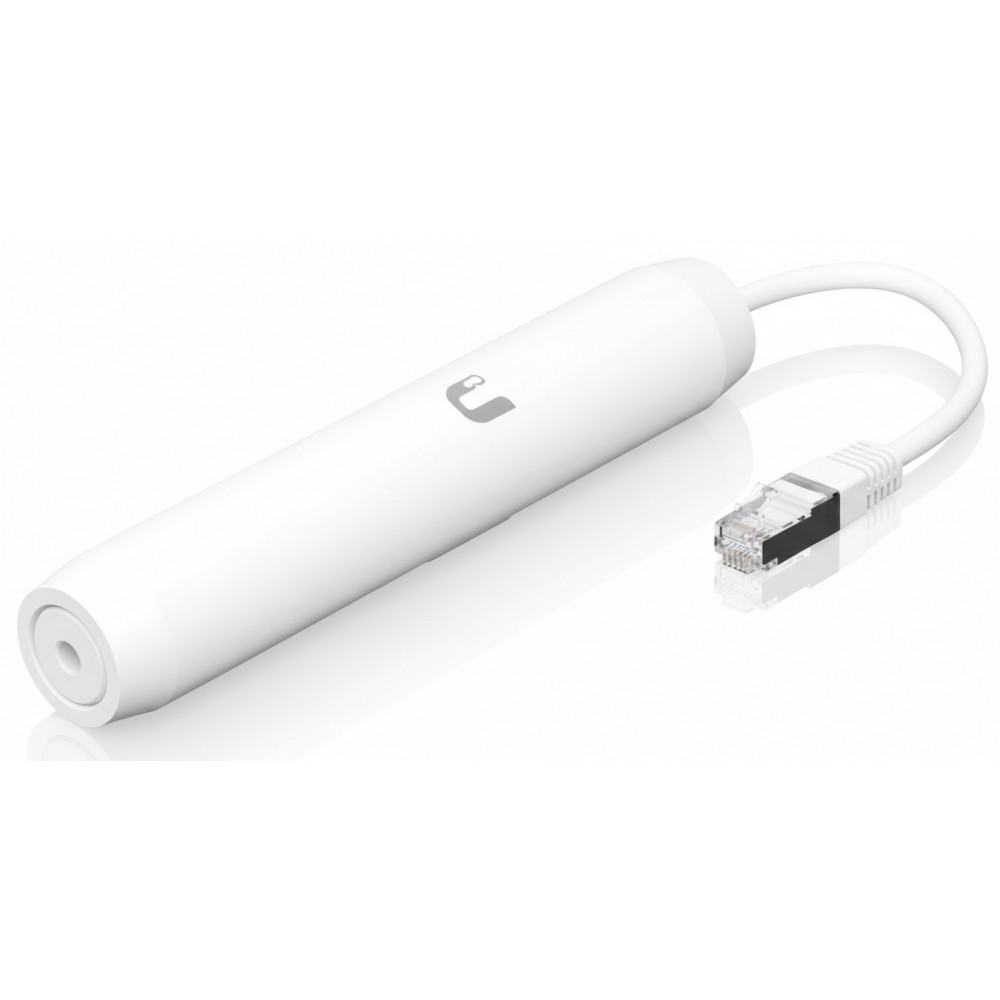

The Ubiquiti INS-3AF-O-G is an outdoor Power over Ethernet (PoE) converter that steps down standard 48 V 802.3af PoE to 24 V passive PoE for compatible Ubiquiti devices. It accepts PoE from an 802.3af switch and provides a single Gigabit Ethernet port with 24 V PoE out, enabling remote installations without dedicated injectors. The rugged design and extended temperature range support outdoor use, with surge and ESD protection to help safeguard connected equipment. It is suited for powering airMAX or UniFi radios and cameras deployed on poles, walls, or exterior structures.
Converts 802.3af PoE to 24 V passive PoE
Single Gigabit RJ45 PoE in/out
Outdoor temperature range support
~±15 kV Ethernet surge/ESD protection
| Specification | Value |
|---|---|
| Brand | Ubiquiti |
| Part Number | INS-3AF-O-G |
| Product Type | Outdoor Gigabit PoE Converter |
| PoE Input Standard | IEEE 802.3af |
| Input Voltage | 48 V PoE |
| Output PoE | 24 V passive PoE (pairs 4,5+; 7,8 return) |
| Max Power Output | 24 V, 0.5 A |
| Network Interface | 1× Gigabit RJ45 (PoE in), 1× Gigabit RJ45 cable (PoE out) |
| Surge/ESD Protection | ±15 kV |
| Operating Temp | -30 to 70 °C |
| Weight | ~90 g |
| Dimensions (no cable) | Ø30.2 × 166 mm |
| Dimensions (with cable) | Ø30.2 × 366.6 mm |
| Humidity | Up to 95 % non-condensing |
| Outdoor Suitability | Weather-resistant design |
