Detailed Specifications
StarTech.com PDU08C13H Horizontal 1U 19in 8 Port Rack Mount PDUServer/Data Center

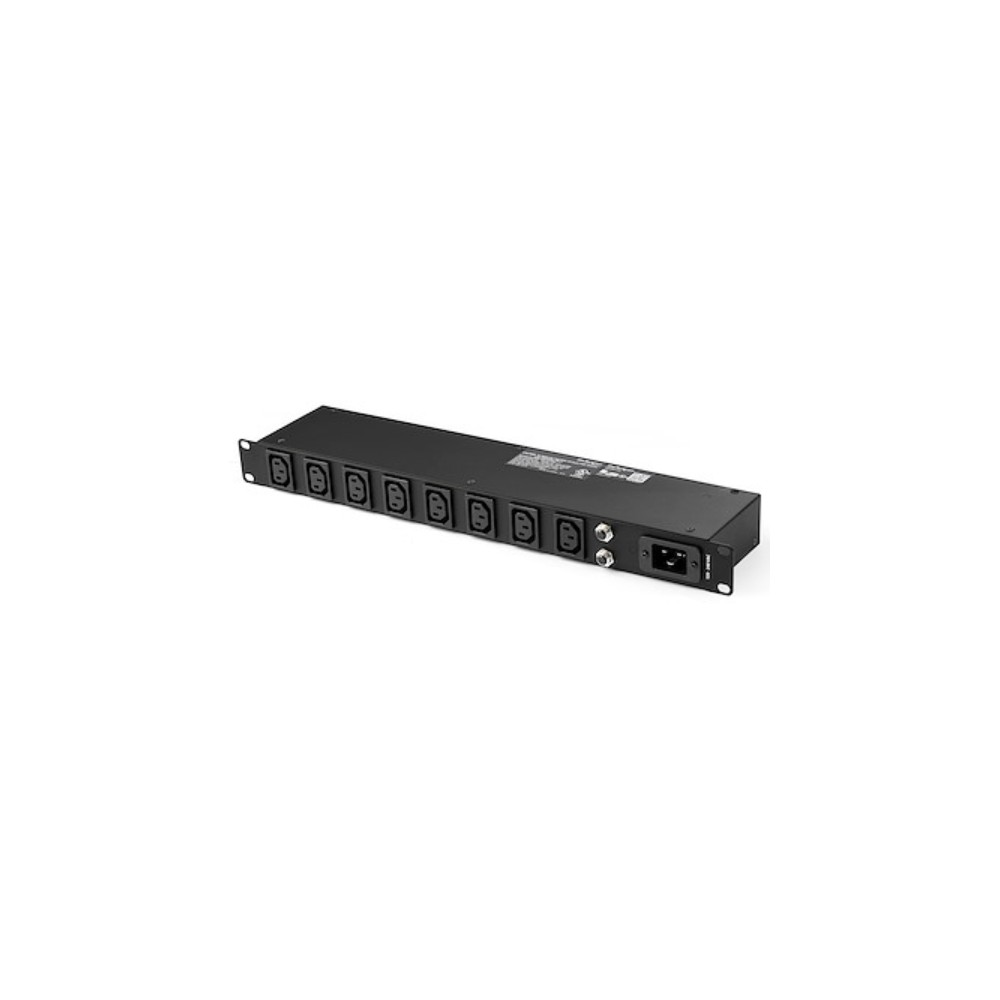

Overview PDU08C13H
This PDU08C13H rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mount equipment. The PDU provides 16 amps of power to be shared across the eight outlets. Sleek, professional installation
Unlike some rack power solutions that mount awkwardly, if at all, this PDU08C13H rack-mount PDU is EIA-310D compliant, which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle. Flexible power solution
For maximum compatibility with your devices, this PDU08C13H features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments, and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack. Protects your equipment
In the event of random energy surges that can occur during power outages or other anomalies, this PDU prevents costly damage to your equipment with a built-in dual circuit breaker, ensuring your equipment is protected.
The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment.
The PDU08C13H is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Name |
8-Port Rack-Mount PDU - C13 Outlets - 16A - NA Power Cord - 1U |
Manufacturer Part Number |
PDU08C13H |
Product Type |
PDU |
Phase |
Single Phase |
Receptacle Type |
IEC 60320 C13 |
Mounting Orientation |
Horizontal |
Power Rating (VA) |
1920 VA |
Rack Height |
1U |
Plug / Connector Type |
IEC 60320 C20 |
Input Voltage Range |
110 V AC - 240 V AC |
Input Current |
20 A |
Length |
3.9" |
Protection Type |
Circuit Protection
Surge Protection
|
Input Voltage |
120 V AC
230 V AC
|
Output Voltage |
240 V AC |
Environmentally Friendly |
Yes |
Environmental Certification |
WEEE |
Output Voltage Range |
110 V AC - 240 V AC |
Receptacle Detail |
8 x IEC 60320 C13 |
Plug / Connector Detail |
1 x IEC 60320 C20 |
Country of Origin |
China |
Height |
1.7" |
Width |
18.9" |
Mount Type |
Rack-mountable |
Packaged Quantity |
1 |
Limited Warranty |
2 Year PDU08C13H |
Manufacturer |
StarTech.com |
Manuf Part# |
PDU08C13H |
