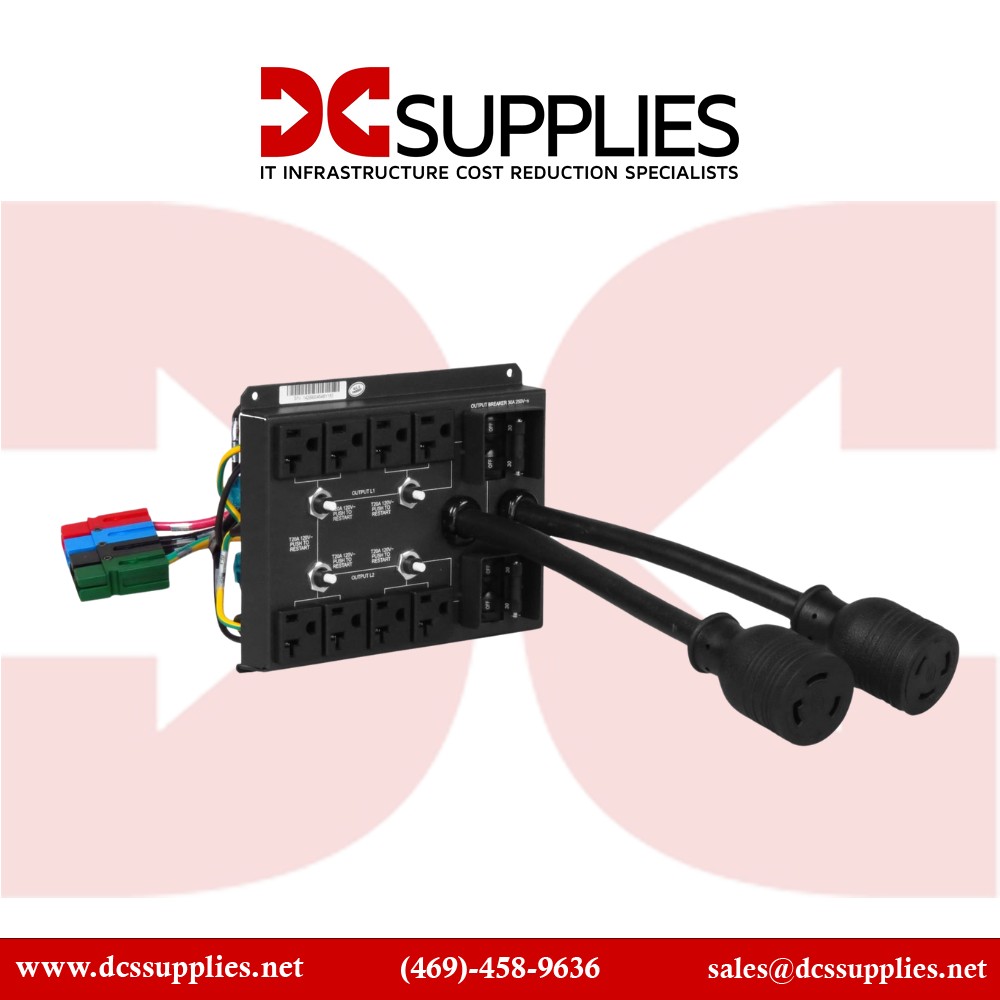

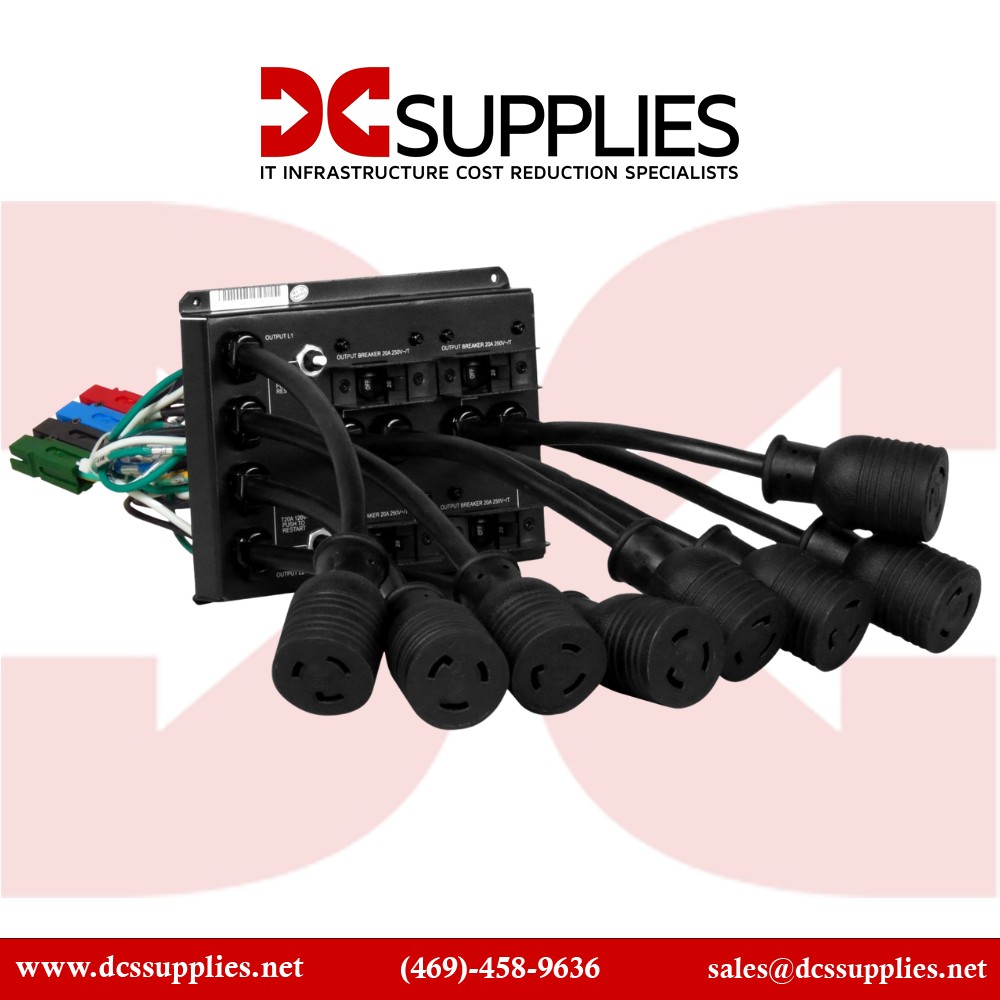

Vertiv PD2-106 GXT3 8/10KVA Pod Out 4x L5-20R 4x L6-20R

Overview :

The Vertiv Liebert POD PD2-106 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance and replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-106 is a plug-and-play unit that will replace the existing POD box on your UPS. It has four NEMA 5-20R and four NEMA L6-20R output connectors and is equipped with a 2PH+N+G Hardwire 4-wire input connector. It also has a circuit breaker and supports a max current of 60A.The Vertiv PD2-106 is a power distribution unit (PDU) designed specifically for use with Vertiv's GXT3 8-10KVA UPS systems. It features a configuration that includes 4x L5-20R outlets and 4x L6-20R outlets. These outlets are commonly used in data centers and critical infrastructure environments to provide reliable power distribution to connected equipment.Here's a breakdown of the outlet types:This PDU configuration is designed to support the power needs of critical IT equipment, ensuring reliable operation and effective power distribution within data center environments. If you have any more questions or need further details, feel free to ask.

Specification :
