Vertiv VP8965 Geist PDU VP8965 - Switched Unit Monitoring - 0U 30A 120/208V View larger

Vertiv VP8965 Geist PDU Switched Unit Monitoring - 0U 30A 120/208V

VP8965

New

Vertiv VP8965 Geist PDU  Switched Unit Monitoring - 0U 30A 120/208V8V
×




Detailed Specifications

Vertiv VP8965 Geist PDU  Switched Unit Monitoring - 0U 30A 120/208V

Overview :

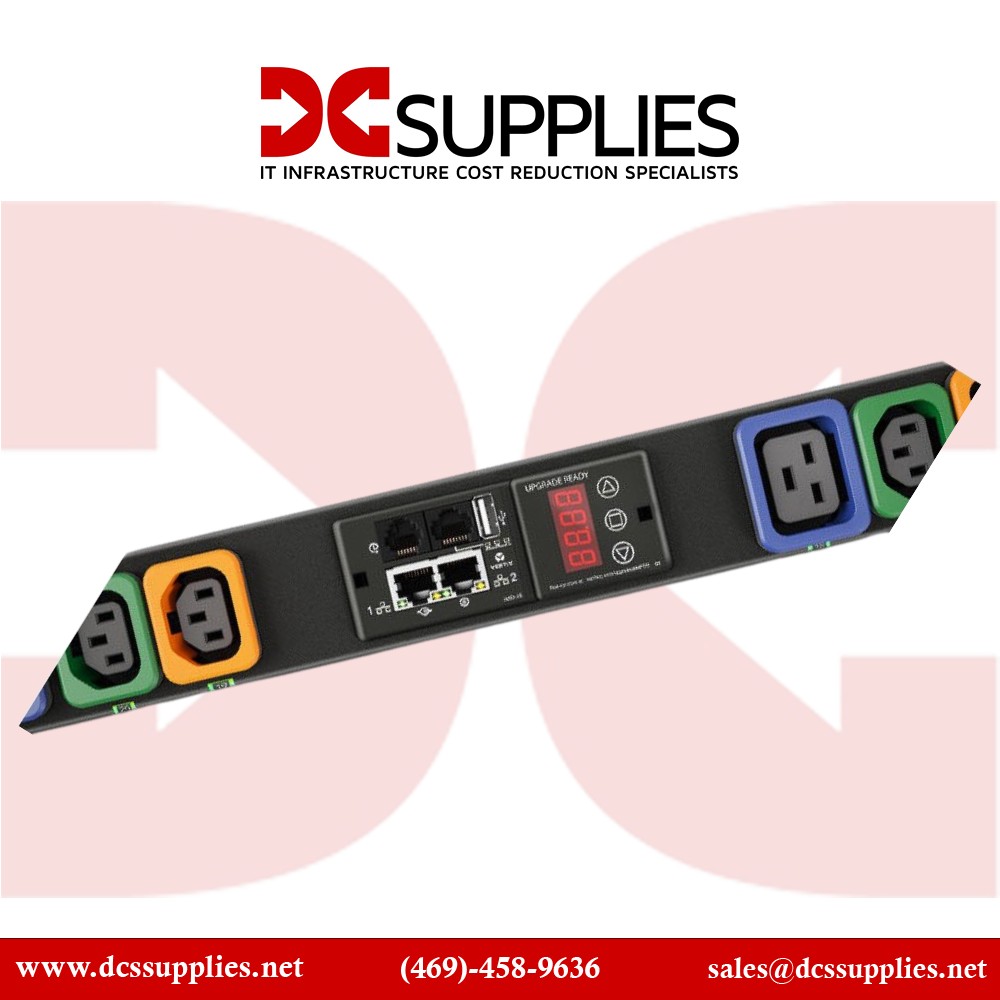

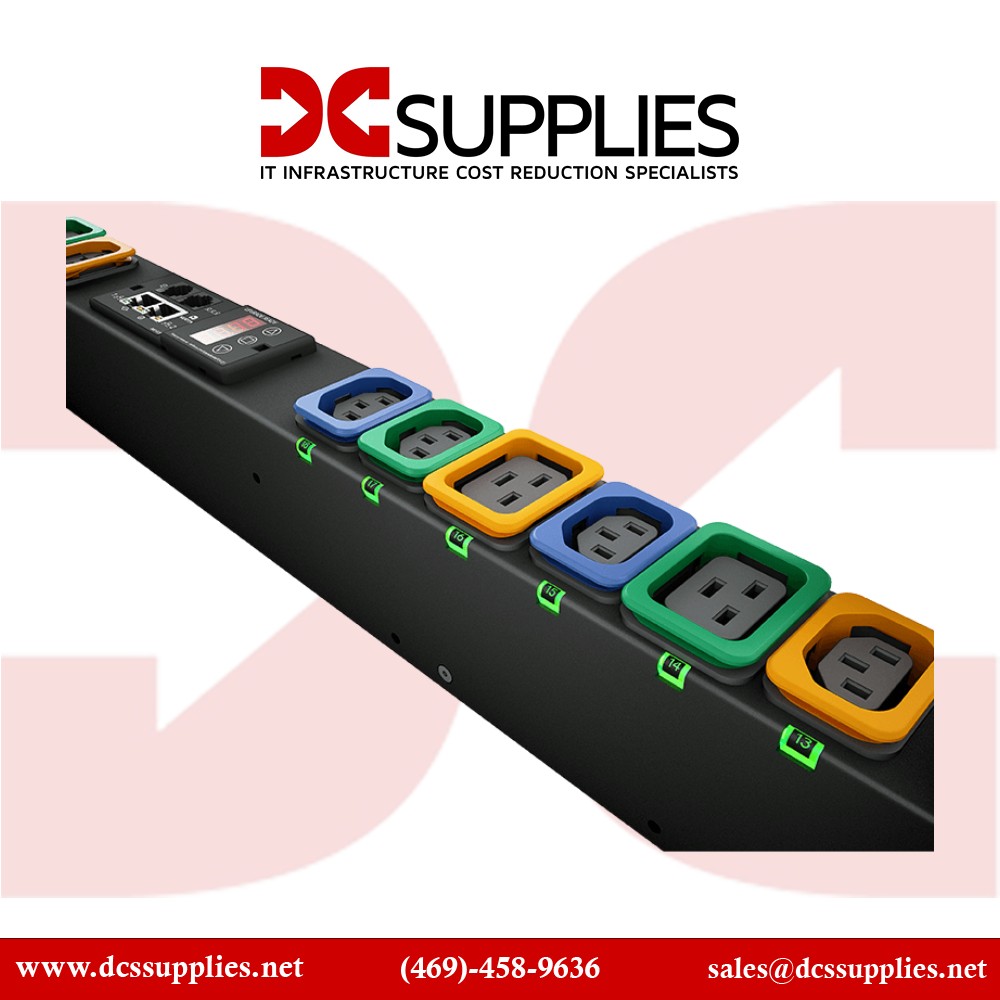

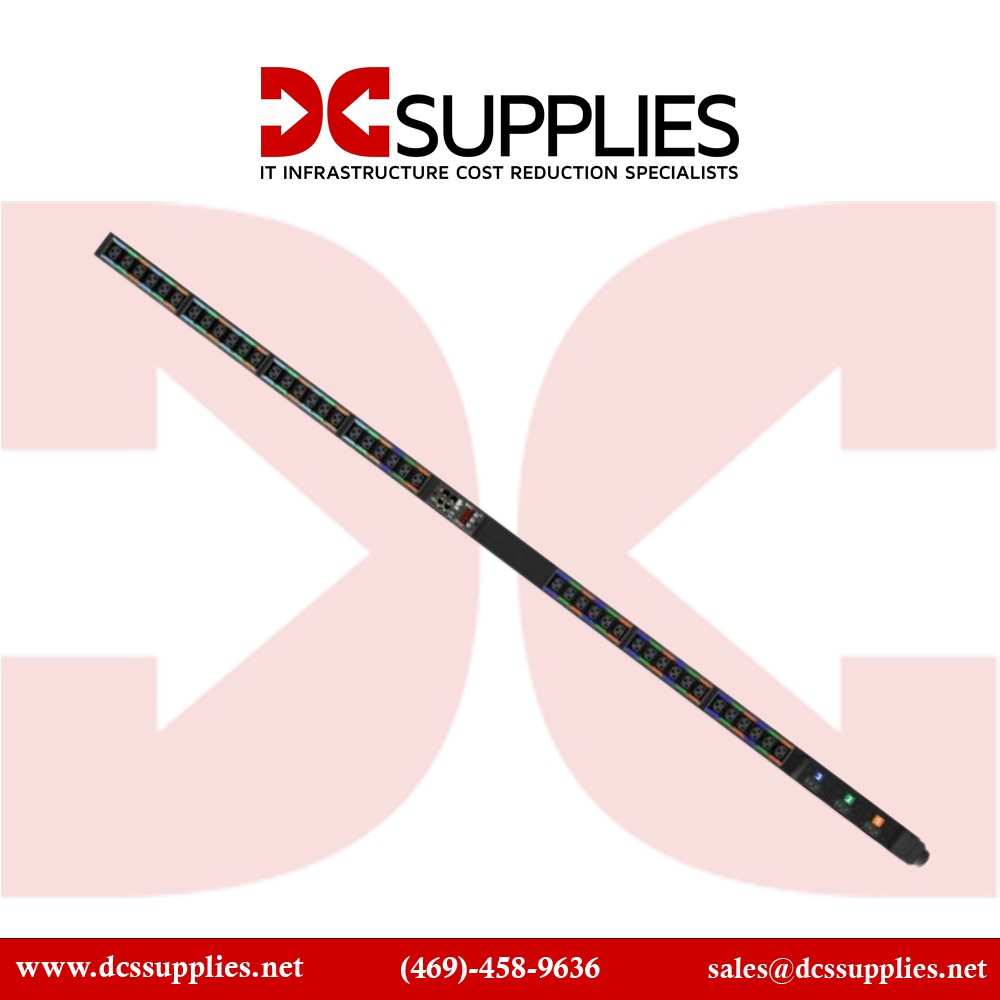

The Vertiv Geist Switched Rack PDU VP8965 is a 30A, 120/208V WYE 0U vertical rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP8965 has 18 IEC C13 and 6 IEC C19 locking receptacles and a NEMA L21-30P plug providing 8.6kW of power capacity. This Switched rPDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. It also supports Visible Light Communication (VLC) technology so you can view complete power usage data from a mobile device with the Vertiv rPDU Scanner application. The IMD includes ports for serial communication, environmental monitoring, and dual ethernet ports. Simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities.

Specification :

Product Name Vertiv Geist PDU VP8965 - Switched Unit Monitoring - 0U 30A 120/208V
Manufacturer Part Number VP8965
Product Type PDU
Phase Three Phase
Receptacle Type U-Lock IEC 60320 C13

U-Lock IEC 60320 C19
Product Family rPDUs
PDU Type Switched
Mounting Orientation Vertical
Power Rating (Watt) 8600 W
Rack Height 0U
Plug / Connector Type NEMA L21-30P
Input Current 30 A
Length 2.6"
Mount Type Rack-mountable
Input Voltage 120 V AC
Network (RJ-45) Yes
Receptacle Detail 18 x U-Lock IEC 60320 C13

6 x U-Lock IEC 60320 C19
Plug / Connector Detail 1 x NEMA L21-30P
Country of Origin United States
Height 66.3"
Width 2"
Depth 2.6"
Product Series rPDUs
