Vertiv UI30023 Rpdu, Monitored Unit Level EC, Max 11.0KW View larger

Vertiv UI30023 Rpdu, Monitored Unit Level EC, Max 11.0KW

UI30023

New

Vertiv UI30023 Rpdu, Monitored Unit Level EC, Max 11.0KW
×




Detailed Specifications

Vertiv UI30023 Rpdu, Monitored Unit Level EC, Max 11.0KW

Overview :

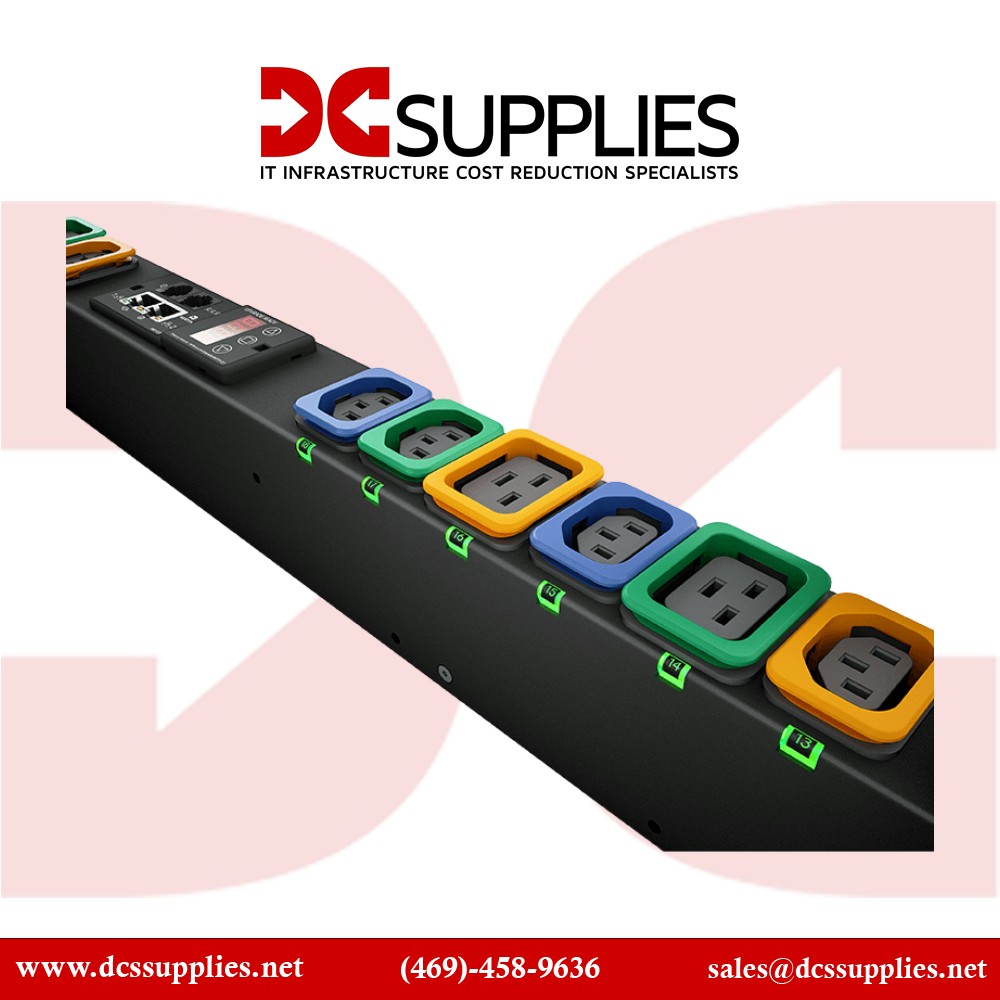

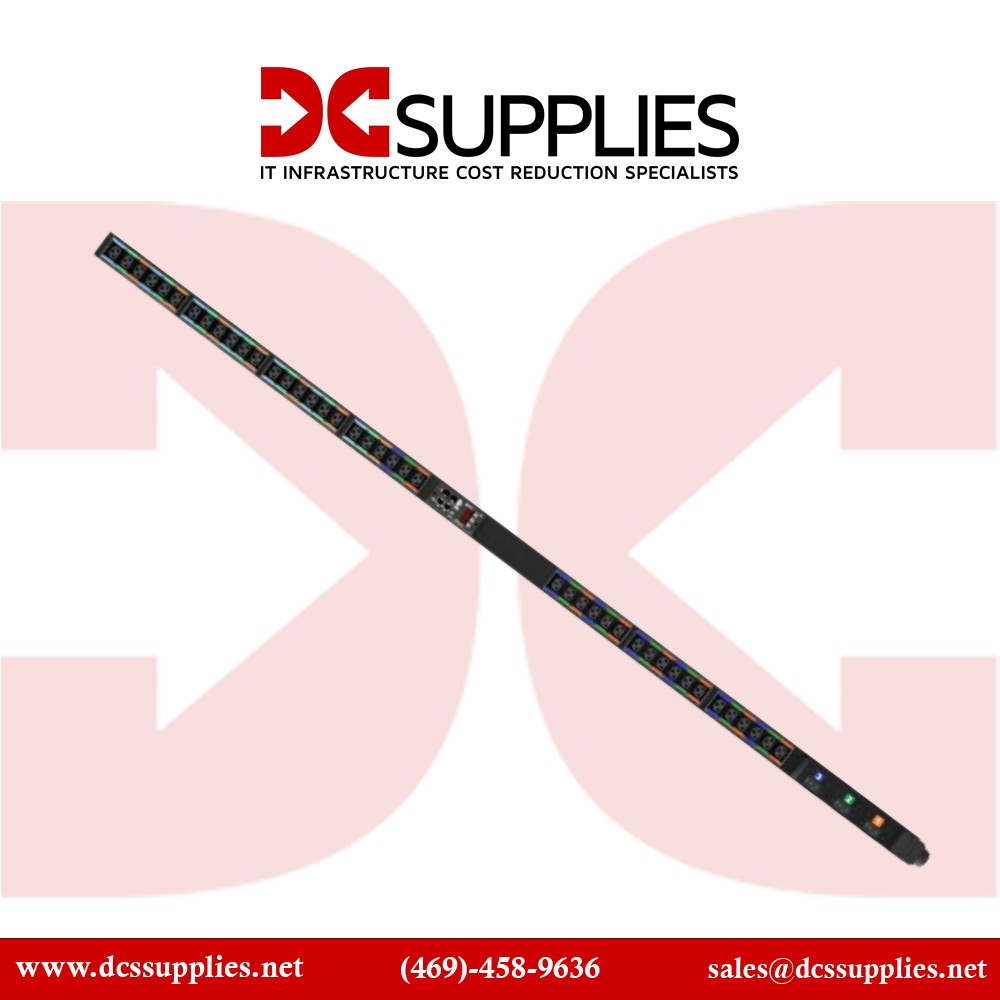

The Vertiv Geist UI30023 Universal Power Distribution Unit is a versatile rack power distribution unit with a universal input and a max power capacity of 11kW. This rack PDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-60A and 120V-415V in both 1-phase and 3-phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Geist UPDU in your network system. This model has 42 Combination C13/C19 outlets, which accommodate both C14 and C20 plugs interchangeably. The P-Lock compatible, high-retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord. The unit is also ready for remote monitoring at the unit level through web or serial connection. This TAA-Compliant Vertiv UPDU comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.

Specification :

Product Name Rpdu, Monitored Unit Level EC, Max 11.0KW
Manufacturer Part Number UI30023
Product Type PDU
Phase Single Phase/Three Phase
Product Family UPDU
TAA Compliant Yes
PDU Type Monitored
Mounting Orientation Vertical
Power Rating (Watt) 11 kW
Rack Height 0U
Input Voltage Range 120 V AC - 415 V AC
Input Current 48 A
Length 72"
Mount Type Rack-mountable
Protection Type Overcurrent Protection

Double Pole
Input Voltage 120 V AC
Environmentally Friendly Yes
Network (RJ-45) Yes
Country of Origin United States
Width 2"
Depth 2.3"
Product Series UPDU
Product Model DU03E4W1-42CF17- 1S02A9K00-S-A
