Detailed Specifications
Vertiv VA4N3100 Rpdu Rack Transfer Switch Monitored Unit Level 30A 208V 4.9KW
Overview :

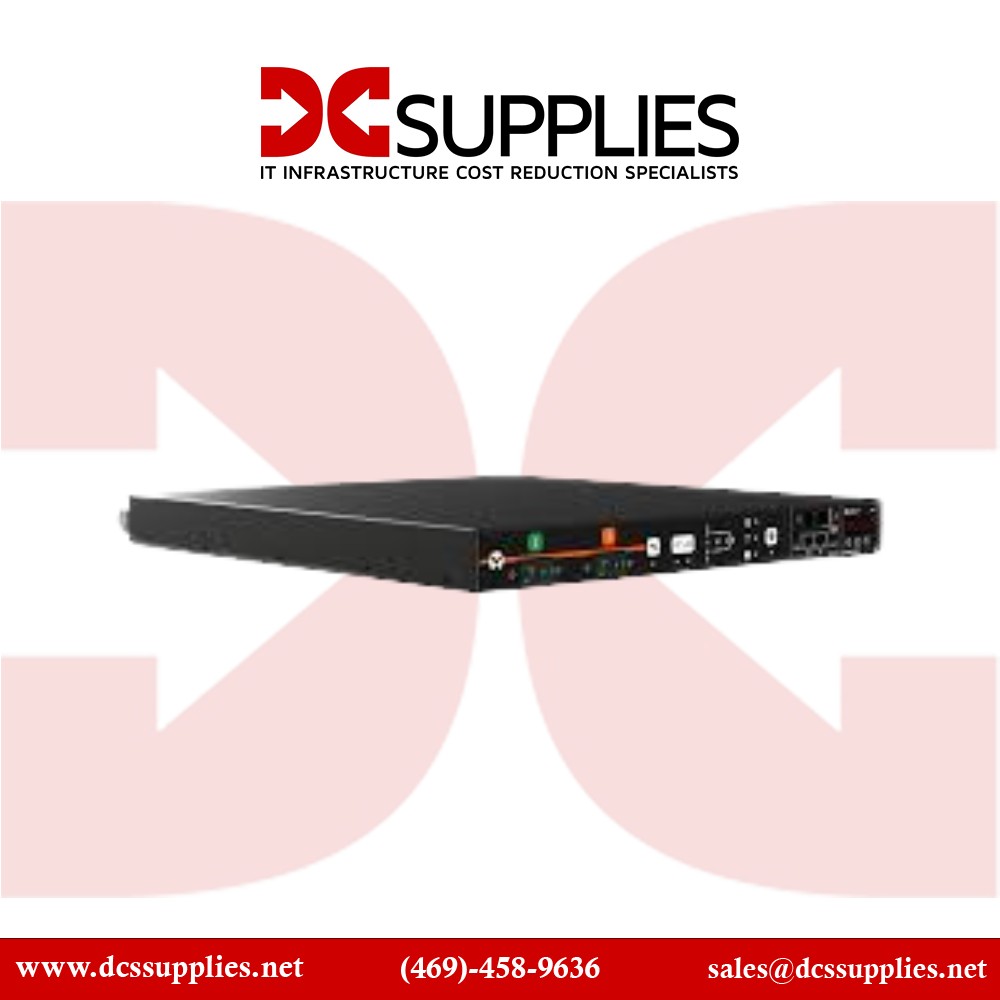

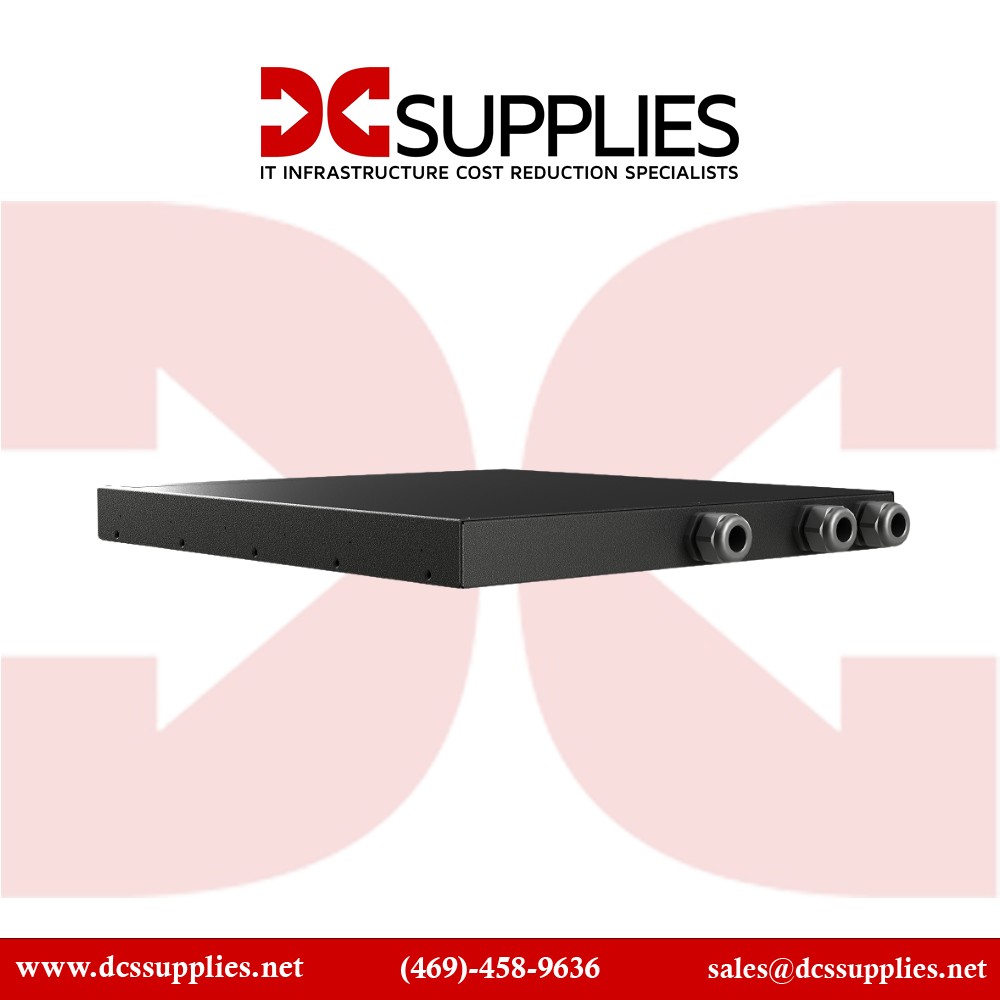

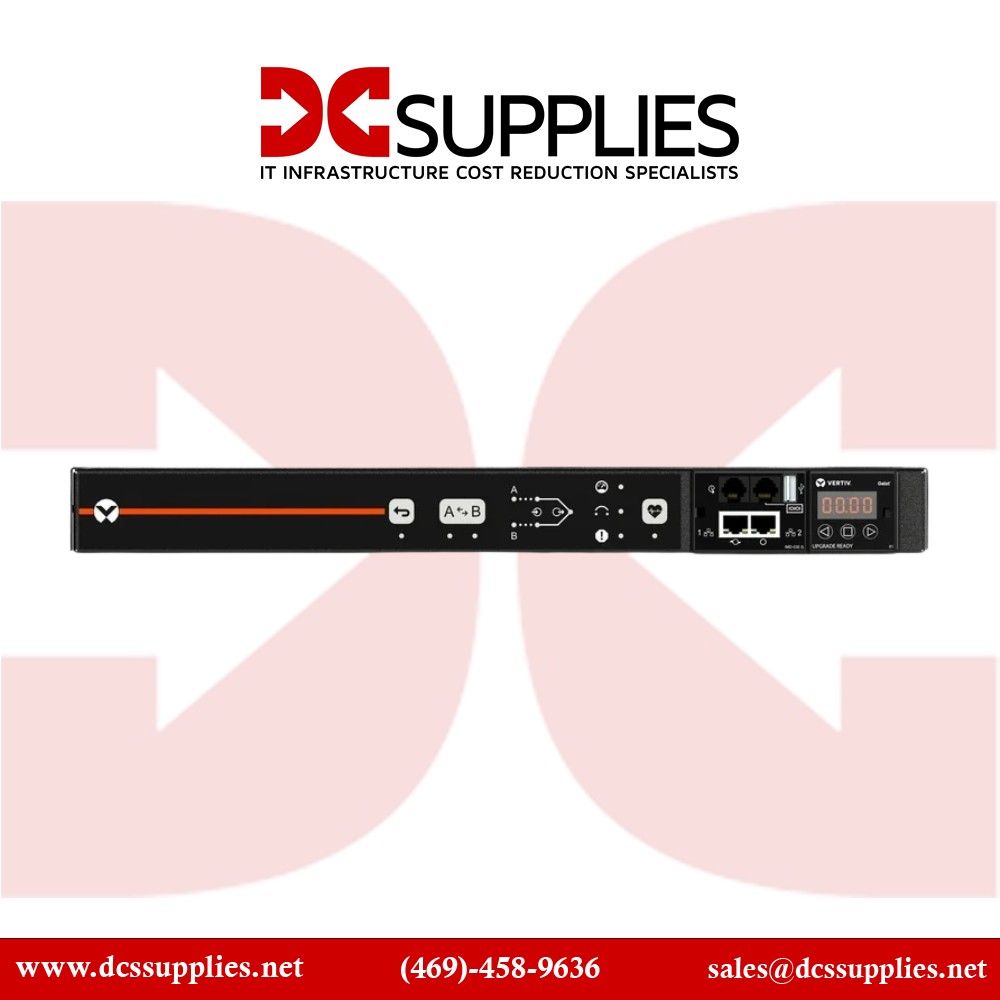

The Vertiv Geist Rack Transfer Switch VA4N3100 is a versatile rack power distribution unit (rPDU) with a transfer switch. It is a 30A, 208V single phase, unit level monitored rack PDU with 1 NEMA L6-30R outlet and dual input NEMA L6-30 plugs providing 4.9kW in max power capacity. The RTS provides redundant power to single corded devices and ensures continuity in the event of power loss. It can quickly detect power loss on the main source and automatically switch it to the secondary source in 4 to 8 milliseconds. The Interchangeable Monitoring Device provides unit level remote power monitoring, as well as environmental monitoring capabilities with the addition of optional sensors. This TAA-Compliant Vertiv RTS comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.
Specification :
| Product Name |
Rpdu Rack Transfer Switch Monitored Unit Level 30A 208V 4.9KW |
| Manufacturer Part Number |
VA4N3100 |
| Product Type |
PDU |
| Phase |
Single Phase |
| Receptacle Type |
NEMA L6-30R |
| Product Family |
N |
| TAA Compliant |
Yes |
| PDU Type |
Switched Auto Transfer Switch |
| Remote Outlet Switching |
No |
| Mounting Orientation |
Horizontal |
| Power Rating (Watt) |
4900 W |
| Product Color |
Black |
| Receptacle Detail |
1 x NEMA L6-30R |
| Rack Height |
1U |
| Plug / Connector Type |
NEMA L6-30P |
| Input Voltage Range |
200 V AC - 240 V AC |
| Input Current |
30 A |
| Input Voltage |
230 V |
| Environmentally Friendly |
Yes |
| Output Voltage Range |
200 V AC - 240 V AC |
| Network (RJ-45) |
Yes |
| Plug / Connector Detail |
2 x NEMA L6-30P |
| Country of Origin |
United States |
| Height |
1.7" |
| Width |
17" |
| Depth |
18" |
| Product Series |
N |
| Product Model |
AN03E1R5-11TL68- 3TL6TL6A011-D |
| Limited Warranty |
5 Year |
| USB |
Yes |
| Modem (RJ-11) |
No |
| Serial Port |
Yes |
| Modem (RJ-12) |
Yes |
| Modem (RJ-22) |
No |
| Number of Cord / Cable |
2 |
