Detailed Specifications
Vertiv VP5N3000 Geist GU2 Rack PDU 30A 208V (24) Combination Outlets C13/C19
Overview :

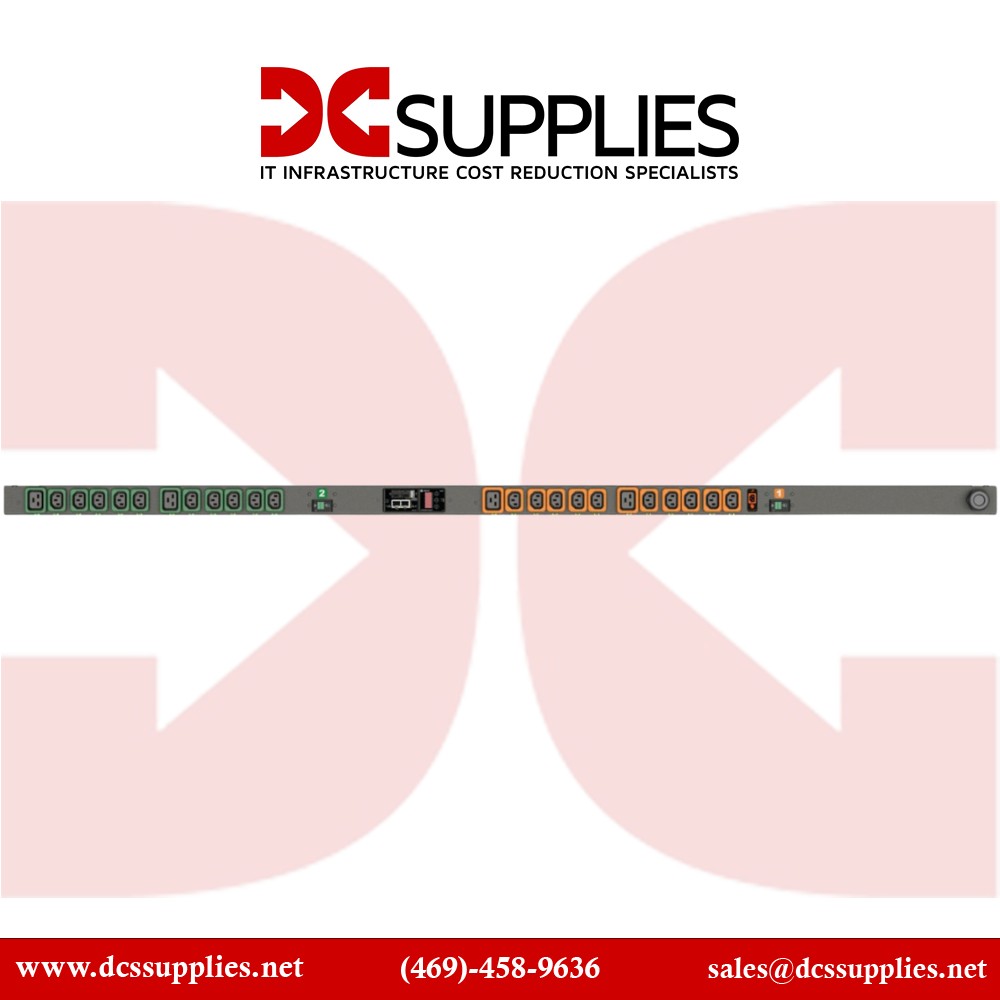

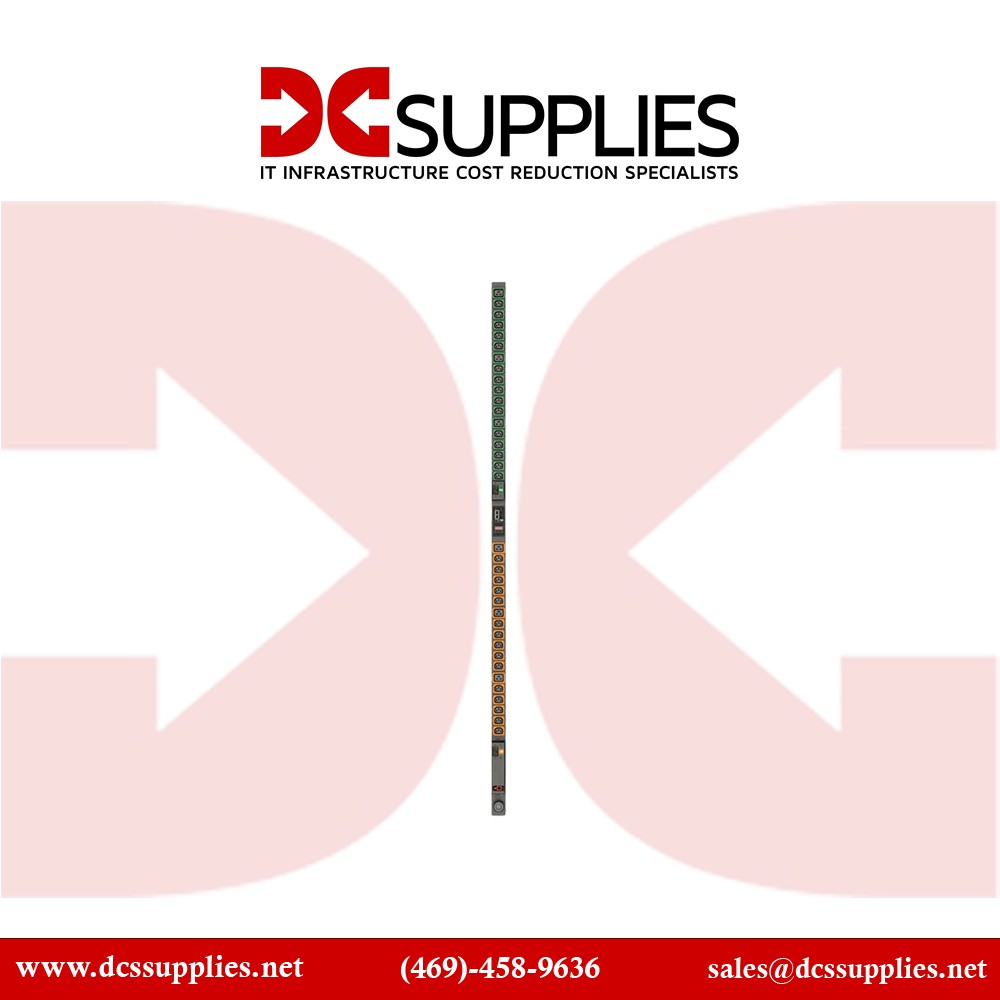

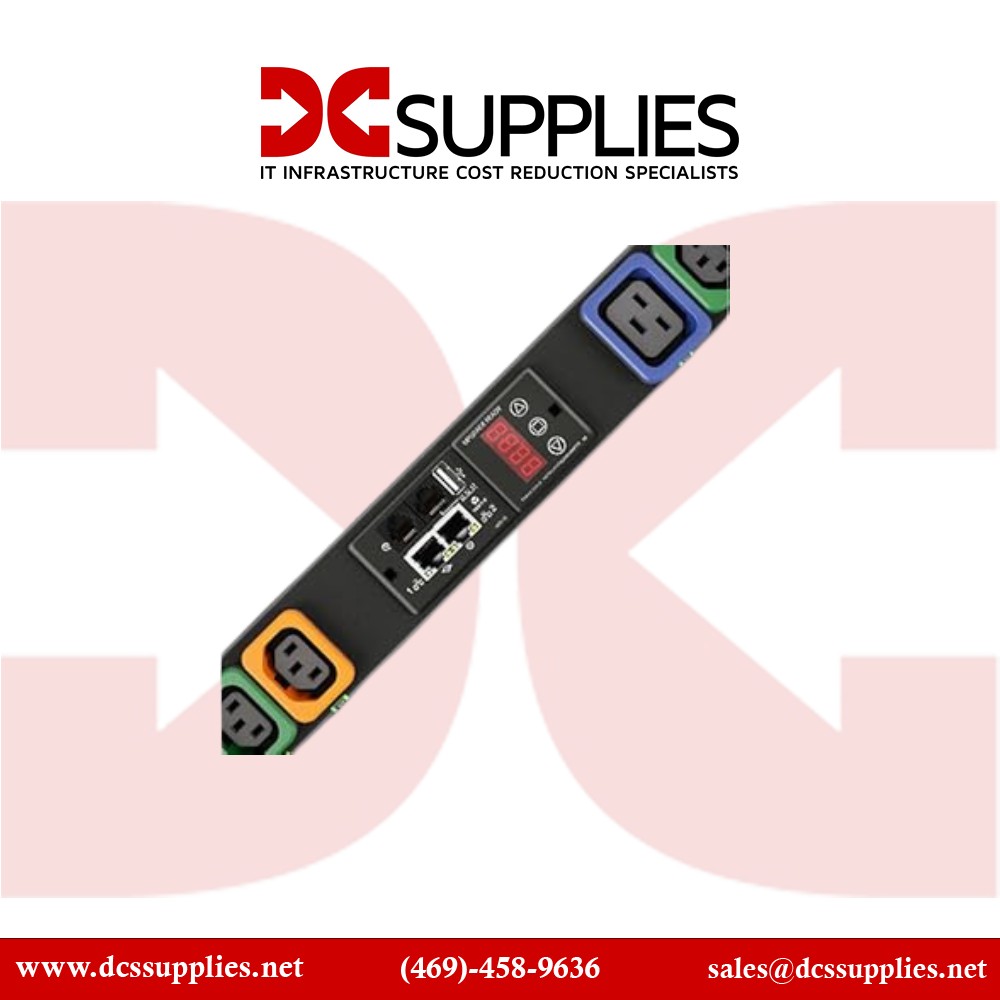

The Vertiv Geist GU2 VP5N3000 is a 30A, 208V, single phase, switched unit level monitored rack power distribution unit (rPDU). This TAA-Compliant PDU has (24) Combination Outlets C13/C19 and an L6-30P plug providing 4.9kW in max power capacity. Combination Outlets C13/C19 accommodate C14 and C20 plugs interchangeably, helping ensure you can power most common IT equipment. This Switched PDU allows you to remotely turn off receptacles to avoid accidental overloads, or remotely power cycle unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. Visible Light Communication (VLC) technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five years if registered within 120 days of purchase.
Specification :
| Product Name |
Vertiv Geist GU2 Rack PDU VP5N3000 30A 208V (24) Combination Outlets C13/C19 |
| Manufacturer Part Number |
VP5N3000 |
| Product Type |
PDU |
| Phase |
Single Phase |
| Receptacle Type |
Combination C13/C19 |
| Product Family |
G |
| TAA Compliant |
Yes |
| PDU Type |
Switched Outlet Monitored |
| Remote Outlet Switching |
No |
| Mounting Orientation |
Vertical |
| Power Rating (Watt) |
4900 W |
| Receptacle Detail |
24 x Combination C13/C19 |
| Cord Length |
9.84 ft |
| Rack Height |
0U |
| Plug / Connector Type |
NEMA L6-30P |
| Input Voltage Range |
200 V AC - 240 V AC |
| Form Factor |
Hot-swappable |
| Input Current |
30 A |
| Length |
66.3" |
| Mount Type |
Rack-mountable |
| Protection Type |
Overcurrent Protection
Overload Protection
|
| Input Voltage |
230 V AC |
| Output Voltage |
208 V AC |
| Environmentally Friendly |
Yes |
| Output Voltage Range |
200 V AC - 240 V AC |
| Network (RJ-45) |
Yes |
| Plug / Connector Detail |
1 x NEMA L6-30P |
| Country of Origin |
United States |
| Width |
2" |
| Depth |
2" |
| Product Series |
G |
| Product Model |
MNS3EGB1-24CF18- 3TL6A0A10-S |
| USB |
Yes |
| Modem (RJ-11) |
No |
| Serial Port |
Yes |
| Modem (RJ-12) |
Yes |
| Modem (RJ-22) |
No |
| Certifications & Standards |
UL Listed |
