Detailed Specifications

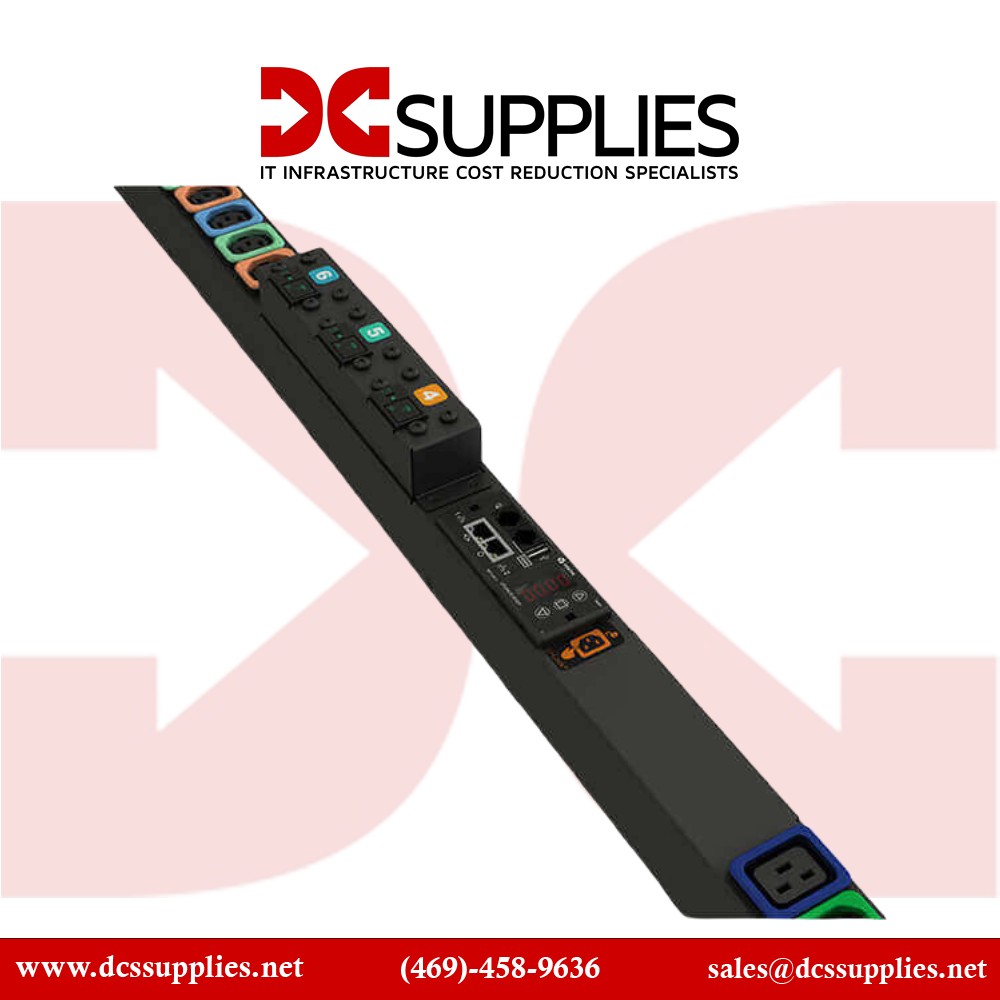

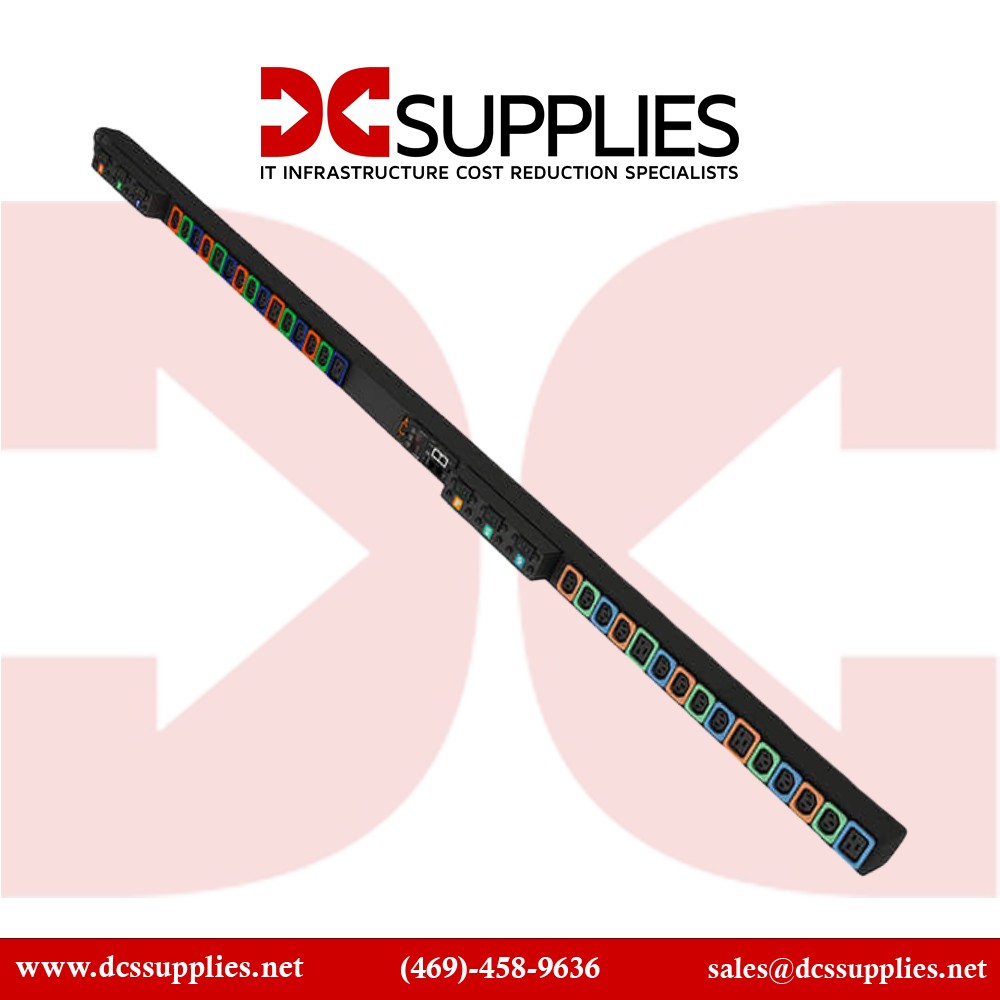

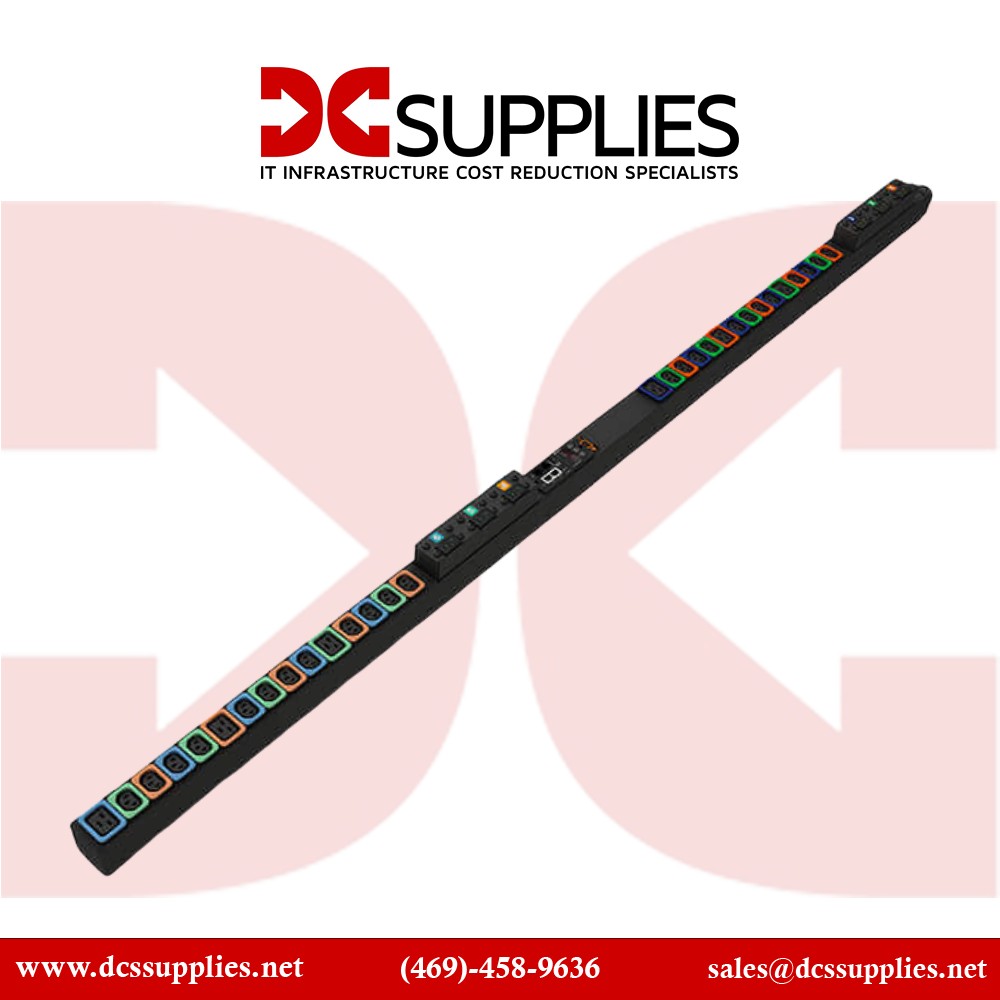

Vertiv UI30007L Updu Monitored 24 Ulock C13 6 Ulock C19
Overview :
The Vertiv Geist UI30007L Universal Power Distribution Unit (Vertiv Geist UPDU) is a versatile rack power distribution unit (rPDU) with a universal input and a max power capacity of 22kW. This universal rPDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-63A and 120V-415V in both single phase and three phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Vertiv Geist UPDU in your network system. This model has 24 locking C13 and 6 locking C19 receptacles, all equipped with the Vertiv patented U-Lock to lessen accidental disconnections. The hot-swappable Interchangeable Monitoring Device (IMD) on this intelligent rack PDU not only has ports for unit-level remote power monitoring and environmental monitoring, but it also provides peace of mind that you can seamlessly update the unit's technology to adapt to your changing business needs.
Specification :
| Product Name |
Updu Monitored 24 Ulock C13 6 Ulock C19 |
| Manufacturer Part Number |
UI30007L |
| Product Type |
PDU |
| Phase |
Three Phase |
| Receptacle Type |
U-Lock IEC 60320 C13
U-Lock IEC 60320 C19
|
| Product Family |
rPDU |
| TAA Compliant |
Yes |
| Energy Star |
No |
| PDU Type |
Monitored |
| Remote Outlet Switching |
No |
| Mounting Orientation |
Vertical |
| Power Rating (Watt) |
22 kW |
| Locking Receptacles |
IEC 60320 C13
IEC 60320 C19
|
| Receptacle Detail |
24 x U-Lock IEC 60320 C13
6 x U-Lock IEC 60320 C19
|
| Rack Height |
0U |
| Plug / Connector Type |
Universal Input |
| Input Voltage Range |
230 V AC - 415 V AC |
| Input Current |
63 A |
| Length |
70" |
| Mount Type |
Rack-mountable |
| Protection Type |
Overcurrent Protection
Double Pole
|
| Input Voltage |
230 V AC
415 V AC
|
| Environmentally Friendly |
Yes |
| Network (RJ-45) |
Yes |
| Plug / Connector Detail |
1 x Universal Input |
| Country of Origin |
United States |
| Width |
2" |
| Depth |
2.3" |
| Product Series |
rPDU |
| Product Model |
DU03E4W1-30PN67- 2S02A9K00-S-A |
