Detailed Specifications

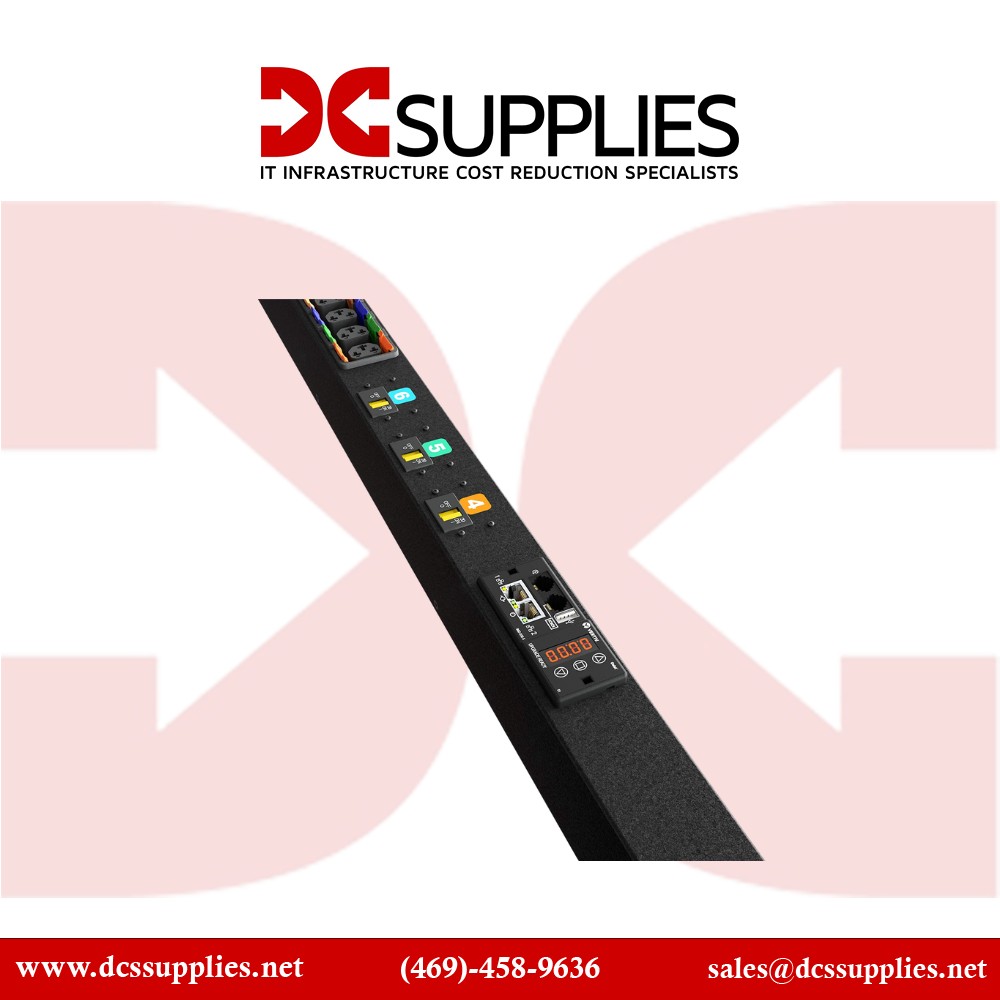

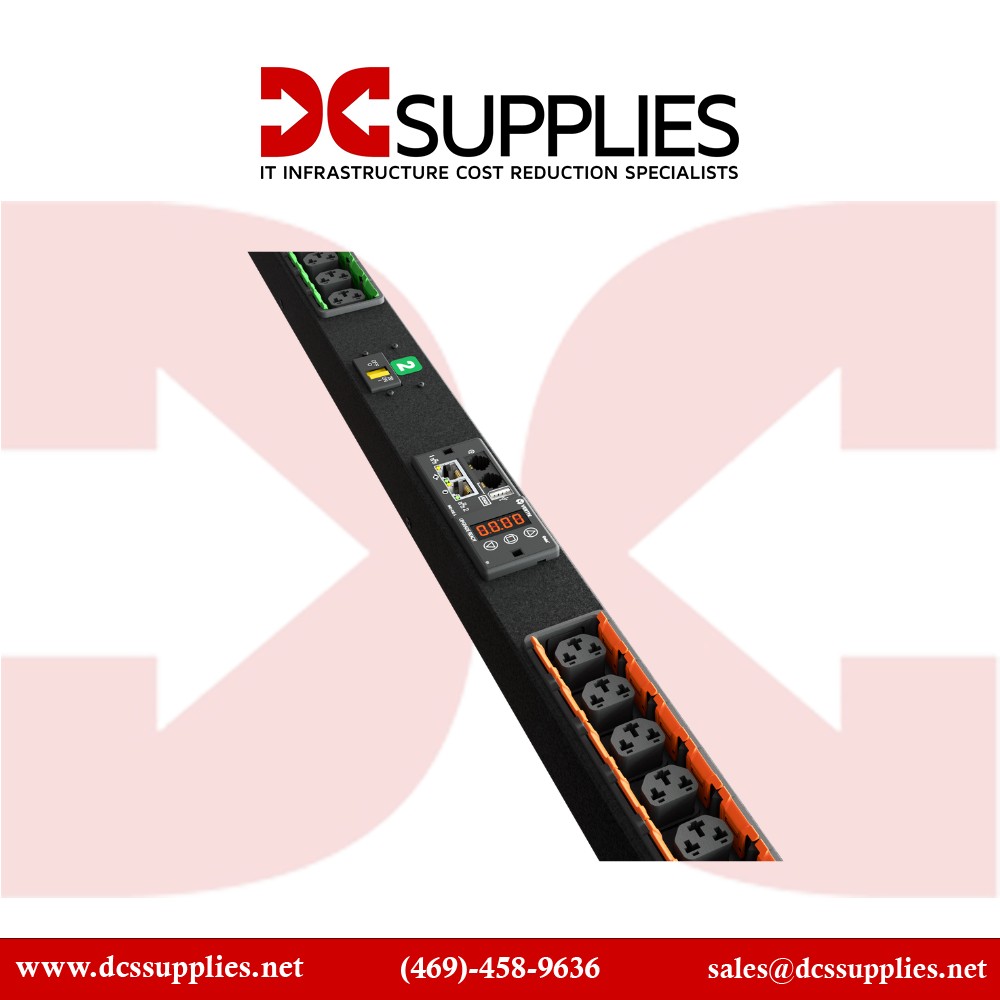

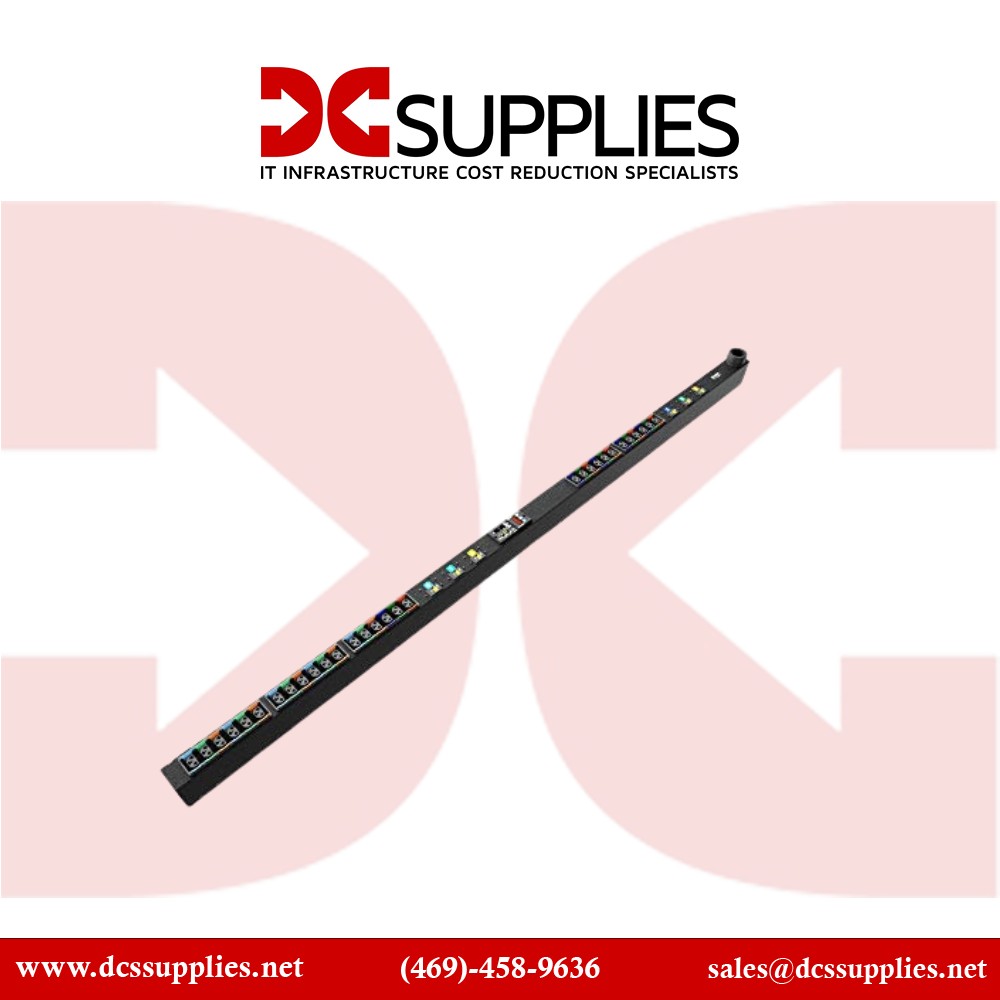

Vertiv VP46301 Monitored Unit Level - power distribution unit - 17.2 kW
Overview :
The Vertiv Geist NI30677 rPDU is a versatile rack power distribution unit featuring 30 Combination C13/C19 Outlets. The NI30677 is a 60A, 208V three phase DELTA upgradeable rack PDU with a 3P+E (IP44) splash proof plug. The NI30677 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated.
Specifications :
| Product Name |
Rpdu Mon Unit Level EC 60A 208V Delta 17.2 |
| Manufacturer Part Number |
VP46301 |
| Product Type |
PDU |
| Phase |
Three Phase |
| Receptacle Type |
Combination C13/C19 |
| Product Family |
N |
| TAA Compliant |
Yes |
| Energy Star |
No |
| PDU Type |
Monitored |
| Remote Outlet Switching |
No |
| Mounting Orientation |
Vertical |
| Power Rating (Watt) |
17.20 kW |
| Product Color |
Black |
| Receptacle Detail |
30 x Combination C13/C19 |
| Cord Length |
10 ft |
| Rack Height |
0U |
| Plug / Connector Type |
3P+E (IP44) |
| Input Voltage Range |
200 V AC - 240 V AC |
| Input Current |
60 A |
| Length |
3" |
| Mount Type |
Rack-mountable
Cabinet-mountable
|
| Protection Type |
Overcurrent Protection |
| Input Voltage |
208 V AC |
| Output Voltage |
240 V AC |
| Environmentally Friendly |
Yes |
| Output Voltage Range |
200 V AC - 240 V AC |
| Network (RJ-45) |
Yes |
| Plug / Connector Detail |
1 x 3P+E (IP44) |
| Country of Origin |
United States |
| Height |
70" |
| Width |
2.1" |
| Depth |
3" |
| Product Series |
N |
| Limited Warranty |
5 Year |
| USB |
Yes |
| Modem (RJ-11) |
No |
| Serial Port |
Yes |
| Modem (RJ-12) |
Yes |
| Number of Cord / Cable |
1 |
| Stock Details |
| Manufacturer |
Vertiv |
| Manuf Part# |
VP46301 |
