Detailed Specifications
Cat 6 Flat Patch Panel, 24-Port, 1RU, Black
The Leviton LV-69586U24 is a professional-grade 24-port Cat 6 flat patch panel designed for high-performance network installations in standard 19-inch racks and cabinets. Ideal for data centers, offices, and enterprise networks, it delivers reliable connectivity, easy installation, and long-term durability for Gigabit Ethernet and other high-megabit applications.
Features :
Engineered for demanding IT environments, this patch panel features Leviton's patented Retention Force Technology, which protects contacts from damage and ensures consistent performance over the life of the system. The 110-style punch down rear terminations follow the standard color sequence, making installation straightforward for technicians and reducing the risk of wiring errors.
Advanced Options :
The LV-69586U24 supports both T568A and T568B wiring schemes, providing flexibility for various network standards. Its robust 14-gauge steel construction and black powder coat finish offer durability and a professional appearance in any rack or cabinet. Port identification is made easy with silk-screened numbering and color-coded labeling, compliant with ANSI/TIA-606-C standards. The included cable management bar organizes and secures cables, reducing strain and maintaining a tidy installation.
Product Key Features
- 24 Cat 6 ports in a 1RU flat panel
- Patented Retention Force Technology for durability
- Universal T568A/B wiring, 110-style punchdown

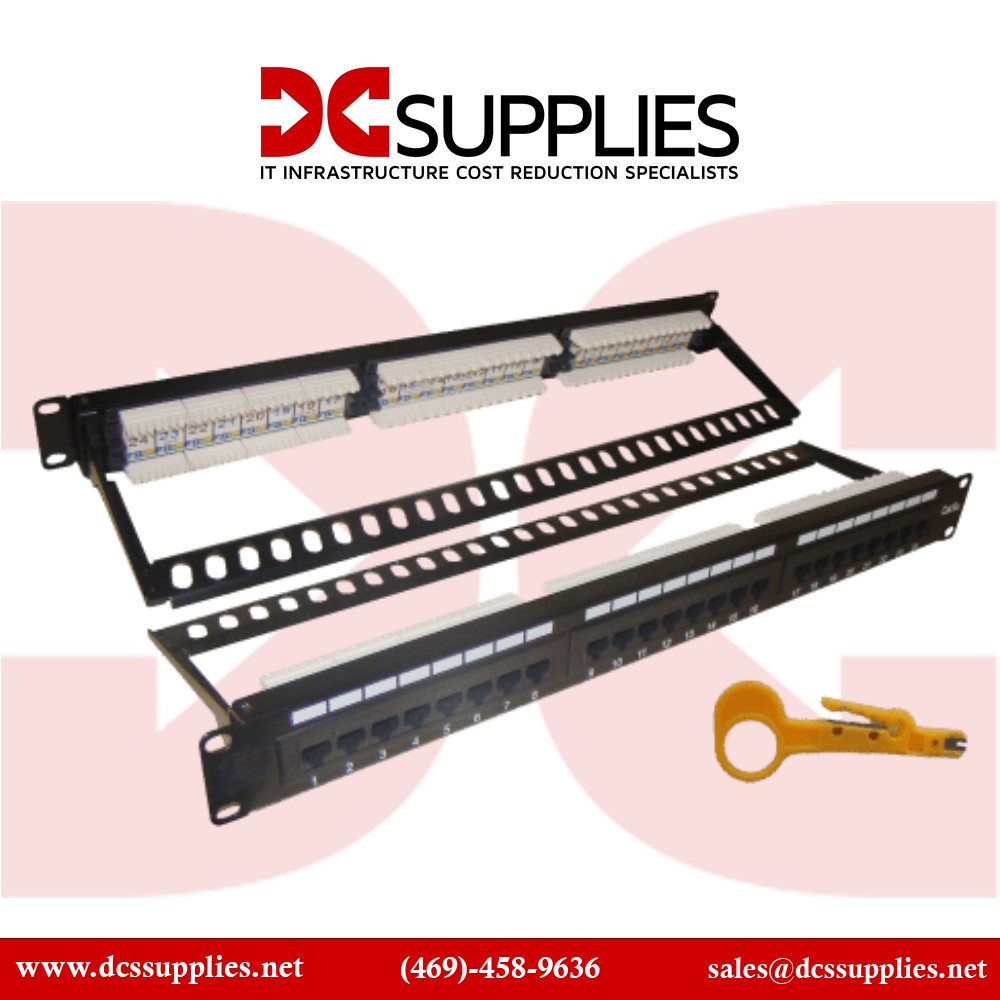

- Includes rear cable management bar
- ANSI/TIA-606-C compliant port labeling
- Supports PoE up to 100W per conductor
Reliability & Performance :
Built from heavy-duty steel and finished with a durable powder coat, the Leviton LV-69586U24 ensures long-term reliability in mission-critical environments. Its Retention Force Technology and support for multiple re-terminations guarantee consistent connectivity, while the included cable management bar helps maintain optimal cable organization and airflow in the rack.
Key Features :
- 24 Cat 6 ports, 1RU flat panel
- Retention Force Technology
- Universal T568A/B wiring
- 110-style punchdown rear
- Cable management bar included
- ANSI/TIA-606-C compliant labeling
- Supports PoE up to 100W
Specifications :
| Specification | Details |
|---|
| Model Number | LV-69586U24 |
| Type | Cat 6 Flat Patch Panel |
| Ports | 24 |
| Rack Units (RU) | 1 |
| Panel Width | 19 inches (482.6 mm) |
| Panel Height | 1.75 inches (44.4 mm) |
| Panel Depth | 1.48 inches (37.44 mm) |
| Weight | 2.12 lbs (0.96 kg) |
| Termination Type | 110-Style Punch down |
| Wiring Schemes | T568A and T568B |
| Conductor Compatibility | 26-22 AWG solid |
| Shielding | Unshielded |
| Material | 14-gauge steel, black powder coat |
| Cable Management | Rear bar included |
| PoE Support | Up to 100W per conductor (IEEE 802.3bt) |
| Labeling | ANSI/TIA-606-C compliant |
