Detailed Specifications

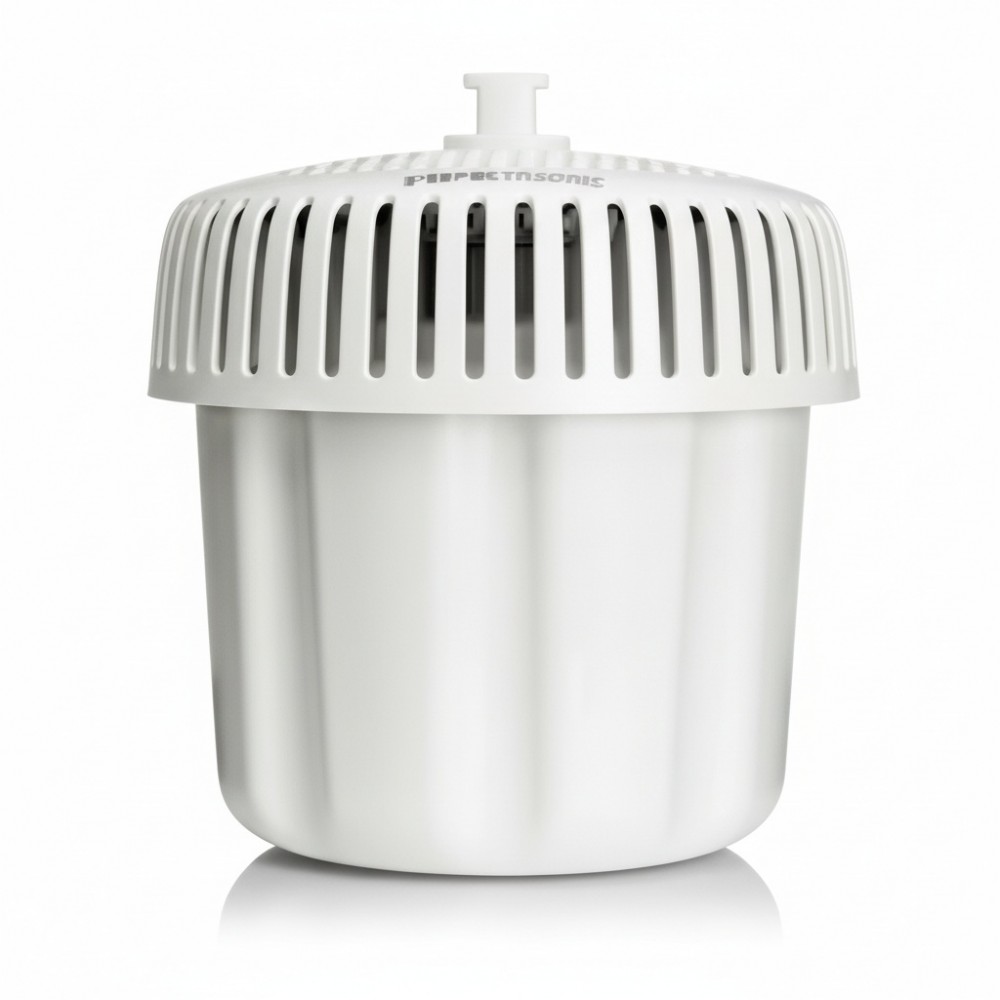

HPE S0P61A Aruba AP-679 Outdoor Tri-Radio Wi-Fi 6E Access Point
Overview
The HPE S0P61A is an outdoor-rated access point offering tri-band Wi-Fi 6E connectivity (2.4 GHz, 5 GHz, 6 GHz) with 2×2 MIMO performance. It is tailored for challenging outdoor environments, with a rugged, IP-rated housing and dynamic directional antennas to optimize wireless coverage. The AP supports PoE-PD (802.3bt) or optional DC power, making it flexible for diverse outdoor deployments. It's ideal for use cases such as public venue coverage, smart-city installations, and industrial IoT.
Key Features
Tri-radio Wi-Fi 6E (2.4 / 5 / 6 GHz) with 2×2:2 MIMO
3.9 Gb/s maximum aggregate throughput
Internal dynamic directional antennas (wide / narrow beam)
Integrated Bluetooth 5 and Zigbee radios for IoT
Power via PoE-PD (802.3bt) or optional DC input
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | S0P61A |
| Product Type | Outdoor Wi-Fi Access Point |
| Radio Configuration | Tri-radio, 2×2:2 MIMO (2.4 / 5 / 6 GHz) |
| Maximum Aggregate Throughput | ~3.9 Gb/s |
| Antennas | Internal directional (software-selectable wide / narrow) |
| Ports | 1 × 2.5 GbE RJ-45, 1 × 1 Gb SFP |
| Power Input | 802.3bt PoE-PD or optional DC |
| Bluetooth / Zigbee | Integrated BLE 5, 802.15.4 |
| Environmental Rating | IP66 / IP67, -40 °C to +70 °C |
| Mounting Options | Pole or wall mount kits available |
| Maximum Power Consumption | ~45.5 W |
