NVIDIA MFP7E30-N010 10m MPO12 APC Passive Network Cable View larger
Previous Next

NVIDIA MFP7E30-N010 10m MPO12 APC Passive Cable

New

10m MPO-12 APC passive cable for 400GbE optics
×




  • New

Detailed Specifications

NVIDIA MFP7E30-N010

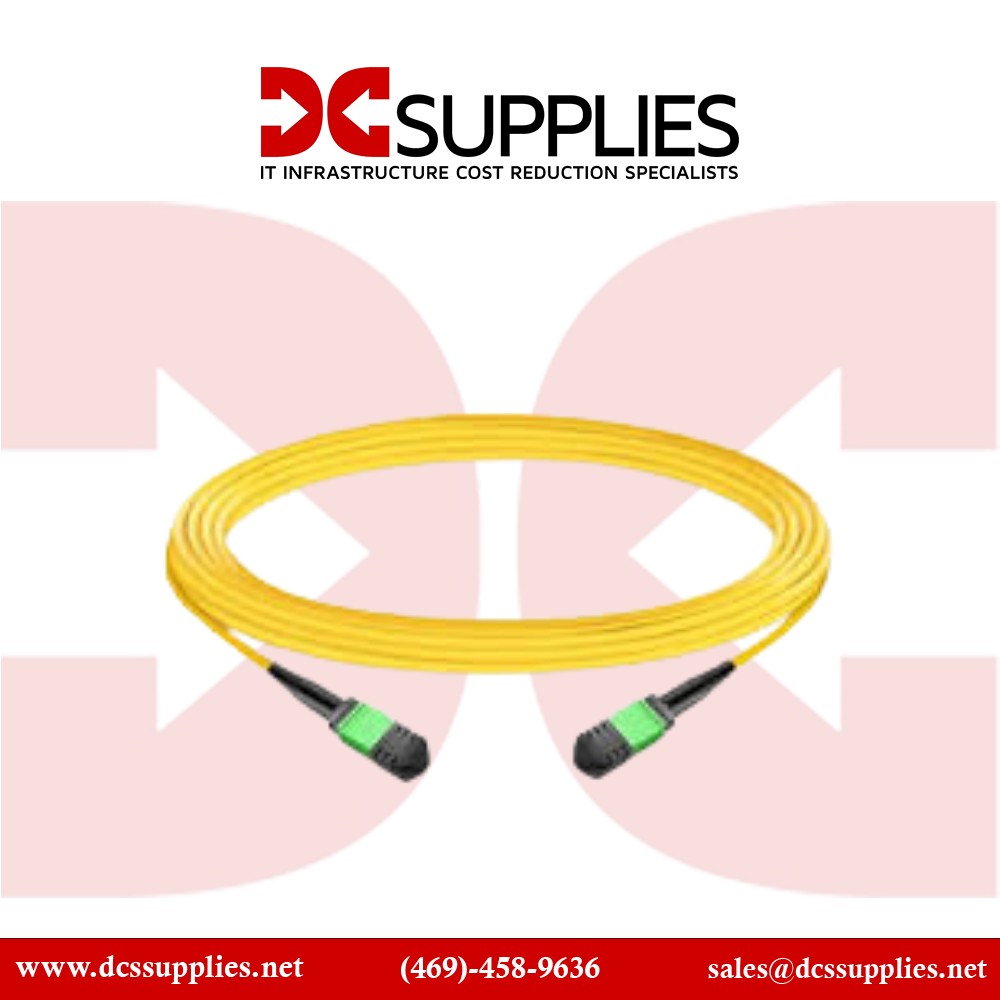

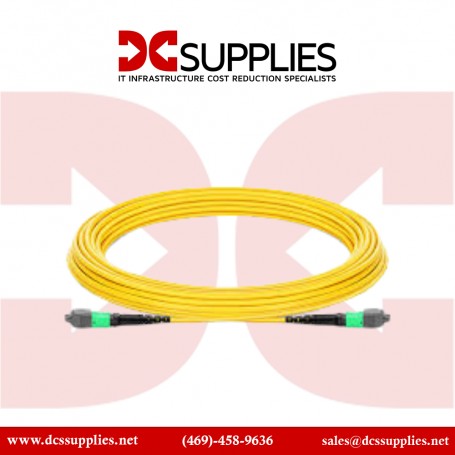

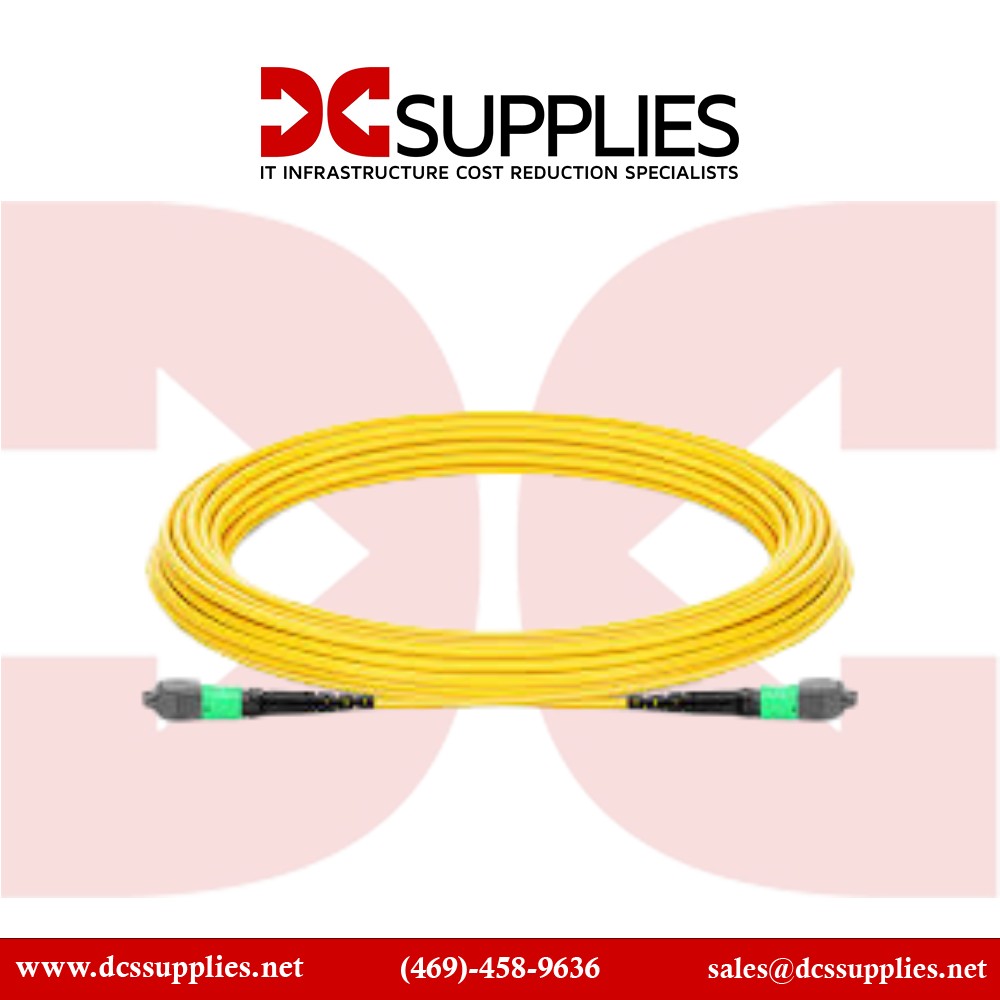

10m MPO-12 APC Passive Optical Cable – OSFP/QSFP

The NVIDIA MFP7E30-N010 is a 10-meter MPO-12 APC passive Optical Cable purpose-built for 400GbE data center interconnects. Compatible with OSFP and QSFP112 transceivers, this high-density cable ensures exceptional signal performance and reliability across short-reach applications in cloud and enterprise environments.

Features

This multimode MPO-12 APC cable is precision-engineered to support next-generation high-speed networks, including InfiniBand NDR and 400GbE Ethernet. The angled physical contact (APC) polish reduces signal reflection, while the MPO-12 interface allows streamlined connections between switches, routers, and AI infrastructure.

Advanced Options

Designed for plug-and-play compatibility with optical transceivers in OSFP/QSFP112 form factors, the MFP7E30-N010 reduces installation complexity and supports structured cabling needs in dense 1U/2U rack deployments.

Product Key Features

    •  MPO-12 APC connector – low insertion loss

    •  10-meter high-performance multimode fiber cable

    •  Ideal for high-speed 400Gbps OSFP/QSFP connections

    •  Passive, plug-and-play for dense data center deployments

    •  Engineered for low reflection and signal integrity

Reliability & Performance

With low insertion loss, minimized reflectance, and tight bend-radius fiber, this NVIDIA cable meets the demands of today’s ultra-fast, low-latency interconnects. It ensures consistent performance under demanding workloads and is tested for datacenter-grade signal integrity.

Key Features :

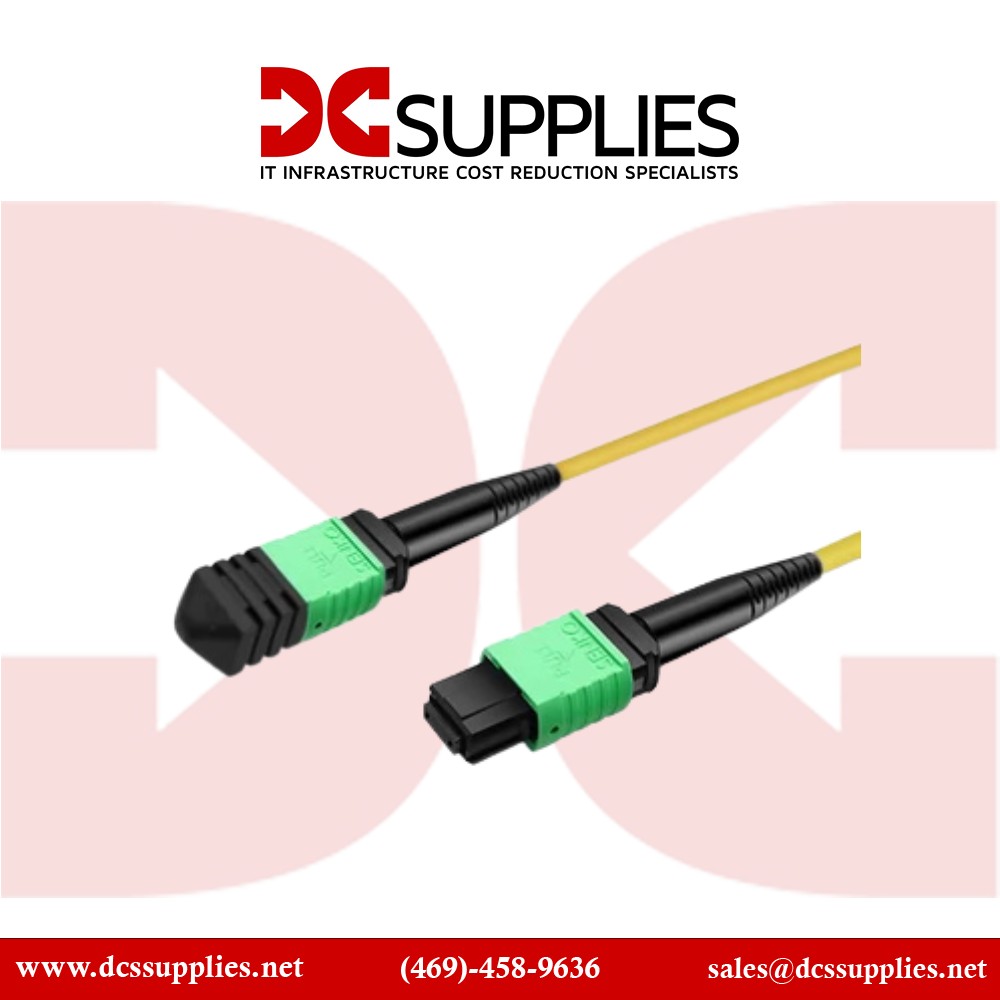

    • MPO-12 APC connector (angled polish for low reflectance)

    • Compatible with 400GbE OSFP/QSFP112 optical transceivers

    • 10m multimode optical fiber

    • Factory-terminated and tested for optical performance

    • Passive construction – no power required

    • Plug-and-play deployment for spine/leaf interconnects

    • Suitable for AI clusters, storage fabrics, and hyperscale networks

SpecificationDetails
Part Number MFP7E30-N010
Product Type Passive Optical Cable
Cable Type MPO-12 APC
Cable Length 10 meters
Connector Type MPO-12 (APC polished)
Fiber Type Multimode Optical Fiber
Data Rate Support Up to 400Gbps (OSFP/QSFP112 compatible)
Transceiver Compatibility OSFP, QSFP112
Jacket Type Plenum-rated
Insertion Loss ≤ 0.35 dB (typical)
Reflectance < –60 dB (APC polish)
Operating Temperature 0°C to 70°C
Application Data Centers, AI Systems, Spine/Leaf Networks
