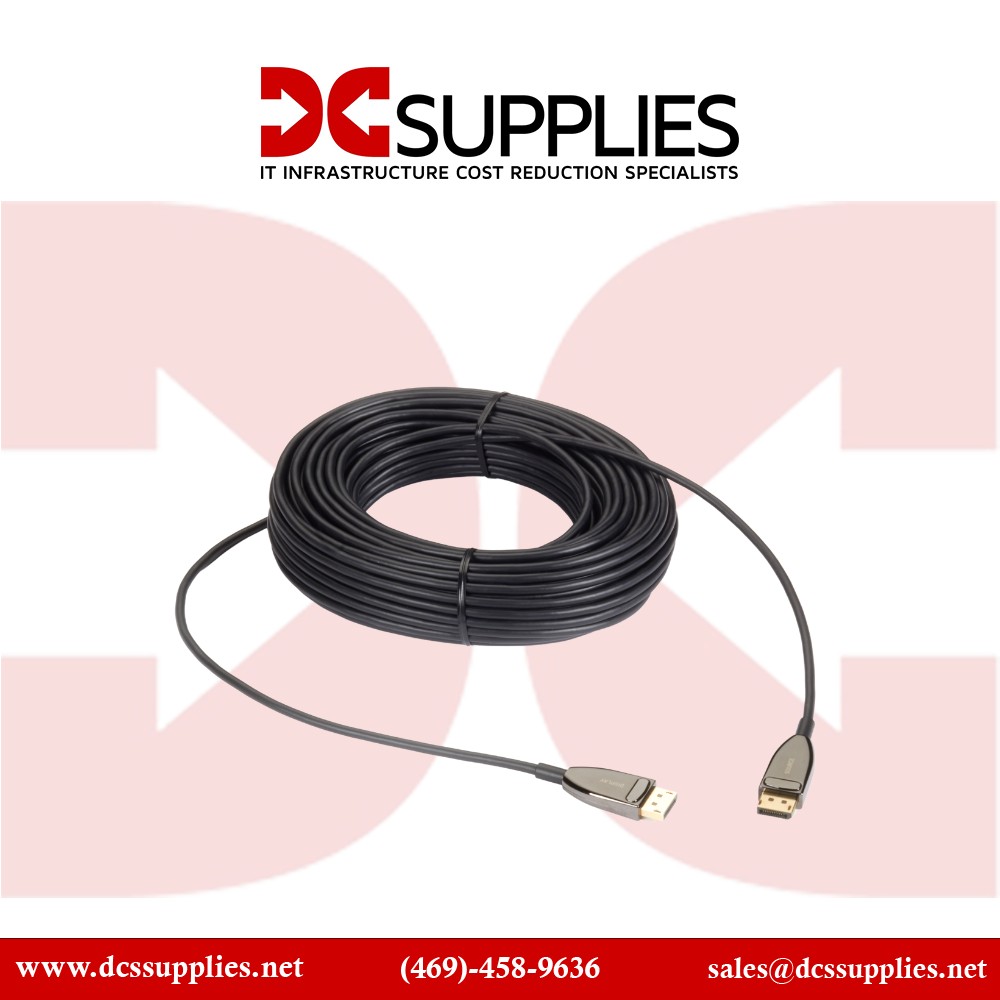

Black Box AOC-HL-DP4-100M Active Optical Cable - 8K60 UHD DisplayPort to DisplayPort - 328ft" View larger
Previous Next

Black Box Active Optical Cable - DisplayPort cable

New

Long-reach 8K DisplayPort AOC with high flexibility.
×




  • New

Detailed Specifications

Black Box AOC-HL-DP4-100M

DisplayPort 1.4 Active Optical Cable (100 m) – Long‑reach 8K AOC with hybrid fiber/copper and LSZH jacket

The Black Box AOC-HL-DP4-100M is a high-performance DisplayPort 1.4 Active Optical Cable engineered for demanding AV installations. It delivers pristine 8K video over distances up to 100 meters with plug‑and‑play simplicity—ideal for control rooms, video walls, digital signage, and remote display setups.

Features :

Compliant with DisplayPort 1.4, this AOC supports up to 8K (7680 × 4320) at 60 Hz (4:2:0) and a full 32.4 Gbps bandwidth for future‑ready performance. EDID, DDC, CEC, and HDCP 2.2 support helps ensure interoperability and protected content delivery. Its hybrid fiber/copper construction provides long‑distance reach with minimal EMI/RFI, while the LSZH jacket improves safety and routing flexibility in dense pro AV environments—without requiring external power.

Advanced Options :

Replace bulky extenders and multiple patch cables with a single, elegant run that’s easy to install and manage. The cable’s ultra‑thin, lightweight build simplifies pulls through conduits and tight spaces, and latching, nickel‑plated DP connectors add a secure fit for mission‑critical deployments like broadcast control rooms, signage networks, and live event venues.

Product Key Features

  • DisplayPort 1.4 compliance, supports up to 8K @ 60 Hz (4:2:0)
  • 32.4 Gbps bandwidth for ultra-high definition video
  • Up to 100 m (328 ft) reach with single-cable simplicity
  • Plug-and-play; no external power required
  • Hybrid fiber/copper construction with LSZH jacket
  • Minimal EMI/RFI interference and flexible routing

Reliability & Performance :

Built for durability, the AOC features nickel‑plated, latching DP connectors, triple shielding, and a robust hybrid design to resist interference in high‑EMI environments. It’s truly plug‑and‑play with no external power or drivers required. Backed by a 3‑year limited Double Diamond™ warranty, it ensures dependable long‑haul video performance in professional settings.

Key Features :

  • DisplayPort 1.4, supports 8K @ 60 Hz (4:2:0) up to 100 m
  • 32.4 Gbps bandwidth, HDR, EDID, CEC, DDC, HDCP 2.2
  • Plug‑and‑play with no external power required
  • Hybrid fiber/copper with LSZH jacket for safety and flexibility
  • Minimal EMI/RFI, ultra‑thin profile with strong bend radius

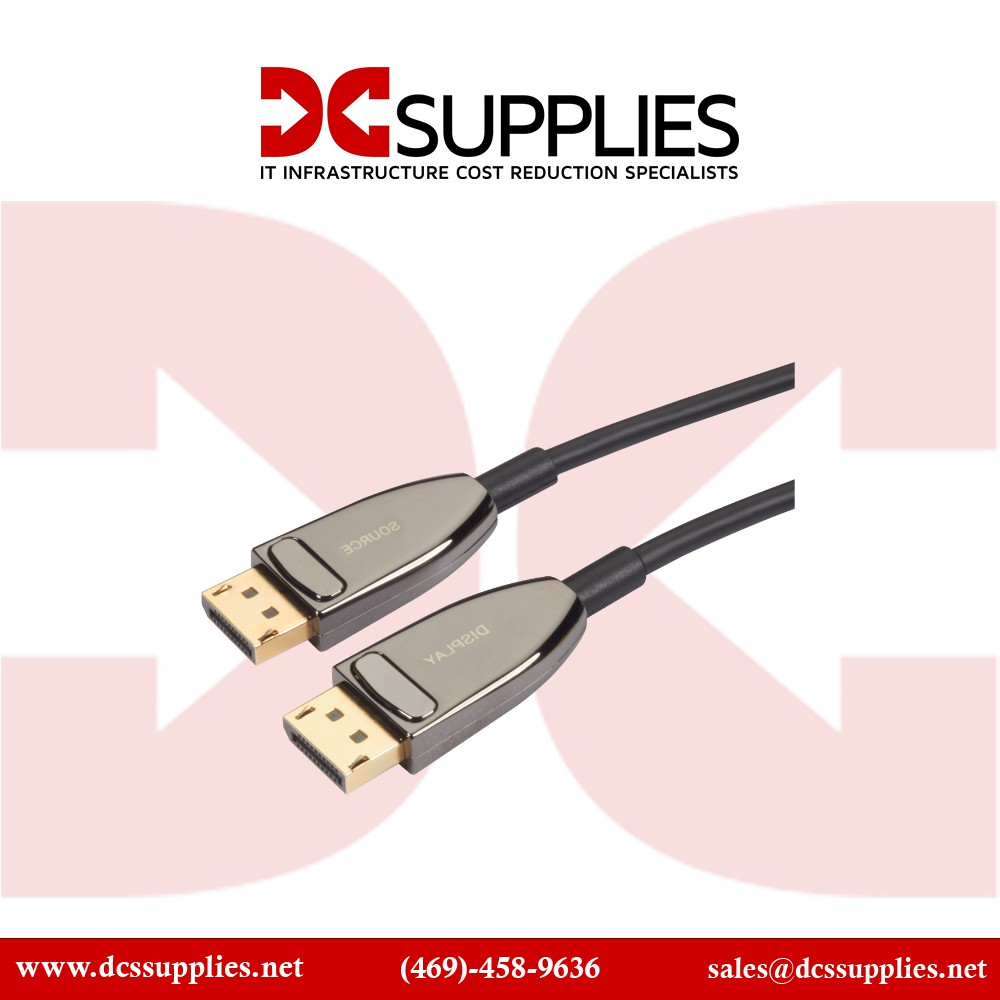

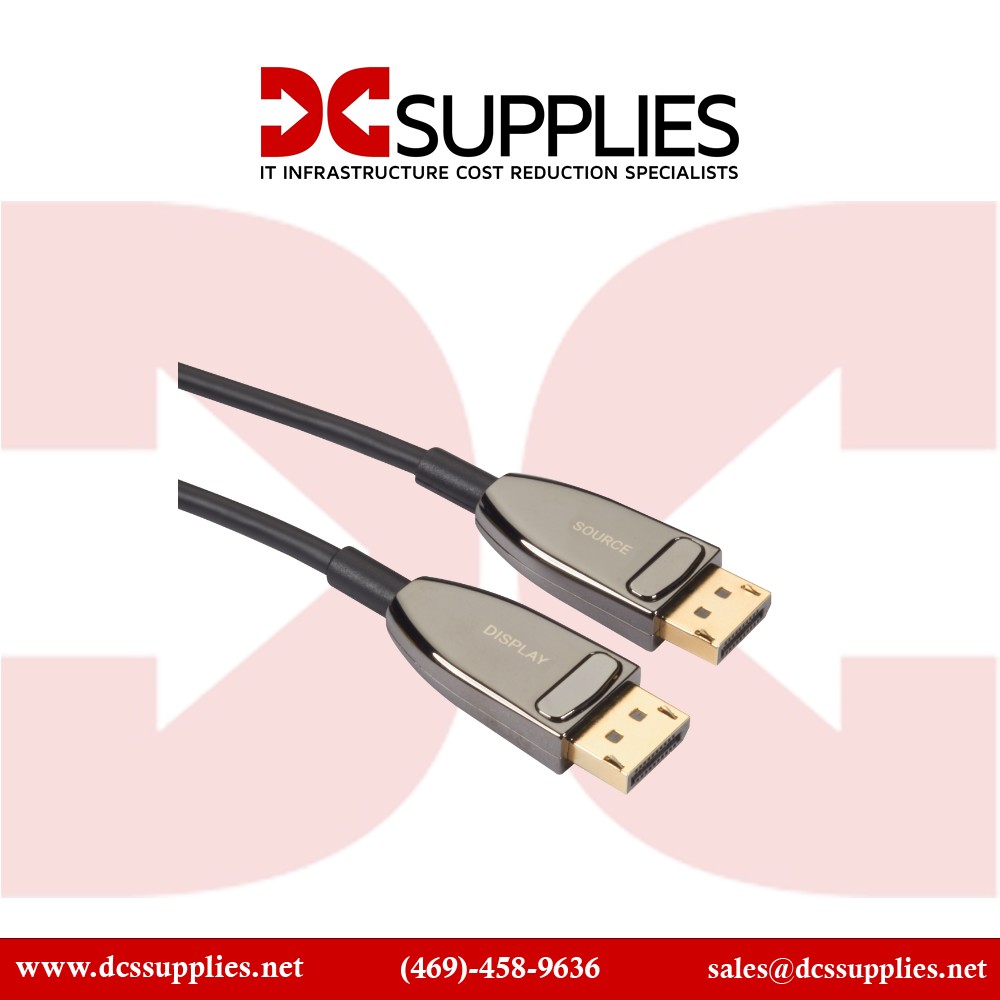

  • Rugged nickel‑plated, latching DisplayPort connectors

Specifications :

SpecificationDetails
Model Number AOC-HL-DP4-100M
Product Type DisplayPort 1.4 Active Optical Cable (AOC)
Cable Length 100 m (328 ft)
Connector Type DisplayPort 1.4 Male (both ends), nickel-plated, latching
Video Resolution Up to 7680 × 4320 (8K) @ 60 Hz (4:2:0)
Bandwidth 32.4 Gbps
Standards Compliance DisplayPort 1.4, HDR, EDID, CEC, DDC, HDCP 2.2
Cable Construction Hybrid fiber/copper
Jacket Type LSZH (Low-Smoke Zero-Halogen)
EMI/RFI Profile Minimal (optical design with triple shielding)
Power Requirements Powered over cable; no external power needed
Physical Flexibility Ultra-thin, lightweight, excellent bend radius
Operating Temperature 0 °C to 70 °C (32 °F to 158 °F)
Humidity (Operating) 10% to 85% RH, non-condensing
Warranty 3-year limited / Double Diamond™
