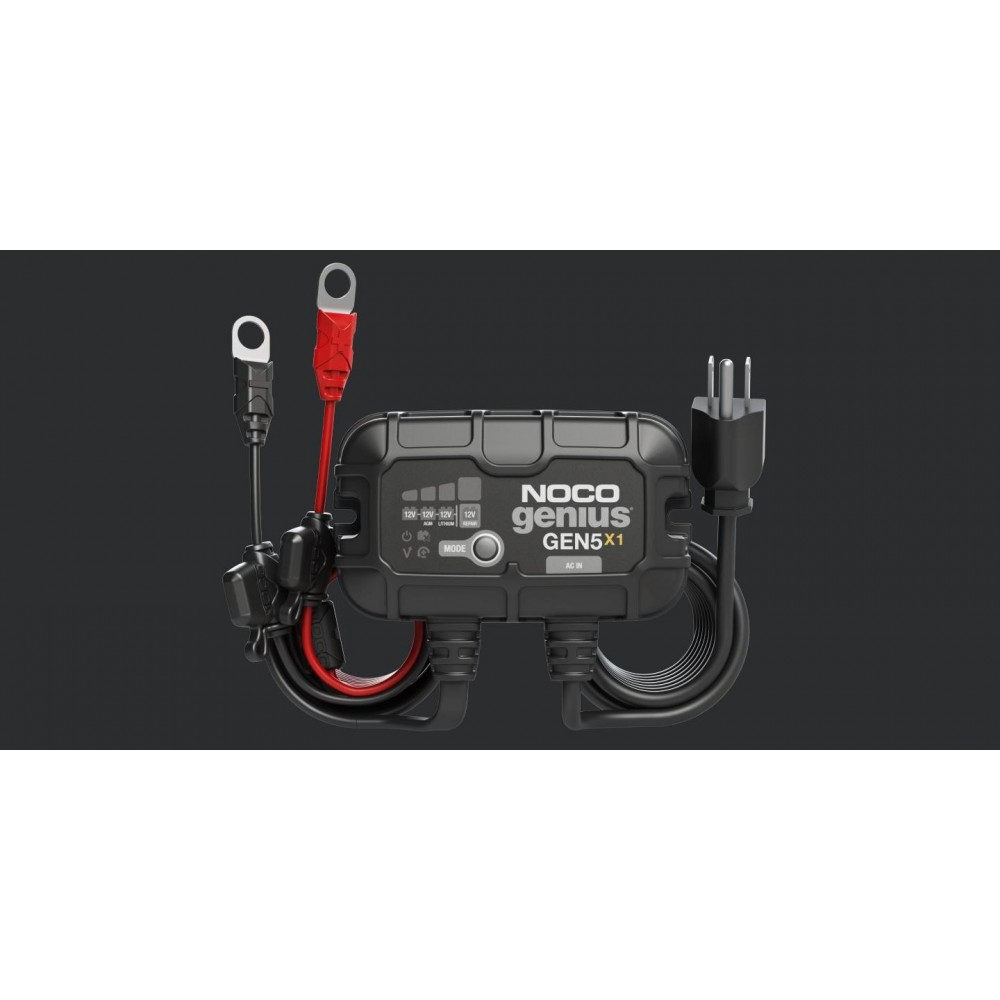

NOCO GEN5X1

Bank 5A (5A/Bank) 12V Smart Marine Battery Charger

The NOCO Genius GEN5X1 is a compact yet powerful 1-bank, 5-amp smart marine battery charger engineered for 12Vbattery systems in boats, RVs, and equipment exposed to harsh environments. Designed for precision charging and long-term battery maintenance, it ensures optimal performance from both lead-acid and lithium batteries.

Features

Built with advanced charging technology, the GEN5X1 delivers 5 amps of power to a single battery bank and automatically adjusts its output based on battery needs. Whether you're maintaining a small deep-cycle battery or charging a starting battery in your boat, the charger intelligently monitors voltage, temperature, and battery type to ensure safe and complete charging.

Advanced Options

Its compact form factor and fully sealed IP68-rated housing make it perfect for permanent onboard installation. With reverse polarity protection, spark-proof connections, and a built-in thermal sensor, the GEN5X1 is ready to handle demanding marine, RV, and outdoor applications.

Product Key Features

• 1 bank, 5A onboard battery charger for 12V lead-acid and lithium batteries

• Fully sealed and waterproof design - IP68 rated for marine use

• Auto-detects battery chemistry, adjusts charge rate, and prevents overcharge

• Compatible with AGM, flooded, gel, and lithium (LiFePO4) batteries

• Built-in thermal and ignition protection for safety and reliability

• Mountable and rugged - ideal for boats, RVs, and power sport vehicles

Reliability & Performance

The NOCO GEN5X1 offers unmatched durability in a sleek, waterproof enclosure designed for long-term performance in rugged settings. It's built with automatic battery detection, charge optimization, and multi-level safety systems that make it ideal for professional and recreational marine use. Its precision charging not only extends battery life but also keeps your systems reliably powered with minimal user intervention.

Key Features (Bullet List)

• • 1 charging bank with 5A output for 12V batteries

  • Charges and maintains all types of 12V lead-acid and lithium batteries

  • IP68-rated waterproof and sealed design

  • Compatible with wet cell, gel, AGM, maintenance-free, and LiFePO4

  • Built-in temperature and voltage sensors for precision charging

  • Spark-proof, reverse polarity, and ignition protected

Specification	Details
Model Number	GEN5X1
Product Type	1-Bank Smart Battery Charger
Battery Compatibility	12V Lead-Acid & Lithium (LiFePO4)
Charging Banks	1 Bank
Output Current	5 Amps per Bank
Input Voltage	120-240V AC, 50-60Hz
Waterproof Rating	IP68 (fully sealed)
Protection Features	Spark-proof, reverse polarity, overcharge, thermal
Mounting Type	Surface-mount, integrated brackets
Cable Length	AC: 6 ft / DC: 6 ft
Dimensions	4.4" x 5.9" x 2.3" (112 x 150 x 59 mm)
Weight	3.3 lbs (1.5 kg)
