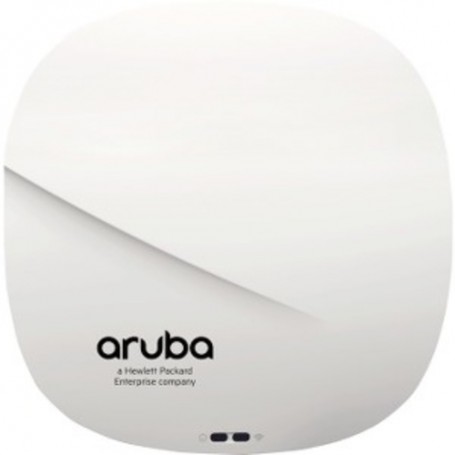

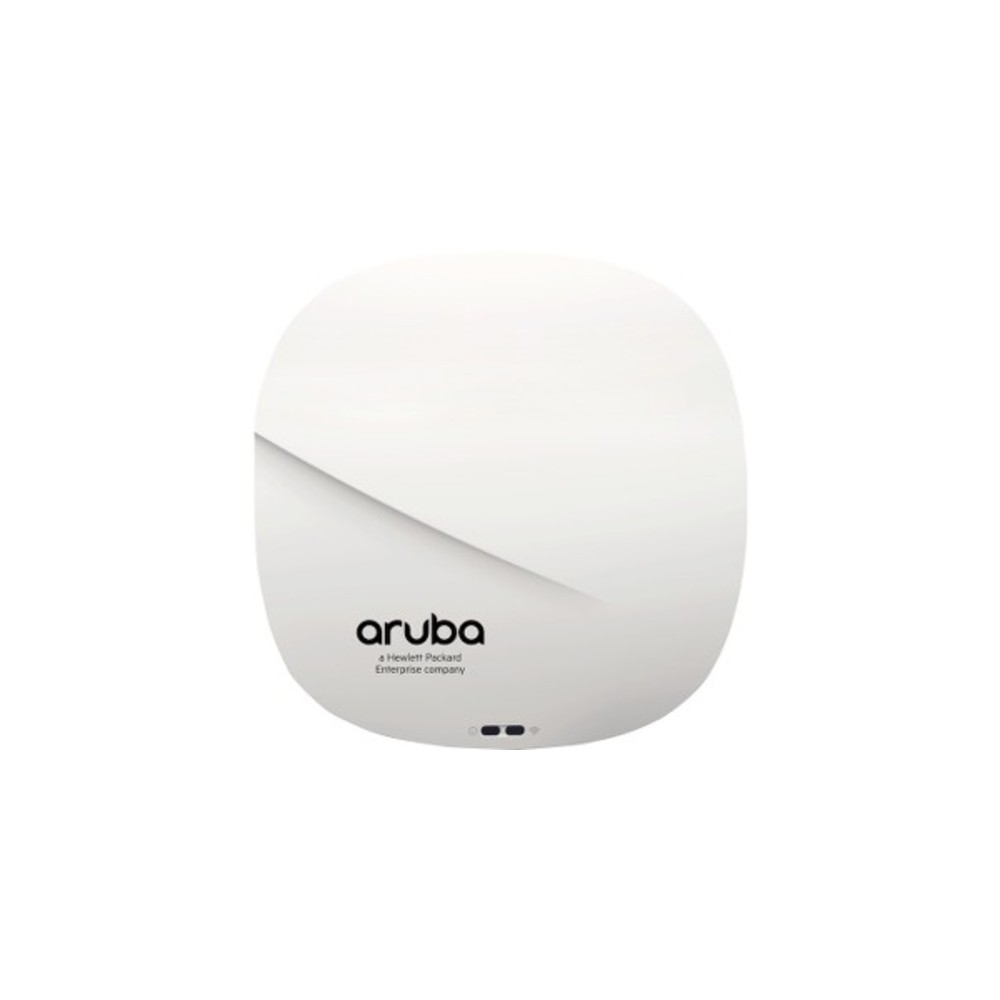

Aruba JW797A 310 Series Access Points are high-performance 802.11ac Wave 2 access points providing the best performance/price ratio, due to the full 4SS MU-MIMO performance @ 5GHz and its comparably lower price. The unrestricted operation on 802.3. a power enables customers to leverage their power sources without giving up any features. It's ideal for high device density environments, such as schools, retail branches, hotels, and enterprise offices, where the organization is cost sensitive.
2T2R MIMO technology, Advanced Cellular Coexistence (ACC), Aruba Beacons Bluetooth Low-Energy (BLE) technology, Auto-uplink (auto MDI/MDI-X), Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, Enhanced ClientMatch, Internet of Things (IoT) compatible, Low Density Parity Check (LDPC), Maximum Ratio Combining (MRC), MU-MIMO technology, Quality of Service (QoS), Reset button, Space Time Blocking Code (STBC), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Wireless intrusion protection
DSSS, OFDM
802.11a/b/g/n/ac
PoE
2.4 GHz, 5 GHz
Interface Provided JW797A
1
1000Base-T
RJ-45 JW797A
USB 2.0
Type A
Miscellaneous JW797A
CB, cTUVus, EN 300 328, EN 301 489, EN 301 893, EN 60601-1-1, EN 60601-1-2, EN 60950, FCC, IEC 60950, LVD 72/23/EEC, R&TTE Directive 1995/5/EC, UL 2043, UL 60950
916,373 hours
2 x ceiling mounting clip
Antenna JW797A
4 JW797A
Omni-directional
Internal JW797A
Service JW797A
Limited warranty
Lifetime
Environmental Parameters JW797A
32 °F
122 °F
5 - 93% (non-condensing)
Header JW797A
PC
Aruba JW797A
1
Aruba
AP-315
Aruba JW797A
Line Properties JW797A
16 QAM, 256 QAM, 64 QAM, BPSK, CCK, QPSK
Power Device JW797A
12.7 Watt
Capacity JW797A
BSSIDs per radio
16
Wireless clients per Wi-Fi radio
255
Dimensions & Weight JW797A
7.2 in
7.1 in
1.9 in
22.93 oz
Service & Support JW797A
Limited lifetime warranty
JW797A Chassis
Indoor
Performance JW797A
Concurrent data rate (2.4 GHz)
400 Mbps
Concurrent data rate (5 GHz)
1733 Mbps
Peak data rate
2.1 Gbps JW797A
