| Commodity Code: |
64120 |
| UNSPSC: |
39121448 |
| Brand Name: |
Blackburn |
| Model: |
WR |
| Shape: |
H |
| Conductor Material: |
Copper/Aluminum |
| Minimum Run Conductor Size: |
3/0 AWG ACSR, 4/0 AWG Stranded (Standard), 4/0 AWG ASCR/Stranded (Compact) |
| Maximum Run Conductor Size: |
4/0 AWG Stranded (Standard), 266 KCMIL ACSR/Stranded (Compact) |
| Minimum Tap Conductor Size: |
6 AWG ACSR/Stranded/Solid (Standard), 6 AWG ASCR/Stranded (Compact) |
| Maximum Tap Conductor Size: |
2 AWG ACSR, 1 AWG Stranded, 1/0 AWG Solid (Standard), 1 AWG ACSR/Stranded (Compact) |
| Die Index: |
D |
| Commodity Description: |
Large Terminals & Connectors |
| Body Material: |
1350 Aluminum Alloy |
| Approval: |
CSA, RUS |
| Additional Information: |
Length 1-13/16 Inch; Temperature Rating 90 Deg C; Applicable Standard ANSI C119.4 |
| Long Description: |
H-TAP CONNECTOR, 3/0 AWG ACSR, 4/0 AWG STRANDED (STANDARD), 4/0 AWG ASCR/STRANDED (COMPACT) MIN. RUN CONDUCTOR SIZE; 4/0 AWG STRANDED (STANDARD), 266 KCMIL ACSR/STRANDED (COMPACT) MAX. RUN CONDUCTOR SIZE |
| Vendor Number: |
783786 |
| Vendor Name: |
THOMAS & BETTS BLACKBURN |
| Vendor Short Name: |
BLKBRN |
| UPC: |
78378610009 |
| Item Number: |
10009 |
| Catalog Number: |
WR379 |
| CATALOG DESCRIPTION: |
ALUMINUM WIDE RANGE H-TYPE COMPRESSION CONNECTOR, INDUSTRY STANDARD SIZE CODE 5, MAIN: 4/0 - 3/0 ACSR, 4/0 STR. TAP: 2-6 ACSR, 1-6 STR., 1/0-6 SOL. DIE: D, D3 |
| Category: |
Large Terminals & Connectors |
| Commodity Code: |
6412 |
| Commodity Description: |
Solderless Connectors |
|
|
| Full Technical Description: |
3/0 AWG ACSR, 4/0 AWG Stranded (Standard), 4/0 AWG Ascr/Stranded (Compact) min. Run Conductor Size; 4/0 AWG Stranded (Standard), 266 kcmil Acsr/Stranded (Compact) Max. Run Conductor Size; 6 AWG Acsr/Stranded/Solid (Standard), 6 AWG Ascr/Stranded (Compact) min. Tap Conductor Size; 2 AWG ACSR, 1 AWG Stranded, 1/0 AWG Solid (Standard), 1 AWG Acsr/Stranded (Compact) Max. Tap Conductor Size; H Shape; Copper/Aluminum Conductor Material; CSA, RUS Approval; 1350 Aluminum Alloy Body Material; D Die Index; Blackburn Brand; Length 1-13/16 Inch; Temperature Rating 90 Deg C; Applicable Standard ANSI C119.4; WR Model |
| Manufacturer: |
THOMAS & BETTS BLACKBURN |
| Manufacturer Brand: |
T&B Blackburn |
| Material Safety Data Sheet (MSDS) |
|
| Product Description: |

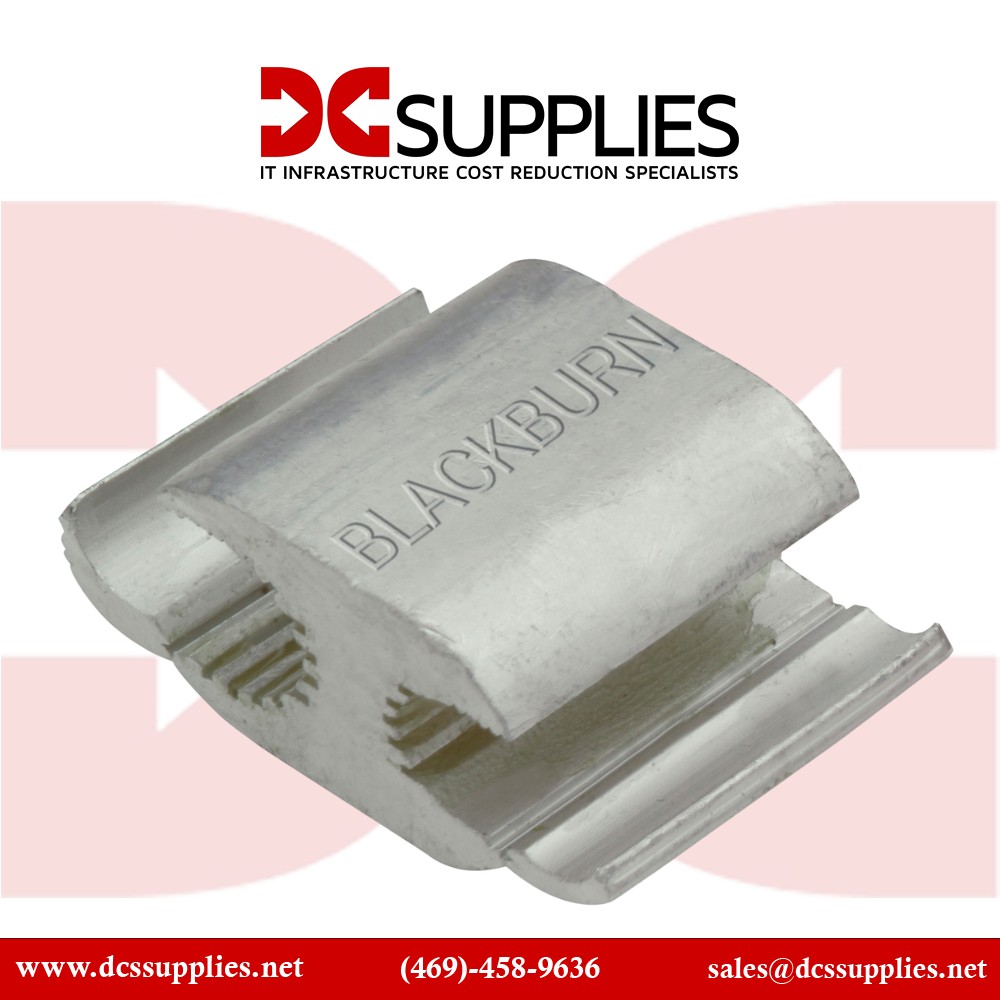

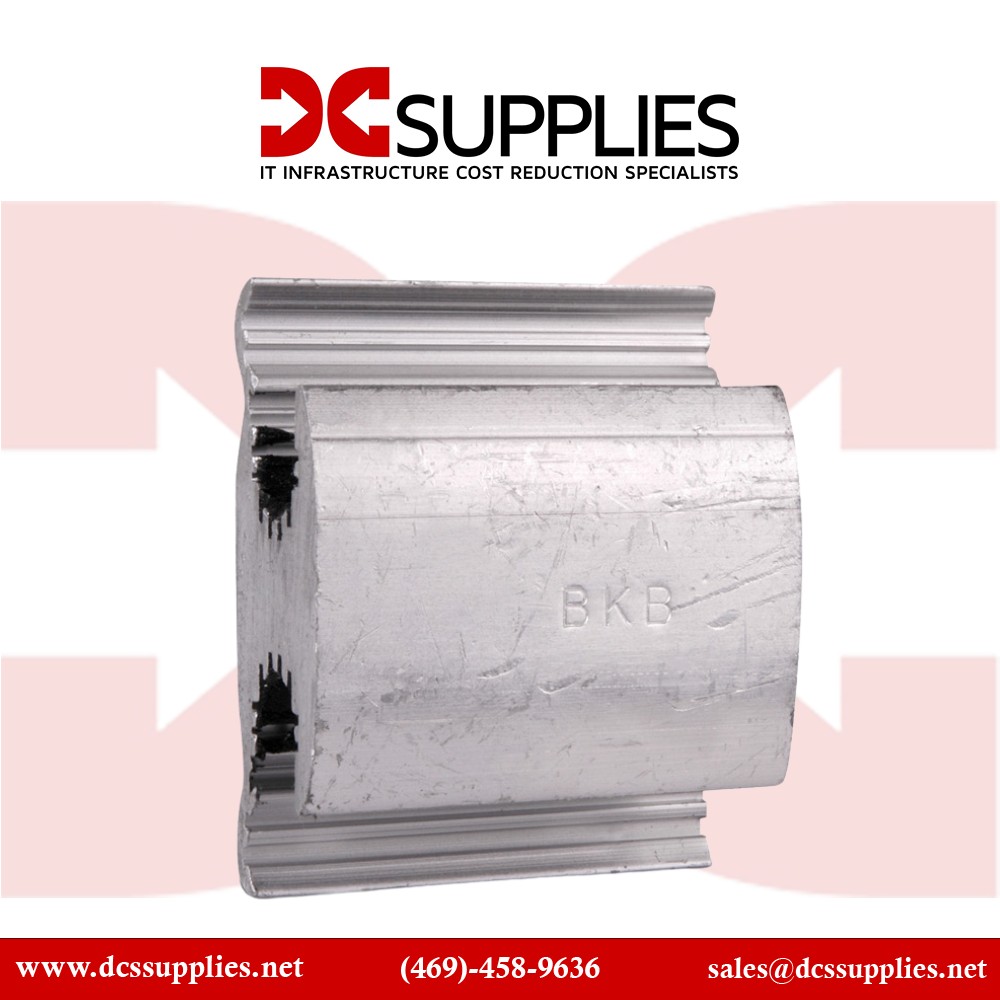

Blackburn WR379 Alum H-Type Compression Connector 4/0-3/0ASCR 2-6 |
| Sub-Category: |
Compression Cable Tap |
| UNSPSC: |
39121448 |
| UNSPSC Code: |
39121409 |
| UNSPSC Commodity: |
Wire connectors |
| UPC-A: |
783786100095 |
| Unique Product Key: |
24193 |
