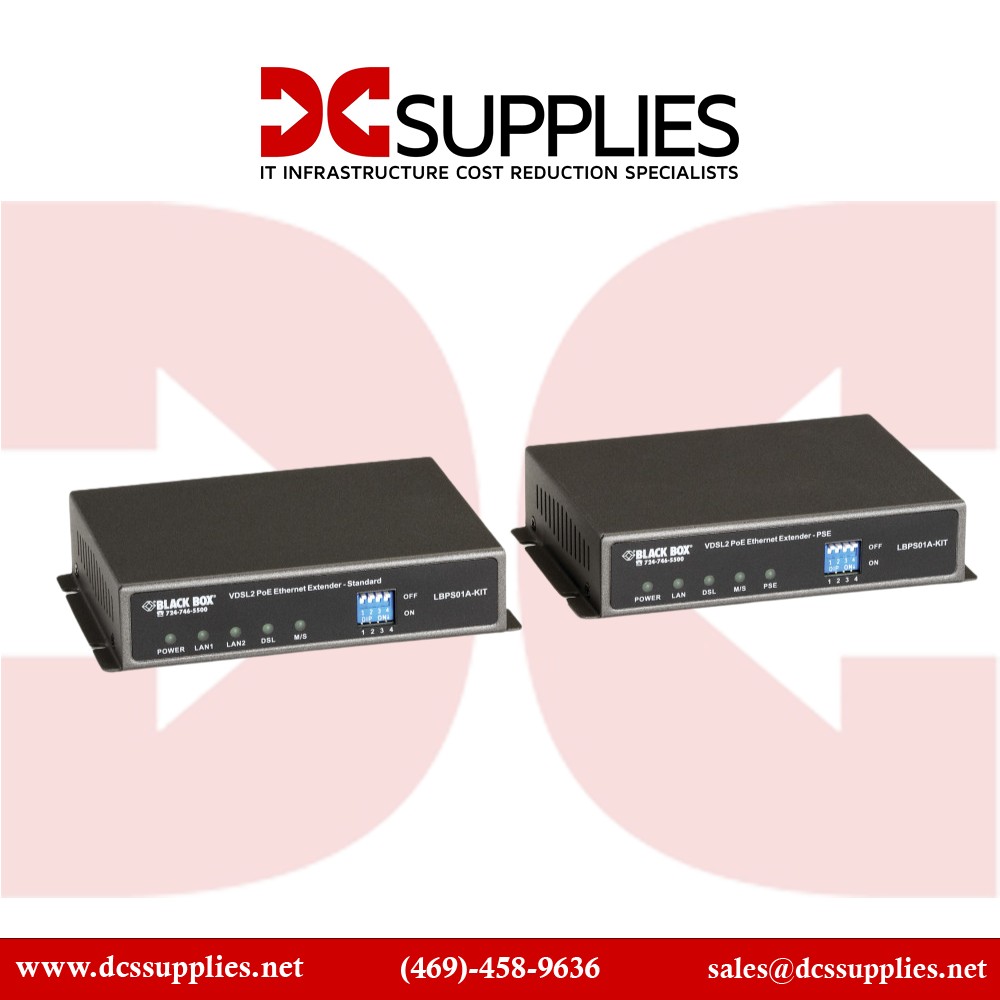

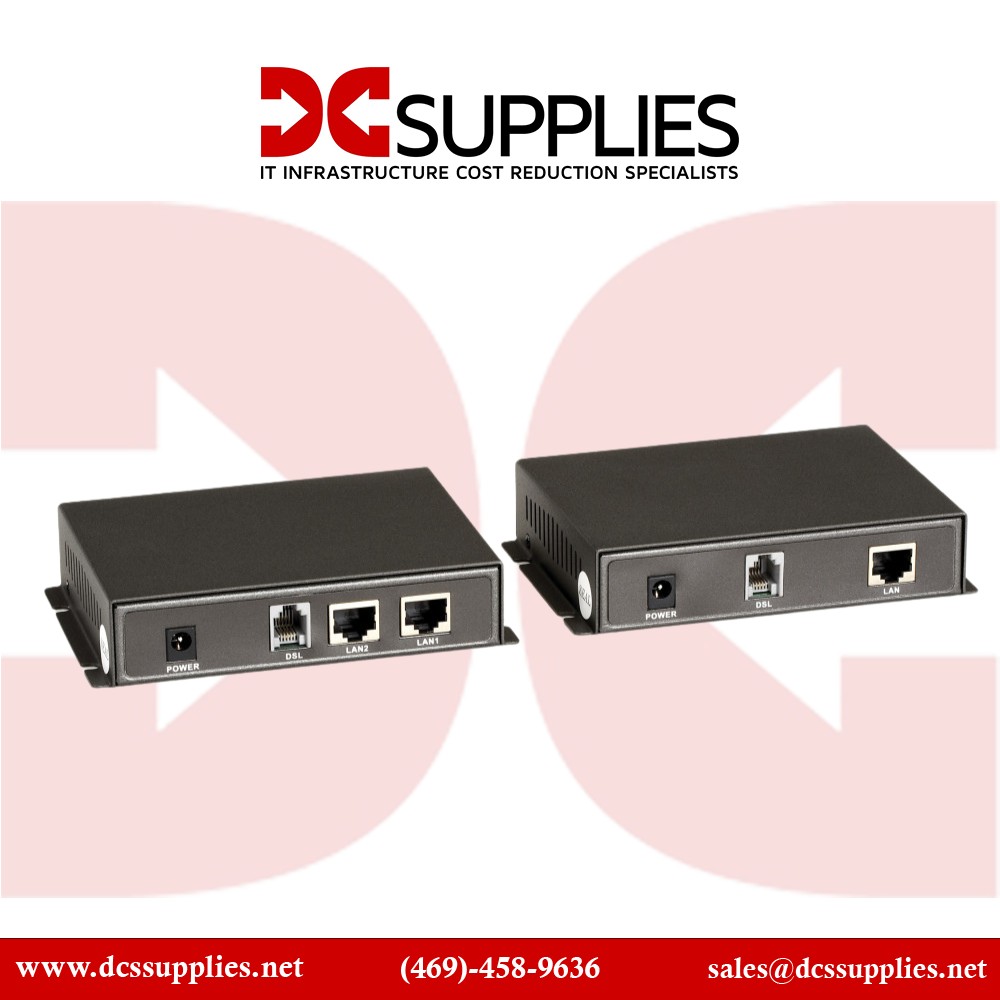

Black Box LBPS01A-KIT VDSL2 PoE Ethernet Extender Kit, PSE

New

Extend Ethernet connectivity over existing copper lines with PoE support for long distances
×




  • New

Detailed Specifications

Black Box LBPS01A-KIT

VDSL2 PoE Ethernet Extender Kit, PSE

The Black Box LBPS01A-KIT VDSL2 PoE Ethernet Extender Kit provides a cost-effective solution to extend high-bandwidth Ethernet connections over existing voice-grade copper lines. With support for fast data rates up to 100 Mbps downstream and 60 Mbps upstream, it enables reliable point-to-point connectivity over distances up to 500 feet. The kit includes a PoE power source device (PSE) and a standard extender, allowing network administrators to deploy scalable, long-distance Ethernet links with power over Ethernet capabilities for compatible devices.

Features :

Designed to leverage existing copper wiring, the LBPS01A-KIT is perfect for environments where installing new fiber or Ethernet cabling is impractical or costly. Its VDSL2 technology supports high-speed data transmission, making it suitable for bandwidth-intensive applications such as LAN interconnects, high-definition video streaming, and multi-dwelling unit networks (MDU/MTU).

Advanced Options :

The PSE unit supplies power directly over Ethernet to PoE-enabled devices, simplifying deployment and reducing the need for additional power outlets. When operating at lower data rates (28/0.3 Mbps), the extender can reach distances up to 4,000 feet, covering large campus or building environments.

Product Key Features

  • VDSL2 technology offering up to 100/60 Mbps downstream/upstream
  • Supports point-to-point Ethernet extension over single-pair copper wire
  • Includes two units: one PoE Power Sourcing Equipment (PSE) and one standard extender
  • Supports transmission distances up to 500 ft (152.4 m) at high speeds
  • Longer reach up to 4,000 ft (1,219 m) at lower data rates
  • Powers PoE devices via Ethernet cable in compliance with IEEE 802.3af
  • Ideal for LAN-to-LAN, video streaming, FTTB, MDU/MTU applications

Reliability & Performance :

Built for robust industrial environments, the LBPS01A-KIT ensures stable, high-performance data transmission over existing copper lines. Its VDSL2 technology minimizes interference and maximizes bandwidth over long distances. The PoE capability simplifies installation by eliminating the need for separate power supplies for connected devices, reducing clutter and cost. The kit's design ensures reliable operation even in challenging environments, making it ideal for video surveillance, remote network extension, and multi-site connectivity.

Key Features :

  • VDSL2 technology supporting 100/60 Mbps (downstream/upstream)
  • Extends Ethernet over single twisted-pair copper lines
  • Up to 500 ft (152.4 m) at high speeds; up to 4,000 ft (1,219 m) at lower speeds
  • Supports PoE power delivery per IEEE 802.3af
  • Cost-effective solution for LAN-to-LAN, video, and MDU/MTU applications
  • Includes PSE (Power Sourcing Equipment) and standard extender units

Specifications :

SpecificationDetails
Model Number LBPS01A-KIT
Technology VDSL2 (Very high-bit-rate Digital Subscriber Line)
Max Downstream Speed Up to 100 Mbps
Max Upstream Speed Up to 60 Mbps
Transmission Distance (High Speed) Up to 500 ft (152.4 m)
Transmission Distance (Lower Speed) Up to 4,000 ft (1,219 m)
Power over Ethernet (PoE) Yes, IEEE 802.3af compliant
Includes 1 PSE unit, 1 standard extender
Applications LAN-to-LAN, video streaming, FTTB, MDU/MTU
Environment Industrial, enterprise, multi-building networks
