Detailed Specifications

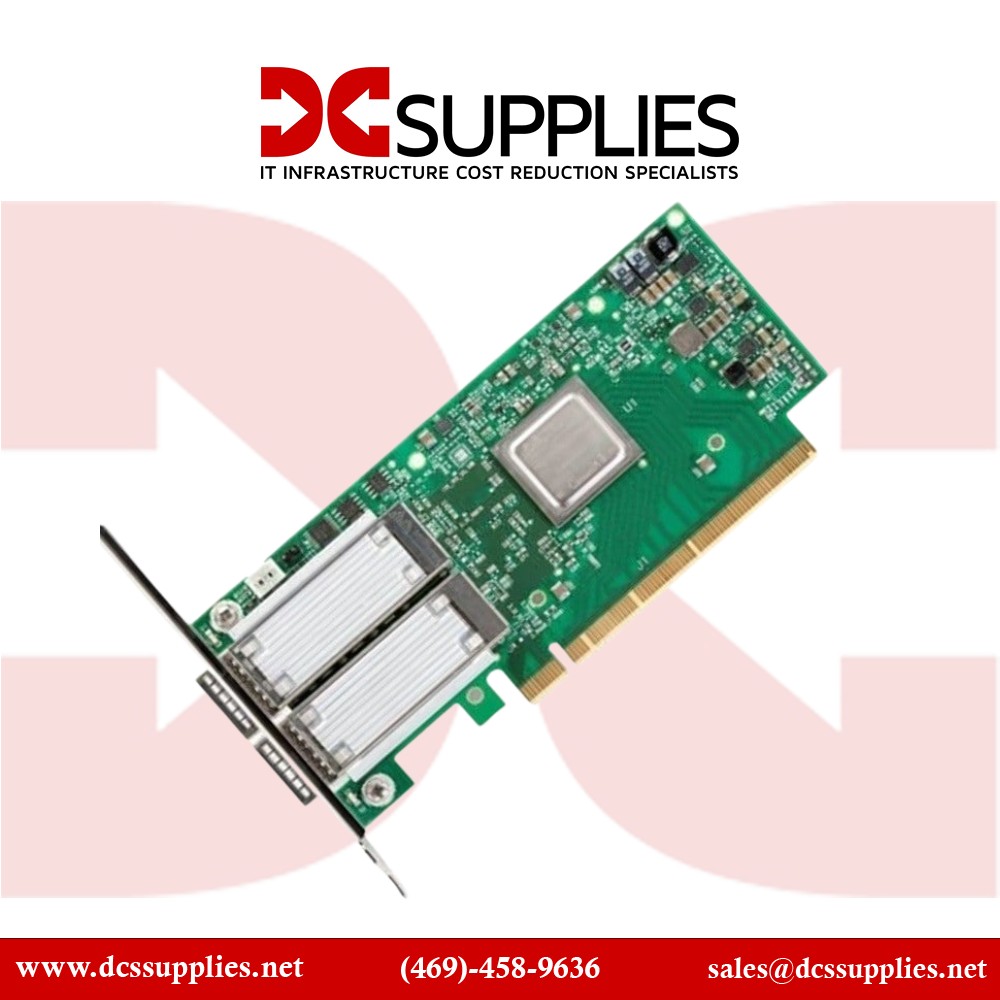

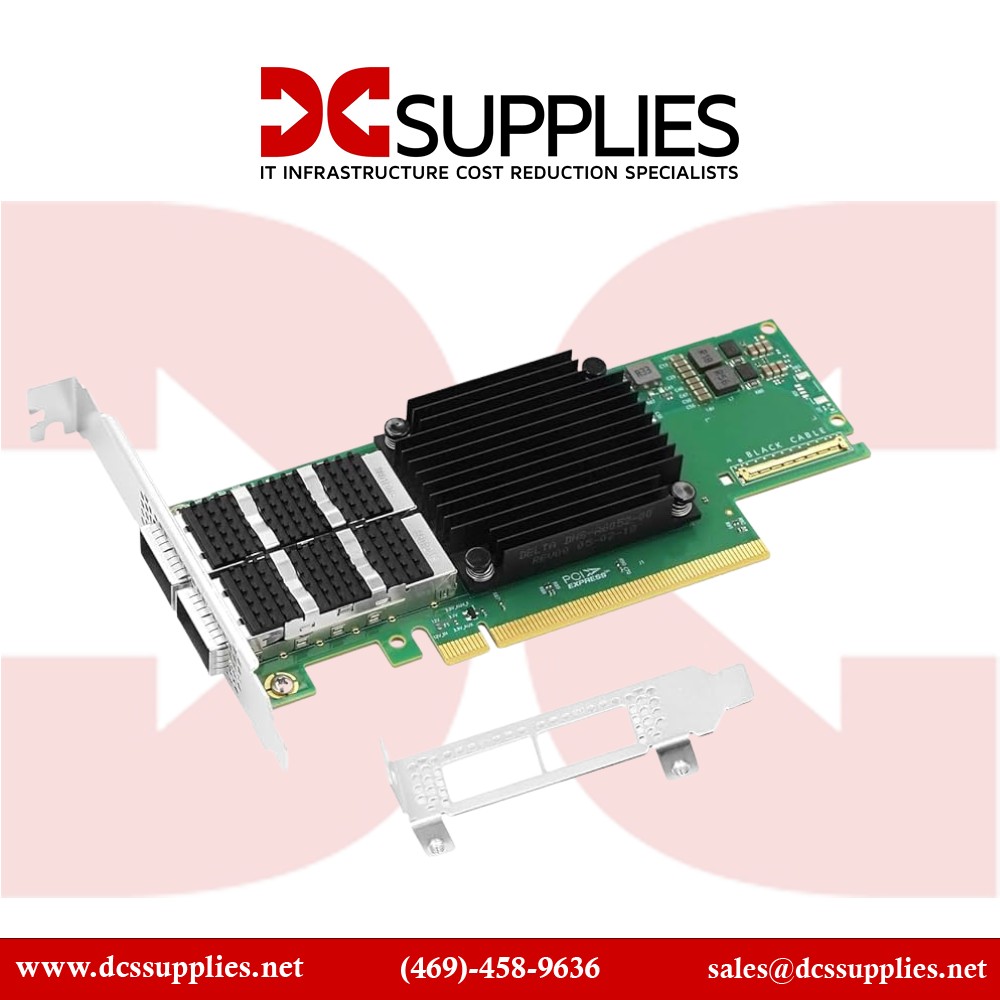

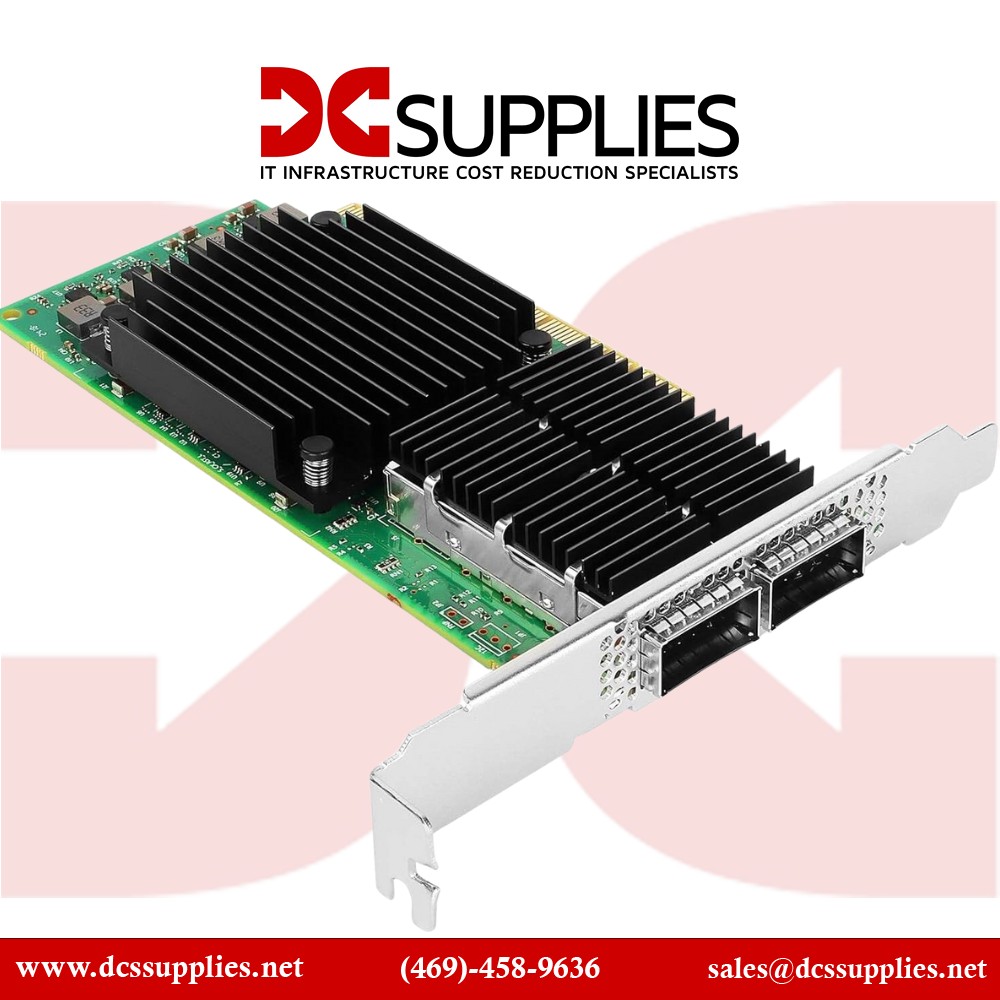

Mellanox MCX516A-CCAT ConnectX-5 EN network interface card, 100GbE dual-port QSFP28, PCIe3.0 x16,tall bracket
Description :
ConnectX-5 MCX516A-CCAT Ethernet network interface cards provide high-performance and flexible solutions with up to two ports of 100GbE connectivity, 750ns latency, MCX516A-CCAT up to 200 million messages per second (Mpps), and a record-setting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, MCX516A-CCAT ConnectX-5 delivers a range of innovative accelerations, MCX516A-CCAT such as Signature Handover (T10-DIF) in hardware, MCX516A-CCAT an embedded PCIe Switch, and NVMe over Fabric target offloads.
ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.
ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50, and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, MCX516A-CCAT and OCP 3.0 form factors. ConnectX-5 cards also offer advanced Multi-Host and Socket Direct technologies.
Specifications :
| Dimensions & Weight MCX516A-CCAT |
|---|
| Depth |
5.6 in |
| Height |
2.7 in |
| Header MCX516A-CCAT |
|---|
| Compatibility |
PC |
| Manufacturer |
MELLANOX TECHNOLOGIES INC |
| Packaged Quantity |
1 |
| Product Line |
Mellanox ConnectX-5 EN |
| Brand |
Mellanox |
| Interface Provided MCX516A-CCAT |
|---|
| Qty |
2 |
| Connector Type |
QSFP28 |
| Type |
100Gb Ethernet |
| Miscellaneous MCX516A-CCAT |
|---|
| Compliant Standards |
RoHS 6/6 |
| Color Category |
Green, Silver |
| Networking MCX516A-CCAT |
|---|
| Type |
Network adapter |
| Form Factor |
Plug-in card |
| Connectivity Technology |
Wired |
| Data Transfer Rate |
100 Gbps |
| Data Link Protocol |
10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet |
| Compliant Standards |
IEEE 1588v2, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
| Ports Qty |
2 |
| Features |
Auto-negotiation, Dynamically Connected Transport (DCT), Extended Reliable Connected transport (XRC), Jumbo Frames support, Large Receive Offload (LRO), Large Send Offload (LSO), On-demand paging (ODP), PXE support, Quality of Service (QoS), RDMA over Converged Ethernet (RoCE), RDMA support, Receive Side Scaling (RSS), Transmit Side Scaling (TSS), UEFI support, VLAN support |
| Interface Type |
PCI Express 3.0 x16 |
| Network Transport Protocol |
iSCSI, TCP/IP, UDP/IP |
| PCI Specification Revision |
PCIe 3.0 |
| Ports MCX516A-CCAT |
|---|
| Qty |
2 |
| Type |
100 Gigabit QSFP28 |
