Pelco SXTE4-VF18-EBT-1 Network Outdoor Thermal Imaging Camera 18mm Lens

SXTE4-VF18-EBT-1

New

In stock

Advanced thermal imaging and analytics for critical outdoor surveillance

×




$0.00

Detailed Specifications

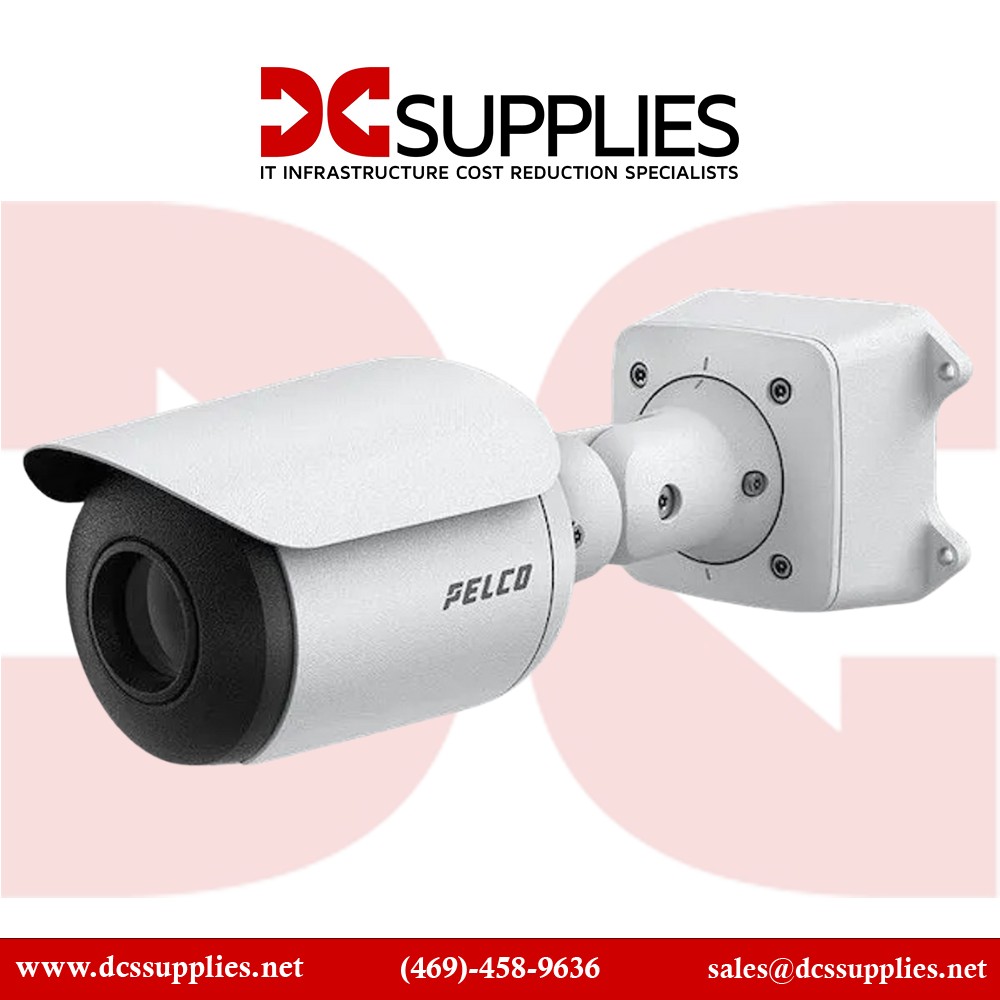

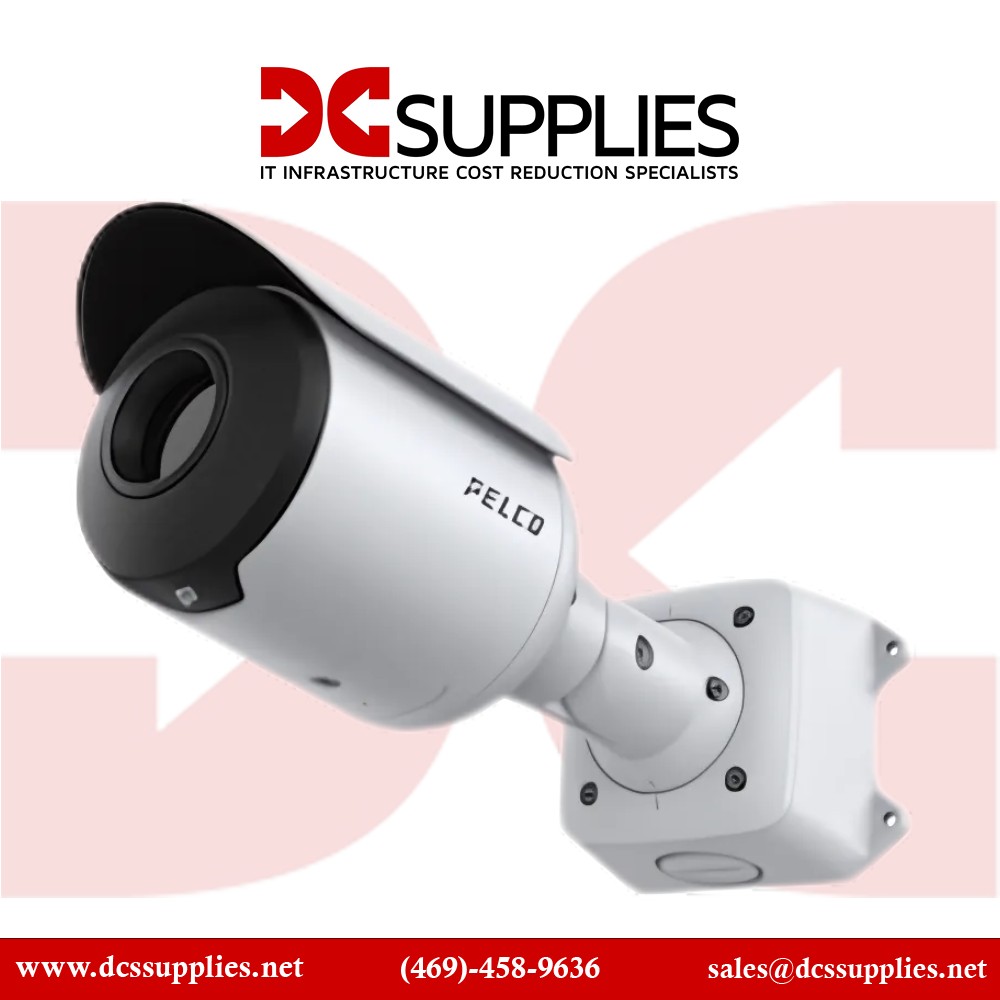

Pelco SXTE4-VF18-EBT-1

640 x 512 Network Outdoor Thermal Imaging Camera – 18mm Lens

The Pelco SXTE4-VF18-EBT-1 is a high-performance network outdoor thermal imaging camera designed for critical infrastructure, perimeter security, and industrial applications. With a 640 x 512 thermal sensor and 18mm lens, it delivers reliable detection and classification of objects at distances exceeding 300 meters, day or night.

Features :

This advanced thermal camera leverages Pelco Smart Analytics to expedite real-time responses and support forensic investigations, ensuring that critical events are identified and acted upon quickly. The integrated analytics engine uses self-calibration and intelligent algorithms to improve object detection accuracy and minimize false alarms, even in challenging lighting or weather conditions.

Advanced Options :

Engineered for demanding outdoor environments, the SXTE4-VF18-EBT-1 features a rugged housing with IP66/67, IK10, and NEMA 4X ratings, providing robust protection against water, dust, and physical impact. Its thermal imaging capabilities allow for effective surveillance in total darkness, fog, smoke, or glare, making it ideal for 24/7 perimeter monitoring and asset protection.

Product Key Features

  • 640 x 512 thermal resolution with 18mm lens for long-range detection
  • Detects and classifies objects day and night at distances over 300 m (980 ft)
  • Integrated Pelco Smart Analytics for real-time event response and forensic investigation
  • Self-calibration and advanced analytics minimize false alarms
  • IP66/67, IK10, and NEMA 4X rated for harsh outdoor environments
  • Proactive temperature monitoring to detect abnormal fluctuations and safety hazards

Reliability & Performance :

Built for durability and consistent performance, the Pelco SXTE4-VF18-EBT-1 combines advanced thermal imaging with intelligent analytics to deliver reliable detection and classification in all conditions. Its rugged construction ensures long-term operation in harsh environments, while self-calibration and robust analytics reduce maintenance and false alarms, supporting efficient and effective security operations.

Key Features :

  • 640 x 512 thermal resolution, 18mm lens
  • Detects/classifies objects over 300 m (980 ft) away, day or night
  • Pelco Smart Analytics for real-time response and investigation
  • Self-calibration, advanced analytics, and false alarm reduction
  • IP66/67, IK10, NEMA 4X rated for outdoor durability
  • Proactive temperature monitoring and safety alerts

Specifications :

SpecificationDetails
Model Number SXTE4-VF18-EBT-1
Type Network Outdoor Thermal Imaging Camera
Thermal Resolution 640 x 512 pixels
Lens 18mm fixed
Detection Range Over 300 m (980 ft)
Analytics Pelco Smart Analytics, self-calibration
Temperature Monitoring Yes, with threshold and time-based alerts
Ingress Protection IP66/67, NEMA 4X
Impact Protection IK10
Operating Temp Range Typically -40°C to +60°C (specify per datasheet)
Power Supply PoE / 24V AC/DC (verify per model)
Network Interface Ethernet (RJ-45)
Video Compression H.264, H.265, MJPEG (verify per model)
Dimensions Varies by housing (consult datasheet)
Weight Varies by housing (consult datasheet)
Mounting Options Pole, wall, ceiling (accessories available)
