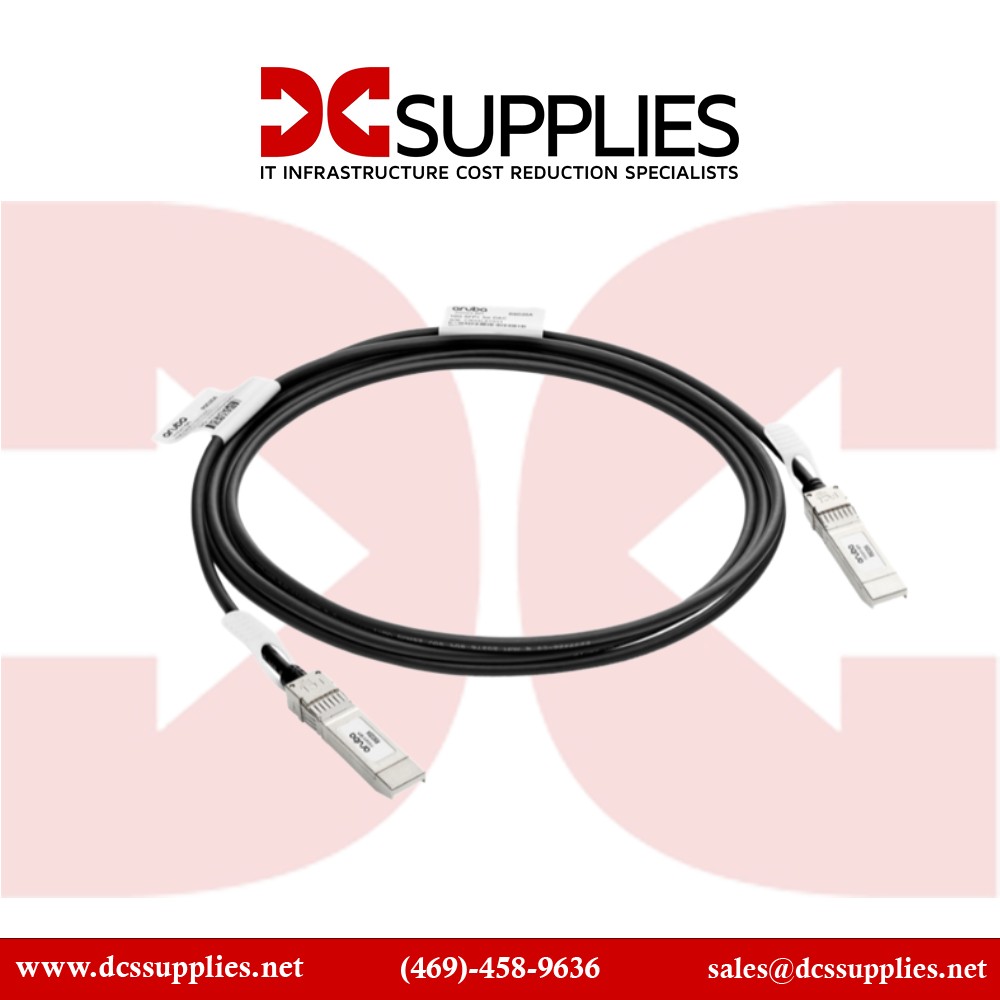

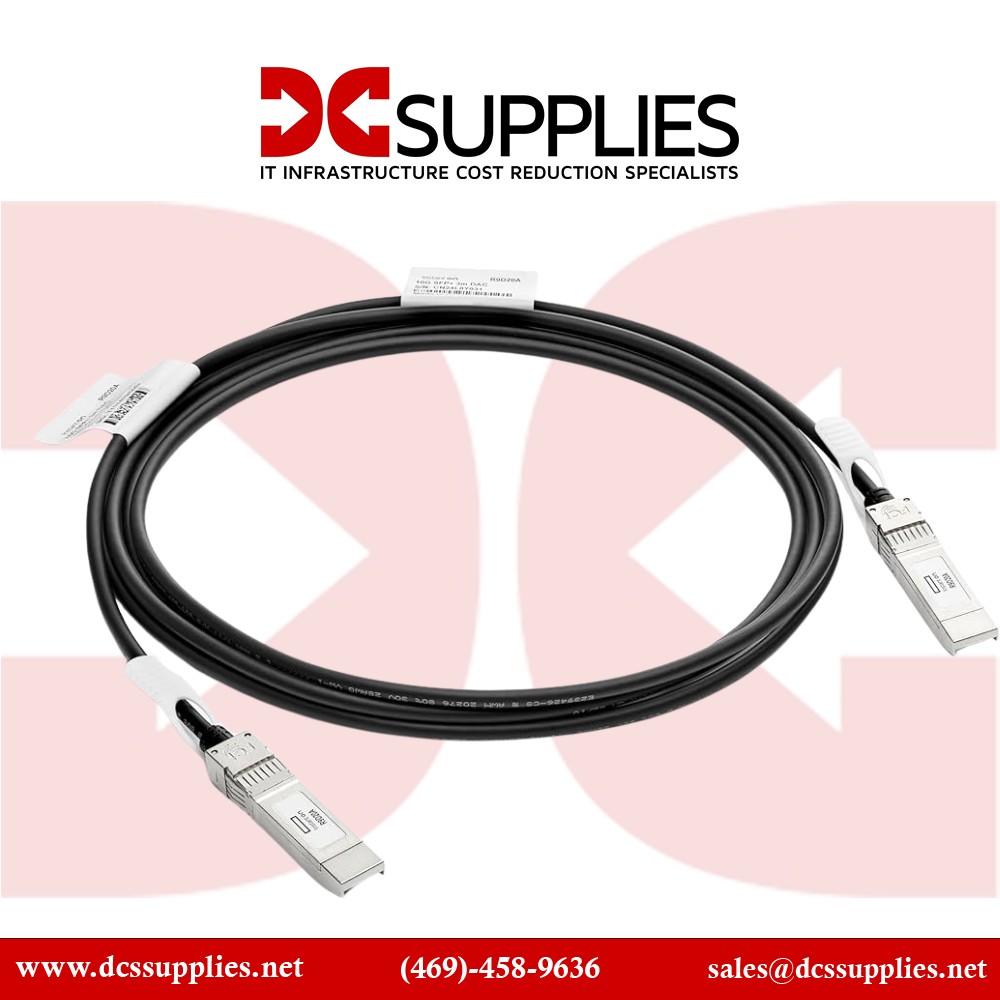

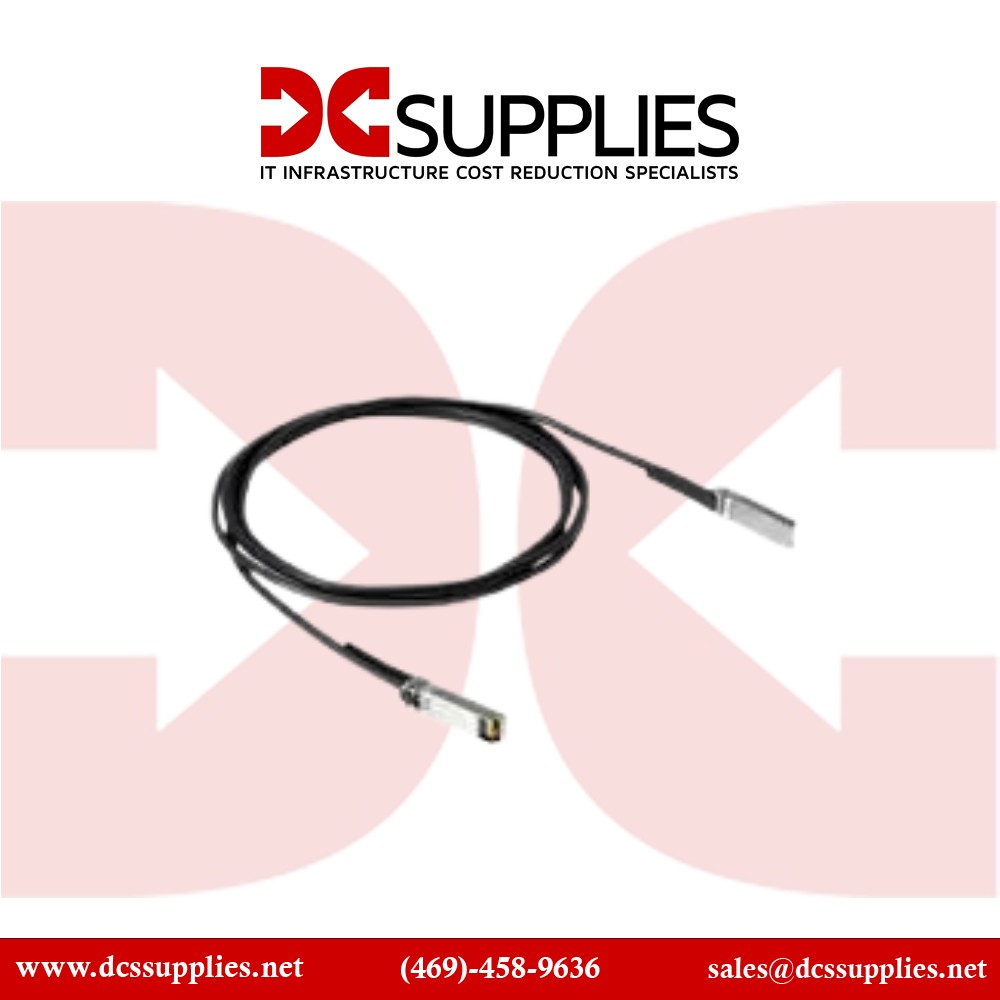

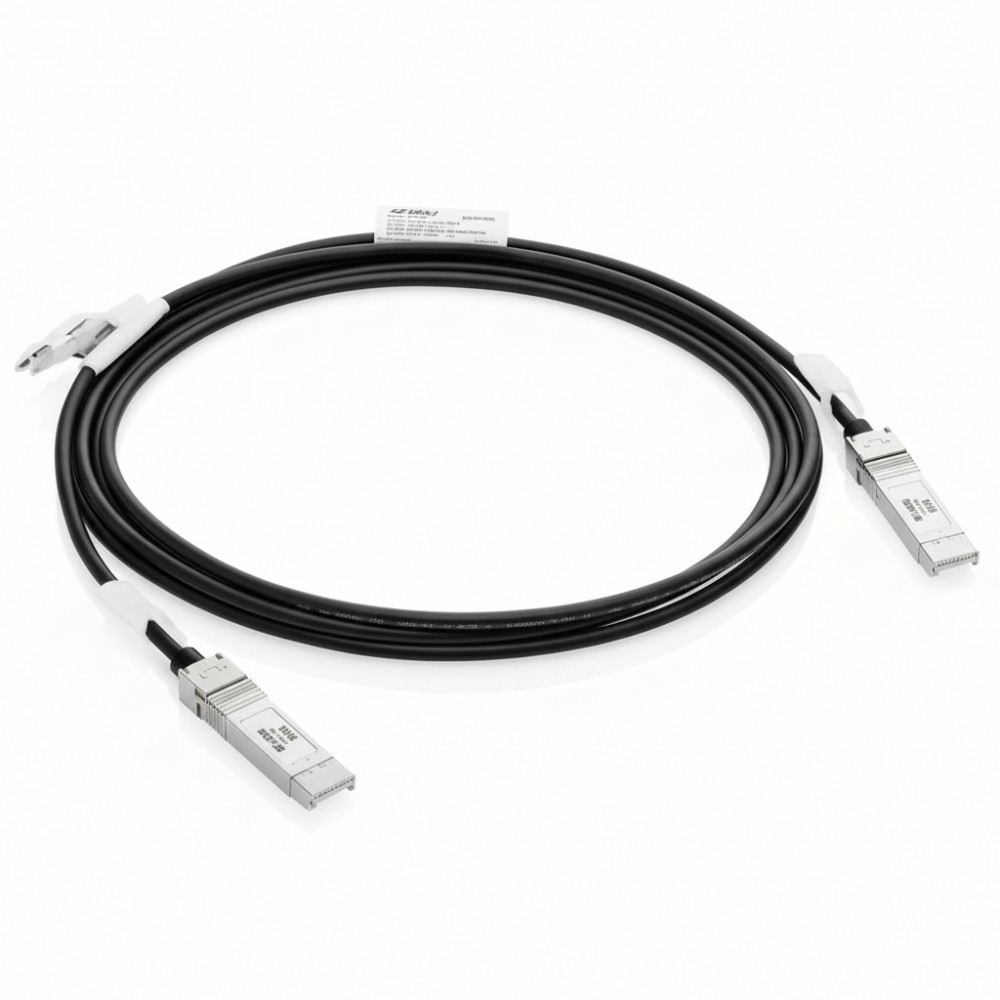

HPE Aruba R9D20A 10G SFP to SFP 3M DAC Cable

HPE Aruba

R9D20A

10 G SFP+ to SFP+ 3 m Direct Attach Copper (DAC) Cable

The HPE Aruba R9D20A DAC Cable is a passive twinax copper cable designed specifically for 10 G SFP+ ports, offering a reliable and cost-effective point-to-point connection between switches, servers, or storage devices. With a 3 m length, it's ideal for short-range rack and adjacent-rack setups, enabling ultra-low latency and high bandwidth performance without needing expensive transceivers.

Features

Engineered for agile deployment in data centers and SMB environments, the R9D20A delivers wire-speed 10 GbE connectivity using dual SFP+ connectors. As a passive DAC, it draws no power, reduces heat output, and provides shorter latency compared to active or fiber links. Aruba and Instant On switches automatically detect and configure the connection, ensuring seamless interoperability×no manual firmware tweaks required .

Advanced Options

Supporting a data rate from 1.25 Gbps up to 10.52 Gbps and functioning within a commercial temperature range of 0 °C to 70 °C, this cable is suitable for a variety of internal networking tasks such as switch-to-switch uplinks, server connections, and SAN environments .

Product Key Features

• Dual SFP+ to SFP+ 10 G DAC, length = 3 m

• Wire-speed throughput with low latency

• Passive copper cable×no power consumption

• Broad compatibility with SFP+ ports across vendors, including Aruba

• Supports data rates up to 10.52 Gbps and standard operating temps (0-70 °C)

• Plug-and-play×no additional configuration needed

---

Reliability & Performance

The R9D20A DAC excels at delivering bulletproof short-distance connections with minimal maintenance. Its passive twinax design ensures silent, power-efficient operation, ideal for data centers where heat and power are at a premium. With robust shielding and copper conductors, the cable maintains signal integrity across its length. Aruba-certified interoperability ensures that it functions reliably with Instant On and CX-series switches, backed by industry-standard MSA compliance and select vendor lifetime support guarantees .

Key Features (Bullet List)

• 10 G SFP+ to SFP+ passive DAC

• 3 m cable length

• Zero power draw, low latency

• Multi-vendor SFP+ compatibility

• Supports up to 10.52 Gbps, 0-70 °C

• Plug-and-play×no firmware/config changes

Specifications :

Specification	Details
Model Number	R9D20A
Cable Type	10 G SFP+ Direct Attach Copper (DAC)
Length	3 m (9.84 ft)
Connectors	2 × SFP+ (10 G)
Data Rate Supported	1.25-10.52 Gbps
Cable Construction	Passive twinax copper
Power Consumption	Passive (0 W)
Operating Temperature	0-70 °C
MSA Compliance	SFF-8431, SFP+ MSA
Cable Gauge	30 AWG
Latency	Very low, copper direct
Applications	10 G Ethernet, Fibre Channel (up to 10 G), CPRI
Warranty	Aruba/HPE covered (region-dependent)
