Detailed Specifications

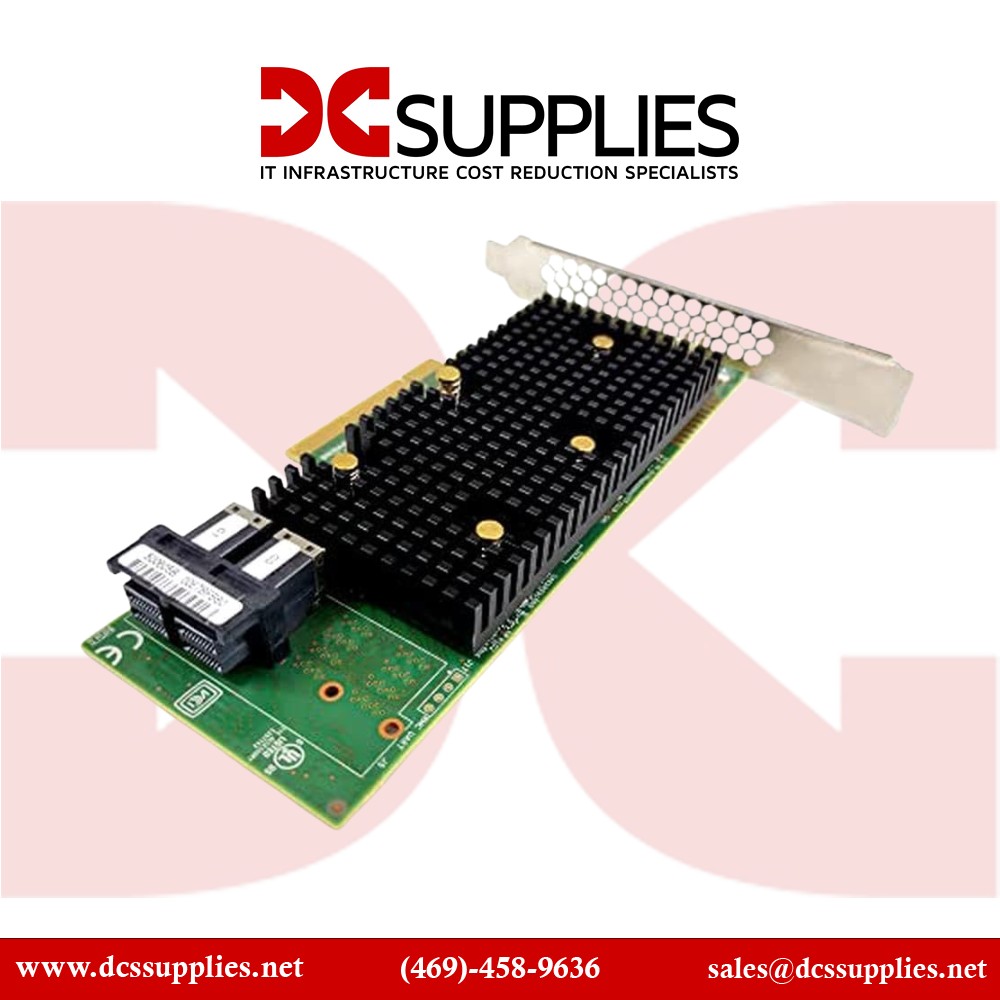

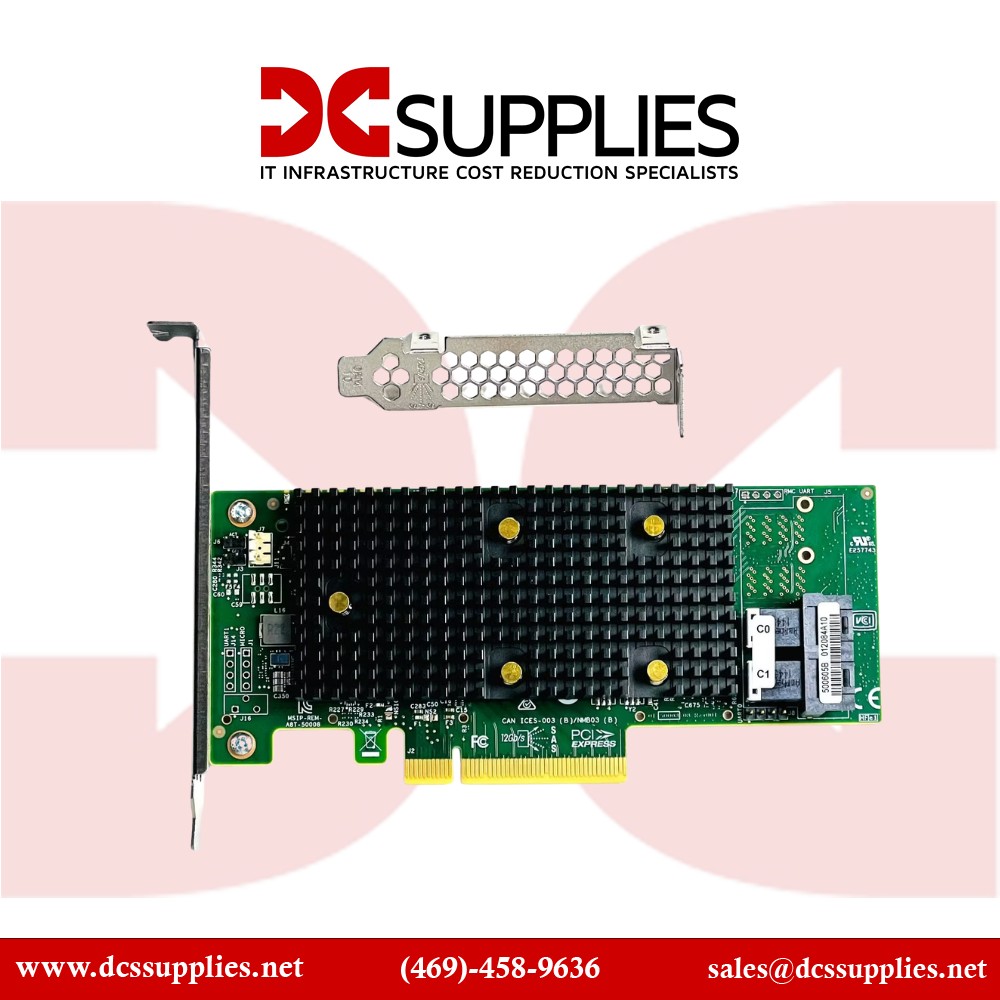

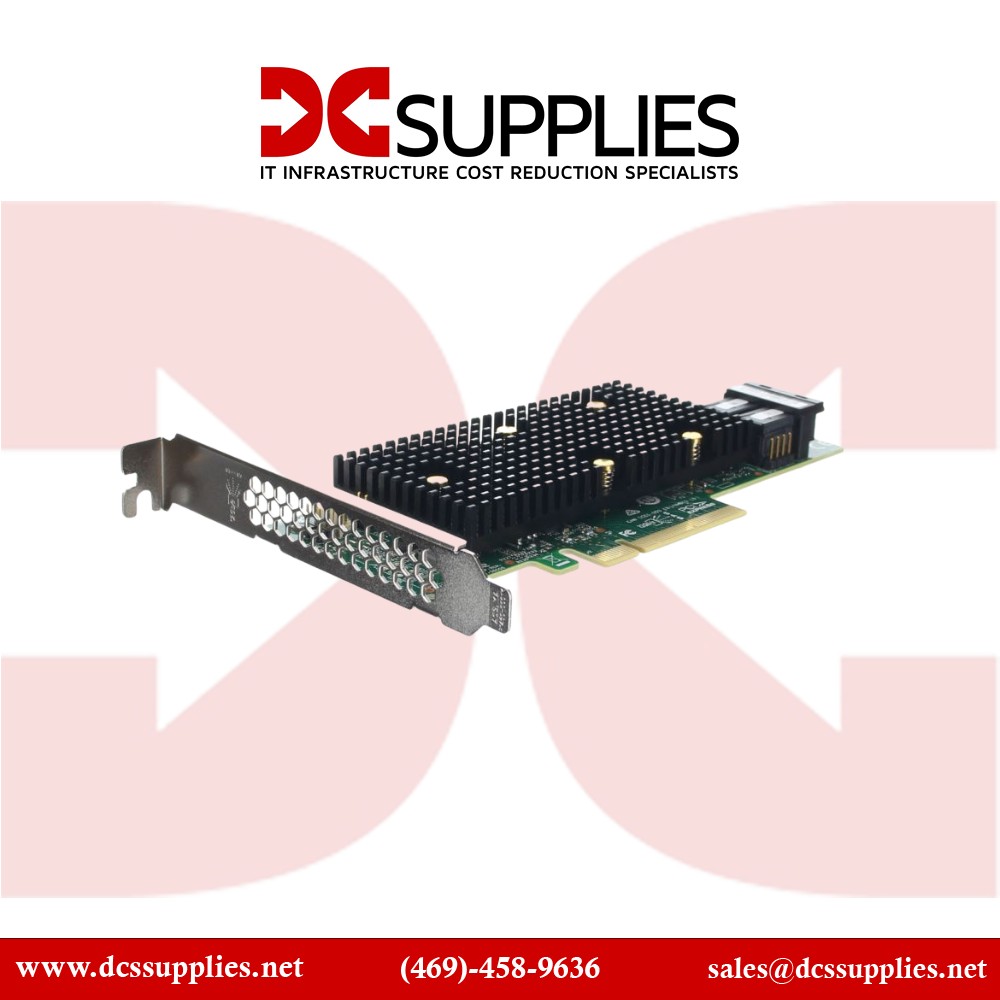

9400-8i SAS3408 12Gb/s NVMe HBA SAS Adapter Card
The Broadcom9400-8i SAS3408 Host Bus Adapter Card(HBA) provides next-generation 12Gb/s SAS, SATA, and NVMe connectivity with enterprise-level reliability. Designed for data-intensive workloads, this HBA delivers the high throughput, scalability, and flexibility required by modern storage infrastructures.
Features
Powered by the SAS3408 controller, the Broadcom9400-8i enables connectivity to up to 1024 SAS/SATA devices and direct NVMe device attachment for unparalleled performance. Supporting PCIe 3.1 x8 host interface, this HBA ensures ultra-fast data transfer with 12Gb/s per SAS port.
Advanced Options
Its dual Mini-SAS HD (SFF-8643) connectors provide robust and flexible connectivity for a wide range of devices, including HDDs, SSDs, and JBODs. With Tri-Mode support (SAS, SATA, NVMe), this adapter future-proofs enterprise environments by consolidating multiple storage protocols into one solution, helping businesses simplify infrastructure while improving I/O efficiency.
Product Key Features
Tri-Mode support for SAS, SATA, and NVMe devices
8 internal lanes supporting up to 12Gb/s per port
PCI Express 3.1 x8 host interface
SAS3408 controller for advanced performance and scalability
Connects up to 1024 SAS/SATA devices
Direct NVMe device connectivity for ultra-low latency
Dual Mini-SAS HD (SFF-8643) internal connectors
High reliability for enterprise servers and storage systems
Reliability & Performance
The Broadcom9400-8i SAS3408 HBA is engineered for mission-critical enterprise workloads, offering consistent performance across databases, virtualization, cloud computing, and high-performance storage arrays. With its Tri-Mode architecture, organizations gain the flexibility to deploy NVMe SSDs for performance, while maintaining compatibility with legacy SAS and SATA devices. This reduces total cost of ownership while boosting scalability and efficiency.
Key Features (Bullet List)
Model: Broadcom9400-8i
Controller: SAS3408
Category: SAS/SATA/NVMe Host Bus Adapter
Ports: 8 internal ports
Interface: PCI Express 3.1 x8
Data Transfer Rate: Up to 12Gb/s per SAS port
Protocols: SAS, SATA, NVMe (Tri-Mode)
Supported Devices: Up to 1024 SAS/SATA devices, NVMe SSDs
Connectors: 2 × Mini-SAS HD (SFF-8643)
Dimensions: 6.6 × 2.7 in (167 × 69 mm)
Warranty: Manufacturer Warranty Included
Specifications :
| Specification | Details |
|---|
| Model Number | Broadcom9400-8i |
| Controller | SAS3408 |
| Ports | 8 internal SAS/SATA/NVMe ports |
| Host Interface | PCI Express 3.1 x8 |
| Max Data Transfer Rate | 12Gb/s per SAS port |
| Protocol Support | Tri-Mode (SAS, SATA, NVMe) |
| Supported Devices | Up to 1024 SAS/SATA devices, NVMe SSDs |
| Connectors | 2 × Mini-SAS HD (SFF-8643) |
| Compatibility | HDDs, SSDs, NVMe drives, JBODs, expanders |
| Dimensions | 6.6 × 2.7 in (167 × 69 mm) |
| Warranty | Manufacturer Warranty |
