HPEP08356-001

HDR100 / 100 GbE QSFP56 Network Adapter(PCIe 3.0 ×16)

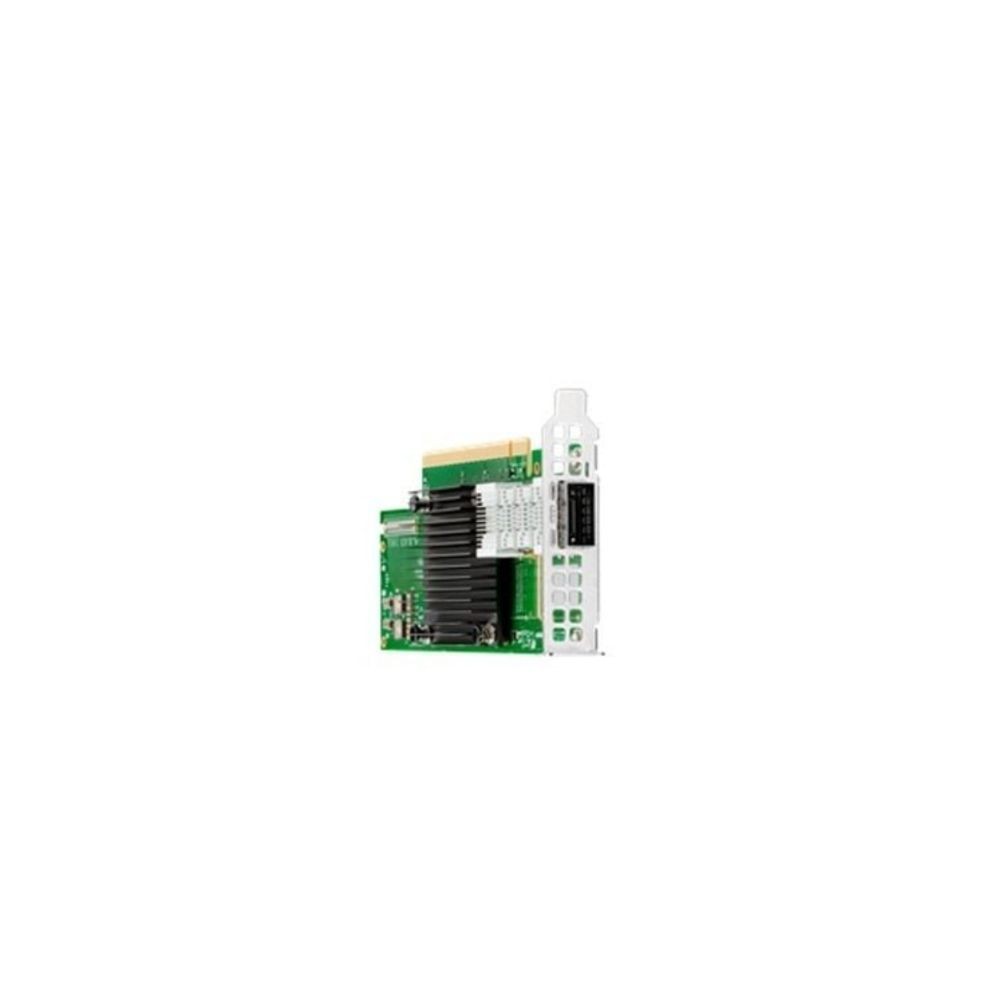

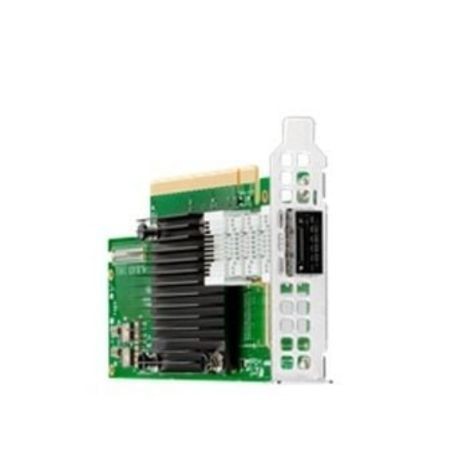

The HPEP08356-001 (also referenced as P06250-B21) is a high-performance InfiniBand HDR100 / Ethernet 100 Gb Network Adapter with a single QSFP56 port and PCIe 3.0 ×16 interface. Engineered for use in HPEProLiant Gen10+ and HPC server platforms, this adapter delivers ultra-low latency and exceptional throughput for cluster computing, storage fabrics, and high-bandwidth interconnects. Capable of operating in either HDR100 InfiniBand mode or standard 100 Gb Ethernet (100GBase-X), it offers flexibility and accelerated traffic offloads×making it ideal for compute-intensive, latency-sensitive environments.

Features

Designed to fit PCIe 3.0 ×16 slots (available in low-profile or full-height brackets), the P08356-001 adapter supports both copper AOC and DAC QSFP56 cables. When paired with HPEHDR or Ethernet switches, it enables sustained 100 Gb/s performance with minimal jitter and CPU overhead. It supports advanced RDMA offloads and MPI enhancements, significantly boosting performance in HPC workloads. Certified on HPEProLiant DL/DL Gen9 and Gen10 systems and Apollo Series platforms, the adapter is validated for deployment in both Ethernet and InfiniBand fabrics.

Advanced Options

Engineered for mission-critical cluster and SAN fabric applications, this adapter delivers enterprise-grade throughput and sub-microsecond latency in HDR mode. When operating in 100 Gb/s Ethernet mode, it achieves full line-rate performance with robust protocol support and offload acceleration.

Product Key Features

• Single 100 Gb port supporting HDR100 InfiniBand and 100 GbE Ethernet


• PCIe 3.0 ×16 form factor with low-profile or full-height bracket support


• QSFP56 connector; compatible with DAC and AOC cabling


• RDMA offloads, SR-IOV, VXLAN support, MPI tag matching acceleration


• Validated on HPEProLiant Gen10, Gen9, Apollo, and XL server platforms


• Supports both HDR and Ethernet deployment modes

---

Reliability & Performance

Thermal-efficient and PCIe-powered, it remains within typical server power allocation (around 25 W). The card's industrial-grade design and HPEvalidation guarantee compatibility across supported server generations and switching infrastructure. Refurbished units are OEM-tested, come with a 90-day warranty, and deliver dependable performance for demanding workloads.

Key Features :

• • 1 × 100 Gb/s QSFP56 port (HDR100 InfiniBand or 100 Gb Ethernet)

  • PCIe 3.0 ×16 adapter with low-profile/full-height bracket support

  • QSFP56 connector supporting DAC/AOC cables

  • Advanced offloads: RDMA, SR-IOV, MPI acceleration, VXLAN overlays

  • Compatible with HPEProLiant Gen9/Gen10 servers and Apollo / XL platforms

  • Interchangeable HDR vs Ethernet operation modes

Specification	Details
Model Number	P08356-001 (also P06250-B21)
Product Type	InfiniBand HDR100 / 100 GbE Network Adapter
Ports	1 × QSFP56
Bus Interface	PCIe 3.0 ×16
Peak Data Rate	100 Gb/s
Connectors & Cables	QSFP56 (supports AOC / DAC cables)
Protocol Support	HDR100 InfiniBand; 100GBase-X Ethernet mode
Offloads & Features	RDMA, MPI tag matching, SR-IOV, VXLAN
Server Compatibility	HPEProLiant DL360/380/560/580 Gen9/10; Apollo XL / ML series
Power Consumption	~25 W typical
Form Factor & Bracket Options	Low-profile or full-height PCIe card
Condition Options	New or Refurbished
Warranty	3-Year (new), 90-Day (refurbished)
