HPEE7Y06A

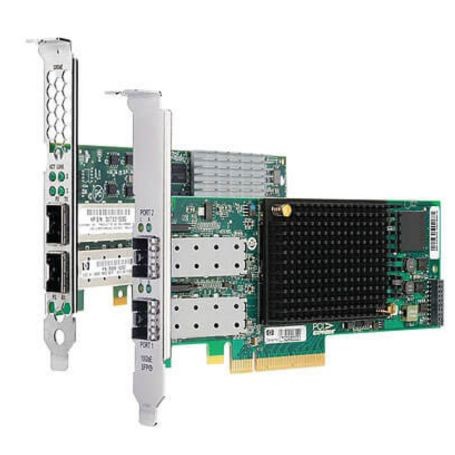

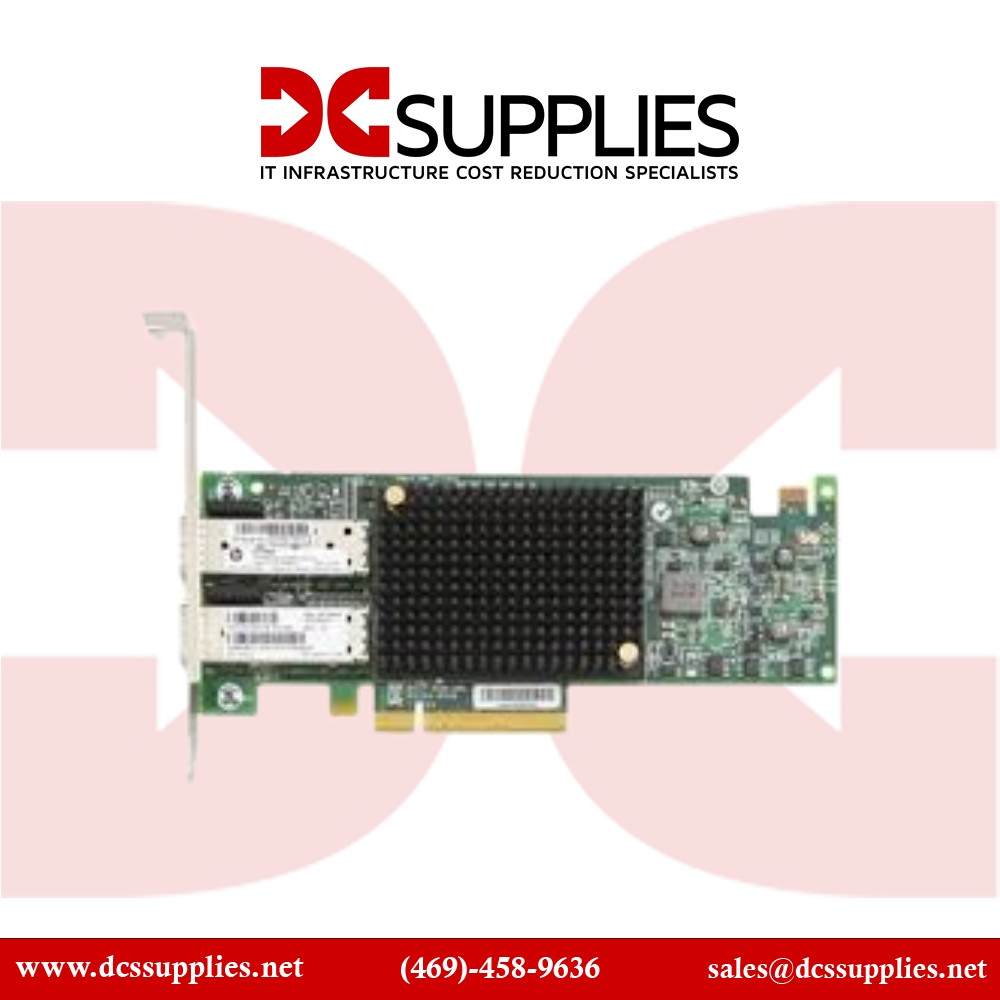

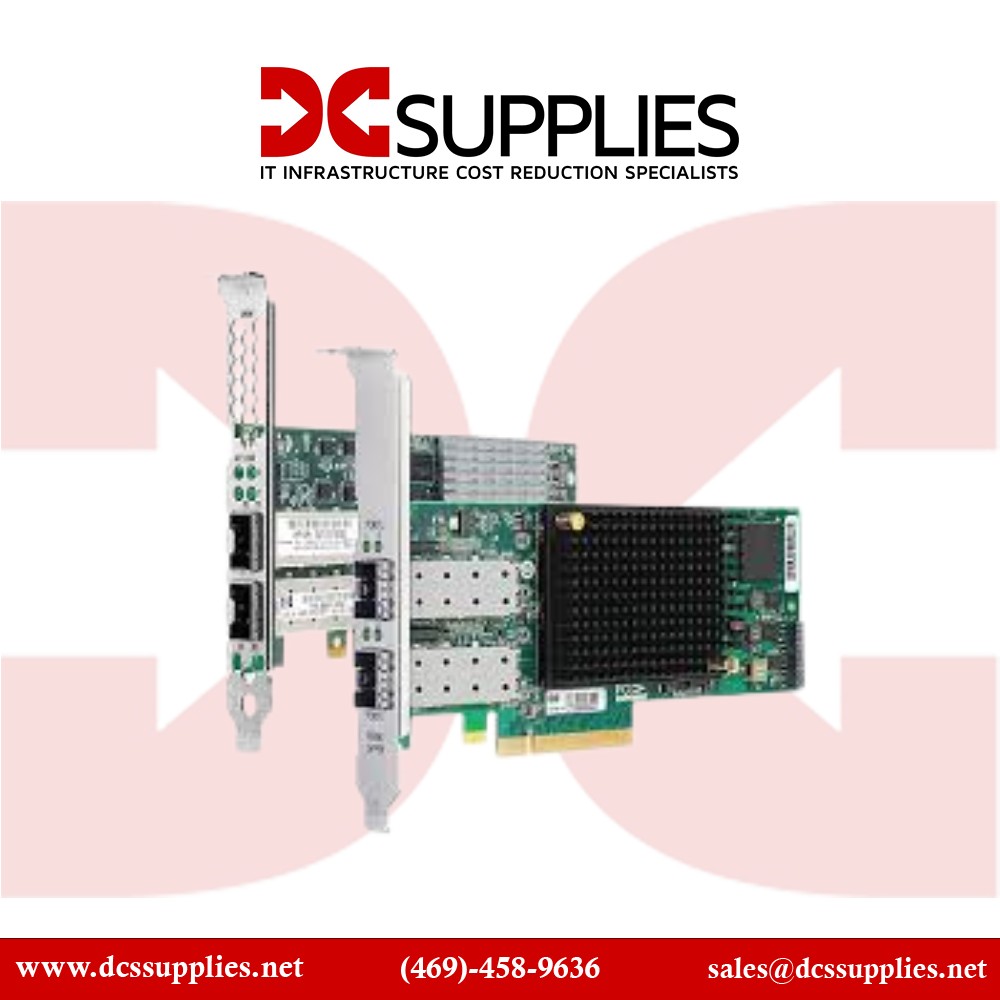

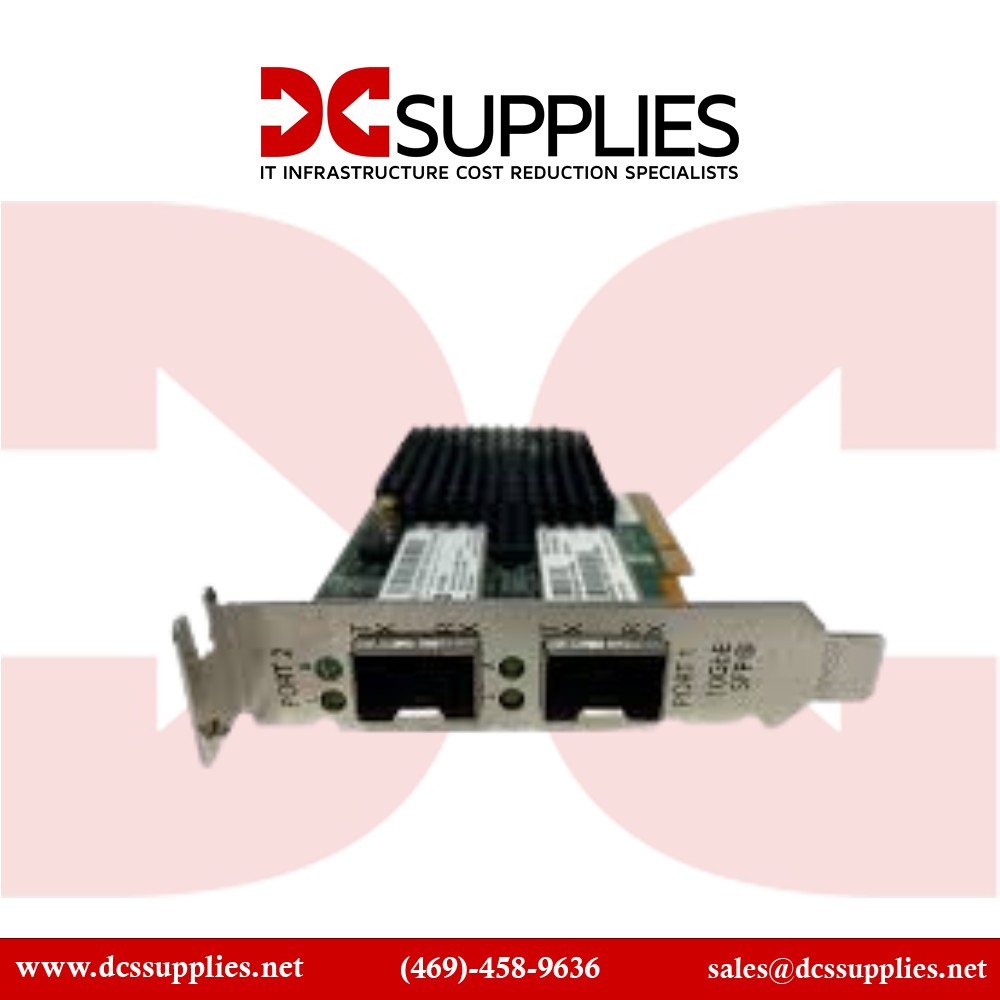

StoreFabric CN1200E Dual-Port 10 GbE Converged Network Adapter

The HPEE7Y06A StoreFabric CN1200E is a dual-port 10 Gigabit Converged Network Adapterdesigned to streamline data and storage networking in HPEProLiant servers. Supporting Ethernet, iSCSI, and Fibre Channel over Ethernet (FCoE), this adapter consolidates multiple network functions into a single card, reducing port count and simplifying cable management in data center environments. Tailored for virtualization, converged infrastructure, and high-performance storage applications, the CN1200E enables efficient throughput and lower latency while improving management flexibility.

Features

This PCIe 3.0 x8 plug-in card provides two independent 10 GbE SFP+ ports, compatible with either fiber transceivers or direct-attach copper. Leveraging Converged Enhanced Ethernet (CEE), it supports resilient FCoE and Ethernet traffic with lossless delivery and reduced network complexity

Advanced Options

Engineered for deployment with HPEProLiant Gen9 and Gen10 systems, the adapter is validated to deliver optimized storage and compute networking on platforms such as DL360, DL380, DL560, and DL580 The CN1200E adapter provides enterprise-grade reliability, combining high-bandwidth networking and storage protocols into a unified interface. Its support for FCoE and iSCSI simplifies infrastructure complexity and lowers power consumption by reducing adapter count and cabling requirements

Product Key Features

• Dual 10 GbE SFP+ ports supporting CEE and FCoE


• Converged support: Ethernet, iSCSI, and Fibre Channel traffic


• PCIe Gen3 x8 plug-in form factor


• Compatible with SR optical and DAC cabling


• Lossless Ethernet with CEE standards support

• Designed and validated for HPEProLiant Gen9/Gen10 servers

---

Reliability & Performance

While delivering consistent 10 GbE throughput per port, it complies with advanced CEE standards such as IEEE 802.1qbb (priority flow control), IEEE 802.1Qaz (Data Center Bridging), and DCBX for integration with compliant switches. Tested extensively with HPEToR switches and ProLiant servers, it ensures high data integrity and compatibility in FCoE environments

Key Features :

• • Dual-port 10 GbE (SFP+) adapter

  • Converged Ethernet including iSCSI and FCoE

  • PCI Express 3.0 x8 interface

  • Supports SR optics or DAC copper cables

  • Lossless Ethernet via CEE standards

  • Validated for ProLiant Gen9/Gen10 servers

Specification	Details
Model Number	E7Y06A
Product Type	Dual-Port 10 GbE Converged Network Adapter (CNA)
Ports	2 × 10 GbE SFP+
Host Interface	PCI Express 3.0 x8 Texas Instruments or Intel compatible
Supported Protocols	Ethernet, FCoE, iSCSI over Converged Enhanced Ethernet (CEE)
Cable Types	SFP+ SR optical transceivers or DAC copper
Throughput	10 Gbps per port
Lossless Ethernet Support	IEEE 802.1Qaz (ETS), IEEE 802.1Qbb (PFC), DCBX
Form Factor	Plug-in PCIe card (full or low-profile bracket included)
Compatibility	ProLiant DL/ML/XL Gen9 & Gen10 servers
Warranty	Up to 3 Years new; 1 Year for refurbished
Operating Temp / Humidity	0 °C to 45 °C; 15-80% non-condensing
Dimensions & Weight	~18.2 × 12.0 × 2.18 cm; ~24 oz (~680 g)
